#include "GA_API.h"
#include <UT/UT_ArrayHelp.h>
#include <UT/UT_Assert.h>
#include <SYS/SYS_Inline.h>
#include <SYS/SYS_Math.h>
#include <SYS/SYS_Types.h>

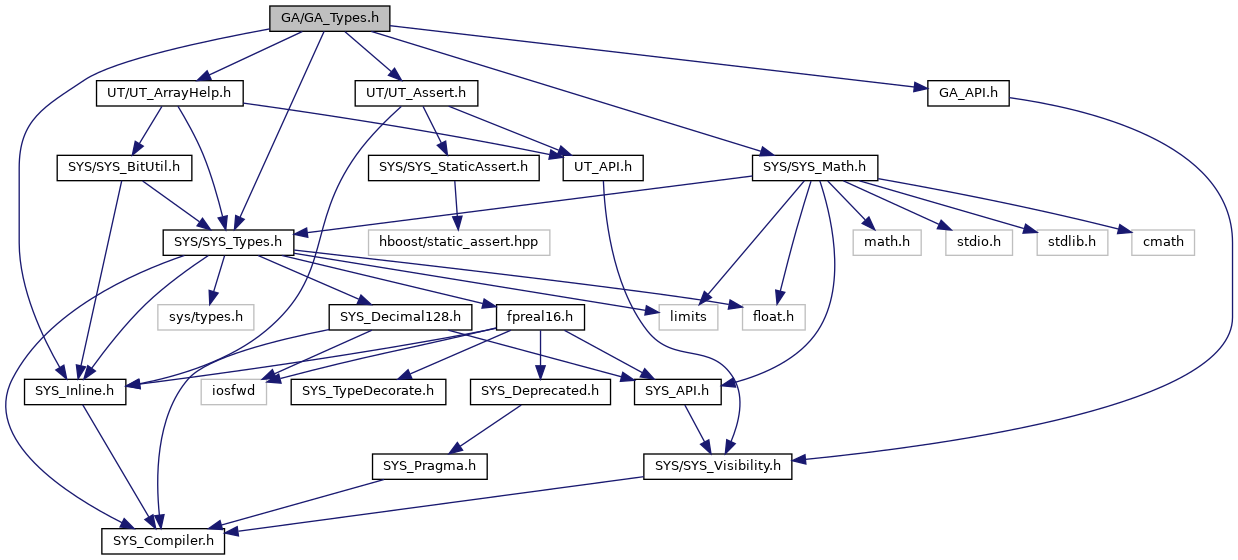

Include dependency graph for GA_Types.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UT_Array< T >

Macros
#define	__GA_Types__

#define	GA_MAX_ORDER 11

#define	GA_PAGE_BITS 10
	Attributes may paritition their data in pages of GA_PAGE_SIZE offsets. More...

#define	GA_PAGE_SIZE (1 << GA_PAGE_BITS)

#define	GA_PAGE_MASK (GA_PAGE_SIZE - 1)

#define	GA_DEFRAGMENT_OCCUPANCY 1.00

#define	GA_INVALID_INDEX GA_Index(-1)

#define	GA_INVALID_OFFSET GA_Offset(-1)

#define	GA_DETAIL_INDEX GA_Index(0)
	Details are always at index and offset zero in their own detail index map. More...

#define	GA_DETAIL_OFFSET GA_Offset(0)

#define	GA_INVALID_DATAID GA_DataId(-1)

Typedefs
typedef exint	GA_Size
	Defines the bit width for index and offset types in GA. More...

typedef GA_Size	GA_Index
	Define the strictness of GA_Offset/GA_Index. More...

typedef GA_Size	GA_Offset

typedef GA_Size	GA_PageNum

typedef GA_Size	GA_PageOff

typedef UT_Array< GA_Index >	GA_IndexArray

typedef UT_Array< GA_Offset >	GA_OffsetArray

typedef int64	GA_DataId

Enumerations
enum	GA_AttributeOwner { GA_ATTRIB_VERTEX, GA_ATTRIB_POINT, GA_ATTRIB_PRIMITIVE, GA_ATTRIB_GLOBAL, GA_ATTRIB_OWNER_N, GA_ATTRIB_DETAIL = GA_ATTRIB_GLOBAL, GA_ATTRIB_INVALID = -1 }

enum	GA_Storage { GA_STORE_INVALID =-1, GA_STORE_BOOL, GA_STORE_UINT8, GA_STORE_INT8, GA_STORE_INT16, GA_STORE_INT32, GA_STORE_INT64, GA_STORE_REAL16, GA_STORE_REAL32, GA_STORE_REAL64, GA_STORE_STRING, GA_STORE_DICT }

enum	GA_StorageClass { GA_STORECLASS_INVALID = -1, GA_STORECLASS_INT, GA_STORECLASS_REAL, GA_STORECLASS_FLOAT = GA_STORECLASS_REAL, GA_STORECLASS_STRING, GA_STORECLASS_DICT, GA_STORECLASS_OTHER }

enum	GA_Precision { GA_PRECISION_INVALID = -1, GA_PRECISION_1, GA_PRECISION_8, GA_PRECISION_16, GA_PRECISION_32, GA_PRECISION_64 }

enum	GA_TypeInfo { GA_TYPE_VOID = -1, GA_TYPE_POINT, GA_TYPE_HPOINT, GA_TYPE_VECTOR, GA_TYPE_NORMAL, GA_TYPE_COLOR, GA_TYPE_TRANSFORM, GA_TYPE_QUATERNION, GA_TYPE_INDEXPAIR, GA_TYPE_NONARITHMETIC_INTEGER, GA_TYPE_ARITHMETIC_INTEGER, GA_TYPE_TEXTURE_COORD }

enum	GA_AttributeScope { GA_SCOPE_INVALID = -1, GA_SCOPE_PUBLIC, GA_SCOPE_PRIVATE, GA_SCOPE_GROUP }

enum	GA_GroupType { GA_GROUP_INVALID = -1, GA_GROUP_POINT = 0, GA_GROUP_PRIMITIVE = 1, GA_GROUP_EDGE = 2, GA_GROUP_BREAKPOINT = 3, GA_GROUP_VERTEX = 4, GA_GROUP_N }
	An ordinal enum for the different types of groups in GA. More...

enum	GA_GroupMaskType { GA_GMASK_NONE = 0, GA_GMASK_POINT = 1 << GA_GROUP_POINT, GA_GMASK_PRIMITIVE = 1 << GA_GROUP_PRIMITIVE, GA_GMASK_EDGE = 1 << GA_GROUP_EDGE, GA_GMASK_BREAKPOINT = 1 << GA_GROUP_BREAKPOINT, GA_GMASK_VERTEX = 1 << GA_GROUP_VERTEX, GA_GMASK_FULL_MASK = ((1 << GA_GROUP_N)-1) }

enum	GA_KnotSpaceType { GA_KNOT_SPACE_UNIFORM, GA_KNOT_SPACE_AVERAGING }

enum	GA_ParameterizationType { GA_PARAMETERIZATION_UNIFORM, GA_PARAMETERIZATION_CHORD, GA_PARAMETERIZATION_CENTRIPETAL, GA_PARAMETERIZATION_APPROXARC, GA_PARAMETERIZATION_INVALID = -1 }

enum	GA_DataIdStrategy { GA_DATA_ID_BUMP = 0, GA_DATA_ID_CLONE = 1 }

Functions
GA_API size_t	format (char *buffer, size_t buffer_size, const GA_AttributeOwner &v)

GA_API size_t	format (char *buffer, size_t buffer_size, const GA_Storage &v)

GA_API size_t	format (char *buffer, size_t buffer_size, const GA_StorageClass &v)

GA_API size_t	format (char *buffer, size_t buffer_size, const GA_Precision &v)

GA_API size_t	format (char *buffer, size_t buffer_size, const GA_TypeInfo &v)

GA_API size_t	format (char *buffer, size_t buffer_size, const GA_AttributeScope &v)

GA_API size_t	format (char *buffer, size_t buffer_size, const GA_GroupType &v)

SYS_FORCE_INLINE bool	GAisValid (GA_Size v)

SYS_FORCE_INLINE GA_PageNum	GAgetPageNum (GA_Offset v)

SYS_FORCE_INLINE GA_PageOff	GAgetPageOff (GA_Offset v)

bool	GAisFullPage (GA_Offset start, GA_Offset end)

GA_Offset	GAgetPageBoundary (const GA_Offset &start, const GA_Offset &end)

GA_API unsigned	GAsizeof (GA_Storage store)
	Lookup the size in bytes of a storage type (inaccurate for bool) More...

GA_API int	GAcomparePrecision (GA_Storage a, GA_Storage b)

GA_API GA_Precision	GAprecision (GA_Storage a)
	Return the precision associated with the storage. More...

GA_API const char *	GAprecision (GA_Precision precision)
	Lookup the precision name from the precision. More...

GA_API GA_Precision	GAprecision (const char *precision)
	Lookup the precision type from the precision name. More...

GA_API int	GAprecisionBits (GA_Precision precision)
	Returns the nominal bits of provided precision, 0 for invalid. More...

GA_API const char *	GAowner (GA_AttributeOwner owner)
	Lookup the owner name from the owner type. More...

GA_API GA_AttributeOwner	GAowner (const char *owner)
	Lookup the owner type from the owner name. More...

GA_API const char *	GAscope (GA_AttributeScope scope)
	Lookup the scope name from the scope type. More...

GA_API GA_AttributeScope	GAscope (const char *scope)
	Lookup the scope type from the scope name. More...

GA_API const char *	GAstorage (GA_Storage store)
	Lookup the storage name from the storage type. More...

GA_API GA_Storage	GAstorage (const char *store)
	Lookup the storage type from the storage name. More...

GA_API const char *	GAstorageLabel (GA_Storage store)
	Lookup the storage label (descriptive name) from the storage type. More...

GA_API GA_Storage	GAstorageLabel (const char *store)
	Lookup the storage type from the storage label. More...

GA_API const char *	GAstorageClass (GA_StorageClass store)
	Lookup the storage name from the storage type. More...

GA_API GA_StorageClass	GAstorageClass (const char *store)
	Lookup the intrinsic storage type from the storage name. More...

GA_API const char *	GAtypeinfo (GA_TypeInfo type)
	Lookup the type-info name from the type-info type. More...

GA_API GA_TypeInfo	GAtypeinfo (const char *type)
	Lookup the type-info type from the type-info name. More...

GA_API const char *	GAtypeinfoLabel (GA_TypeInfo type)
	Lookup the type-info label (descriptive name) from the type-info type. More...

GA_API GA_TypeInfo	GAtypeinfoLabel (const char *type)
	Lookup the type-info type from the type-info label (descriptive name) More...

GA_API const char *	GAgroupType (GA_GroupType owner)
	Lookup the owner name from the owner type. More...

GA_API GA_GroupType	GAgroupType (const char *owner)
	Lookup the owner type from the owner name. More...

#define	GA_INVALID_INTRINSIC_HANDLE -1

typedef int	GA_LocalIntrinsic

typedef int	GA_GlobalIntrinsic

Macro Definition Documentation

#define __GA_Types__

Definition at line 14 of file GA_Types.h.

#define GA_DEFRAGMENT_OCCUPANCY 1.00

Definition at line 227 of file GA_Types.h.

#define GA_DETAIL_INDEX GA_Index(0)

Details are always at index and offset zero in their own detail index map.

Definition at line 690 of file GA_Types.h.

#define GA_DETAIL_OFFSET GA_Offset(0)

Definition at line 691 of file GA_Types.h.

#define GA_INVALID_DATAID GA_DataId(-1)

Definition at line 697 of file GA_Types.h.

#define GA_INVALID_INDEX GA_Index(-1)

Definition at line 686 of file GA_Types.h.

#define GA_INVALID_INTRINSIC_HANDLE -1

At the current time, intrinsic handles are an integer. This may change in the future.

Definition at line 705 of file GA_Types.h.

#define GA_INVALID_OFFSET GA_Offset(-1)

Examples:: field3d/f3d_io.C, SOP/SOP_SParticle.C, tetprim/GEO_PrimTetra.C, and tetprim/GEO_PrimTetra.h.

Definition at line 687 of file GA_Types.h.

#define GA_MAX_ORDER 11

Definition at line 187 of file GA_Types.h.

#define GA_PAGE_BITS 10

Attributes may paritition their data in pages of GA_PAGE_SIZE offsets.

Definition at line 224 of file GA_Types.h.

#define GA_PAGE_MASK (GA_PAGE_SIZE - 1)

Definition at line 226 of file GA_Types.h.

#define GA_PAGE_SIZE (1 << GA_PAGE_BITS)

Examples:: tetprim/GEO_PrimTetra.C.

Definition at line 225 of file GA_Types.h.

Typedef Documentation

typedef int64 GA_DataId

Definition at line 696 of file GA_Types.h.

typedef int GA_GlobalIntrinsic

At the current time, intrinsic handles are an integer. This may change in the future.

Definition at line 704 of file GA_Types.h.

typedef GA_Size GA_Index

Define the strictness of GA_Offset/GA_Index.

GA_Index is a contiguous index into an element in a GA_Detail structure. Since the list of elements can contain gaps, the index should be translated into a GA_Offset prior to lookup. The index remains constant if the element list is defragmented, but will be invalid if an element, prior to a given index, is inserted or deleted.

See Also: GA_Detail::pointOffset, GA_Detail::pointIndex,; GA_Detail::primitiveOffset, GA_Detail::primitiveIndex; GA_Detail::vertexOffset, GA_Detail::vertexIndex

Examples:: RAY/RAY_DemoSprite.C, SOP/SOP_CopRaster.C, SOP/SOP_PrimVOP.C, and SOP/SOP_Surface.C.

Definition at line 640 of file GA_Types.h.

typedef UT_Array<GA_Index> GA_IndexArray

Definition at line 693 of file GA_Types.h.

typedef int GA_LocalIntrinsic

At the current time, intrinsic handles are an integer. This may change in the future.

Definition at line 703 of file GA_Types.h.

typedef GA_Size GA_Offset

GA_Offset is a, possibly, non-contiguous offset to an element in a GA_Detail structure. GA_Offsets remain constant even if an element prior to it is deleted, but will be invalidated if an element is inserted prior to it, or if the element list is defragmented.

Examples:: euclid/SOP_Euclid.C, SOP/SOP_BrushHairLen.C, SOP/SOP_DetailAttrib.C, and tetprim/GEO_PrimTetra.C.

Definition at line 646 of file GA_Types.h.

typedef UT_Array<GA_Offset> GA_OffsetArray

Definition at line 694 of file GA_Types.h.

typedef GA_Size GA_PageNum

Definition at line 649 of file GA_Types.h.

typedef GA_Size GA_PageOff

Definition at line 650 of file GA_Types.h.

typedef exint GA_Size

Defines the bit width for index and offset types in GA.

Examples:: tetprim/GEO_PrimTetra.C.

Definition at line 236 of file GA_Types.h.

Enumeration Type Documentation

enum GA_AttributeOwner

The GA_AttributeOwner enum is used to differentiate between the different types of attribute arrays stored in a GA_Detail. The different classes represent

unique point attribute data (one per vertex on a primitive)
shared point attribute data (attributes shared multiple vertices)
per-primitive attribute data (one per primitive)
attribute data stored on the detail itself (single value)

Enumerator
GA_ATTRIB_VERTEX
GA_ATTRIB_POINT
GA_ATTRIB_PRIMITIVE
GA_ATTRIB_GLOBAL
GA_ATTRIB_OWNER_N
GA_ATTRIB_DETAIL
GA_ATTRIB_INVALID

Definition at line 35 of file GA_Types.h.

enum GA_AttributeScope

Scope qualifiers on attributes. Each valid scope has its own namespace, along with other consequences.

Enumerator
GA_SCOPE_INVALID	Data has no numeric representation.
GA_SCOPE_PUBLIC	Standard user attribute level.
GA_SCOPE_PRIVATE
GA_SCOPE_GROUP

Definition at line 143 of file GA_Types.h.

enum GA_DataIdStrategy

Strategies that may be used for attribute data IDs, usually when merging or copying attributes.

Note: Most functions with a parameter of this type typically treat it as a hint, and may ignore it when the requested strategy is not appropriate.

Enumerator
GA_DATA_ID_BUMP	The default strategy, where the caller does not have to explicitly worry about attribute data IDs.
GA_DATA_ID_CLONE	Attributes should inherit the data IDs from their corresponding source attribute. The caller will typically call GA_Attribute::bumpDataId() on any attributes that they later modify.

Definition at line 211 of file GA_Types.h.

enum GA_GroupMaskType

Currently SOP_Node::parseAllGroups takes a mask of different types of groups. This enum allows group types to be packed into a bit field.

Enumerator
GA_GMASK_NONE
GA_GMASK_POINT
GA_GMASK_PRIMITIVE
GA_GMASK_EDGE
GA_GMASK_BREAKPOINT
GA_GMASK_VERTEX
GA_GMASK_FULL_MASK

Definition at line 175 of file GA_Types.h.

enum GA_GroupType

An ordinal enum for the different types of groups in GA.

Enumerator
GA_GROUP_INVALID
GA_GROUP_POINT
GA_GROUP_PRIMITIVE
GA_GROUP_EDGE
GA_GROUP_BREAKPOINT
GA_GROUP_VERTEX
GA_GROUP_N

Definition at line 161 of file GA_Types.h.

enum GA_KnotSpaceType

Enumerator
GA_KNOT_SPACE_UNIFORM
GA_KNOT_SPACE_AVERAGING

Definition at line 190 of file GA_Types.h.

enum GA_ParameterizationType

Enumerator
GA_PARAMETERIZATION_UNIFORM
GA_PARAMETERIZATION_CHORD
GA_PARAMETERIZATION_CENTRIPETAL
GA_PARAMETERIZATION_APPROXARC
GA_PARAMETERIZATION_INVALID

Definition at line 197 of file GA_Types.h.

enum GA_Precision

If one only cares about precision, this can be used. Note that 8-bit reals do not exist so will instead refer to 16-bit.

Enumerator
GA_PRECISION_INVALID
GA_PRECISION_1
GA_PRECISION_8
GA_PRECISION_16
GA_PRECISION_32
GA_PRECISION_64

Definition at line 88 of file GA_Types.h.

enum GA_Storage

Attributes (and other data) may be stored with different precision and storage types.

Enumerator
GA_STORE_INVALID
GA_STORE_BOOL
GA_STORE_UINT8
GA_STORE_INT8
GA_STORE_INT16
GA_STORE_INT32
GA_STORE_INT64
GA_STORE_REAL16
GA_STORE_REAL32
GA_STORE_REAL64
GA_STORE_STRING
GA_STORE_DICT

Definition at line 51 of file GA_Types.h.

enum GA_StorageClass

Often one does not care about the precision. In this case the storage class gives a good idea which AIFs will be supported.

Enumerator
GA_STORECLASS_INVALID
GA_STORECLASS_INT
GA_STORECLASS_REAL
GA_STORECLASS_FLOAT
GA_STORECLASS_STRING
GA_STORECLASS_DICT
GA_STORECLASS_OTHER

Definition at line 73 of file GA_Types.h.

enum GA_TypeInfo

Type qualifiers on attributes. These qualifiers can help to interpret the data associated with an attribute, but are not required.

Enumerator
GA_TYPE_VOID	Data has no numeric representation.
GA_TYPE_POINT	Data represents a position in space. Token "point".
GA_TYPE_HPOINT	Data represents a position and homogeneous coordinate. The position is stored in non-homogeneous space (i.e. the w coordinate is not multiplied through). Token "hpoint"
GA_TYPE_VECTOR	Data represents a direction vector. Token "vector".
GA_TYPE_NORMAL	Data represents a normal vector. Token "normal".
GA_TYPE_COLOR	Data represents a color. Token "color".
GA_TYPE_TRANSFORM	Data represents a transform matrix. Token "matrix".
GA_TYPE_QUATERNION	Data represents a quaternion. Token "quaternion".
GA_TYPE_INDEXPAIR	Data represents an index-pair. Token "indexpair".
GA_TYPE_NONARITHMETIC_INTEGER	When a numeric attribute is created with integer storage, the attribute will be tagged as a non-arithmetic integer. This means that mathematical operations will not typically be performed (i.e. integer values will not be averaged). This works well for most cases of integers under Houdini.
GA_TYPE_ARITHMETIC_INTEGER	Arithmetic integers will be modified under arithmetic operations. Their values will be averaged etc. Note This is not the default behaviour for numeric attributes
GA_TYPE_TEXTURE_COORD	Data represents a coordinate in texture space, a.k.a. uv/uvw, but not a primitive uv/uvw.

Definition at line 101 of file GA_Types.h.

Function Documentation

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_AttributeOwner &	v
	)

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_Storage &	v
	)

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_StorageClass &	v
	)

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_Precision &	v
	)

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_TypeInfo &	v
	)

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_AttributeScope &	v
	)

GA_API size_t format	(	char *	buffer,
		size_t	buffer_size,
		const GA_GroupType &	v
	)

GA_API int GAcomparePrecision	(	GA_Storage	a,
		GA_Storage	b
	)

Compare precision of GA_Storage types. The function will return: -2 invalid comparison (i.e. comparing a string to a float) -1 if a is less precise than b 0 if a and be have the same precision 1 if a is more precise than b

GA_Offset GAgetPageBoundary	(	const GA_Offset &	start,
		const GA_Offset &	end
	)

inline

Definition at line 680 of file GA_Types.h.

SYS_FORCE_INLINE GA_PageNum GAgetPageNum ( GA_Offset v )

Definition at line 664 of file GA_Types.h.

SYS_FORCE_INLINE GA_PageOff GAgetPageOff ( GA_Offset v )

Definition at line 669 of file GA_Types.h.

GA_API const char* GAgroupType ( GA_GroupType owner )

Lookup the owner name from the owner type.

GA_API GA_GroupType GAgroupType ( const char * owner )

Lookup the owner type from the owner name.

bool GAisFullPage	(	GA_Offset	start,
		GA_Offset	end
	)

inline

Definition at line 673 of file GA_Types.h.

SYS_FORCE_INLINE bool GAisValid ( GA_Size v )

Examples:: field3d/f3d_io.C, SOP/SOP_BrushHairLen.C, and SOP/SOP_SParticle.C.

Definition at line 655 of file GA_Types.h.

GA_API const char* GAowner ( GA_AttributeOwner owner )

Lookup the owner name from the owner type.

GA_API GA_AttributeOwner GAowner ( const char * owner )

Lookup the owner type from the owner name.

GA_API GA_Precision GAprecision ( GA_Storage a )

Return the precision associated with the storage.

GA_API const char* GAprecision ( GA_Precision precision )

Lookup the precision name from the precision.

GA_API GA_Precision GAprecision ( const char * precision )

Lookup the precision type from the precision name.

GA_API int GAprecisionBits ( GA_Precision precision )

Returns the nominal bits of provided precision, 0 for invalid.

GA_API const char* GAscope ( GA_AttributeScope scope )

Lookup the scope name from the scope type.

GA_API GA_AttributeScope GAscope ( const char * scope )

Lookup the scope type from the scope name.

GA_API unsigned GAsizeof ( GA_Storage store )

Lookup the size in bytes of a storage type (inaccurate for bool)

GA_API const char* GAstorage ( GA_Storage store )

Lookup the storage name from the storage type.

GA_API GA_Storage GAstorage ( const char * store )

Lookup the storage type from the storage name.

GA_API const char* GAstorageClass ( GA_StorageClass store )

Lookup the storage name from the storage type.

GA_API GA_StorageClass GAstorageClass ( const char * store )

Lookup the intrinsic storage type from the storage name.

GA_API const char* GAstorageLabel ( GA_Storage store )

Lookup the storage label (descriptive name) from the storage type.

GA_API GA_Storage GAstorageLabel ( const char * store )

Lookup the storage type from the storage label.

GA_API const char* GAtypeinfo ( GA_TypeInfo type )

Lookup the type-info name from the type-info type.

GA_API GA_TypeInfo GAtypeinfo ( const char * type )

Lookup the type-info type from the type-info name.

GA_API const char* GAtypeinfoLabel ( GA_TypeInfo type )

Lookup the type-info label (descriptive name) from the type-info type.

GA_API GA_TypeInfo GAtypeinfoLabel ( const char * type )

Lookup the type-info type from the type-info label (descriptive name)

Classes

Macros

Typedefs

Enumerations

Functions

Macro Definition Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
