GEO_Normal.h File Reference

#include "GEO_API.h"
#include <GA/GA_Handle.h>
#include <stddef.h>

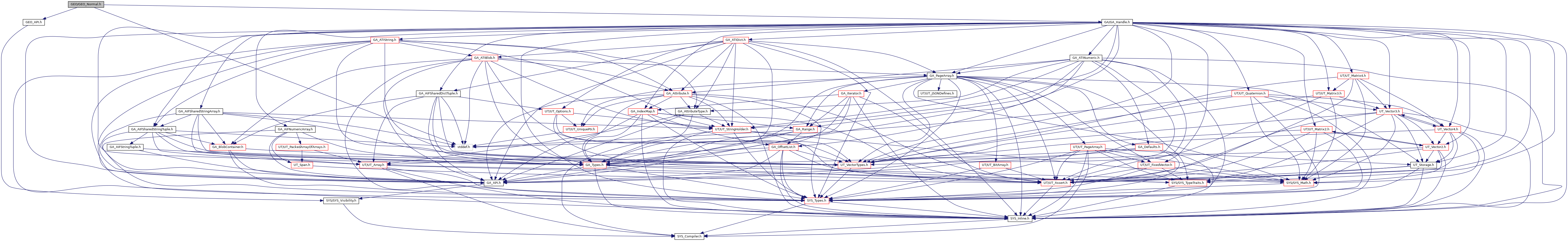

Include dependency graph for GEO_Normal.h:

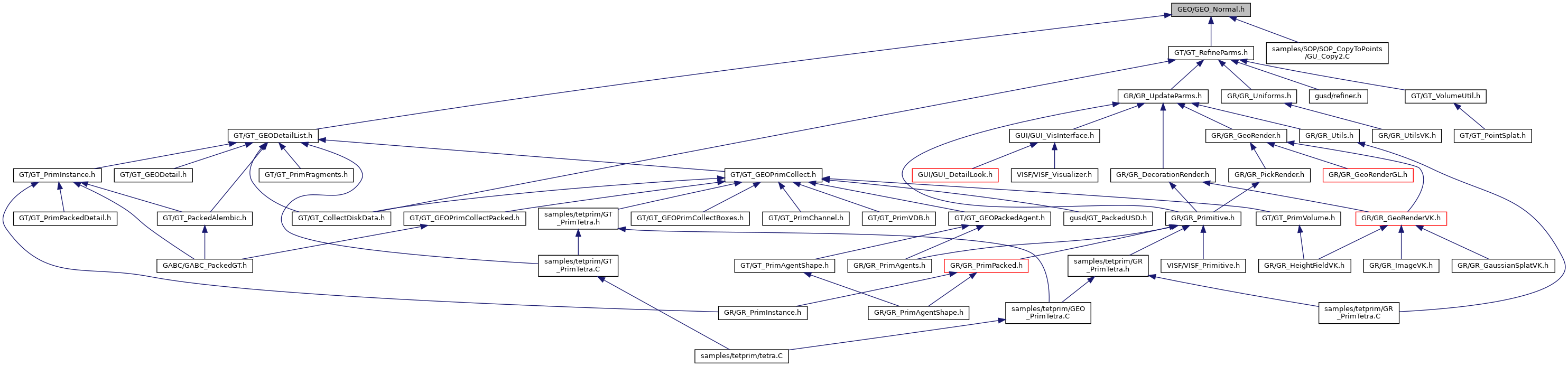

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	__GEO_Normal__
#define	GEO_DEFAULT_CUSP_ANGLE   60.0
#define	GEO_DEFAULT_ADJUSTED_CUSP_ANGLE   60.06

Enumerations
enum	GEO_NormalMethod { GEO_NormalMethod::UNIFORM_WEIGHTED, GEO_NormalMethod::ANGLE_WEIGHTED, GEO_NormalMethod::AREA_WEIGHTED }

Functions
void GEO_API	GEOcomputeNormals (const GEO_Detail &detail, const GA_RWHandleV3 &normalattrib, const GA_Group *group=NULL, const float cuspangledegrees=GEO_DEFAULT_ADJUSTED_CUSP_ANGLE, const GEO_NormalMethod method=GEO_NormalMethod::ANGLE_WEIGHTED, const bool copy_orig_if_zero=false)
void GEO_API	GEOcomputeNormals (const GEO_Detail &detail, const GA_RWHandleV3D &normalattrib, const GA_Group *group=NULL, const float cuspangledegrees=GEO_DEFAULT_ADJUSTED_CUSP_ANGLE, const GEO_NormalMethod method=GEO_NormalMethod::ANGLE_WEIGHTED, const bool copy_orig_if_zero=false)
void GEO_API	GEOcomputeNormals (const GEO_Detail &detail, GA_Attribute *normalattrib, const GA_Group *group=NULL, const float cuspangledegrees=GEO_DEFAULT_ADJUSTED_CUSP_ANGLE, const GEO_NormalMethod method=GEO_NormalMethod::ANGLE_WEIGHTED, const bool copy_orig_if_zero=false)
void GEO_API	GEOcomputeNormals (const GEO_Detail &detail, const GA_ROHandleV3 &posattrib, const GA_RWHandleV3 &normalattrib, const GA_Group *group=NULL, const float cuspangledegrees=GEO_DEFAULT_ADJUSTED_CUSP_ANGLE, const GEO_NormalMethod method=GEO_NormalMethod::ANGLE_WEIGHTED, const bool copy_orig_if_zero=false)
void GEO_API	GEOcomputeNormals (const GEO_Detail &detail, const GA_ROHandleV3D &posattrib, const GA_RWHandleV3D &normalattrib, const GA_Group *group=NULL, const float cuspangledegrees=GEO_DEFAULT_ADJUSTED_CUSP_ANGLE, const GEO_NormalMethod method=GEO_NormalMethod::ANGLE_WEIGHTED, const bool copy_orig_if_zero=false)

Macro Definition Documentation

#define __GEO_Normal__

Definition at line 14 of file GEO_Normal.h.

#define GEO_DEFAULT_ADJUSTED_CUSP_ANGLE   60.06

Magic tolerance factor of 1.001 on GEO_DEFAULT_CUSP_ANGLE so that hexagonal tubes will be smooth by default, even with a bit of roundoff or slight deformation.

Definition at line 28 of file GEO_Normal.h.

#define GEO_DEFAULT_CUSP_ANGLE   60.0

Definition at line 23 of file GEO_Normal.h.

Enumeration Type Documentation

enum GEO_NormalMethod

strong

This determines how contributions from multiple vertices around a point get weighted when computing a normal for that point.

Enumerator
UNIFORM_WEIGHTED
ANGLE_WEIGHTED
AREA_WEIGHTED

Definition at line 32 of file GEO_Normal.h.

Function Documentation

void GEO_API GEOcomputeNormals	(	const GEO_Detail &	detail,
		const GA_RWHandleV3 &	normalattrib,
		const GA_Group *	group = NULL,
		const float	cuspangledegrees = GEO_DEFAULT_ADJUSTED_CUSP_ANGLE,
		const GEO_NormalMethod	method = GEO_NormalMethod::ANGLE_WEIGHTED,
		const bool	copy_orig_if_zero = false
	)

Computes normals into given attribute using detail->getP(). If group is specified, only the associated elements are updated. If normalattrib is a detail attribute and group is given, it is only computed based on the primitives associated with the group. If vertex normals, a cusp angle of 0 or less cusps everything, and a cusp angle of 180 or more cusps nothing.

void GEO_API GEOcomputeNormals	(	const GEO_Detail &	detail,
		const GA_RWHandleV3D &	normalattrib,
		const GA_Group *	group = NULL,
		const float	cuspangledegrees = GEO_DEFAULT_ADJUSTED_CUSP_ANGLE,
		const GEO_NormalMethod	method = GEO_NormalMethod::ANGLE_WEIGHTED,
		const bool	copy_orig_if_zero = false
	)

void GEO_API GEOcomputeNormals	(	const GEO_Detail &	detail,
		GA_Attribute *	normalattrib,
		const GA_Group *	group = NULL,
		const float	cuspangledegrees = GEO_DEFAULT_ADJUSTED_CUSP_ANGLE,
		const GEO_NormalMethod	method = GEO_NormalMethod::ANGLE_WEIGHTED,
		const bool	copy_orig_if_zero = false
	)

void GEO_API GEOcomputeNormals	(	const GEO_Detail &	detail,
		const GA_ROHandleV3 &	posattrib,
		const GA_RWHandleV3 &	normalattrib,
		const GA_Group *	group = NULL,
		const float	cuspangledegrees = GEO_DEFAULT_ADJUSTED_CUSP_ANGLE,
		const GEO_NormalMethod	method = GEO_NormalMethod::ANGLE_WEIGHTED,
		const bool	copy_orig_if_zero = false
	)

Computes normals into given attribute using pos_attrib (owned by detail). If group is specified, only the associated elements are updated. If normalattrib is a detail attribute and group is given, it is only computed based on the primitives associated with the group. If vertex normals, a cusp angle of 0 or less cusps everything, and a cusp angle of 180 or more cusps nothing.

void GEO_API GEOcomputeNormals	(	const GEO_Detail &	detail,
		const GA_ROHandleV3D &	posattrib,
		const GA_RWHandleV3D &	normalattrib,
		const GA_Group *	group = NULL,
		const float	cuspangledegrees = GEO_DEFAULT_ADJUSTED_CUSP_ANGLE,
		const GEO_NormalMethod	method = GEO_NormalMethod::ANGLE_WEIGHTED,
		const bool	copy_orig_if_zero = false
	)
