GU_Cusp.h File Reference

#include "GU_API.h"
#include <GA/GA_Handle.h>
#include <SYS/SYS_Types.h>

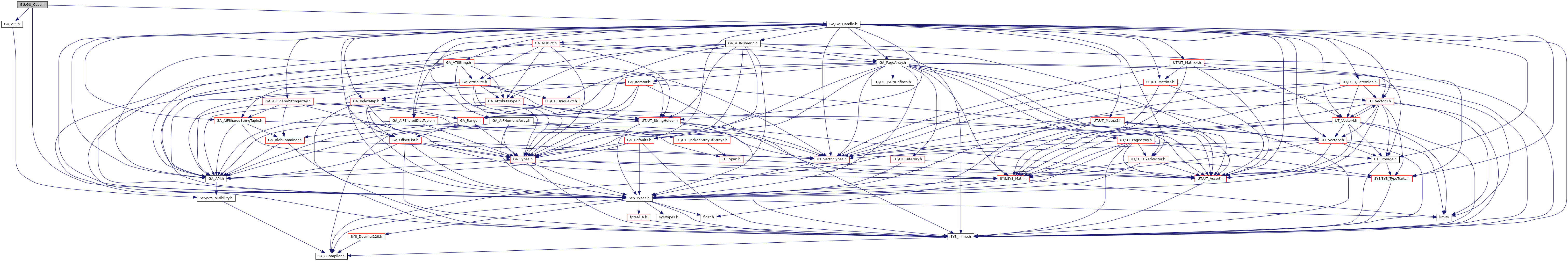

Include dependency graph for GU_Cusp.h:

Go to the source code of this file.

Enumerations
enum	GU_CuspFunction { GU_CUSP_ANY = 0, GU_CUSP_AVERAGE, GU_CUSP_MIN, GU_CUSP_MAX }
enum	GU_CuspMaskType { GU_CUSP_INCLUDE, GU_CUSP_EXCLUDE }

Functions
GU_API void	GUcusp (GU_Detail *gdp, const GA_EdgeGroup &edges, bool cut_boundaries=false, const GA_PrimitiveGroup *prims=0)
GU_API void	GUcusp (GU_Detail *gdp, const UT_Array< GEO_Hedge > &hedges, bool cut_boundaries=false, const GA_PrimitiveGroup *prims=0, const GEO_DetachedHedgeInterface *hip=0)
GU_API void	GUcusp (GU_Detail *gdp, const GA_VertexGroup *vtxs, bool cut_boundaries=false, const GA_PrimitiveGroup *prims=0, const GEO_DetachedHedgeInterface *hip=0)
GU_API void	GUcomputeVertexNormals (GU_Detail *gdp, GA_RWHandleV3 vnh, fpreal cusp_angle, GA_ROHandleV3 pnh=GA_ROHandleV3(nullptr), bool attrib_cusp=true, const GA_PrimitiveGroup *prims=nullptr, GA_VertexGroup *vtxs=nullptr, GA_EdgeGroup *always_cusp=nullptr, GA_EdgeGroup *never_cusp=nullptr, GEO_DetachedHedgeInterface *hip=nullptr, bool use_angle_weights=false)
template<class T >
GU_API UT_UniquePtr < UT_Classifier >	GUclassifyVertices (const GU_Detail *gdp, const GEO_DetachedHedgeInterface *dhip, const GA_PointGroup *pts, T &hedge_selector, const GA_PrimitiveGroup *prims, GA_PointGroup *nontrivial_ptgrp, GA_VertexGroup *runover_vtxgrp)
GU_API void	GUpointCusp (GU_Detail *gdp, const UT_Classifier *vtx_classes, const GA_PointGroup *pts=0, const GA_PrimitiveGroup *prims=0, const GA_VertexGroup *mask_classes=0, GU_CuspMaskType mask_type=GU_CUSP_INCLUDE)
GU_API void	GUattributeCusp (GU_Detail *gdp, const UT_Classifier *vtx_classes, GA_Attribute *attrib, GA_ROHandleF &wth, GU_CuspFunction cusp_fn=GU_CUSP_ANY, const GA_PrimitiveGroup *prims=0, const GA_VertexGroup *mask_classes=0, GU_CuspMaskType mask_type=GU_CUSP_INCLUDE)
GU_API void	GUattributeCusp (GU_Detail *gdp, const UT_Classifier *vtx_classes, GA_AttributeRefMap &refmap, GA_ROHandleF &wth, GU_CuspFunction cusp_fn=GU_CUSP_ANY, const GA_PrimitiveGroup *prims=0, const GA_VertexGroup *mask_classes=0, GU_CuspMaskType mask_type=GU_CUSP_INCLUDE)

Enumeration Type Documentation

enum GU_CuspFunction

Enumerator
GU_CUSP_ANY
GU_CUSP_AVERAGE
GU_CUSP_MIN
GU_CUSP_MAX

Definition at line 164 of file GU_Cusp.h.

enum GU_CuspMaskType

Enumerator
GU_CUSP_INCLUDE
GU_CUSP_EXCLUDE

Definition at line 172 of file GU_Cusp.h.

Function Documentation

GU_API void GUattributeCusp	(	GU_Detail *	gdp,
		const UT_Classifier *	vtx_classes,
		GA_Attribute *	attrib,
		GA_ROHandleF &	wth,
		GU_CuspFunction	cusp_fn = GU_CUSP_ANY,
		const GA_PrimitiveGroup *	prims = 0,
		const GA_VertexGroup *	mask_classes = 0,
		GU_CuspMaskType	mask_type = GU_CUSP_INCLUDE
	)

GU_API void GUattributeCusp	(	GU_Detail *	gdp,
		const UT_Classifier *	vtx_classes,
		GA_AttributeRefMap &	refmap,
		GA_ROHandleF &	wth,
		GU_CuspFunction	cusp_fn = GU_CUSP_ANY,
		const GA_PrimitiveGroup *	prims = 0,
		const GA_VertexGroup *	mask_classes = 0,
		GU_CuspMaskType	mask_type = GU_CUSP_INCLUDE
	)

template<class T >

GU_API UT_UniquePtr<UT_Classifier> GUclassifyVertices	(	const GU_Detail *	gdp,
		const GEO_DetachedHedgeInterface *	dhip,
		const GA_PointGroup *	pts,
		T &	hedge_selector,
		const GA_PrimitiveGroup *	prims,
		GA_PointGroup *	nontrivial_ptgrp,
		GA_VertexGroup *	runover_vtxgrp
	)

GU_API void GUcomputeVertexNormals	(	GU_Detail *	gdp,
		GA_RWHandleV3	vnh,
		fpreal	cusp_angle,
		GA_ROHandleV3	pnh = GA_ROHandleV3(nullptr),
		bool	attrib_cusp = true,
		const GA_PrimitiveGroup *	prims = nullptr,
		GA_VertexGroup *	vtxs = nullptr,
		GA_EdgeGroup *	always_cusp = nullptr,
		GA_EdgeGroup *	never_cusp = nullptr,
		GEO_DetachedHedgeInterface *	hip = nullptr,
		bool	use_angle_weights = false
	)

GU_API void GUcusp	(	GU_Detail *	gdp,
		const GA_EdgeGroup &	edges,
		bool	cut_boundaries = false,
		const GA_PrimitiveGroup *	prims = 0
	)

GU_API void GUcusp	(	GU_Detail *	gdp,
		const UT_Array< GEO_Hedge > &	hedges,
		bool	cut_boundaries = false,
		const GA_PrimitiveGroup *	prims = 0,
		const GEO_DetachedHedgeInterface *	hip = 0
	)

GU_API void GUcusp	(	GU_Detail *	gdp,
		const GA_VertexGroup *	vtxs,
		bool	cut_boundaries = false,
		const GA_PrimitiveGroup *	prims = 0,
		const GEO_DetachedHedgeInterface *	hip = 0
	)

GU_API void GUpointCusp	(	GU_Detail *	gdp,
		const UT_Classifier *	vtx_classes,
		const GA_PointGroup *	pts = 0,
		const GA_PrimitiveGroup *	prims = 0,
		const GA_VertexGroup *	mask_classes = 0,
		GU_CuspMaskType	mask_type = GU_CUSP_INCLUDE
	)
