VE_Instance.h File Reference

#include "VE_API.h"
#include "VE_PhysicalDevice.h"
#include "VE_Result.h"
#include <UT/UT_Array.h>
#include <UT/UT_ArrayStringSet.h>

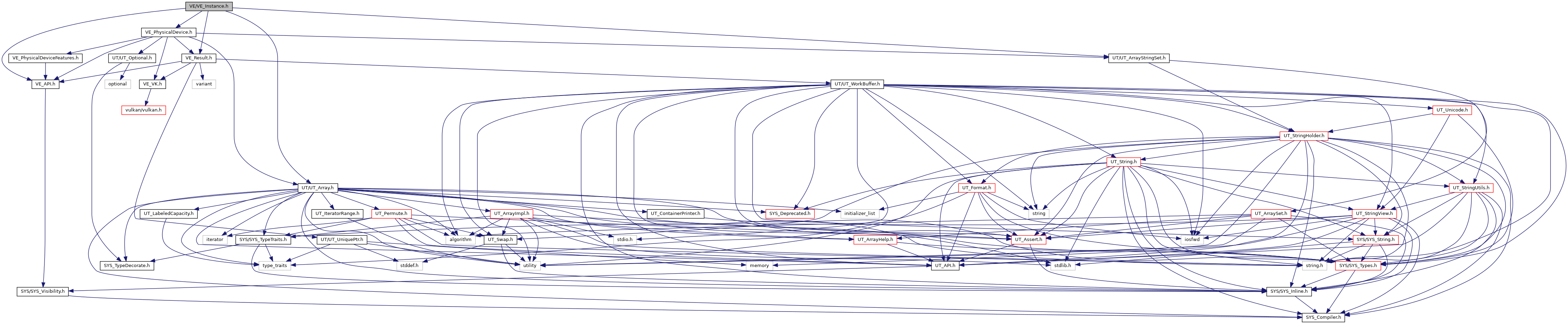

Include dependency graph for VE_Instance.h:

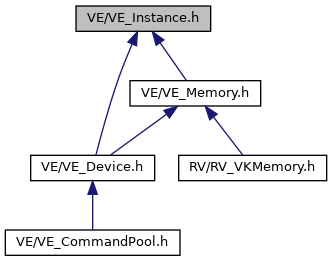

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	VE_Instance

Enumerations
enum	VE_VulkanAPIVersion { VE_VulkanAPIVersion::version_1_0, VE_VulkanAPIVersion::version_1_1, VE_VulkanAPIVersion::version_1_2, VE_VulkanAPIVersion::version_1_3 }
enum	VE_InstanceExtension {   VE_InstanceExtension::external_fence_capabilities = 0, VE_InstanceExtension::external_memory_capabilities, VE_InstanceExtension::external_semaphore_capabilities, VE_InstanceExtension::surface,   VE_InstanceExtension::win32_surface, VE_InstanceExtension::device_group_creation, VE_InstanceExtension::get_physical_device_properties2, VE_InstanceExtension::get_surface_capabilities2,   VE_InstanceExtension::debug_utils, VE_InstanceExtension::count }
enum	VE_InstanceLayer { VE_InstanceLayer::khronos_validation = 0, VE_InstanceLayer::renderdoc_capture, VE_InstanceLayer::count }

Functions
VE_API VE_Result< VkInstance >	VEcreateVulkanInstance (VE_VulkanAPIVersion version, uint32_t extension_count, const char *const extension_names[], uint32_t layer_count, const char *const layer_names[])
VE_API VE_Result< VkInstance >	VEcreateVulkanInstance (VE_VulkanAPIVersion version, uint32_t extension_count, VE_InstanceExtension extensions[], uint32_t layer_count, VE_InstanceLayer layers[])
VE_API VE_Result< VkInstance >	VEcreateVulkanInstance (VE_VulkanAPIVersion version, uint32_t extension_count, const char *const extension_names[])
VE_API bool	VEsupportsInstanceLayer (VE_InstanceLayer extension)
	Query Support of the Instance Layer in the Vulkan Instance. More...
VE_API bool	VEsupportsInstanceLayer (const char *extension)
VE_API bool	VEsupportsInstanceExtension (VE_InstanceExtension extension)
	Query Support of the Instance Extension in the Vulkan Instance. More...
VE_API bool	VEsupportsInstanceExtension (const char *extension)
VE_API void	VEdestroyVulkanInstance (VkInstance)
VE_API uint32_t	VEgetInstanceVersion ()

Enumeration Type Documentation

enum VE_InstanceExtension

strong

A enum of common instance extensions. These can be used in lieu of passing the names themselves into functions, making it a bit hard to make typos and a bit easier to remember what extensions exist.

To map from extension name to enum member, just remove the capitalized prefix from the the extension name. For example VK_KHR_external_fence_capabilities -> external_fence_capabilities

Enumerator
external_fence_capabilities
external_memory_capabilities
external_semaphore_capabilities
surface
win32_surface
device_group_creation
get_physical_device_properties2
get_surface_capabilities2
debug_utils
count

Definition at line 37 of file VE_Instance.h.

enum VE_InstanceLayer

strong

A enum of common instance layers. These can be used in lieu of passing the names themselves into functions, making it a bit hard to make typos and a bit easier to remember what layers exist.

To map from layer name to enum member, just remove the VK_LAYER prefix from the the layer name and lower case the rest. For example: VK_LAYER_LUNARG_standard_validation -> lunarg_standard_validation

Enumerator
khronos_validation
renderdoc_capture
count

Definition at line 59 of file VE_Instance.h.

enum VE_VulkanAPIVersion

strong

Enumerator
version_1_0
version_1_1
version_1_2
version_1_3

Definition at line 21 of file VE_Instance.h.

Function Documentation

VE_API VE_Result<VkInstance> VEcreateVulkanInstance	(	VE_VulkanAPIVersion	version,
		uint32_t	extension_count,
		const char *const	extension_names[],
		uint32_t	layer_count,
		const char *const	layer_names[]
	)

NOTE: These are low-level calls and it is recommended to use a higher-level interface to Vulkan if possible.

Create a Vulkan instance object, which is the primary handle into the Vulkan loader. The instance object is mainly used to query for and inspect available system drivers and physical devices, and create VkDevice objects from particular physical devices.

It is the caller's responsibily to pass the returned VkInstance to ve_destroyVulkanInstance once it is no longer needed.

VE_API VE_Result<VkInstance> VEcreateVulkanInstance	(	VE_VulkanAPIVersion	version,
		uint32_t	extension_count,
		VE_InstanceExtension	extensions[],
		uint32_t	layer_count,
		VE_InstanceLayer	layers[]
	)

VE_API VE_Result<VkInstance> VEcreateVulkanInstance	(	VE_VulkanAPIVersion	version,
		uint32_t	extension_count,
		const char *const	extension_names[]
	)

This version of the call will automatically enabled the validation layers in debug mode.

VE_API void VEdestroyVulkanInstance

(

VkInstance

)

Clean up the instance resource. This likely will simply call vkDestroyInstance.

VE_API uint32_t VEgetInstanceVersion

(

)

Return the Vulkan major, minor, and patch version bit-crammed into the unsigned int.

VE_API bool VEsupportsInstanceExtension

(

VE_InstanceExtension

extension

)

Query Support of the Instance Extension in the Vulkan Instance.

VE_API bool VEsupportsInstanceExtension

(

const char *

extension

)

VE_API bool VEsupportsInstanceLayer

(

VE_InstanceLayer

extension

)

Query Support of the Instance Layer in the Vulkan Instance.

VE_API bool VEsupportsInstanceLayer

(

const char *

extension

)
