#include <bufferSource.h>

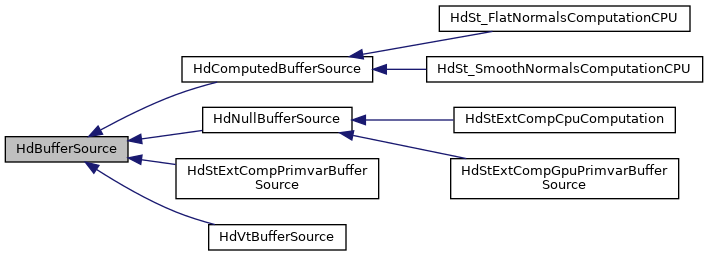

Inheritance diagram for HdBufferSource:

Public Member Functions
	HdBufferSource ()

virtual HD_API	~HdBufferSource ()

virtual TfToken const &	GetName () const =0
	Return the name of this buffer source. More...

virtual void	GetBufferSpecs (HdBufferSpecVector *specs) const =0

virtual HD_API size_t	ComputeHash () const
	Computes and returns a hash value for the underlying data. More...

virtual bool	Resolve ()=0

virtual void const *	GetData () const =0
	Following interfaces will be called after Resolve. More...

virtual HdTupleType	GetTupleType () const =0
	Returns the data type and count (array size) for this buffer source. More...

virtual size_t	GetNumElements () const =0

bool	IsResolved () const
	Returns true it this computation has already been resolved. More...

bool	HasResolveError () const
	Returns true if an error occurred during resolve. More...

HD_API bool	IsValid () const

Chained Buffers
Buffer sources may be daisy-chained together. Pre-chained buffer sources typically represent sources that are inputs to computed buffer sources (e.g. coarse vertex privmar data needing to be quadrangulated or refined) and will be scheduled to be resolved along with their owning buffer sources. Post-chained buffer sources typically represent additional results produced by a computation (e.g. primitive param data computed along with index buffer data) and will be scheduled to be committed along with their owning buffer sources.
virtual HD_API bool	HasPreChainedBuffer () const
	Returns true if this buffer has a pre-chained buffer. More...

virtual HD_API HdBufferSourceSharedPtr	GetPreChainedBuffer () const
	Returns the pre-chained buffer. More...

virtual HD_API bool	HasChainedBuffer () const
	Returns true if this buffer has any chained buffer(s) More...

virtual HD_API HdBufferSourceSharedPtrVector	GetChainedBuffers () const
	Returns the vector of chained buffers. More...

Protected Member Functions
void	_SetResolved ()

void	_SetResolveError ()

bool	_TryLock ()

virtual bool	_CheckValid () const =0

Detailed Description

A transient buffer of data that has not yet been committed.

HdBufferSource is an abstract interface class, to be registered to the resource registry with the buffer array range that specifies the destination resource.

Definition at line 55 of file bufferSource.h.

Constructor & Destructor Documentation

HdBufferSource::HdBufferSource ( )

inline

Definition at line 58 of file bufferSource.h.

virtual HD_API HdBufferSource::~HdBufferSource ( )

virtual

Member Function Documentation

virtual bool HdBufferSource::_CheckValid ( ) const

protectedpure virtual

Checks the validity of the source buffer. This function is called by IsValid() to do the real checking.

Should only be implemented in classes at leafs of the class hierarchy (Please place common validation code in a new non-virtual method)

This code should return false:

If the buffer would produce an invalid BufferSpec
If a required dependent buffer is invalid For example, return false when: The data type is invalid, causing an invalid BufferSpec.

The resolve step requires a 'source' buffer and that buffer is invalid.

If returning false, the buffer will not be registered with the resource registry. AddBufferSpec and Resolve will not be called

Implemented in HdVtBufferSource, HdStExtCompCpuComputation, HdStExtCompPrimvarBufferSource, HdStExtCompGpuPrimvarBufferSource, HdSt_SmoothNormalsComputationCPU, and HdSt_FlatNormalsComputationCPU.

void HdBufferSource::_SetResolved ( )

inlineprotected

Marks this buffer source as resolved. It has to be called at the end of Resolve on concrete implementations.

Definition at line 149 of file bufferSource.h.

void HdBufferSource::_SetResolveError ( )

inlineprotected

Called during Resolve() to indicate an unrecoverable failure occurred and the results of the computation can not be used. Further calls to Resolve() will not lead to success.

This is different from Resolve() returning false, which indicates that additional calls to Resolve() will eventually lead to success.

This is also later in the pipeline than IsValid, which checks that the buffer is setup such that Resolve() can be successful.

Definition at line 163 of file bufferSource.h.

bool HdBufferSource::_TryLock ( )

inlineprotected

Non-blocking lock acquisition. If no one else is resolving this buffer source, returns true. In that case the caller needs to call _SetResolved at the end of computation. It returns false if anyone else has already acquired lock.

Definition at line 173 of file bufferSource.h.

virtual HD_API size_t HdBufferSource::ComputeHash ( ) const

virtual

Computes and returns a hash value for the underlying data.

Reimplemented in HdNullBufferSource, HdComputedBufferSource, HdStExtCompPrimvarBufferSource, and HdStExtCompGpuPrimvarBufferSource.

virtual void HdBufferSource::GetBufferSpecs ( HdBufferSpecVector * specs ) const

pure virtual

Add the buffer spec for this buffer source into given bufferspec vector. note: buffer specs has to be determined before the source resolution.

Implemented in HdNullBufferSource, HdVtBufferSource, HdStExtCompPrimvarBufferSource, HdStExtCompGpuPrimvarBufferSource, HdSt_SmoothNormalsComputationCPU, and HdSt_FlatNormalsComputationCPU.

virtual HD_API HdBufferSourceSharedPtrVector HdBufferSource::GetChainedBuffers ( ) const

virtual

Returns the vector of chained buffers.

virtual void const* HdBufferSource::GetData ( ) const

pure virtual

Following interfaces will be called after Resolve.

Returns the raw pointer to the underlying data.

Implemented in HdNullBufferSource, HdComputedBufferSource, HdVtBufferSource, and HdStExtCompPrimvarBufferSource.

virtual TfToken const& HdBufferSource::GetName ( ) const

pure virtual

Return the name of this buffer source.

Implemented in HdNullBufferSource, HdComputedBufferSource, HdVtBufferSource, HdStExtCompCpuComputation, HdStExtCompPrimvarBufferSource, HdSt_SmoothNormalsComputationCPU, HdSt_FlatNormalsComputationCPU, and HdStExtCompGpuPrimvarBufferSource.

virtual size_t HdBufferSource::GetNumElements ( ) const

pure virtual

Returns the number of elements (e.g. VtVec3dArray().GetLength()) from the source array.

Implemented in HdNullBufferSource, HdComputedBufferSource, HdVtBufferSource, HdStExtCompCpuComputation, HdStExtCompPrimvarBufferSource, and HdStExtCompGpuPrimvarBufferSource.

virtual HD_API HdBufferSourceSharedPtr HdBufferSource::GetPreChainedBuffer ( ) const

virtual

Returns the pre-chained buffer.

virtual HdTupleType HdBufferSource::GetTupleType ( ) const

pure virtual

Returns the data type and count (array size) for this buffer source.

Implemented in HdNullBufferSource, HdComputedBufferSource, HdVtBufferSource, HdStExtCompPrimvarBufferSource, and HdStExtCompGpuPrimvarBufferSource.

virtual HD_API bool HdBufferSource::HasChainedBuffer ( ) const

virtual

Returns true if this buffer has any chained buffer(s)

virtual HD_API bool HdBufferSource::HasPreChainedBuffer ( ) const

virtual

Returns true if this buffer has a pre-chained buffer.

bool HdBufferSource::HasResolveError ( ) const

inline

Returns true if an error occurred during resolve.

Definition at line 102 of file bufferSource.h.

bool HdBufferSource::IsResolved ( ) const

inline

Returns true it this computation has already been resolved.

Definition at line 97 of file bufferSource.h.

HD_API bool HdBufferSource::IsValid ( ) const

Checks the validity of the source buffer. The function should be called to determine if AddBufferSpec() and Resolve() would return valid results.

virtual bool HdBufferSource::Resolve ( )

pure virtual

Prepare the access of GetData(). This process may include some computations (e.g. cpu smooth normals). Note: Resolve may be called in parallel from multiple threads across buffer sources, so be careful if it uses static/shared states among objects. Returns true if it resolved. If the buffer source has to wait some results of other buffer sources, or the buffer source is being resolved by other threads, it returns false.

Implemented in HdVtBufferSource, HdStExtCompCpuComputation, HdStExtCompPrimvarBufferSource, HdSt_SmoothNormalsComputationCPU, HdSt_FlatNormalsComputationCPU, and HdStExtCompGpuPrimvarBufferSource.

The documentation for this class was generated from the following file:

pxr/imaging/hd/bufferSource.h
