HdSceneIndexObserver Class Reference

#include <sceneIndexObserver.h>

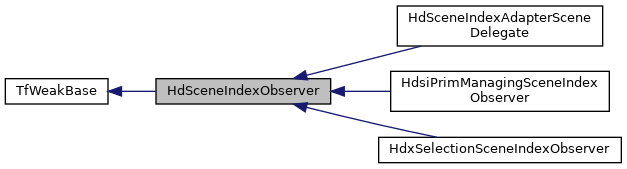

Inheritance diagram for HdSceneIndexObserver:

Classes
struct	AddedPrimEntry
struct	DirtiedPrimEntry
struct	RemovedPrimEntry
struct	RenamedPrimEntry

Public Types
using	AddedPrimEntries = TfSmallVector< AddedPrimEntry, 16 >
using	RemovedPrimEntries = TfSmallVector< RemovedPrimEntry, 16 >
using	DirtiedPrimEntries = TfSmallVector< DirtiedPrimEntry, 16 >
using	RenamedPrimEntries = TfSmallVector< RenamedPrimEntry, 16 >

Public Member Functions
virtual HD_API	~HdSceneIndexObserver ()
virtual HD_API void	PrimsAdded (const HdSceneIndexBase &sender, const AddedPrimEntries &entries)=0
virtual HD_API void	PrimsRemoved (const HdSceneIndexBase &sender, const RemovedPrimEntries &entries)=0
virtual HD_API void	PrimsDirtied (const HdSceneIndexBase &sender, const DirtiedPrimEntries &entries)=0
virtual HD_API void	PrimsRenamed (const HdSceneIndexBase &sender, const RenamedPrimEntries &entries)=0
Public Member Functions inherited from TfWeakBase
	TfWeakBase ()
	TfWeakBase (const TfWeakBase &)
const TfWeakBase &	__GetTfWeakBase__ () const
const TfWeakBase &	operator= (const TfWeakBase &)
void	EnableNotification2 () const
TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static HD_API void	ConvertPrimsRenamedToRemovedAndAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &renamedEntries, HdSceneIndexObserver::RemovedPrimEntries *outputRemovedEntries, HdSceneIndexObserver::AddedPrimEntries *outputAddedEntries)
static HD_API void	ConvertPrimsRenamedToRemovedAndAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &renamedEntries, HdSceneIndexObserver *observer)

Additional Inherited Members
Protected Member Functions inherited from TfWeakBase
	~TfWeakBase ()
TfRefPtr< Tf_Remnant >	_Register () const
template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const
bool	_HasRemnant () const

Detailed Description

Observer of scene data. From the time an observer is registered with a scene index, the scene index will send it diffs as the scene changes.

Definition at line 48 of file sceneIndexObserver.h.

Member Typedef Documentation

using HdSceneIndexObserver::AddedPrimEntries = TfSmallVector<AddedPrimEntry, 16>

Definition at line 70 of file sceneIndexObserver.h.

using HdSceneIndexObserver::DirtiedPrimEntries = TfSmallVector<DirtiedPrimEntry, 16>

Definition at line 108 of file sceneIndexObserver.h.

using HdSceneIndexObserver::RemovedPrimEntries = TfSmallVector<RemovedPrimEntry, 16>

Definition at line 86 of file sceneIndexObserver.h.

using HdSceneIndexObserver::RenamedPrimEntries = TfSmallVector<RenamedPrimEntry, 16>

Definition at line 126 of file sceneIndexObserver.h.

Constructor & Destructor Documentation

virtual HD_API HdSceneIndexObserver::~HdSceneIndexObserver ( )

virtual

Member Function Documentation

static HD_API void HdSceneIndexObserver::ConvertPrimsRenamedToRemovedAndAdded ( const HdSceneIndexBase &  sender, const HdSceneIndexObserver::RenamedPrimEntries &  renamedEntries, HdSceneIndexObserver::RemovedPrimEntries *  outputRemovedEntries, HdSceneIndexObserver::AddedPrimEntries *  outputAddedEntries  )

static

A utility for converting prims renamed messages into equivalent removed and added notices.

static HD_API void HdSceneIndexObserver::ConvertPrimsRenamedToRemovedAndAdded ( const HdSceneIndexBase &  sender, const HdSceneIndexObserver::RenamedPrimEntries &  renamedEntries, HdSceneIndexObserver *  observer  )

static

A utility for converting prims renamed messages into equivalent removed and added notices at the observer level

virtual HD_API void HdSceneIndexObserver::PrimsAdded ( const HdSceneIndexBase &  sender, const AddedPrimEntries &  entries  )

pure virtual

A notification indicating prims have been added to the scene. The set of scene prims compiled from added/removed notices should match the set from a traversal based on sender.GetChildPrimNames. Each prim has a path and type. It's possible for PrimsAdded to be called for prims that already exist; in that case, observers should be sure to update the prim type, in case it changed, and resync the prim. This function is not expected to be threadsafe.

Implemented in HdsiPrimManagingSceneIndexObserver, HdSceneIndexAdapterSceneDelegate, and HdxSelectionSceneIndexObserver.

virtual HD_API void HdSceneIndexObserver::PrimsDirtied ( const HdSceneIndexBase &  sender, const DirtiedPrimEntries &  entries  )

pure virtual

A notification indicating prim datasources have been invalidated. This message is not considered hierarchical on primPath; if /Path is dirtied, /Path/child is not necessarily dirtied. However datasource locators are considered hierarchical: if primvars is dirtied on a prim, primvars/color is considered dirtied as well. This function is not expected to be threadsafe.

Implemented in HdsiPrimManagingSceneIndexObserver, HdSceneIndexAdapterSceneDelegate, and HdxSelectionSceneIndexObserver.

virtual HD_API void HdSceneIndexObserver::PrimsRemoved ( const HdSceneIndexBase &  sender, const RemovedPrimEntries &  entries  )

pure virtual

A notification indicating prims have been removed from the scene. Note that this message is considered hierarchical; if /Path is removed, /Path/child is considered removed as well. This function is not expected to be threadsafe.

Implemented in HdsiPrimManagingSceneIndexObserver, HdxSelectionSceneIndexObserver, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API void HdSceneIndexObserver::PrimsRenamed ( const HdSceneIndexBase &  sender, const RenamedPrimEntries &  entries  )

pure virtual

A notification indicating prims (and their descendants) have been renamed or reparented. This function is not expected to be threadsafe.

Implemented in HdsiPrimManagingSceneIndexObserver, HdSceneIndexAdapterSceneDelegate, and HdxSelectionSceneIndexObserver.

---

The documentation for this class was generated from the following file:

• pxr/imaging/hd/sceneIndexObserver.h
