OP_NodeVerb Class Reference

#include <OP_NodeVerb.h>

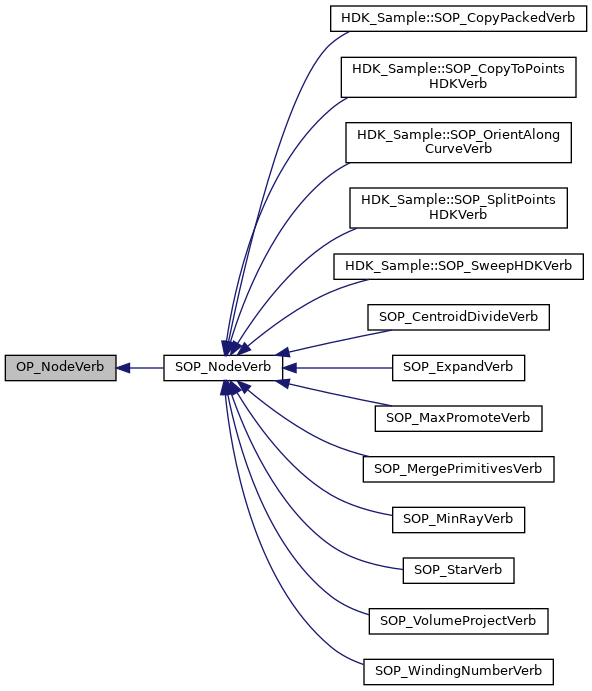

Inheritance diagram for OP_NodeVerb:

Classes
class	Register

Public Member Functions
	OP_NodeVerb ()
virtual	~OP_NodeVerb ()
	OP_NodeVerb (const OP_NodeVerb &)=delete
OP_NodeVerb &	operator= (const OP_NodeVerb &)=delete
virtual OP_NodeCache *	baseAllocCache () const
virtual OP_NodeParms *	baseAllocParms () const =0
virtual UT_StringHolder	name () const =0
virtual OP_OpTypeId	category () const =0

Static Public Member Functions
static const OP_NodeVerb *	lookupCategoryVerb (OP_OpTypeId cat, const UT_StringRef &name)
	Finds a verb which matches the given name. More...
static void	listCategoryVerbs (OP_OpTypeId cat, UT_StringArray &verbnames)
static void	registerVerb (OP_NodeVerb *verb)
static void	unregisterVerb (OP_NodeVerb *verb)

Detailed Description

OP_NodeVerb

This should be a singleton class. Build it with the Register template to allow it to be discoverable by name.

Definition at line 33 of file OP_NodeVerb.h.

Constructor & Destructor Documentation

OP_NodeVerb::OP_NodeVerb ( )

inline

Definition at line 36 of file OP_NodeVerb.h.

virtual OP_NodeVerb::~OP_NodeVerb ( )

inlinevirtual

Definition at line 37 of file OP_NodeVerb.h.

OP_NodeVerb::OP_NodeVerb ( const OP_NodeVerb &  )

delete

Member Function Documentation

virtual OP_NodeCache* OP_NodeVerb::baseAllocCache ( ) const

inlinevirtual

When working with a specific category one will use allocCache and allocParms, which these should chain to in the category baseclass.

Reimplemented in SOP_NodeVerb.

Definition at line 68 of file OP_NodeVerb.h.

virtual OP_NodeParms* OP_NodeVerb::baseAllocParms ( ) const

pure virtual

Implemented in SOP_NodeVerb.

virtual OP_OpTypeId OP_NodeVerb::category ( ) const

pure virtual

Implemented in SOP_NodeVerb.

static void OP_NodeVerb::listCategoryVerbs ( OP_OpTypeId  cat, UT_StringArray &  verbnames  )

static

static const OP_NodeVerb* OP_NodeVerb::lookupCategoryVerb ( OP_OpTypeId  cat, const UT_StringRef &  name  )

static

Finds a verb which matches the given name.

virtual UT_StringHolder OP_NodeVerb::name ( ) const

pure virtual

Implemented in HDK_Sample::SOP_SweepHDKVerb, SOP_WindingNumberVerb, SOP_VolumeProjectVerb, SOP_StarVerb, HDK_Sample::SOP_CopyPackedVerb, HDK_Sample::SOP_CopyToPointsHDKVerb, HDK_Sample::SOP_OrientAlongCurveVerb, and HDK_Sample::SOP_SplitPointsHDKVerb.

OP_NodeVerb& OP_NodeVerb::operator= ( const OP_NodeVerb &  )

delete

static void OP_NodeVerb::registerVerb ( OP_NodeVerb *  verb )

static

static void OP_NodeVerb::unregisterVerb ( OP_NodeVerb *  verb )

static

---

The documentation for this class was generated from the following file:

• OP/OP_NodeVerb.h
