Public Member Functions | Static Public Member Functions | Protected Member Functions | List of all members
UsdImagingDataSourceGprim Class Reference

#include <dataSourceGprim.h>

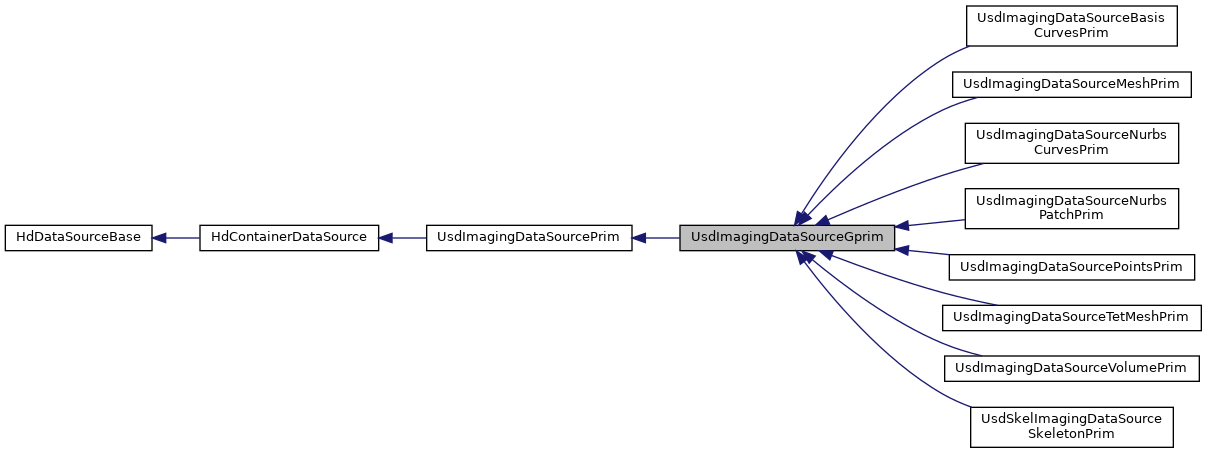

+ Inheritance diagram for UsdImagingDataSourceGprim:

Public Member Functions

 HD_DECLARE_DATASOURCE (UsdImagingDataSourceGprim)

USDIMAGING_API
HdDataSourceBaseHandle 		Get (const TfToken &name) override

- Public Member Functions inherited from UsdImagingDataSourcePrim
 HD_DECLARE_DATASOURCE (UsdImagingDataSourcePrim)

USDIMAGING_API TfTokenVector GetNames () override

USDIMAGING_API
HdDataSourceBaseHandle 		Get (const TfToken &name) override

- Public Member Functions inherited from HdContainerDataSource
 HD_DECLARE_DATASOURCE_ABSTRACT (HdContainerDataSource)

- Public Member Functions inherited from HdDataSourceBase
virtual HD_API ~HdDataSourceBase ()=0


Static Public Member Functions

static USDIMAGING_API
HdDataSourceLocatorSet 		Invalidate (UsdPrim const &prim, const TfToken &subprim, const TfTokenVector &properties, UsdImagingPropertyInvalidationType invalidationType)

- Static Public Member Functions inherited from UsdImagingDataSourcePrim
static USDIMAGING_API
HdDataSourceLocatorSet 		Invalidate (UsdPrim const &prim, const TfToken &subprim, const TfTokenVector &properties, UsdImagingPropertyInvalidationType invalidationType)

- Static Public Member Functions inherited from HdContainerDataSource
static HD_API
HdDataSourceBaseHandle 		Get (const Handle &container, const HdDataSourceLocator &locator)


Protected Member Functions

USDIMAGING_API UsdImagingDataSourceGprim (const SdfPath &sceneIndexPath, UsdPrim usdPrim, const UsdImagingDataSourceStageGlobals &stageGlobals)

- Protected Member Functions inherited from UsdImagingDataSourcePrim
USDIMAGING_API UsdImagingDataSourcePrim (const SdfPath &sceneIndexPath, UsdPrim usdPrim, const UsdImagingDataSourceStageGlobals &stageGlobals)

const SdfPath & _GetSceneIndexPath () const

const UsdPrim & _GetUsdPrim () const

const
UsdImagingDataSourceStageGlobals & 		_GetStageGlobals () const


Detailed Description

Data source representing a USD gprim. This is the common base for geometric types and includes features such as materials and primvars.

Definition at line 41 of file dataSourceGprim.h.

Constructor & Destructor Documentation

USDIMAGING_API UsdImagingDataSourceGprim::UsdImagingDataSourceGprim ( const SdfPath &  sceneIndexPath,
UsdPrim  usdPrim,
const UsdImagingDataSourceStageGlobals &  stageGlobals
)
protected

Use to construct a new UsdImagingDataSourceGprim.

sceneIndexPath is the path of this object in the scene index.

usdPrim is the USD prim object that this data source represents.

stageGlobals represents the context object for the UsdStage with which to evaluate this attribute data source.

Note: client code calls this via static New.

Member Function Documentation

USDIMAGING_API HdDataSourceBaseHandle UsdImagingDataSourceGprim::Get ( const TfToken &  name)
overridevirtual

Returns the data source representing name, if valid.

Implements HdContainerDataSource.

Reimplemented in UsdImagingDataSourceMeshPrim, UsdImagingDataSourceVolumePrim, UsdImagingDataSourcePointsPrim, UsdImagingDataSourceNurbsCurvesPrim, and UsdImagingDataSourceNurbsPatchPrim.

UsdImagingDataSourceGprim::HD_DECLARE_DATASOURCE ( UsdImagingDataSourceGprim  )
static USDIMAGING_API HdDataSourceLocatorSet UsdImagingDataSourceGprim::Invalidate ( UsdPrim const &  prim,
const TfToken &  subprim,
const TfTokenVector &  properties,
UsdImagingPropertyInvalidationType  invalidationType
)
static
The documentation for this class was generated from the following file:
