UsdImagingPointsAdapter Class Reference

#include <pointsAdapter.h>

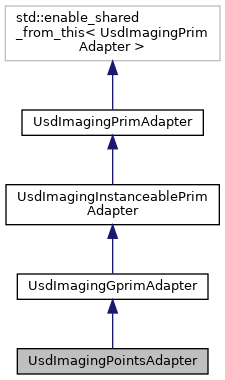

+ Inheritance diagram for UsdImagingPointsAdapter:

Public Types

using BaseAdapter = UsdImagingGprimAdapter

- Public Types inherited from UsdImagingGprimAdapter
using BaseAdapter = UsdImagingPrimAdapter

- Public Types inherited from UsdImagingPrimAdapter
enum  PopulationMode { RepresentsSelf, RepresentsSelfAndDescendents, RepresentedByAncestor }


Public Member Functions

 UsdImagingPointsAdapter ()

USDIMAGING_API ~UsdImagingPointsAdapter () override

Scene Index Support
USDIMAGING_API TfTokenVector GetImagingSubprims (UsdPrim const &prim) override

USDIMAGING_API TfToken GetImagingSubprimType (UsdPrim const &prim, TfToken const &subprim) override

USDIMAGING_API
HdContainerDataSourceHandle 		GetImagingSubprimData (UsdPrim const &prim, TfToken const &subprim, const UsdImagingDataSourceStageGlobals &stageGlobals) override

USDIMAGING_API
HdDataSourceLocatorSet 		InvalidateImagingSubprim (UsdPrim const &prim, TfToken const &subprim, TfTokenVector const &properties, UsdImagingPropertyInvalidationType invalidationType) override

Initialization
USDIMAGING_API SdfPath Populate (UsdPrim const &prim, UsdImagingIndexProxy *index, UsdImagingInstancerContext const *instancerContext=nullptr) override

USDIMAGING_API bool IsSupported (UsdImagingIndexProxy const *index) const override
 Returns true if the adapter can be populated into the target index. More...

Parallel Setup and Resolve
USDIMAGING_API void TrackVariability (UsdPrim const &prim, SdfPath const &cachePath, HdDirtyBits *timeVaryingBits, UsdImagingInstancerContext const *instancerContext=nullptr) const override
 Thread Safe. More...

USDIMAGING_API void UpdateForTime (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, HdDirtyBits requestedBits, UsdImagingInstancerContext const *instancerContext=nullptr) const override
 Thread Safe. More...

Change Processing
USDIMAGING_API HdDirtyBits ProcessPropertyChange (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &propertyName) override

- Public Member Functions inherited from UsdImagingGprimAdapter
 UsdImagingGprimAdapter ()

USDIMAGING_API ~UsdImagingGprimAdapter () override

virtual USDIMAGING_API void MarkDirty (UsdPrim const &prim, SdfPath const &cachePath, HdDirtyBits dirty, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkRefineLevelDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkReprDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkCullStyleDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkRenderTagDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkTransformDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkVisibilityDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkMaterialDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API void MarkCollectionsDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index) override

virtual USDIMAGING_API VtValue GetPoints (UsdPrim const &prim, UsdTimeCode time) const

USDIMAGING_API SdfPath _AddRprim (TfToken const &primType, UsdPrim const &usdPrim, UsdImagingIndexProxy *index, SdfPath const &materialUsdPath, UsdImagingInstancerContext const *instancerContext)

USDIMAGING_API GfRange3d GetExtent (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const override

USDIMAGING_API bool GetDoubleSided (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const override
 Reads double-sided from the given prim. If not authored, returns false. More...

USDIMAGING_API SdfPath GetMaterialId (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const override

- Public Member Functions inherited from UsdImagingPrimAdapter
 UsdImagingPrimAdapter ()

virtual USDIMAGING_API ~UsdImagingPrimAdapter ()

virtual USDIMAGING_API HdDirtyBits ProcessPrimChange (UsdPrim const &prim, SdfPath const &cachePath, TfTokenVector const &changedFields)

virtual USDIMAGING_API void ProcessPrimResync (SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void ProcessPrimRemoval (SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void MarkLightParamsDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void MarkWindowPolicyDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void InvokeComputation (SdfPath const &cachePath, HdExtComputationContext *context)

virtual USDIMAGING_API
std::vector< VtArray< TfToken > > 		GetInstanceCategories (UsdPrim const &prim)
 Return an array of the categories used by each instance. More...

virtual USDIMAGING_API GfMatrix4d GetInstancerTransform (UsdPrim const &instancerPrim, SdfPath const &instancerPath, UsdTimeCode time) const

virtual USDIMAGING_API size_t SampleInstancerTransform (UsdPrim const &instancerPrim, SdfPath const &instancerPath, UsdTimeCode time, size_t maxNumSamples, float *sampleTimes, GfMatrix4d *sampleValues)

virtual USDIMAGING_API SdfPath GetInstancerId (UsdPrim const &usdPrim, SdfPath const &cachePath) const
 Return the instancerId for this prim. More...

virtual USDIMAGING_API
SdfPathVector 		GetInstancerPrototypes (UsdPrim const &usdPrim, SdfPath const &cachePath) const
 Return the list of known prototypes of this prim. More...

virtual USDIMAGING_API size_t SamplePrimvar (UsdPrim const &usdPrim, SdfPath const &cachePath, TfToken const &key, UsdTimeCode time, size_t maxNumSamples, float *sampleTimes, VtValue *sampleValues, VtIntArray *sampleIndices)

virtual USDIMAGING_API
PxOsdSubdivTags 		GetSubdivTags (UsdPrim const &usdPrim, SdfPath const &cachePath, UsdTimeCode time) const
 Get the subdiv tags for this prim. More...

virtual USDIMAGING_API GfMatrix4d GetRelativeInstancerTransform (SdfPath const &instancerPath, SdfPath const &protoInstancerPath, UsdTimeCode time) const

virtual USDIMAGING_API SdfPath GetScenePrimPath (SdfPath const &cachePath, int instanceIndex, HdInstancerContext *instancerCtx) const

virtual USDIMAGING_API
SdfPathVector 		GetScenePrimPaths (SdfPath const &cachePath, std::vector< int > const &instanceIndices, std::vector< HdInstancerContext > *instancerCtxs) const

virtual USDIMAGING_API SdfPath GetDataSharingId (SdfPath const &cachePath) const

virtual USDIMAGING_API bool PopulateSelection (HdSelection::HighlightMode const &highlightMode, SdfPath const &cachePath, UsdPrim const &usdPrim, int const hydraInstanceIndex, VtIntArray const &parentInstanceIndices, HdSelectionSharedPtr const &result) const

virtual USDIMAGING_API
HdVolumeFieldDescriptorVector 		GetVolumeFieldDescriptors (UsdPrim const &usdPrim, SdfPath const &id, UsdTimeCode time) const

virtual USDIMAGING_API VtValue GetLightParamValue (const UsdPrim &prim, const SdfPath &cachePath, const TfToken &paramName, UsdTimeCode time) const

USDIMAGING_API GfMatrix4d GetRootTransform () const
 The root transform provided by the delegate. More...

USDIMAGING_API void SetDelegate (UsdImagingDelegate *delegate)
 A thread-local XformCache provided by the delegate. More...

USDIMAGING_API bool IsChildPath (SdfPath const &path) const
 The root transform provided by the delegate. More...

virtual USDIMAGING_API bool GetVisible (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const

virtual USDIMAGING_API TfToken GetPurpose (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &instanceInheritablePurpose) const

USDIMAGING_API TfToken GetInheritablePurpose (UsdPrim const &prim) const

virtual USDIMAGING_API GfMatrix4d GetTransform (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, bool ignoreRootTransform=false) const

virtual USDIMAGING_API size_t SampleTransform (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, size_t maxNumSamples, float *sampleTimes, GfMatrix4d *sampleValues)
 Samples the transform for the given prim. More...

virtual USDIMAGING_API HdCullStyle GetCullStyle (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
 Gets the cullstyle of a specific path in the scene graph. More...

USDIMAGING_API SdfPath GetMaterialUsdPath (UsdPrim const &prim) const

USDIMAGING_API TfToken GetModelDrawMode (UsdPrim const &prim)

USDIMAGING_API HdModelDrawMode GetFullModelDrawMode (UsdPrim const &prim)

USDIMAGING_API VtArray
< VtIntArray > 		GetPerPrototypeIndices (UsdPrim const &prim, UsdTimeCode time) const

virtual USDIMAGING_API VtValue GetTopology (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const

virtual USDIMAGING_API VtValue GetMaterialResource (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
 The root transform provided by the delegate. More...

virtual USDIMAGING_API const
TfTokenVector & 		GetExtComputationSceneInputNames (SdfPath const &cachePath) const

virtual USDIMAGING_API
HdExtComputationInputDescriptorVector 		GetExtComputationInputs (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API
HdExtComputationOutputDescriptorVector 		GetExtComputationOutputs (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API
HdExtComputationPrimvarDescriptorVector 		GetExtComputationPrimvars (UsdPrim const &prim, SdfPath const &cachePath, HdInterpolation interpolation, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API VtValue GetExtComputationInput (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &name, UsdTimeCode time, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API size_t SampleExtComputationInput (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &name, UsdTimeCode time, const UsdImagingInstancerContext *instancerContext, size_t maxSampleCount, float *sampleTimes, VtValue *sampleValues)

virtual USDIMAGING_API std::string GetExtComputationKernel (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API VtValue GetInstanceIndices (UsdPrim const &instancerPrim, SdfPath const &instancerCachePath, SdfPath const &prototypeCachePath, UsdTimeCode time) const

virtual USDIMAGING_API
PopulationMode 		GetPopulationMode ()

virtual USDIMAGING_API
HdDataSourceLocatorSet 		InvalidateImagingSubprimFromDescendent (UsdPrim const &prim, UsdPrim const &descendentPrim, TfToken const &subprim, TfTokenVector const &properties, UsdImagingPropertyInvalidationType invalidationType)

virtual USDIMAGING_API bool ShouldCullChildren () const

virtual USDIMAGING_API bool ShouldIgnoreNativeInstanceSubtrees () const

virtual USDIMAGING_API bool IsInstancerAdapter () const

virtual USDIMAGING_API bool CanPopulateUsdInstance () const


Data access

USDIMAGING_API VtValue Get (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &key, UsdTimeCode time, VtIntArray *outIndices) const override

USDIMAGING_API bool _IsBuiltinPrimvar (TfToken const &primvarName) const override


Detailed Description

Delegate support for UsdGeomPoints.

Definition at line 41 of file pointsAdapter.h.

Member Typedef Documentation

using UsdImagingPointsAdapter::BaseAdapter = UsdImagingGprimAdapter

Definition at line 44 of file pointsAdapter.h.

Constructor & Destructor Documentation

UsdImagingPointsAdapter::UsdImagingPointsAdapter ( )
inline

Definition at line 46 of file pointsAdapter.h.

USDIMAGING_API UsdImagingPointsAdapter::~UsdImagingPointsAdapter ( )
override

Member Function Documentation

USDIMAGING_API bool UsdImagingPointsAdapter::_IsBuiltinPrimvar ( TfToken const &  primvarName) const
overrideprotectedvirtual

Give derived classes an opportunity to override how we get points for a prim. This is useful for implicit primitives.

Reimplemented from UsdImagingGprimAdapter.

USDIMAGING_API VtValue UsdImagingPointsAdapter::Get ( UsdPrim const &  prim,
SdfPath const &  cachePath,
TfToken const &  key,
UsdTimeCode  time,
VtIntArray *  outIndices
) const
overridevirtual

Gets the value of the parameter named key for the given prim (which has the given cache path) and given time. If outIndices is not nullptr and the value has indices, it will return the unflattened value and set outIndices to the value's associated indices.

Reimplemented from UsdImagingGprimAdapter.

USDIMAGING_API HdContainerDataSourceHandle UsdImagingPointsAdapter::GetImagingSubprimData ( UsdPrim const &  prim,
TfToken const &  subprim,
const UsdImagingDataSourceStageGlobals &  stageGlobals
)
overridevirtual

Returns the prim's behavior with regard to population and invalidation. See PopulationMode for possible values.

Reimplemented from UsdImagingPrimAdapter.

USDIMAGING_API TfTokenVector UsdImagingPointsAdapter::GetImagingSubprims ( UsdPrim const &  prim)
overridevirtual

Returns the prim's behavior with regard to population and invalidation. See PopulationMode for possible values.

Reimplemented from UsdImagingPrimAdapter.

USDIMAGING_API TfToken UsdImagingPointsAdapter::GetImagingSubprimType ( UsdPrim const &  prim,
TfToken const &  subprim
)
overridevirtual

Returns the prim's behavior with regard to population and invalidation. See PopulationMode for possible values.

Reimplemented from UsdImagingPrimAdapter.

USDIMAGING_API HdDataSourceLocatorSet UsdImagingPointsAdapter::InvalidateImagingSubprim ( UsdPrim const &  prim,
TfToken const &  subprim,
TfTokenVector const &  properties,
UsdImagingPropertyInvalidationType  invalidationType
)
overridevirtual

Returns the prim's behavior with regard to population and invalidation. See PopulationMode for possible values.

Reimplemented from UsdImagingGprimAdapter.

USDIMAGING_API bool UsdImagingPointsAdapter::IsSupported ( UsdImagingIndexProxy const *  index) const
overridevirtual

Returns true if the adapter can be populated into the target index.

Reimplemented from UsdImagingPrimAdapter.

USDIMAGING_API SdfPath UsdImagingPointsAdapter::Populate ( UsdPrim const &  prim,
UsdImagingIndexProxy *  index,
UsdImagingInstancerContext const *  instancerContext = nullptr
)
overridevirtual

Called to populate the RenderIndex for this UsdPrim. The adapter is expected to create one or more prims in the render index using the given proxy.

Implements UsdImagingPrimAdapter.

USDIMAGING_API HdDirtyBits UsdImagingPointsAdapter::ProcessPropertyChange ( UsdPrim const &  prim,
SdfPath const &  cachePath,
TfToken const &  propertyName
)
overridevirtual

Returns a bit mask of attributes to be updated, or HdChangeTracker::AllDirty if the entire prim must be resynchronized.

Reimplemented from UsdImagingGprimAdapter.

USDIMAGING_API void UsdImagingPointsAdapter::TrackVariability ( UsdPrim const &  prim,
SdfPath const &  cachePath,
HdDirtyBits *  timeVaryingBits,
UsdImagingInstancerContext const *  instancerContext = nullptr
) const
overridevirtual

Thread Safe.

Reimplemented from UsdImagingGprimAdapter.

USDIMAGING_API void UsdImagingPointsAdapter::UpdateForTime ( UsdPrim const &  prim,
SdfPath const &  cachePath,
UsdTimeCode  time,
HdDirtyBits  requestedBits,
UsdImagingInstancerContext const *  instancerContext = nullptr
) const
overridevirtual

Thread Safe.

Reimplemented from UsdImagingGprimAdapter.

The documentation for this class was generated from the following file:
