UsdRenderSettingsBase Class Reference

#include <settingsBase.h>

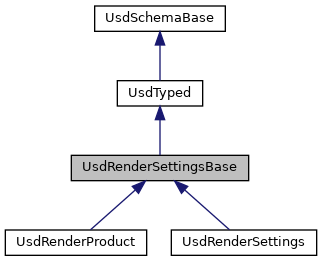

Inheritance diagram for UsdRenderSettingsBase:

Public Member Functions
	UsdRenderSettingsBase (const UsdPrim &prim=UsdPrim())
	UsdRenderSettingsBase (const UsdSchemaBase &schemaObj)
virtual USDRENDER_API	~UsdRenderSettingsBase ()
	Destructor. More...
USDRENDER_API UsdAttribute	GetResolutionAttr () const
USDRENDER_API UsdAttribute	CreateResolutionAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdAttribute	GetPixelAspectRatioAttr () const
USDRENDER_API UsdAttribute	CreatePixelAspectRatioAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdAttribute	GetAspectRatioConformPolicyAttr () const
USDRENDER_API UsdAttribute	CreateAspectRatioConformPolicyAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdAttribute	GetDataWindowNDCAttr () const
USDRENDER_API UsdAttribute	CreateDataWindowNDCAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdAttribute	GetInstantaneousShutterAttr () const
USDRENDER_API UsdAttribute	CreateInstantaneousShutterAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdAttribute	GetDisableMotionBlurAttr () const
USDRENDER_API UsdAttribute	CreateDisableMotionBlurAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdAttribute	GetDisableDepthOfFieldAttr () const
USDRENDER_API UsdAttribute	CreateDisableDepthOfFieldAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDRENDER_API UsdRelationship	GetCameraRel () const
USDRENDER_API UsdRelationship	CreateCameraRel () const
Public Member Functions inherited from UsdTyped
	UsdTyped (const UsdPrim &prim=UsdPrim())
	UsdTyped (const UsdSchemaBase &schemaObj)
virtual USD_API	~UsdTyped ()
	Destructor. More...
Public Member Functions inherited from UsdSchemaBase
bool	IsConcrete () const
bool	IsTyped () const
bool	IsAPISchema () const
	Returns whether this is an API schema or not. More...
bool	IsAppliedAPISchema () const
bool	IsMultipleApplyAPISchema () const
UsdSchemaKind	GetSchemaKind () const
	Returns the kind of schema this class is. More...
USD_API	UsdSchemaBase (const UsdPrim &prim=UsdPrim())
	Construct and store prim as the held prim. More...
USD_API	UsdSchemaBase (const UsdSchemaBase &otherSchema)
	Construct and store for the same prim held by otherSchema. More...
virtual USD_API	~UsdSchemaBase ()
	Destructor. More...
USD_API	operator bool () const
UsdPrim	GetPrim () const
	Return this schema object's held prim. More...
SdfPath	GetPath () const
	Shorthand for GetPrim()->GetPath(). More...
USD_API const UsdPrimDefinition *	GetSchemaClassPrimDefinition () const

Static Public Member Functions
static USDRENDER_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USDRENDER_API UsdRenderSettingsBase	Get (const UsdStagePtr &stage, const SdfPath &path)
Static Public Member Functions inherited from UsdTyped
static USD_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USD_API UsdTyped	Get (const UsdStagePtr &stage, const SdfPath &path)
Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)

Static Public Attributes
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractTyped
Static Public Attributes inherited from UsdTyped
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractBase
Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractBase

Protected Member Functions
USDRENDER_API UsdSchemaKind	_GetSchemaKind () const override
Protected Member Functions inherited from UsdTyped
USD_API bool	_IsCompatible () const override
Protected Member Functions inherited from UsdSchemaBase
virtual UsdSchemaKind	_GetSchemaType () const
const TfType &	_GetType () const
USD_API UsdAttribute	_CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const

Friends
class	UsdSchemaRegistry

Detailed Description

Abstract base class that defines render settings that can be specified on either a RenderSettings prim or a RenderProduct prim.

For any described attribute Fallback Value or Allowed Values below that are text/tokens, the actual token is published and defined in UsdRenderTokens. So to set an attribute to the value "rightHanded", use UsdRenderTokens->rightHanded as the value.

Definition at line 64 of file settingsBase.h.

Constructor & Destructor Documentation

UsdRenderSettingsBase::UsdRenderSettingsBase ( const UsdPrim &  prim = UsdPrim() )

inlineexplicit

Construct a UsdRenderSettingsBase on UsdPrim prim . Equivalent to UsdRenderSettingsBase::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 76 of file settingsBase.h.

UsdRenderSettingsBase::UsdRenderSettingsBase ( const UsdSchemaBase &  schemaObj )

inlineexplicit

Construct a UsdRenderSettingsBase on the prim held by schemaObj . Should be preferred over UsdRenderSettingsBase(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 84 of file settingsBase.h.

virtual USDRENDER_API UsdRenderSettingsBase::~UsdRenderSettingsBase ( )

virtual

Destructor.

Member Function Documentation

USDRENDER_API UsdSchemaKind UsdRenderSettingsBase::_GetSchemaKind ( ) const

overrideprotectedvirtual

Returns the kind of schema this class belongs to.

See Also

UsdSchemaKind

Reimplemented from UsdTyped.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreateAspectRatioConformPolicyAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetAspectRatioConformPolicyAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDRENDER_API UsdRelationship UsdRenderSettingsBase::CreateCameraRel

(

)

const

See GetCameraRel(), and also Usd_Create_Or_Get_Property for when to use Get vs Create

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreateDataWindowNDCAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetDataWindowNDCAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreateDisableDepthOfFieldAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetDisableDepthOfFieldAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreateDisableMotionBlurAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetDisableMotionBlurAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreateInstantaneousShutterAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetInstantaneousShutterAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreatePixelAspectRatioAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetPixelAspectRatioAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::CreateResolutionAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetResolutionAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

static USDRENDER_API UsdRenderSettingsBase UsdRenderSettingsBase::Get ( const UsdStagePtr &  stage, const SdfPath &  path  )

static

Return a UsdRenderSettingsBase holding the prim adhering to this schema at path on stage. If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdRenderSettingsBase(stage->GetPrimAtPath(path));

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetAspectRatioConformPolicyAttr

(

)

const

Indicates the policy to use to resolve an aspect ratio mismatch between the camera aperture and image settings.

This policy allows a standard render setting to do something reasonable given varying camera inputs.

The camera aperture aspect ratio is determined by the aperture atributes on the UsdGeomCamera.

The image aspect ratio is determined by the resolution and pixelAspectRatio attributes in the render settings.

• "expandAperture": if necessary, expand the aperture to fit the image, exposing additional scene content
• "cropAperture": if necessary, crop the aperture to fit the image, cropping scene content
• "adjustApertureWidth": if necessary, adjust aperture width to make its aspect ratio match the image
• "adjustApertureHeight": if necessary, adjust aperture height to make its aspect ratio match the image
• "adjustPixelAspectRatio": compute pixelAspectRatio to make the image exactly cover the aperture; disregards existing attribute value of pixelAspectRatio

Declaration	uniform token aspectRatioConformPolicy = "expandAperture"
C++ Type	TfToken
Usd Type	SdfValueTypeNames->Token
Variability	SdfVariabilityUniform
Allowed Values	expandAperture, cropAperture, adjustApertureWidth, adjustApertureHeight, adjustPixelAspectRatio

USDRENDER_API UsdRelationship UsdRenderSettingsBase::GetCameraRel

(

)

const

The camera relationship specifies the primary camera to use in a render. It must target a UsdGeomCamera.

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetDataWindowNDCAttr

(

)

const

dataWindowNDC specifies the axis-aligned rectangular region in the adjusted aperture window within which the renderer should produce data.

It is specified as (xmin, ymin, xmax, ymax) in normalized device coordinates, where the range 0 to 1 corresponds to the aperture. (0,0) corresponds to the bottom-left corner and (1,1) corresponds to the upper-right corner.

Specifying a window outside the unit square will produce overscan data. Specifying a window that does not cover the unit square will produce a cropped render.

A pixel is included in the rendered result if the pixel center is contained by the data window. This is consistent with standard rules used by polygon rasterization engines. UsdRenderRasterization

The data window is expressed in NDC so that cropping and overscan may be resolution independent. In interactive workflows, incremental cropping and resolution adjustment may be intermixed to isolate and examine parts of the scene. In compositing workflows, overscan may be used to support image post-processing kernels, and reduced-resolution proxy renders may be used for faster iteration.

The dataWindow:ndc coordinate system references the aperture after any adjustments required by aspectRatioConformPolicy.

Declaration	uniform float4 dataWindowNDC = (0, 0, 1, 1)
C++ Type	GfVec4f
Usd Type	SdfValueTypeNames->Float4
Variability	SdfVariabilityUniform

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetDisableDepthOfFieldAttr

(

)

const

Disable all depth of field by setting F-stop of the targeted camera to infinity.

Declaration	uniform bool disableDepthOfField = 0
C++ Type	bool
Usd Type	SdfValueTypeNames->Bool
Variability	SdfVariabilityUniform

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetDisableMotionBlurAttr

(

)

const

Disable all motion blur by setting the shutter interval of the targeted camera to [0,0] - that is, take only one sample, namely at the current time code.

Declaration	uniform bool disableMotionBlur = 0
C++ Type	bool
Usd Type	SdfValueTypeNames->Bool
Variability	SdfVariabilityUniform

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetInstantaneousShutterAttr

(

)

const

Deprecated - use disableMotionBlur instead. Override the targeted camera's shutterClose to be equal to the value of its shutterOpen, to produce a zero-width shutter interval. This gives us a convenient way to disable motion blur.

Declaration	uniform bool instantaneousShutter = 0
C++ Type	bool
Usd Type	SdfValueTypeNames->Bool
Variability	SdfVariabilityUniform

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetPixelAspectRatioAttr

(

)

const

The aspect ratio (width/height) of image pixels.. The default ratio 1.0 indicates square pixels.

Declaration	uniform float pixelAspectRatio = 1
C++ Type	float
Usd Type	SdfValueTypeNames->Float
Variability	SdfVariabilityUniform

USDRENDER_API UsdAttribute UsdRenderSettingsBase::GetResolutionAttr

(

)

const

The image pixel resolution, corresponding to the camera's screen window.

Declaration	uniform int2 resolution = (2048, 1080)
C++ Type	GfVec2i
Usd Type	SdfValueTypeNames->Int2
Variability	SdfVariabilityUniform

static USDRENDER_API const TfTokenVector& UsdRenderSettingsBase::GetSchemaAttributeNames ( bool  includeInherited = true )

static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes. Does not include attributes that may be authored by custom/extended methods of the schemas involved.

Friends And Related Function Documentation

friend class UsdSchemaRegistry

friend

Definition at line 123 of file settingsBase.h.

Member Data Documentation

const UsdSchemaKind UsdRenderSettingsBase::schemaKind = UsdSchemaKind::AbstractTyped

static

Compile time constant representing what kind of schema this class is.

See Also

UsdSchemaKind

Definition at line 70 of file settingsBase.h.

---

The documentation for this class was generated from the following file:

• pxr/usd/usdRender/settingsBase.h
