diagnosticLite.h File Reference

#include "pxr/pxr.h"
#include "pxr/base/arch/attributes.h"
#include "pxr/base/tf/api.h"
#include "pxr/base/arch/buildMode.h"
#include "pxr/base/arch/hints.h"
#include "pxr/base/tf/callContext.h"
#include <stddef.h>

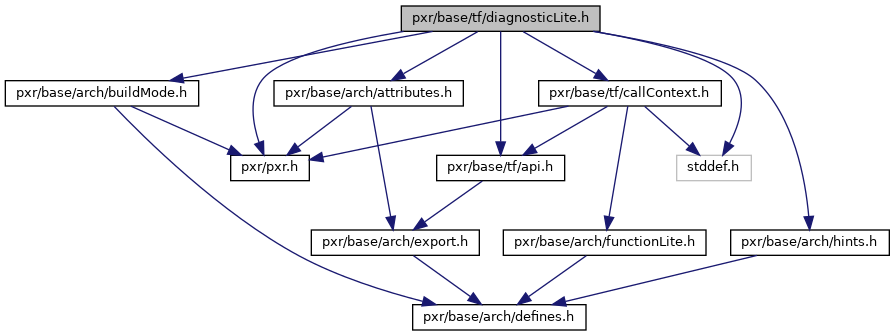

Include dependency graph for diagnosticLite.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Tf_DiagnosticLiteHelper

Macros
#define	TF_CODING_ERROR
#define	TF_CODING_WARNING
#define	TF_FATAL_CODING_ERROR
#define	TF_RUNTIME_ERROR
#define	TF_FATAL_ERROR
#define	TF_DIAGNOSTIC_FATAL_ERROR
#define	TF_DIAGNOSTIC_NONFATAL_ERROR
#define	TF_DIAGNOSTIC_WARNING
#define	TF_WARN
#define	TF_STATUS
#define	TF_AXIOM(cond)   Tf_AxiomHelper(static_cast<bool>((cond)), TF_CALL_CONTEXT, #cond)
#define	TF_DEV_AXIOM(cond)

Enumerations
enum	TfDiagnosticType : int {   TF_DIAGNOSTIC_INVALID_TYPE = 0, TF_DIAGNOSTIC_CODING_ERROR_TYPE, TF_DIAGNOSTIC_FATAL_CODING_ERROR_TYPE, TF_DIAGNOSTIC_RUNTIME_ERROR_TYPE,   TF_DIAGNOSTIC_FATAL_ERROR_TYPE, TF_DIAGNOSTIC_NONFATAL_ERROR_TYPE, TF_DIAGNOSTIC_WARNING_TYPE, TF_DIAGNOSTIC_STATUS_TYPE,   TF_APPLICATION_EXIT_TYPE }

Functions
constexpr bool	Tf_AxiomHelper (bool val, TfCallContext const &ctx, char const *txt)

Detailed Description

Stripped down version of diagnostic.h that doesn't define std::string.

This file provides the same functionality as diagnostic.h, except that all strings must be passed as plain const char*, and not by std::string, and the macro TF_FUNCTION_NAME() is only defined by diagnostic.h

In particular, this header file does not include the C++ header file < string >, making inclusion of this file a very light-weight addition. Include this file, as opposed to pxr/base/tf/diagnostic.h in header files that need to remain as light-weight as possible.

These macros are safe to use in multiple threads.

Definition in file diagnosticLite.h.

Macro Definition Documentation

#define TF_AXIOM

(

cond

)

Tf_AxiomHelper(static_cast<bool>((cond)), TF_CALL_CONTEXT, #cond)

Definition at line 140 of file diagnosticLite.h.

#define TF_CODING_ERROR

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                            \
        TF_DIAGNOSTIC_CODING_ERROR_TYPE).IssueError

Definition at line 93 of file diagnosticLite.h.

#define TF_CODING_WARNING

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                                \
        TF_DIAGNOSTIC_CODING_ERROR_TYPE).IssueWarning                        \

Definition at line 97 of file diagnosticLite.h.

#define TF_DEV_AXIOM

(

cond

)

Value:

Tf_AxiomHelper(!ARCH_DEV_BUILD ||                                   \
                   static_cast<bool>((cond)), TF_CALL_CONTEXT, #cond)

Definition at line 143 of file diagnosticLite.h.

#define TF_DIAGNOSTIC_FATAL_ERROR

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                                \
        TF_DIAGNOSTIC_RUNTIME_ERROR_TYPE).IssueFatalError

Definition at line 113 of file diagnosticLite.h.

#define TF_DIAGNOSTIC_NONFATAL_ERROR

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                                \
        TF_DIAGNOSTIC_WARNING_TYPE).IssueWarning

Definition at line 117 of file diagnosticLite.h.

#define TF_DIAGNOSTIC_WARNING

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT.Hide(),                        \
        TF_DIAGNOSTIC_WARNING_TYPE).IssueWarning

Definition at line 121 of file diagnosticLite.h.

#define TF_FATAL_CODING_ERROR

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                            \
        TF_DIAGNOSTIC_CODING_ERROR_TYPE).IssueFatalError

Definition at line 101 of file diagnosticLite.h.

#define TF_FATAL_ERROR

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                            \
        TF_DIAGNOSTIC_FATAL_ERROR_TYPE).IssueFatalError

Definition at line 109 of file diagnosticLite.h.

#define TF_RUNTIME_ERROR

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                            \
        TF_DIAGNOSTIC_RUNTIME_ERROR_TYPE).IssueError

Definition at line 105 of file diagnosticLite.h.

#define TF_STATUS

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                            \
        TF_DIAGNOSTIC_STATUS_TYPE).IssueStatus

Definition at line 129 of file diagnosticLite.h.

#define TF_WARN

Value:

Tf_DiagnosticLiteHelper(TF_CALL_CONTEXT,                            \
        TF_DIAGNOSTIC_WARNING_TYPE).IssueWarning

Definition at line 125 of file diagnosticLite.h.

Enumeration Type Documentation

enum TfDiagnosticType : int

Enum describing various diagnostic conditions.

Enumerator
TF_DIAGNOSTIC_INVALID_TYPE
TF_DIAGNOSTIC_CODING_ERROR_TYPE
TF_DIAGNOSTIC_FATAL_CODING_ERROR_TYPE
TF_DIAGNOSTIC_RUNTIME_ERROR_TYPE
TF_DIAGNOSTIC_FATAL_ERROR_TYPE
TF_DIAGNOSTIC_NONFATAL_ERROR_TYPE
TF_DIAGNOSTIC_WARNING_TYPE
TF_DIAGNOSTIC_STATUS_TYPE
TF_APPLICATION_EXIT_TYPE

Definition at line 55 of file diagnosticLite.h.

Function Documentation

constexpr bool Tf_AxiomHelper	(	bool	val,
		TfCallContext const &	ctx,
		char const *	txt
	)

Definition at line 134 of file diagnosticLite.h.
