enums.h File Reference
#include "pxr/pxr.h"
#include "pxr/imaging/hgi/api.h"
#include <cstdint>

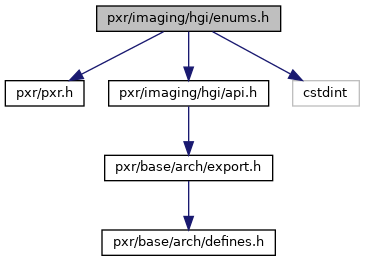

+ Include dependency graph for enums.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs

using HgiBits = uint32_t

using HgiDeviceCapabilities = HgiBits

using HgiTextureUsage = HgiBits

using HgiBufferUsage = HgiBits

using HgiShaderStage = HgiBits

using HgiColorMask = HgiBits

using HgiMemoryBarrier = HgiBits


Enumerations

enum  HgiDeviceCapabilitiesBits : HgiBits {
  HgiDeviceCapabilitiesBitsPresentation = 1 << 0, HgiDeviceCapabilitiesBitsBindlessBuffers = 1 << 1, HgiDeviceCapabilitiesBitsConcurrentDispatch = 1 << 2, HgiDeviceCapabilitiesBitsUnifiedMemory = 1 << 3,
  HgiDeviceCapabilitiesBitsBuiltinBarycentrics = 1 << 4, HgiDeviceCapabilitiesBitsShaderDrawParameters = 1 << 5, HgiDeviceCapabilitiesBitsMultiDrawIndirect = 1 << 6, HgiDeviceCapabilitiesBitsBindlessTextures = 1 << 7,
  HgiDeviceCapabilitiesBitsShaderDoublePrecision = 1 << 8, HgiDeviceCapabilitiesBitsDepthRangeMinusOnetoOne = 1 << 9, HgiDeviceCapabilitiesBitsCppShaderPadding = 1 << 10, HgiDeviceCapabilitiesBitsConservativeRaster = 1 << 11,
  HgiDeviceCapabilitiesBitsStencilReadback = 1 << 12, HgiDeviceCapabilitiesBitsCustomDepthRange = 1 << 13, HgiDeviceCapabilitiesBitsMetalTessellation = 1 << 14, HgiDeviceCapabilitiesBitsBasePrimitiveOffset = 1 << 15,
  HgiDeviceCapabilitiesBitsPrimitiveIdEmulation = 1 << 16, HgiDeviceCapabilitiesBitsIndirectCommandBuffers = 1 << 17
}

enum  HgiTextureType {
  HgiTextureType1D = 0, HgiTextureType2D, HgiTextureType3D, HgiTextureType1DArray,
  HgiTextureType2DArray, HgiTextureTypeCount
}

enum  HgiTextureUsageBits : HgiBits {
  HgiTextureUsageBitsColorTarget = 1 << 0, HgiTextureUsageBitsDepthTarget = 1 << 1, HgiTextureUsageBitsStencilTarget = 1 << 2, HgiTextureUsageBitsShaderRead = 1 << 3,
  HgiTextureUsageBitsShaderWrite = 1 << 4, HgiTextureUsageCustomBitsBegin = 1 << 5
}

enum  HgiSamplerAddressMode {
  HgiSamplerAddressModeClampToEdge = 0, HgiSamplerAddressModeMirrorClampToEdge, HgiSamplerAddressModeRepeat, HgiSamplerAddressModeMirrorRepeat,
  HgiSamplerAddressModeClampToBorderColor, HgiSamplerAddressModeCount
}

enum  HgiSamplerFilter { HgiSamplerFilterNearest = 0, HgiSamplerFilterLinear = 1, HgiSamplerFilterCount }

enum  HgiMipFilter { HgiMipFilterNotMipmapped = 0, HgiMipFilterNearest = 1, HgiMipFilterLinear = 2, HgiMipFilterCount }

enum  HgiBorderColor { HgiBorderColorTransparentBlack = 0, HgiBorderColorOpaqueBlack = 1, HgiBorderColorOpaqueWhite = 2, HgiBorderColorCount }

enum  HgiSampleCount {
  HgiSampleCount1 = 1, HgiSampleCount2 = 2, HgiSampleCount4 = 4, HgiSampleCount8 = 8,
  HgiSampleCount16 = 16, HgiSampleCountEnd
}

enum  HgiAttachmentLoadOp { HgiAttachmentLoadOpDontCare = 0, HgiAttachmentLoadOpClear, HgiAttachmentLoadOpLoad, HgiAttachmentLoadOpCount }

enum  HgiAttachmentStoreOp { HgiAttachmentStoreOpDontCare = 0, HgiAttachmentStoreOpStore, HgiAttachmentStoreOpCount }

enum  HgiBufferUsageBits : HgiBits {
  HgiBufferUsageUniform = 1 << 0, HgiBufferUsageIndex32 = 1 << 1, HgiBufferUsageVertex = 1 << 2, HgiBufferUsageStorage = 1 << 3,
  HgiBufferUsageIndirect = 1 << 4, HgiBufferUsageCustomBitsBegin = 1 << 5
}

enum  HgiShaderStageBits : HgiBits {
  HgiShaderStageVertex = 1 << 0, HgiShaderStageFragment = 1 << 1, HgiShaderStageCompute = 1 << 2, HgiShaderStageTessellationControl = 1 << 3,
  HgiShaderStageTessellationEval = 1 << 4, HgiShaderStageGeometry = 1 << 5, HgiShaderStagePostTessellationControl = 1 << 6, HgiShaderStagePostTessellationVertex = 1 << 7,
  HgiShaderStageCustomBitsBegin = 1 << 8
}

enum  HgiBindResourceType {
  HgiBindResourceTypeSampler = 0, HgiBindResourceTypeSampledImage, HgiBindResourceTypeCombinedSamplerImage, HgiBindResourceTypeStorageImage,
  HgiBindResourceTypeUniformBuffer, HgiBindResourceTypeStorageBuffer, HgiBindResourceTypeTessFactors, HgiBindResourceTypeCount
}

enum  HgiPolygonMode { HgiPolygonModeFill = 0, HgiPolygonModeLine, HgiPolygonModePoint, HgiPolygonModeCount }

enum  HgiCullMode {
  HgiCullModeNone = 0, HgiCullModeFront, HgiCullModeBack, HgiCullModeFrontAndBack,
  HgiCullModeCount
}

enum  HgiWinding { HgiWindingClockwise = 0, HgiWindingCounterClockwise, HgiWindingCount }

enum  HgiBlendOp {
  HgiBlendOpAdd = 0, HgiBlendOpSubtract, HgiBlendOpReverseSubtract, HgiBlendOpMin,
  HgiBlendOpMax, HgiBlendOpCount
}

enum  HgiBlendFactor {
  HgiBlendFactorZero = 0, HgiBlendFactorOne, HgiBlendFactorSrcColor, HgiBlendFactorOneMinusSrcColor,
  HgiBlendFactorDstColor, HgiBlendFactorOneMinusDstColor, HgiBlendFactorSrcAlpha, HgiBlendFactorOneMinusSrcAlpha,
  HgiBlendFactorDstAlpha, HgiBlendFactorOneMinusDstAlpha, HgiBlendFactorConstantColor, HgiBlendFactorOneMinusConstantColor,
  HgiBlendFactorConstantAlpha, HgiBlendFactorOneMinusConstantAlpha, HgiBlendFactorSrcAlphaSaturate, HgiBlendFactorSrc1Color,
  HgiBlendFactorOneMinusSrc1Color, HgiBlendFactorSrc1Alpha, HgiBlendFactorOneMinusSrc1Alpha, HgiBlendFactorCount
}

enum  HgiColorMaskBits : HgiBits { HgiColorMaskRed = 1 << 0, HgiColorMaskGreen = 1 << 1, HgiColorMaskBlue = 1 << 2, HgiColorMaskAlpha = 1 << 3 }

enum  HgiCompareFunction {
  HgiCompareFunctionNever = 0, HgiCompareFunctionLess, HgiCompareFunctionEqual, HgiCompareFunctionLEqual,
  HgiCompareFunctionGreater, HgiCompareFunctionNotEqual, HgiCompareFunctionGEqual, HgiCompareFunctionAlways,
  HgiCompareFunctionCount
}

enum  HgiStencilOp {
  HgiStencilOpKeep = 0, HgiStencilOpZero, HgiStencilOpReplace, HgiStencilOpIncrementClamp,
  HgiStencilOpDecrementClamp, HgiStencilOpInvert, HgiStencilOpIncrementWrap, HgiStencilOpDecrementWrap,
  HgiStencilOpCount
}

enum  HgiComponentSwizzle {
  HgiComponentSwizzleZero = 0, HgiComponentSwizzleOne, HgiComponentSwizzleR, HgiComponentSwizzleG,
  HgiComponentSwizzleB, HgiComponentSwizzleA, HgiComponentSwizzleCount
}

enum  HgiPrimitiveType {
  HgiPrimitiveTypePointList = 0, HgiPrimitiveTypeLineList, HgiPrimitiveTypeLineStrip, HgiPrimitiveTypeTriangleList,
  HgiPrimitiveTypePatchList, HgiPrimitiveTypeLineListWithAdjacency, HgiPrimitiveTypeCount
}

enum  HgiVertexBufferStepFunction {
  HgiVertexBufferStepFunctionConstant = 0, HgiVertexBufferStepFunctionPerVertex, HgiVertexBufferStepFunctionPerInstance, HgiVertexBufferStepFunctionPerPatch,
  HgiVertexBufferStepFunctionPerPatchControlPoint, HgiVertexBufferStepFunctionPerDrawCommand, HgiVertexBufferStepFunctionCount
}

enum  HgiSubmitWaitType { HgiSubmitWaitTypeNoWait = 0, HgiSubmitWaitTypeWaitUntilCompleted }

enum  HgiMemoryBarrierBits { HgiMemoryBarrierNone = 0, HgiMemoryBarrierAll = 1 << 0 }

enum  HgiBindingType {
  HgiBindingTypeValue = 0, HgiBindingTypeUniformValue, HgiBindingTypeArray, HgiBindingTypeUniformArray,
  HgiBindingTypePointer
}

enum  HgiInterpolationType { HgiInterpolationDefault = 0, HgiInterpolationFlat, HgiInterpolationNoPerspective }

enum  HgiSamplingType { HgiSamplingDefault = 0, HgiSamplingCentroid, HgiSamplingSample }

enum  HgiStorageType { HgiStorageDefault = 0, HgiStoragePatch }

enum  HgiShaderTextureType { HgiShaderTextureTypeTexture = 0, HgiShaderTextureTypeShadowTexture, HgiShaderTextureTypeArrayTexture }

enum  HgiComputeDispatch { HgiComputeDispatchSerial = 0, HgiComputeDispatchConcurrent }


Typedef Documentation

using HgiBits = uint32_t

Definition at line 33 of file enums.h.

Definition at line 329 of file enums.h.

Definition at line 535 of file enums.h.

Definition at line 102 of file enums.h.

Definition at line 686 of file enums.h.

Definition at line 371 of file enums.h.

Definition at line 167 of file enums.h.

Enumeration Type Documentation

Describes what will happen to the attachment pixel data prior to rendering.

  • HgiAttachmentLoadOpDontCare: All pixels are rendered to. Pixel data in render target starts undefined.
  • HgiAttachmentLoadOpClear: The attachment pixel data is cleared to a specified color value.
  • HgiAttachmentLoadOpLoad: Previous pixel data is loaded into attachment prior to rendering.
Enumerator
HgiAttachmentLoadOpDontCare
HgiAttachmentLoadOpClear
HgiAttachmentLoadOpLoad
HgiAttachmentLoadOpCount

Definition at line 272 of file enums.h.

Describes what will happen to the attachment pixel data after rendering.

  • HgiAttachmentStoreOpDontCare: Pixel data is undefined after rendering has completed (no store cost)
  • HgiAttachmentStoreOpStore: The attachment pixel data is stored in memory.
Enumerator
HgiAttachmentStoreOpDontCare
HgiAttachmentStoreOpStore
HgiAttachmentStoreOpCount

Definition at line 292 of file enums.h.

Describes the type of shader resource binding model to use.

  • HgiBindingTypeValue: Shader declares binding as a value. Glsl example: buffer { int parameter; }; Msl example: int parameter;
  • HgiBindingTypeUniformValue: Shader declares binding as a uniform block value. Glsl example: uniform { int parameter; }; Msl example: int parameter;
  • HgiBindingTypeArray: Shader declares binding as array value. Glsl example: buffer { int parameter[n]; }; Msl example: int parameter[n];
  • HgiBindingTypeUniformArray: Shader declares binding as uniform block array value. Glsl example: uniform { int parameter[n]; }; Msl example: int parameter[n];
  • HgiBindingTypePointer: Shader declares binding as pointer value. Glsl example: buffer { int parameter[] }; Msl example: int *parameter;
Enumerator
HgiBindingTypeValue
HgiBindingTypeUniformValue
HgiBindingTypeArray
HgiBindingTypeUniformArray
HgiBindingTypePointer

Definition at line 715 of file enums.h.

Describes the type of the resource to be bound.

  • HgiBindResourceTypeSampler: Sampler. Glsl example: uniform sampler samplerOnly
  • HgiBindResourceTypeSampledImage: Image for use with sampling ops. Glsl example: uniform texture2D textureOnly texture(sampler2D(textureOnly, samplerOnly), ...)
  • HgiBindResourceTypeCombinedSamplerImage: Image and sampler combined into one. Glsl example: uniform sampler2D texSmp; texture(texSmp, ...)
  • HgiBindResourceTypeStorageImage: Storage image used for image store/load ops (Unordered Access View).
  • HgiBindResourceTypeUniformBuffer: Uniform buffer (UBO).
  • HgiBindResourceTypeStorageBuffer: Shader storage buffer (SSBO).
  • HgiBindResourceTypeTessFactors: Tessellation factors for Metal tessellation.
Enumerator
HgiBindResourceTypeSampler
HgiBindResourceTypeSampledImage
HgiBindResourceTypeCombinedSamplerImage
HgiBindResourceTypeStorageImage
HgiBindResourceTypeUniformBuffer
HgiBindResourceTypeStorageBuffer
HgiBindResourceTypeTessFactors
HgiBindResourceTypeCount

Definition at line 399 of file enums.h.

Blend factors

Enumerator
HgiBlendFactorZero
HgiBlendFactorOne
HgiBlendFactorSrcColor
HgiBlendFactorOneMinusSrcColor
HgiBlendFactorDstColor
HgiBlendFactorOneMinusDstColor
HgiBlendFactorSrcAlpha
HgiBlendFactorOneMinusSrcAlpha
HgiBlendFactorDstAlpha
HgiBlendFactorOneMinusDstAlpha
HgiBlendFactorConstantColor
HgiBlendFactorOneMinusConstantColor
HgiBlendFactorConstantAlpha
HgiBlendFactorOneMinusConstantAlpha
HgiBlendFactorSrcAlphaSaturate
HgiBlendFactorSrc1Color
HgiBlendFactorOneMinusSrc1Color
HgiBlendFactorSrc1Alpha
HgiBlendFactorOneMinusSrc1Alpha
HgiBlendFactorCount

Definition at line 498 of file enums.h.

enum HgiBlendOp

Blend operations

Enumerator
HgiBlendOpAdd
HgiBlendOpSubtract
HgiBlendOpReverseSubtract
HgiBlendOpMin
HgiBlendOpMax
HgiBlendOpCount

Definition at line 483 of file enums.h.

Border color to use for clamped texture values.

  • HgiBorderColorTransparentBlack
  • HgiBorderColorOpaqueBlack
  • HgiBorderColorOpaqueWhite
Enumerator
HgiBorderColorTransparentBlack
HgiBorderColorOpaqueBlack
HgiBorderColorOpaqueWhite
HgiBorderColorCount

Definition at line 235 of file enums.h.

Describes the properties and usage of the buffer.

  • HgiBufferUsageUniform: Shader uniform buffer
  • HgiBufferUsageIndex32: Topology 32 bit indices.
  • HgiBufferUsageVertex: Vertex attributes.
  • HgiBufferUsageStorage: Shader storage buffer / Argument buffer.

  • HgiBufferUsageCustomBitsBegin: This bit (and any bit after) can be used to attached custom, backend specific bits to the usage bit.
Enumerator
HgiBufferUsageUniform
HgiBufferUsageIndex32
HgiBufferUsageVertex
HgiBufferUsageStorage
HgiBufferUsageIndirect
HgiBufferUsageCustomBitsBegin

Definition at line 319 of file enums.h.

Describes whether to permit or restrict writing to color components of a color attachment.

Enumerator
HgiColorMaskRed
HgiColorMaskGreen
HgiColorMaskBlue
HgiColorMaskAlpha

Definition at line 528 of file enums.h.

Compare functions.

Enumerator
HgiCompareFunctionNever
HgiCompareFunctionLess
HgiCompareFunctionEqual
HgiCompareFunctionLEqual
HgiCompareFunctionGreater
HgiCompareFunctionNotEqual
HgiCompareFunctionGEqual
HgiCompareFunctionAlways
HgiCompareFunctionCount

Definition at line 541 of file enums.h.

Swizzle for a component.

Enumerator
HgiComponentSwizzleZero
HgiComponentSwizzleOne
HgiComponentSwizzleR
HgiComponentSwizzleG
HgiComponentSwizzleB
HgiComponentSwizzleA
HgiComponentSwizzleCount

Definition at line 577 of file enums.h.

Specifies the dispatch method for compute encoders.

  • HgiComputeDispatchSerial: Kernels are dispatched serially.
  • HgiComputeDispatchConcurrent: Kernels are dispatched concurrently, if supported by the API
Enumerator
HgiComputeDispatchSerial
HgiComputeDispatchConcurrent

Definition at line 826 of file enums.h.

Controls primitive (faces) culling.

  • HgiPolygonModeNone: No primitive are discarded.
  • HgiPolygonModeFront: Front-facing primitive are discarded.
  • HgiPolygonModeBack: Back-facing primitive are discarded.
  • HgiPolygonModeFrontAndBack: All primitive are discarded.
Enumerator
HgiCullModeNone
HgiCullModeFront
HgiCullModeBack
HgiCullModeFrontAndBack
HgiCullModeCount

Definition at line 449 of file enums.h.

Describes what capabilities the requested device must have.

  • HgiDeviceCapabilitiesBitsPresentation: The device must be capable of presenting graphics to screen
  • HgiDeviceCapabilitiesBitsBindlessBuffers: THe device can access GPU buffers using bindless handles
  • HgiDeviceCapabilitiesBitsConcurrentDispatch: The device can execute commands concurrently
  • HgiDeviceCapabilitiesBitsUnifiedMemory: The device shares all GPU and CPU memory
  • HgiDeviceCapabilitiesBitsBuiltinBarycentrics: The device can provide built-in barycentric coordinates
  • HgiDeviceCapabilitiesBitsShaderDrawParameters: The device can provide additional built-in shader variables corresponding to draw command parameters
  • HgiDeviceCapabilitiesBitsMultiDrawIndirect: The device supports multiple primitive, indirect drawing
  • HgiDeviceCapabilitiesBitsBindlessTextures: The device can access GPU textures using bindless handles
  • HgiDeviceCapabilitiesBitsShaderDoublePrecision: The device supports double precision types in shaders
  • HgiDeviceCapabilitiesBitsDepthRangeMinusOnetoOne: The device's clip space depth ranges from [-1,1]
  • HgiDeviceCapabilitiesBitsCppShaderPadding: Use CPP padding for shader language structures
  • HgiDeviceCapabilitiesBitsConservativeRaster: The device supports conservative rasterization
  • HgiDeviceCapabilitiesBitsStencilReadback: Supports reading back the stencil buffer from GPU to CPU.
  • HgiDeviceCapabilitiesBitsCustomDepthRange: The device supports setting a custom depth range.
  • HgiDeviceCapabilitiesBitsMetalTessellation: Supports Metal tessellation shaders
  • HgiDeviceCapabilitiesBitsBasePrimitiveOffset: The device requires workaround for base primitive offset
  • HgiDeviceCapabilitiesBitsPrimitiveIdEmulation: The device requires workaround for primitive id
  • HgiDeviceCapabilitiesBitsIndirectCommandBuffers: Indirect command buffers are supported
Enumerator
HgiDeviceCapabilitiesBitsPresentation
HgiDeviceCapabilitiesBitsBindlessBuffers
HgiDeviceCapabilitiesBitsConcurrentDispatch
HgiDeviceCapabilitiesBitsUnifiedMemory
HgiDeviceCapabilitiesBitsBuiltinBarycentrics
HgiDeviceCapabilitiesBitsShaderDrawParameters
HgiDeviceCapabilitiesBitsMultiDrawIndirect
HgiDeviceCapabilitiesBitsBindlessTextures
HgiDeviceCapabilitiesBitsShaderDoublePrecision
HgiDeviceCapabilitiesBitsDepthRangeMinusOnetoOne
HgiDeviceCapabilitiesBitsCppShaderPadding
HgiDeviceCapabilitiesBitsConservativeRaster
HgiDeviceCapabilitiesBitsStencilReadback
HgiDeviceCapabilitiesBitsCustomDepthRange
HgiDeviceCapabilitiesBitsMetalTessellation
HgiDeviceCapabilitiesBitsBasePrimitiveOffset
HgiDeviceCapabilitiesBitsPrimitiveIdEmulation
HgiDeviceCapabilitiesBitsIndirectCommandBuffers

Definition at line 80 of file enums.h.

Describes the type of parameter interpolation.

  • HgiInterpolationDefault: The shader input will have default interpolation. Glsl example: vec2 parameter; Msl example: vec2 parameter;
  • HgiInterpolationFlat: The shader input will have no interpolation. Glsl example: flat vec2 parameter; Msl example: vec2 parameter[[flat]];
  • HgiBindingTypeNoPerspective: The shader input will be linearly interpolated in screen-space Glsl example: noperspective vec2 parameter; Msl example: vec2 parameter[[center_no_perspective]];
Enumerator
HgiInterpolationDefault
HgiInterpolationFlat
HgiInterpolationNoPerspective

Definition at line 743 of file enums.h.

Enumerator
HgiMemoryBarrierNone
HgiMemoryBarrierAll

Definition at line 681 of file enums.h.

Sampler filtering modes that determine the pixel value that is returned.

  • HgiMipFilterNotMipmapped: Texture is always sampled at mipmap level 0. (ie. max lod=0)
  • HgiMipFilterNearest: Returns the value of a single mipmap level.
  • HgiMipFilterLinear: Linear interpolates the values of up to two mipmap levels.
Enumerator
HgiMipFilterNotMipmapped
HgiMipFilterNearest
HgiMipFilterLinear
HgiMipFilterCount

Definition at line 216 of file enums.h.

Controls polygon mode during rasterization

  • HgiPolygonModeFill: Polygons are filled.
  • HgiPolygonModeLine: Polygon edges are drawn as line segments.
  • HgiPolygonModePoint: Polygon vertices are drawn as points.
Enumerator
HgiPolygonModeFill
HgiPolygonModeLine
HgiPolygonModePoint
HgiPolygonModeCount

Definition at line 425 of file enums.h.

What the stream of vertices being rendered represents

  • HgiPrimitiveTypePointList: Rasterize a point at each vertex.
  • HgiPrimitiveTypeLineList: Rasterize a line between each separate pair of vertices.
  • HgiPrimitiveTypeLineStrip: Rasterize a line between each pair of adjacent vertices.
  • HgiPrimitiveTypeTriangleList: Rasterize a triangle for every separate set of three vertices.
  • HgiPrimitiveTypePatchList: A user-defined number of vertices, which is tessellated into points, lines, or triangles.
  • HgiPrimitiveTypeLineListWithAdjacency: A four-vertex encoding used to draw untriangulated quads. Rasterize two triangles for every separate set of four vertices.
Enumerator
HgiPrimitiveTypePointList
HgiPrimitiveTypeLineList
HgiPrimitiveTypeLineStrip
HgiPrimitiveTypeTriangleList
HgiPrimitiveTypePatchList
HgiPrimitiveTypeLineListWithAdjacency
HgiPrimitiveTypeCount

Definition at line 610 of file enums.h.

Sample count for multi-sampling

Enumerator
HgiSampleCount1
HgiSampleCount2
HgiSampleCount4
HgiSampleCount8
HgiSampleCount16
HgiSampleCountEnd

Definition at line 248 of file enums.h.

Various modes used during sampling of a texture.

Enumerator
HgiSamplerAddressModeClampToEdge
HgiSamplerAddressModeMirrorClampToEdge
HgiSamplerAddressModeRepeat
HgiSamplerAddressModeMirrorRepeat
HgiSamplerAddressModeClampToBorderColor
HgiSamplerAddressModeCount

Definition at line 173 of file enums.h.

Sampler filtering modes that determine the pixel value that is returned.

  • HgiSamplerFilterNearest: Returns the value of a single mipmap level.
  • HgiSamplerFilterLinear: Combines the values of multiple mipmap levels.
Enumerator
HgiSamplerFilterNearest
HgiSamplerFilterLinear
HgiSamplerFilterCount

Definition at line 195 of file enums.h.

Describes the type of parameter sampling.

  • HgiSamplingDefault: The shader input will have default sampling. Glsl example: vec2 parameter; Msl example: vec2 parameter;
  • HgiSamplingCentroid: The shader input will have centroid sampling. Glsl example: centroid vec2 parameter; Msl example: vec2 parameter[[centroid_perspective]];
  • HgiSamplingSample: The shader input will have per-sample sampling. Glsl example: sample vec2 parameter; Msl example: vec2 parameter[[sample_perspective]];
Enumerator
HgiSamplingDefault
HgiSamplingCentroid
HgiSamplingSample

Definition at line 769 of file enums.h.

Enumerator
HgiShaderStageVertex
HgiShaderStageFragment
HgiShaderStageCompute
HgiShaderStageTessellationControl
HgiShaderStageTessellationEval
HgiShaderStageGeometry
HgiShaderStagePostTessellationControl
HgiShaderStagePostTessellationVertex
HgiShaderStageCustomBitsBegin

Definition at line 359 of file enums.h.

Describes the type of texture to be used in shader gen.

  • HgiShaderTextureTypeTexture: Indicates a regular texture.
  • HgiShaderTextureTypeShadowTexture: Indicates a shadow texture.
  • HgiShaderTextureTypeArrayTexture: Indicates an array texture.
Enumerator
HgiShaderTextureTypeTexture
HgiShaderTextureTypeShadowTexture
HgiShaderTextureTypeArrayTexture

Definition at line 808 of file enums.h.

Stencil operations.

Enumerator
HgiStencilOpKeep
HgiStencilOpZero
HgiStencilOpReplace
HgiStencilOpIncrementClamp
HgiStencilOpDecrementClamp
HgiStencilOpInvert
HgiStencilOpIncrementWrap
HgiStencilOpDecrementWrap
HgiStencilOpCount

Definition at line 559 of file enums.h.

Describes the type of parameter storage.

  • HgiStorageDefault: The shader input will have default storage. Glsl example: vec2 parameter;
  • HgiStoragePatch: The shader input will have per-patch storage. Glsl example: patch vec2 parameter;
Enumerator
HgiStorageDefault
HgiStoragePatch

Definition at line 789 of file enums.h.

Describes command submission wait behavior.

  • HgiSubmitWaitTypeNoWait: CPU should not wait for the GPU to finish processing the cmds.
  • HgiSubmitWaitTypeWaitUntilCompleted: The CPU waits ("blocked") until the GPU has consumed the cmds.
Enumerator
HgiSubmitWaitTypeNoWait
HgiSubmitWaitTypeWaitUntilCompleted

Definition at line 664 of file enums.h.

Describes the kind of texture.

  • HgiTextureType1D: A one-dimensional texture.
  • HgiTextureType2D: A two-dimensional texture.
  • HgiTextureType3D: A three-dimensional texture.
  • HgiTextureType1DArray: An array of one-dimensional textures.
  • HgiTextureType2DArray: An array of two-dimensional textures.
Enumerator
HgiTextureType1D
HgiTextureType2D
HgiTextureType3D
HgiTextureType1DArray
HgiTextureType2DArray
HgiTextureTypeCount

Definition at line 121 of file enums.h.

Describes how the texture will be used. If a texture has multiple uses you can combine multiple bits.

  • HgiTextureUsageBitsColorTarget: The texture is a color attachment rendered into via a render pass.
  • HgiTextureUsageBitsDepthTarget: The texture is a depth attachment rendered into via a render pass.
  • HgiTextureUsageBitsStencilTarget: The texture is a stencil attachment rendered into via a render pass.
  • HgiTextureUsageBitsShaderRead: The texture is sampled from in a shader (sampling)
  • HgiTextureUsageBitsShaderWrite: The texture is written into from in a shader (image store) When a texture is used as HgiBindResourceTypeStorageImage you must add this flag (even if you only read from the image).

  • HgiTextureUsageCustomBitsBegin: This bit (and any bit after) can be used to attached custom, backend specific bits to the usage bit.
Enumerator
HgiTextureUsageBitsColorTarget
HgiTextureUsageBitsDepthTarget
HgiTextureUsageBitsStencilTarget
HgiTextureUsageBitsShaderRead
HgiTextureUsageBitsShaderWrite
HgiTextureUsageCustomBitsBegin

Definition at line 156 of file enums.h.

Describes the rate at which vertex attributes are pulled from buffers.

  • HgiVertexBufferStepFunctionConstant: The same attribute data is used for every vertex.
  • HgiVertexBufferStepFunctionPerVertex: New attribute data is fetched for each vertex.
  • HgiVertexBufferStepFunctionPerInstance: New attribute data is fetched for each instance.
  • HgiVertexBufferStepFunctionPerPatch: New attribute data is fetched for each patch.
  • HgiVertexBufferStepFunctionPerPatchControlPoint: New attribute data is fetched for each patch control point.
  • HgiVertexBufferStepFunctionPerDrawCommand: New attribute data is fetched for each draw in a multi-draw command.
Enumerator
HgiVertexBufferStepFunctionConstant
HgiVertexBufferStepFunctionPerVertex
HgiVertexBufferStepFunctionPerInstance
HgiVertexBufferStepFunctionPerPatch
HgiVertexBufferStepFunctionPerPatchControlPoint
HgiVertexBufferStepFunctionPerDrawCommand
HgiVertexBufferStepFunctionCount

Definition at line 641 of file enums.h.

enum HgiWinding

Determines the front-facing orientation of a primitive (face).

  • HgiWindingClockwise: Primitives with clockwise vertex-order are front facing.
  • HgiWindingCounterClockwise: Primitives with counter-clockwise vertex-order are front facing.
Enumerator
HgiWindingClockwise
HgiWindingCounterClockwise
HgiWindingCount

Definition at line 470 of file enums.h.
