schemaTypeRegistration.h File Reference

#include "pxr/pxr.h"
#include "pxr/usd/sdf/layerOffset.h"
#include "pxr/usd/sdf/listOp.h"
#include "pxr/usd/sdf/path.h"
#include "pxr/usd/sdf/schema.h"
#include "pxr/usd/sdf/types.h"
#include "pxr/base/vt/dictionary.h"
#include "pxr/base/vt/value.h"
#include "pxr/base/tf/enum.h"
#include "pxr/base/tf/token.h"
#include <string>
#include <vector>

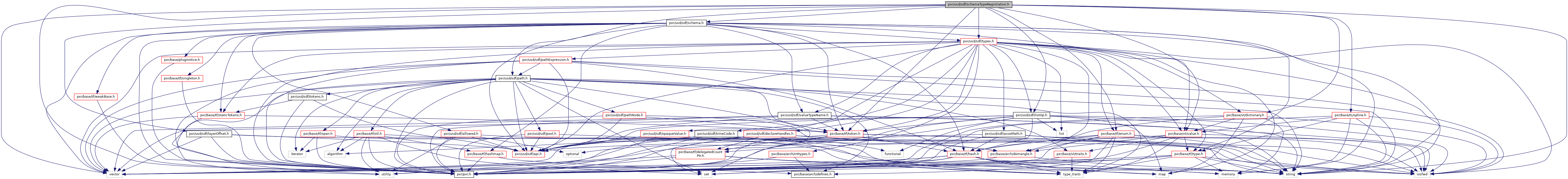

Include dependency graph for schemaTypeRegistration.h:

Go to the source code of this file.

Macros
#define	_SDF_FIELDS
#define	_SDF_FIELDS_NAME(tup)   TF_PP_TUPLE_ELEM(0, tup)
#define	_SDF_FIELDS_TYPE(tup)   TF_PP_TUPLE_ELEM(1, tup)
#define	_SDF_REGISTER_FIELDS(unused, elem)   reg->template RegisterField< _SDF_FIELDS_TYPE(elem) >(_SDF_FIELDS_NAME(elem));
#define	_SDF_REGISTER_TYPES(unused, elem)   reg->template RegisterType< _SDF_FIELDS_TYPE(elem) >();
#define	_SDF_REGISTER_VALUE_TYPES(unused, elem)

Functions
template<class Registrar >
void	SdfRegisterFields (Registrar *reg)
template<class Registrar >
void	SdfRegisterTypes (Registrar *reg)

Macro Definition Documentation

#define _SDF_FIELDS

Definition at line 51 of file schemaTypeRegistration.h.

#define _SDF_FIELDS_NAME

(

tup

)

TF_PP_TUPLE_ELEM(0, tup)

Definition at line 120 of file schemaTypeRegistration.h.

#define _SDF_FIELDS_TYPE

(

tup

)

TF_PP_TUPLE_ELEM(1, tup)

Definition at line 121 of file schemaTypeRegistration.h.

#define _SDF_REGISTER_FIELDS	(		unused,
			elem
	)		reg->template RegisterField< _SDF_FIELDS_TYPE(elem) >(_SDF_FIELDS_NAME(elem));

#define _SDF_REGISTER_TYPES	(		unused,
			elem
	)		reg->template RegisterType< _SDF_FIELDS_TYPE(elem) >();

#define _SDF_REGISTER_VALUE_TYPES	(		unused,
			elem
	)

Value:

{                                                                  \
        reg->template RegisterType<SDF_VALUE_CPP_TYPE(elem)>();        \
        reg->template RegisterType<SDF_VALUE_CPP_ARRAY_TYPE(elem)>();  \
    }

Function Documentation

template<class Registrar >

void SdfRegisterFields ( Registrar *  reg )

inline

Registers each built-in Sd field along with its C++ value type with reg. reg can be any type that has a member function: template <class t>=""> void RegisterField(const TfToken&);

This function will be invoked for each (field, type) pair. The template type T will be the C++ value type and the TfToken will be the field name.

Definition at line 131 of file schemaTypeRegistration.h.

template<class Registrar >

void SdfRegisterTypes ( Registrar *  reg )

inline

Registers all possible C++ value types for built-in fields with reg. This is the set of C++ types that are used by built-in fields and could be returned from an SdfAbstractData container. reg can be any type that has a member function: template <class t>=""> void RegisterType();

This function will be invoked for each C++ value type, which will be given to the function as the template type T. Note that this function may be called with the same T multiple times.

Definition at line 151 of file schemaTypeRegistration.h.
