Electra リグ H20.5
Film/TV

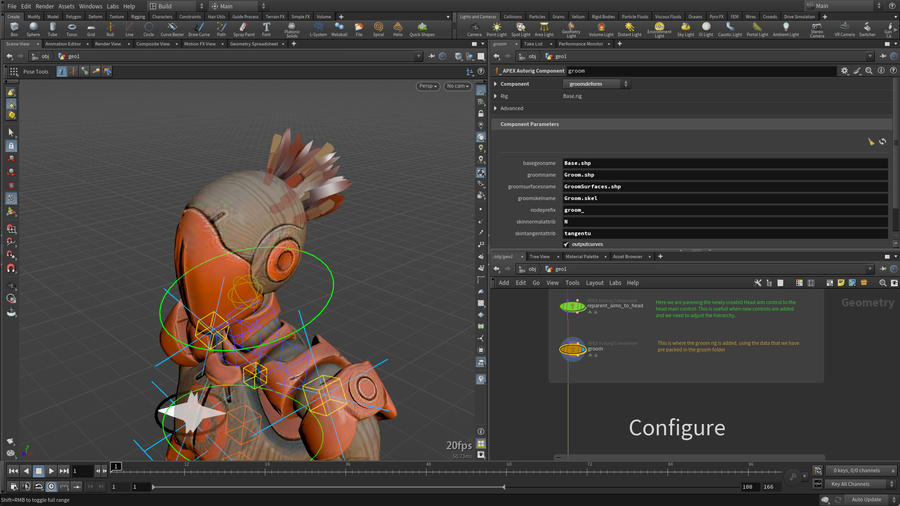

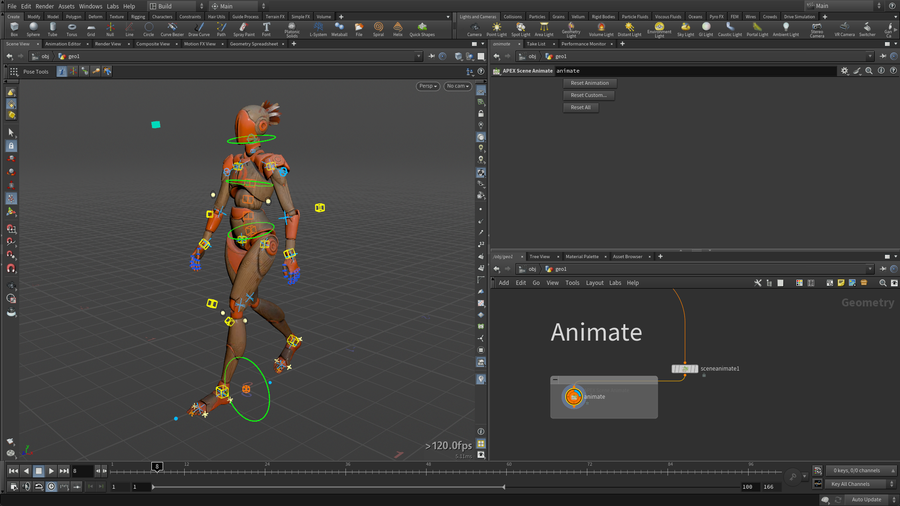

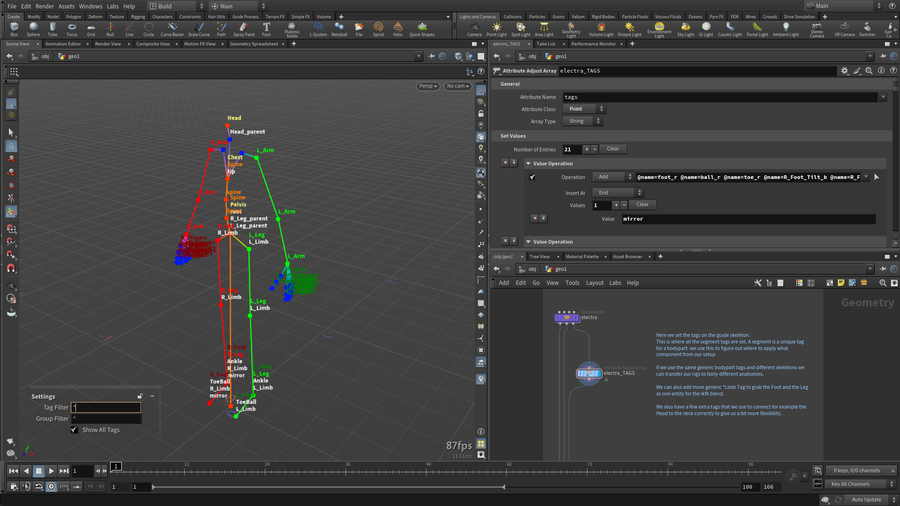

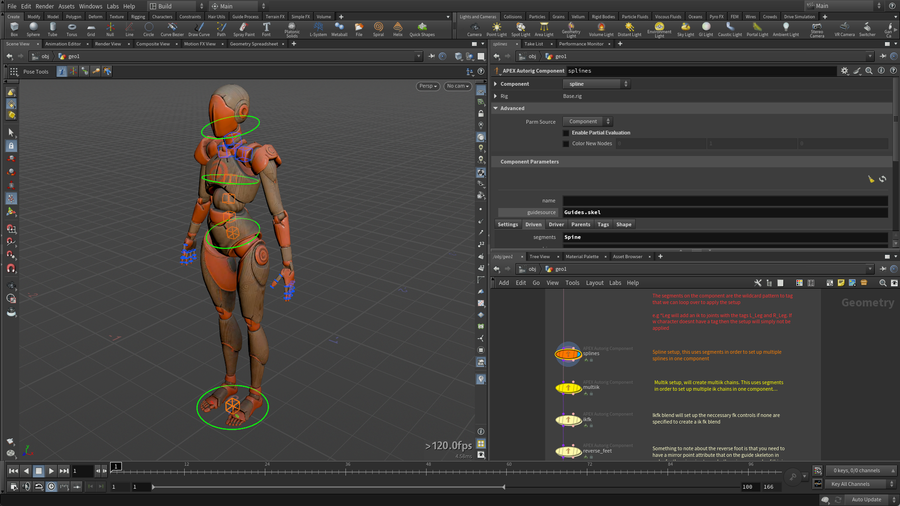

Electra リグを事前に定義されたリグコンポーネントを使って構築する方法を紹介します。これらのコンポーネントには、フルボディ IK、マルチボーン IK、IK/FK ブレンディング、リバースフット、スプライン、ブレンドシェイプ、Delta Mush、 Look At Constraint、マッピング済みのコンストレインが含まれており、使用するには、キャラクタのジョイントにタグを付け、そのタグを使ってリグにコンポーネントを配置していきます。

(2 responses)

Asset Type
Character Rig
公開日
2024年7月8日
Terms of Use
Standard License
Created in
Houdini 20.5
カテゴリー
Character
DOWNLOAD RIG SETUP [6.0 MB]
