I'm getting errors when using the example files for bake textures in H15.5 and i can't get the baking of other “passes” other then the beauty pass working. Mplay does show the “image planes” but other then C, they are all just black.
Am I doing something wrong or is this a temporary hickup with H15.5?
Cheers
Rudi
Bake Texture 15.5 example
11736 13 3
-
- RudiNieuwenhuis
- Member
- 193 posts
- Joined: 4月 2009
- Offline
-
- friedasparagus
- Member
- 402 posts
- Joined: 6月 2014
- Offline
-
- RudiNieuwenhuis
- Member
- 193 posts
- Joined: 4月 2009
- Offline
-
- friedasparagus
- Member
- 402 posts
- Joined: 6月 2014
- Offline
)
-
- RudiNieuwenhuis
- Member
- 193 posts
- Joined: 4月 2009
- Offline
-
- friedasparagus
- Member
- 402 posts
- Joined: 6月 2014
- Offline
-
- moferad
- Member
- 19 posts
- Joined: 2月 2013
- Offline
-
- Siavash Tehrani
- Member
- 729 posts
- Joined: 7月 2005
- Offline
-
- moferad
- Member
- 19 posts
- Joined: 2月 2013
- Offline
DaJuice

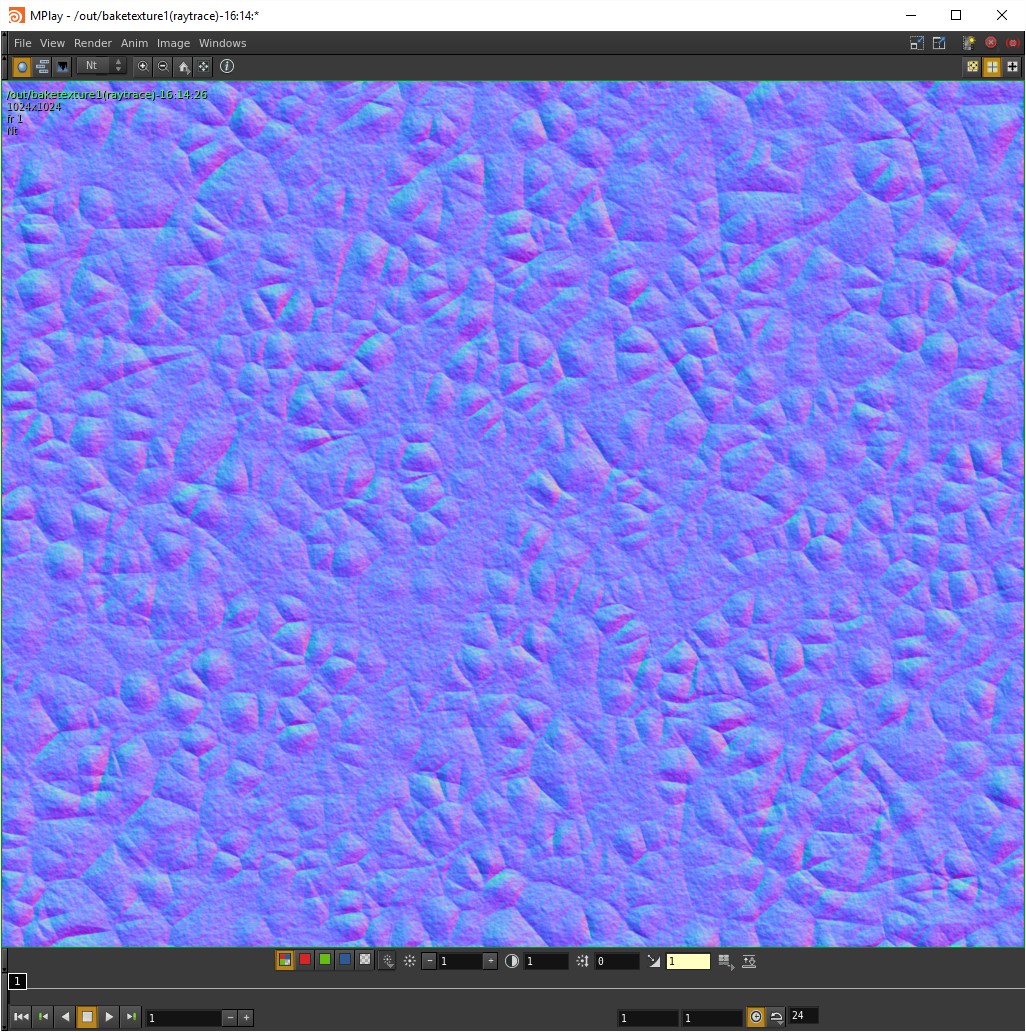

Hey moferad, which build of Houdini are you using? I ran your scene in 15.5.542 and it generates proper normals for me, although I had to take the ray bias up to around 0.08 for the holes in the map to disappear.
This is bizarre.. i just tested it on .564 and Im just getting black renders now.. testing on .565
ya strange still getting nothing… i even tried the mantra surface shader
nvidia cards only issue? maybe?
Edited by moferad - 2016年8月15日 21:11:57
-
- Siavash Tehrani
- Member
- 729 posts
- Joined: 7月 2005
- Offline

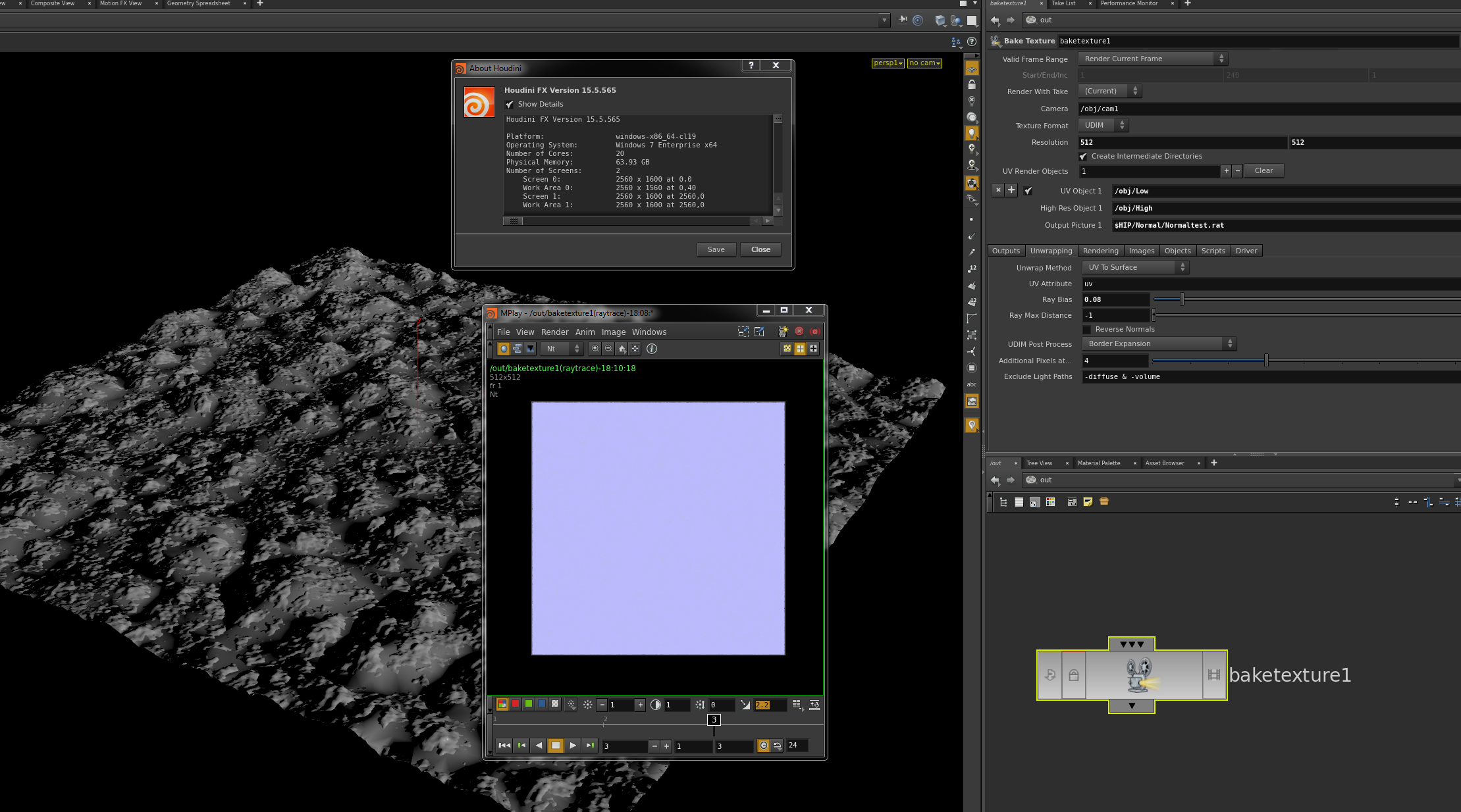

I installed build .567 (alongside .542) and it's giving me the same result as what you're getting now, a flat normal map. Hmmm.
I haven't tried xnormal. How do you find it compared to the Houdini process? I have some issues with the bake texture rop, maybe it'll get some love in the next version.
http://www.sidefx.com/forum/topic/45243/ [sidefx.com]
I haven't tried xnormal. How do you find it compared to the Houdini process? I have some issues with the bake texture rop, maybe it'll get some love in the next version.
http://www.sidefx.com/forum/topic/45243/ [sidefx.com]
-
- mdavies
- Member
- 110 posts
- Joined: 5月 2015
- Offline
-
- friedasparagus
- Member
- 402 posts
- Joined: 6月 2014
- Offline
-
- Lutojar1 .
- Member
- 3 posts
- Joined: 5月 2013
- Offline
Yes, tangent normals appear to be working just fine.no, they don't
Example, posted by mdavies works ok ONLY if hirez is smaller than low rez. But as soon as they have intersections - this intersection areas always rendered as black in C channel and inverted (in some very strange way) in Nt channel. Other channels like occlusion and curvature looks cut there.
In real life situation low poly geometry almost always have intersections (like was shown here https://vimeo.com/143618200) [vimeo.com] - so bake tool is still broken unfortunately.
It worked in h15 - all except displacement - it had problems with negative values though.
But it is very promising, waiting when sidefx will fix these.
-
- mdavies
- Member
- 110 posts
- Joined: 5月 2015
- Offline
Hi,
The issue with intersecting geometry can be handled in one of two ways:
1. Increase the ‘Ray Bias’. This will cause the rays to be offset away from the low-res object. You should increase this value until you see the black areas disappear.
2. Change the ‘Unwrap Method’ to ‘Trace Closest Surface’. This will cause the trace to happen in both directions, picking the direction that hits the high-res object.
If you would like to attach your scene I can set up some examples that show how this setup can work.
~M
The issue with intersecting geometry can be handled in one of two ways:
1. Increase the ‘Ray Bias’. This will cause the rays to be offset away from the low-res object. You should increase this value until you see the black areas disappear.
2. Change the ‘Unwrap Method’ to ‘Trace Closest Surface’. This will cause the trace to happen in both directions, picking the direction that hits the high-res object.
If you would like to attach your scene I can set up some examples that show how this setup can work.
~M
-
