Karma UV Pass

Forums Solaris and Karma Karma UV Pass

3699 3 1


JoshFoster: Member; 12 posts; Joined: 5月 2016; Offline

2022年3月11日 3:27

Hi all,

I'm having a difficult time figuring out what I'm doing wrong when I try to render UV passes in Karma. It's giving me a pattern for every face instead of the object. Any help would be appreciated!

Edited by JoshFoster - 2022年3月11日 03:27:46

Attachments:
uv_pass.hiplc (576.1 KB)


Mark Wallman: Member; 696 posts; Joined: 8月 2013; Offline

2022年3月11日 3:35

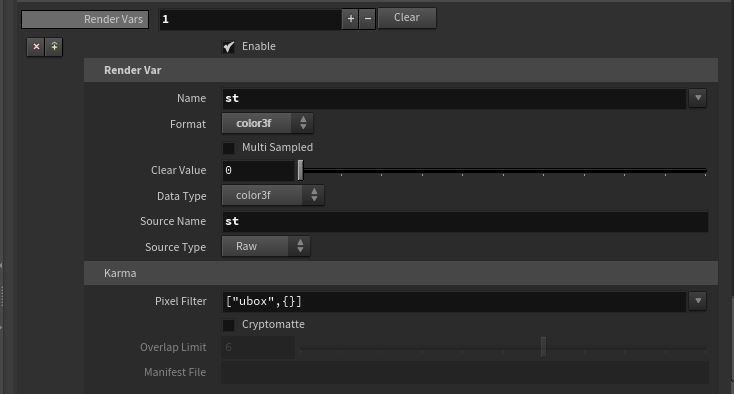

Hi try this instead.. Best Mark

Attachments:


JoshFoster: Member; 12 posts; Joined: 5月 2016; Offline

2022年3月11日 3:48

Thanks Mark! That worked once I changed the source type to Primvar.

Appreciate the quick help.


NeverFinshAnythin: Member; 1 posts; Joined: 10月 2020; Offline

2023年7月5日 11:19

cheers Mark, landed here from a google search. Then noticed your full name, big up the Herts massive! It's great stumbling across helpful things from former lecturers and alumni, hope all is well. I'm just getting stuck into USD and Karma at my new job.
