#include <GA_GroupTable.h>

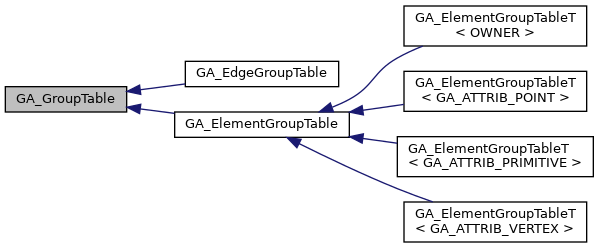

Inheritance diagram for GA_GroupTable:

Classes
class	Filter

class	iterator

Public Types
typedef UT_ArrayStringMap < GA_Group * >	MapType

Public Member Functions
	GA_GroupTable (GA_Detail &detail)

virtual	~GA_GroupTable ()

virtual int64	getMemoryUsage (bool inclusive) const
	Report memory usage (includes all shared memory) More...

virtual void	countMemory (UT_MemoryCounter &counter, bool inclusive) const

bool	isEmpty () const

exint	getPersistentCount () const

exint	entries () const

GA_Group *	find (const UT_StringRef &name) const

GA_Group *	newGroup (const UT_StringHolder &name)

GA_Group *	newInternalGroup ()

GA_Group *	newGroup (const UT_StringHolder &name, bool internal)
	TODO: Deprecate internal groups with user-specified names. More...

bool	destroy (GA_Group *group)

bool	destroy (const UT_StringRef &name)

GA_Size	destroyGroups (const Filter &filter)

void	clear ()

bool	renameGroup (const UT_StringRef &fromname, const UT_StringHolder &toname)

UT_StringHolder	renameGroupUnspecified (const UT_StringRef &from_name)

bool	jsonSave (UT_JSONWriter &w, const GA_SaveMap &map, const char *type) const

bool	jsonLoad (UT_JSONParser &p, const GA_LoadMap &map, const char *type_default, GA_AttributeOwner owner)
	Load the groups from the JSON stream. More...

bool	jsonShouldSave (const GA_SaveMap &map) const
	Returns `true` if there are any groups to be saved out. More...

GA_GroupTable::iterator< GA_Group >	beginTraverse () const

GA_GroupTable::iterator< GA_Group >	endTraverse () const


GA_GroupUPtr	createDetachedGroup () const

GA_Group *	newDetachedGroup () const


void	stat (UT_StringArray &info, uint level)

void	stat (GA_Stat &stat, uint level) const

Static Public Member Functions
static bool	jsonStat (UT_JSONParser &p, GA_Stat &sbuf, GA_GroupType owner)
	Stat the group from the JSON stream. More...

Protected Member Functions
template<typename T >
iterator< T >	begin () const

template<typename T >
iterator< T >	end () const

template<typename GROUP_TYPE >
void	getListT (UT_Array< GROUP_TYPE * > &list) const

GA_Detail &	getDetail ()

const GA_Detail &	getDetail () const

virtual GA_Group *	jsonCreateGroup (UT_JSONParser &p, const char type, const char name, bool internal, GA_AttributeOwner owner)=0

virtual GA_Group *	virtualCreateGroup (GA_Detail &detail, const UT_StringHolder &name, bool internal) const =0

virtual GA_Group *	virtualCreateDetachedGroup (const GA_Detail &detail) const =0

GA_Group *	newGroupWithNoConflict (const UT_StringHolder &name, bool internal)

void	reserveNewSymbolTableSpace (exint n)

const MapType &	getMap () const
	Used only by GA_AttributeDict. More...

Static Protected Member Functions

static int	compareGroupName (const GA_Group &a, const GA_Group &b)

Friends
class	GA_AttributeDict

typedef UT_OrderedIterator < GA_Group *, GA_GroupTable::iterator < GA_Group > >	ordered_iterator

ordered_iterator	obegin () const

ordered_iterator	oend () const

static int	compareAlpha (GA_Group const a, GA_Group const b)

Detailed Description

Definition at line 43 of file GA_GroupTable.h.

Member Typedef Documentation

typedef UT_ArrayStringMap<GA_Group*> GA_GroupTable::MapType

Definition at line 46 of file GA_GroupTable.h.

typedef UT_OrderedIterator<GA_Group *, GA_GroupTable::iterator<GA_Group> > GA_GroupTable::ordered_iterator

Traverse the group table in alpabetic order.

Definition at line 199 of file GA_GroupTable.h.

Constructor & Destructor Documentation

GA_GroupTable::GA_GroupTable ( GA_Detail & detail )

virtual GA_GroupTable::~GA_GroupTable ( )

virtual

Member Function Documentation

template<typename T >

iterator<T> GA_GroupTable::begin ( void ) const

inlineprotected

Definition at line 220 of file GA_GroupTable.h.

GA_GroupTable::iterator<GA_Group> GA_GroupTable::beginTraverse ( ) const

inline

Traverse the group table in creation order.

Note: Derived classes will add their own specialized versions of begin() and end() and call them beginTraverse() and endTraverse(). These were named begin/endTraverse() to avoid any method hiding as the return types are different.

Definition at line 191 of file GA_GroupTable.h.

void GA_GroupTable::clear ( )

static int GA_GroupTable::compareAlpha	(	GA_Group const	a,
		GA_Group const	b
	)

inlinestatic

Traverse the group table in alpabetic order.

Definition at line 200 of file GA_GroupTable.h.

static int GA_GroupTable::compareGroupName	(	const GA_Group &	a,
		const GA_Group &	b
	)

inlinestaticprotected

Convenience function for ordered iteration (in subclasses)

Definition at line 214 of file GA_GroupTable.h.

virtual void GA_GroupTable::countMemory	(	UT_MemoryCounter &	counter,
		bool	inclusive
	)		const

virtual

Count memory usage using a UT_MemoryCounter in order to count shared memory correctly. If inclusive is true, the size of this object is counted, else only memory owned by this object is counted. If this is pointed to by the calling object, inclusive should be true. If this is contained in the calling object, inclusive should be false. (Its memory was already counted in the size of the calling object.)

GA_GroupUPtr GA_GroupTable::createDetachedGroup ( ) const

A detached group is not owned by anyone but the caller, so will not track new points and must be deleted by the caller.

bool GA_GroupTable::destroy ( GA_Group * group )

bool GA_GroupTable::destroy ( const UT_StringRef & name )

GA_Size GA_GroupTable::destroyGroups ( const Filter & filter )

template<typename T >

iterator<T> GA_GroupTable::end ( void ) const

inlineprotected

Definition at line 222 of file GA_GroupTable.h.

GA_GroupTable::iterator<GA_Group> GA_GroupTable::endTraverse ( ) const

inline

Definition at line 193 of file GA_GroupTable.h.

exint GA_GroupTable::entries ( ) const

inline

Definition at line 67 of file GA_GroupTable.h.

GA_Group* GA_GroupTable::find ( const UT_StringRef & name ) const

GA_Detail& GA_GroupTable::getDetail ( )

inlineprotected

Definition at line 240 of file GA_GroupTable.h.

const GA_Detail& GA_GroupTable::getDetail ( ) const

inlineprotected

Definition at line 241 of file GA_GroupTable.h.

template<typename GROUP_TYPE >

void GA_GroupTable::getListT ( UT_Array< GROUP_TYPE * > & list ) const

inlineprotected

Note: Derived classes are responsible for ensuring that this template method is only instantiated for the appropriate GROUP_TYPE, if any.

Definition at line 228 of file GA_GroupTable.h.

const MapType& GA_GroupTable::getMap ( ) const

inlineprotected

Used only by GA_AttributeDict.

Definition at line 271 of file GA_GroupTable.h.

virtual int64 GA_GroupTable::getMemoryUsage ( bool inclusive ) const

virtual

Report memory usage (includes all shared memory)

exint GA_GroupTable::getPersistentCount ( ) const

bool GA_GroupTable::isEmpty ( ) const

inline

Definition at line 63 of file GA_GroupTable.h.

virtual GA_Group* GA_GroupTable::jsonCreateGroup	(	UT_JSONParser &	p,
		const char *	type,
		const char *	name,
		bool	internal,
		GA_AttributeOwner	owner
	)

protectedpure virtual

Method called to create a group during loading. The sub-class should verify that the owner matches the type information.

Implemented in GA_ElementGroupTable, and GA_EdgeGroupTable.

bool GA_GroupTable::jsonLoad	(	UT_JSONParser &	p,
		const GA_LoadMap &	map,
		const char *	type_default,
		GA_AttributeOwner	owner
	)

Load the groups from the JSON stream.

bool GA_GroupTable::jsonSave	(	UT_JSONWriter &	w,
		const GA_SaveMap &	map,
		const char *	type
	)		const

Save array of groups to a JSON stream

JSON Schema: GA_GroupTable

Stores an array of groups.

{
    "name"        : "GA_GroupTable",
    "description" : "A list of groups. All items should be same type",
    "type"  : "array",
    "items" : { "$ref" : "GA_Group" },
}

See Also: JSON_FileFormat, GA_Group

bool GA_GroupTable::jsonShouldSave ( const GA_SaveMap & map ) const

Returns true if there are any groups to be saved out.

static bool GA_GroupTable::jsonStat	(	UT_JSONParser &	p,
		GA_Stat &	sbuf,
		GA_GroupType	owner
	)

static

Stat the group from the JSON stream.

GA_Group* GA_GroupTable::newDetachedGroup ( ) const

inline

A detached group is not owned by anyone but the caller, so will not track new points and must be deleted by the caller.

Definition at line 83 of file GA_GroupTable.h.

GA_Group* GA_GroupTable::newGroup ( const UT_StringHolder & name )

GA_Group* GA_GroupTable::newGroup	(	const UT_StringHolder &	name,
		bool	internal
	)

TODO: Deprecate internal groups with user-specified names.

GA_Group* GA_GroupTable::newGroupWithNoConflict	(	const UT_StringHolder &	name,
		bool	internal
	)

protected

GA_Group* GA_GroupTable::newInternalGroup ( )

ordered_iterator GA_GroupTable::obegin ( ) const

inline

Traverse the group table in alpabetic order.

Definition at line 202 of file GA_GroupTable.h.

ordered_iterator GA_GroupTable::oend ( ) const

inline

Traverse the group table in alpabetic order.

Definition at line 207 of file GA_GroupTable.h.

bool GA_GroupTable::renameGroup	(	const UT_StringRef &	fromname,
		const UT_StringHolder &	toname
	)

Examples:: SOP/SOP_GroupRename.C.

UT_StringHolder GA_GroupTable::renameGroupUnspecified ( const UT_StringRef & from_name )

Rename a group to an unused name. Typically used to make from_name available for another group.

Returns new name on success, UT_StringHolder() on failure.

void GA_GroupTable::reserveNewSymbolTableSpace ( exint n )

inlineprotected

Definition at line 262 of file GA_GroupTable.h.

void GA_GroupTable::stat	(	UT_StringArray &	info,
		uint	level
	)

Get information about groups

void GA_GroupTable::stat	(	GA_Stat &	stat,
		uint	level
	)		const

Get information about groups

virtual GA_Group* GA_GroupTable::virtualCreateDetachedGroup ( const GA_Detail & detail ) const

protectedpure virtual

Implemented in GA_ElementGroupTableT< OWNER >, GA_ElementGroupTableT< GA_ATTRIB_PRIMITIVE >, GA_ElementGroupTableT< GA_ATTRIB_VERTEX >, GA_ElementGroupTableT< GA_ATTRIB_POINT >, and GA_EdgeGroupTable.

virtual GA_Group* GA_GroupTable::virtualCreateGroup	(	GA_Detail &	detail,
		const UT_StringHolder &	name,
		bool	internal
	)		const

protectedpure virtual

Implemented in GA_ElementGroupTableT< OWNER >, GA_ElementGroupTableT< GA_ATTRIB_PRIMITIVE >, GA_ElementGroupTableT< GA_ATTRIB_VERTEX >, GA_ElementGroupTableT< GA_ATTRIB_POINT >, and GA_EdgeGroupTable.

Friends And Related Function Documentation

friend class GA_AttributeDict

friend

Definition at line 268 of file GA_GroupTable.h.

The documentation for this class was generated from the following file:

GA/GA_GroupTable.h
