#include <GT_PrimInstance.h>

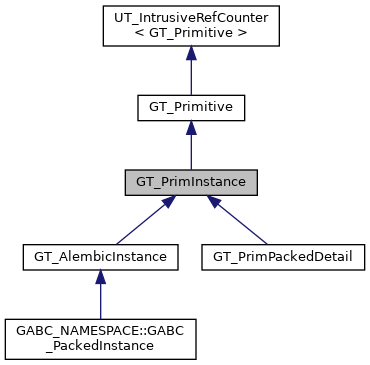

Inheritance diagram for GT_PrimInstance:

Classes
class	ExtractTransformEntry

Public Types
typedef UT_Array < ExtractTransformEntry >	ExtractTransformCache

Public Member Functions
	GT_PrimInstance ()

	GT_PrimInstance (const GT_PrimitiveHandle &geometry, const GT_TransformArrayHandle &transforms, const GT_GEOOffsetList &packed_prim_offsets=GT_GEOOffsetList(), const GT_AttributeListHandle &uniform=GT_AttributeListHandle(), const GT_AttributeListHandle &detail=GT_AttributeListHandle(), const GT_GEODetailListHandle &source=GT_GEODetailListHandle())

	GT_PrimInstance (const GT_PrimInstance &src)

	~GT_PrimInstance () override

bool	isValid () const
	Check valid. More...

GT_Size	entries () const
	Return number of instances. More...

const GT_PrimitiveHandle &	geometry () const
	Return geometry to be instanced. More...

const GT_TransformArrayHandle &	transforms () const
	Return transforms for instances. More...

GT_TransformArrayHandle &	transforms ()
	Non-const transform access (for appending new transforms). More...

const GT_AttributeListHandle &	uniform () const
	Return uniform attributes. More...

const GT_AttributeListHandle &	detail () const
	Return detail attributes. More...

const GT_GEOOffsetList &	packedPrimOffsets () const

GT_TransformArrayHandle	combinedTransforms () const

bool	refineToInstances (GT_Refine &refiner, const GT_RefineParms *parms) const

bool	flattenInstances (GT_Refine &refiner, const GT_RefineParms *parms) const

GT_PrimitiveHandle	expandInstanceTransforms () const

virtual bool	isSimplePrimitive (int primitive_type) const

bool	updateGeoPrim (const GU_ConstDetailHandle &dtl, const GT_RefineParms &refine) override
	update any cached data for geometry and its attributes More...

bool	extractTransforms (const GU_ConstDetailHandle &dtl, UT_Matrix4DArray &transforms, ExtractTransformCache &cache) const


const char *	className () const override

int	getPrimitiveType () const override

void	enlargeBounds (UT_BoundingBox boxes[], int nsegs) const override

void	enlargeRenderBounds (UT_BoundingBox boxes[], int nsegs) const override

void	getVelocityRange (UT_Vector3 &vmin, UT_Vector3 &vmax, const UT_StringRef &attribute_name) const override

bool	refine (GT_Refine &refiner, const GT_RefineParms *parms=NULL) const override

int	getMotionSegments () const override

int64	getMemoryUsage () const override

bool	save (UT_JSONWriter &w) const override

fpreal	computePerimeter (int seg=0) const override

fpreal	computeSurfaceArea (int seg=0) const override

fpreal	computeVolume (const UT_Vector3 &ref_P, int seg=0) const override

GT_PrimitiveHandle	doHarden () const override

GT_PrimitiveHandle	doSoftCopy () const override

const GT_ViewportRefineOptions &	viewportRefineOptions () const override

const GT_AttributeListHandle &	getUniformAttributes () const override

const GT_AttributeListHandle &	getDetailAttributes () const override


const GT_GEODetailListHandle &	sourceGeometry () const

void	setSourceGeometry (const GT_GEODetailListHandle &g)

Public Member Functions inherited from GT_Primitive
	GT_Primitive ()

	GT_Primitive (const GT_Primitive &src)

virtual	~GT_Primitive ()

virtual bool	getUniqueID (int64 &id) const

const GT_TransformHandle &	getPrimitiveTransform () const

void	setPrimitiveTransform (const GT_TransformHandle &x)
	Set the transform for a the primitive. More...

GT_PrimitiveHandle	clone () const

virtual bool	hasDataArray (const UT_StringRef &name, GT_Owner owner_scope[], int num_owners, GT_Storage storage=NULL, GT_Size tuple_size=NULL) const

void	setStaticGeometry (bool static_geo)
	Return true if the primitive represents geometry at frame 'fr'. More...

bool	isStaticGeometry () const

bool	isFrameInfoAvailable () const

bool	getDataIdHash (int64 &hash, int segment=0, bool cache_data_id=false) const

virtual bool	getTopologyVersion (int64 &version) const
	Returns the topology version for the primitive. More...

GT_DataArrayHandle	findAttribute (const UT_StringRef &name, GT_Owner &owner, int segment) const

void	dumpAttributeLists (const char *label, bool data_too) const
	print out all attribute lists More...

void	dumpPrimitive () const

bool	saveAttributeLists (UT_JSONWriter &w) const

GT_PrimitiveHandle	harden () const

GT_PrimitiveHandle	copyTransformed (const GT_TransformHandle &x, bool force=false) const

void	refineCopyTransformFrom (const GT_Primitive &src)

GT_PrimitiveHandle	attributeMerge (const GT_Primitive &src, const UT_StringMMPattern vertex_pattern, const UT_StringMMPattern point_pattern, const UT_StringMMPattern uniform_pattern, const UT_StringMMPattern detail_pattern) const

virtual GT_PrimitiveHandle	doAttributeMerge (const GT_Primitive &src, const UT_StringMMPattern vertex, const UT_StringMMPattern point, const UT_StringMMPattern uniform, const UT_StringMMPattern detail) const
	The virtual implementation of attribute merging. More...

bool	enlargeWidth (UT_BoundingBox boxes[], int nsegments, fpreal defwidth=-1) const

virtual const GT_AttributeListHandle &	getPointAttributes () const

virtual const GT_AttributeListHandle &	getVertexAttributes () const

const GT_AttributeListHandle &	getAttributeList (GT_Owner owner) const

virtual const GT_DataArrayHandle &	getVertexList () const

virtual GT_DataArrayHandle	createPointNormals (int segment=0, const UT_StringRef &P=GA_Names::P, bool normalize=true, const fpreal32 *pntdata=NULL, GT_Storage store=GT_STORE_REAL32) const

Public Member Functions inherited from UT_IntrusiveRefCounter< GT_Primitive >
SYS_FORCE_INLINE	UT_IntrusiveRefCounter () noexcept
	Default constructor: Sets counter to 0. More...

SYS_FORCE_INLINE	UT_IntrusiveRefCounter (const UT_IntrusiveRefCounter &) noexcept
	Copy constructor: Sets counter to 0. More...

UT_IntrusiveRefCounter &	operator= (const UT_IntrusiveRefCounter &) noexcept
	Assignment operator: Does not modify counter. More...

SYS_FORCE_INLINE uint32	use_count () const noexcept
	Return current counter. More...

SYS_FORCE_INLINE bool	conditionalAddRef () noexcept

Protected Member Functions
void	doEnlargeBounds (UT_BoundingBox boxes[], int nsegs, bool forrender) const

Protected Member Functions inherited from GT_Primitive
void	enlargeP (UT_BoundingBox &box, const GT_AttributeListHandle &list, int segment) const

void	enlargeP (UT_BoundingBox &B, const GT_DataArrayHandle &P) const
	Convenience method to enlarge a bounding box given a position attribute. More...

void	enlargePw (UT_BoundingBox &B, const GT_DataArrayHandle &P) const

Protected Member Functions inherited from UT_IntrusiveRefCounter< GT_Primitive >
SYS_FORCE_INLINE	~UT_IntrusiveRefCounter ()
	Destructor: Only derived classes can destruct this. More...

Protected Attributes
GT_PrimitiveHandle	myGeometry

GT_TransformArrayHandle	myTransforms

GT_GEOOffsetList	myPackedPrimOffsets

GT_AttributeListHandle	myUniform

GT_AttributeListHandle	myDetail

GT_GEODetailListHandle	mySourceGeometry

UT_Lock	myLock

Additional Inherited Members
Static Public Member Functions inherited from GT_Primitive
static int	createPrimitiveTypeId ()

static GT_AttributeListHandle	mergeAttributeLists (bool &changed, const GT_AttributeListHandle &src, const GT_AttributeListHandle &merge, const UT_StringMMPattern pattern, const UT_StringMMPattern alternate=NULL)

static bool	computeVelocityRange (UT_Vector3 &vmin, UT_Vector3 &vmax, const GT_DataArrayHandle &v)

static GT_PrimitiveHandle	refineDetail (const GU_ConstDetailHandle &detail, const GT_RefineParms *parms)

static GT_PrimitiveHandle	refinePrimitive (const GT_PrimitiveHandle &primh, const GT_RefineParms *parms)

static void *	operator new (size_t size)

static void *	operator new (size_t size, void *p)

static void	operator delete (void *p, size_t size)

Detailed Description

A primitive which instances another primitive

The instance primitive can have attribute lists:

detail: one for the whole primitive
uniform: one per instance The instance primitive does not pass these down when it refines.

Examples:: packedsphere/GT_GEOPackedSphere.C.

Definition at line 28 of file GT_PrimInstance.h.

Member Typedef Documentation

typedef UT_Array<ExtractTransformEntry> GT_PrimInstance::ExtractTransformCache

Definition at line 168 of file GT_PrimInstance.h.

Constructor & Destructor Documentation

GT_PrimInstance::GT_PrimInstance ( )

GT_PrimInstance::GT_PrimInstance	(	const GT_PrimitiveHandle &	geometry,
		const GT_TransformArrayHandle &	transforms,
		const GT_GEOOffsetList &	packed_prim_offsets = `GT_GEOOffsetList()`,
		const GT_AttributeListHandle &	uniform = `GT_AttributeListHandle()`,
		const GT_AttributeListHandle &	detail = `GT_AttributeListHandle()`,
		const GT_GEODetailListHandle &	source = `GT_GEODetailListHandle()`
	)

GT_PrimInstance::GT_PrimInstance ( const GT_PrimInstance & src )

GT_PrimInstance::~GT_PrimInstance ( )

override

Member Function Documentation

const char* GT_PrimInstance::className ( ) const

overridevirtual

Interface from GT_Primitive

Implements GT_Primitive.

Reimplemented in GT_PrimPackedDetail.

GT_TransformArrayHandle GT_PrimInstance::combinedTransforms ( ) const

Return the transforms for instances, but combined with the transform for the primitive itself.

fpreal GT_PrimInstance::computePerimeter ( int seg = 0 ) const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

fpreal GT_PrimInstance::computeSurfaceArea ( int seg = 0 ) const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

fpreal GT_PrimInstance::computeVolume	(	const UT_Vector3 &	ref_P,
		int	seg = `0`
	)		const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

const GT_AttributeListHandle& GT_PrimInstance::detail ( ) const

inline

Return detail attributes.

Definition at line 95 of file GT_PrimInstance.h.

void GT_PrimInstance::doEnlargeBounds	(	UT_BoundingBox	boxes[],
		int	nsegs,
		bool	forrender
	)		const

protected

GT_PrimitiveHandle GT_PrimInstance::doHarden ( ) const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

Reimplemented in GT_PrimPackedDetail.

GT_PrimitiveHandle GT_PrimInstance::doSoftCopy ( ) const

overridevirtual

Interface from GT_Primitive

Implements GT_Primitive.

Reimplemented in GT_PrimPackedDetail.

void GT_PrimInstance::enlargeBounds	(	UT_BoundingBox	boxes[],
		int	nsegs
	)		const

inlineoverridevirtual

Interface from GT_Primitive

Implements GT_Primitive.

Definition at line 45 of file GT_PrimInstance.h.

void GT_PrimInstance::enlargeRenderBounds	(	UT_BoundingBox	boxes[],
		int	nsegs
	)		const

inlineoverridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

Definition at line 48 of file GT_PrimInstance.h.

GT_Size GT_PrimInstance::entries ( ) const

inline

Return number of instances.

Definition at line 78 of file GT_PrimInstance.h.

GT_PrimitiveHandle GT_PrimInstance::expandInstanceTransforms ( ) const

If the geometry contained by this instance primitive is an instance primitive itself this method will expand the instances, by permuting the transform arrays, creating a single flattened array of transforms.

bool GT_PrimInstance::extractTransforms	(	const GU_ConstDetailHandle &	dtl,
		UT_Matrix4DArray &	transforms,
		ExtractTransformCache &	cache
	)		const

Same code as updateGeoPrim but extracts the transforms to flat arrays instead of GT_TransformArray. It uses a cache of extracted prim offsets and the cache is rebuilt only if it is empty. : Returned transforms : cache pointers to primitives, prim types and prim offset

bool GT_PrimInstance::flattenInstances	(	GT_Refine &	refiner,
		const GT_RefineParms *	parms
	)		const

Refine to individual pieces of geometry. This will create transformed copies of the geometry for each transform in the instance primitive

const GT_PrimitiveHandle& GT_PrimInstance::geometry ( ) const

inline

Return geometry to be instanced.

Definition at line 82 of file GT_PrimInstance.h.

const GT_AttributeListHandle& GT_PrimInstance::getDetailAttributes ( ) const

inlineoverridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

Definition at line 69 of file GT_PrimInstance.h.

int64 GT_PrimInstance::getMemoryUsage ( ) const

overridevirtual

Interface from GT_Primitive

Implements GT_Primitive.

Reimplemented in GT_PrimPackedDetail.

int GT_PrimInstance::getMotionSegments ( ) const

overridevirtual

Interface from GT_Primitive

Implements GT_Primitive.

int GT_PrimInstance::getPrimitiveType ( ) const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

const GT_AttributeListHandle& GT_PrimInstance::getUniformAttributes ( ) const

inlineoverridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

Definition at line 67 of file GT_PrimInstance.h.

void GT_PrimInstance::getVelocityRange	(	UT_Vector3 &	vmin,
		UT_Vector3 &	vmax,
		const UT_StringRef &	attribute_name
	)		const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

virtual bool GT_PrimInstance::isSimplePrimitive ( int primitive_type ) const

virtual

When the generic refine method is called, if the primitive is a "simple" primitive, flattenInstances() will be called instead of refineToInstances().

Default method considers the following to be "simple"

GT_PRIM_POLYGON_MESH
GT_PRIM_POLYGON
GT_PRIM_SUBDIVISION_MESH
GT_PRIM_CURVE_MESH
GT_PRIM_CURVE
GT_PRIM_POINT_MESH
GT_PRIM_NUPATCH
GT_PRIM_CIRCLE
GT_PRIM_SPHERE
GT_PRIM_TUBE
GT_PRIM_HYPERBOLOID
GT_PRIM_CIRCLE_MESH
GT_PRIM_SPHERE_MESH
GT_PRIM_TUBE_MESH
GT_PRIM_HYPERBOLOID_MESH

bool GT_PrimInstance::isValid ( ) const

inline

Check valid.

Definition at line 74 of file GT_PrimInstance.h.

const GT_GEOOffsetList& GT_PrimInstance::packedPrimOffsets ( ) const

inline

Definition at line 98 of file GT_PrimInstance.h.

bool GT_PrimInstance::refine	(	GT_Refine &	refiner,
		const GT_RefineParms *	parms = `NULL`
	)		const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

bool GT_PrimInstance::refineToInstances	(	GT_Refine &	refiner,
		const GT_RefineParms *	parms
	)		const

Refine geometry to create new instance primitives for each refined primitive. For example, if you refine an instance primitive containing a GT_PrimPolygonMesh, the poly mesh will be refined to create individual polygons. Each of these will be added to the refiner contained in an instance primitive.

bool GT_PrimInstance::save ( UT_JSONWriter & w ) const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

Reimplemented in GT_PrimPackedDetail.

void GT_PrimInstance::setSourceGeometry ( const GT_GEODetailListHandle & g )

inline

If the geometry being instanced comes from a GU_Detail, then the source geometry should be set to point to this geometry. This lets viewport decorations be rendered properly.

Definition at line 149 of file GT_PrimInstance.h.

const GT_GEODetailListHandle& GT_PrimInstance::sourceGeometry ( ) const

inline

If the geometry being instanced comes from a GU_Detail, then the source geometry should be set to point to this geometry. This lets viewport decorations be rendered properly.

Definition at line 147 of file GT_PrimInstance.h.

const GT_TransformArrayHandle& GT_PrimInstance::transforms ( ) const

inline

Return transforms for instances.

Definition at line 86 of file GT_PrimInstance.h.

GT_TransformArrayHandle& GT_PrimInstance::transforms ( )

inline

Non-const transform access (for appending new transforms).

Definition at line 89 of file GT_PrimInstance.h.

const GT_AttributeListHandle& GT_PrimInstance::uniform ( ) const

inline

Return uniform attributes.

Definition at line 92 of file GT_PrimInstance.h.

bool GT_PrimInstance::updateGeoPrim	(	const GU_ConstDetailHandle &	dtl,
		const GT_RefineParms &	parms
	)

overridevirtual

update any cached data for geometry and its attributes

Reimplemented from GT_Primitive.

const GT_ViewportRefineOptions& GT_PrimInstance::viewportRefineOptions ( ) const

overridevirtual

Interface from GT_Primitive

Reimplemented from GT_Primitive.

Member Data Documentation

GT_AttributeListHandle GT_PrimInstance::myDetail

protected

Definition at line 187 of file GT_PrimInstance.h.

GT_PrimitiveHandle GT_PrimInstance::myGeometry

protected

Definition at line 183 of file GT_PrimInstance.h.

UT_Lock GT_PrimInstance::myLock

protected

Definition at line 189 of file GT_PrimInstance.h.

GT_GEOOffsetList GT_PrimInstance::myPackedPrimOffsets

protected

Definition at line 185 of file GT_PrimInstance.h.

GT_GEODetailListHandle GT_PrimInstance::mySourceGeometry

protected

Definition at line 188 of file GT_PrimInstance.h.

GT_TransformArrayHandle GT_PrimInstance::myTransforms

protected

Definition at line 184 of file GT_PrimInstance.h.

GT_AttributeListHandle GT_PrimInstance::myUniform

protected

Definition at line 186 of file GT_PrimInstance.h.

The documentation for this class was generated from the following file:

GT/GT_PrimInstance.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
