#include <generativeProceduralResolvingSceneIndex.h>

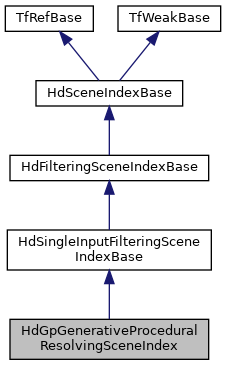

Inheritance diagram for HdGpGenerativeProceduralResolvingSceneIndex:

Public Member Functions
HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const override
	SATISFYING HdSceneIndexBase ///////////////////////////////////////////. More...

SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const override

Public Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API std::vector < HdSceneIndexBaseRefPtr >	GetInputScenes () const final

Public Member Functions inherited from HdSceneIndexBase
HD_API	HdSceneIndexBase ()

HD_API	~HdSceneIndexBase () override

HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const

HD_API void	SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)

HD_API std::string	GetDisplayName () const

HD_API void	SetDisplayName (const std::string &n)

HD_API void	AddTag (const TfToken &tag)

HD_API void	RemoveTag (const TfToken &tag)

HD_API bool	HasTag (const TfToken &tag) const

HD_API TfTokenVector	GetTags () const

Public Member Functions inherited from TfRefBase
	TfRefBase ()

	TfRefBase (TfRefBase const &)

TfRefBase &	operator= (TfRefBase const &)

size_t	GetCurrentCount () const
	Return the current reference count of this object. More...

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object. More...

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase ()

	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static HdGpGenerativeProceduralResolvingSceneIndexRefPtr	New (const HdSceneIndexBaseRefPtr &inputScene)

static HdGpGenerativeProceduralResolvingSceneIndexRefPtr	New (const HdSceneIndexBaseRefPtr &inputScene, const TfToken &targetPrimTypeName)

Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Protected Member Functions
	HdGpGenerativeProceduralResolvingSceneIndex (const HdSceneIndexBaseRefPtr &inputScene)

	HdGpGenerativeProceduralResolvingSceneIndex (const HdSceneIndexBaseRefPtr &inputScene, const TfToken &targetPrimTypeName)

void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries) override
	SATISFYING HdSingleInputFilteringSceneIndexBase ///////////////////////. More...

void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries) override

void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries) override

void	_SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args) override

Protected Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API	HdSingleInputFilteringSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex)

virtual HD_API void	_PrimsRenamed (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &entries)

const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)

HD_API void	_SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)

HD_API bool	_IsObserved () const

Protected Member Functions inherited from TfRefBase
virtual TF_API	~TfRefBase ()

Protected Member Functions inherited from TfWeakBase
	~TfWeakBase ()

TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Additional Inherited Members
Public Types inherited from TfRefBase
typedef void(*	UniqueChangedFuncPtr )(TfRefBase const *, bool)

Detailed Description

HdGpGenerativeProceduralResolvingSceneIndex is a scene index which evaluates prims representing generative procedurals within its incoming scene and outputs their resulting prims its own observers.

The hydra prim type used to identify generative procedurals can be configured per instance of this scene index to allow for a pipeline to stage when certain procedural prims are resolved within the chain of scene indicies. By default that type is "generativeProcedural".

This scene index also re-types (to its observers) any procedural prim it acts upon to be of type "resolvedGenerativeProcedural" to avoid potentially evaluating a single procedural multiple times.

In its current form, it does NOT recursively resolve any procedural prims which are the result of the procedural prims for which it is itself evaluting. Additionally, all procedural prims evaluated here see the same input scene – and not the results of other procedurals resolved by the same scene index instance.

Definition at line 62 of file generativeProceduralResolvingSceneIndex.h.

Constructor & Destructor Documentation

HdGpGenerativeProceduralResolvingSceneIndex::HdGpGenerativeProceduralResolvingSceneIndex ( const HdSceneIndexBaseRefPtr & inputScene )

protected

HdGpGenerativeProceduralResolvingSceneIndex::HdGpGenerativeProceduralResolvingSceneIndex	(	const HdSceneIndexBaseRefPtr &	inputScene,
		const TfToken &	targetPrimTypeName
	)

protected

Member Function Documentation

void HdGpGenerativeProceduralResolvingSceneIndex::_PrimsAdded	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::AddedPrimEntries &	entries
	)

overrideprotectedvirtual

SATISFYING HdSingleInputFilteringSceneIndexBase ///////////////////////.

Implements HdSingleInputFilteringSceneIndexBase.

void HdGpGenerativeProceduralResolvingSceneIndex::_PrimsDirtied	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::DirtiedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void HdGpGenerativeProceduralResolvingSceneIndex::_PrimsRemoved	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::RemovedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void HdGpGenerativeProceduralResolvingSceneIndex::_SystemMessage	(	const TfToken &	messageType,
		const HdDataSourceBaseHandle &	args
	)

overrideprotectedvirtual

Implement in order to react directly to system messages sent from downstream.

Reimplemented from HdSceneIndexBase.

SdfPathVector HdGpGenerativeProceduralResolvingSceneIndex::GetChildPrimPaths ( const SdfPath & primPath ) const

overridevirtual

Returns the paths of all scene index prims located immediately below primPath. This function can be used to traverse the scene by recursing from SdfPath::AbsoluteRootPath(); such a traversal is expected to give the same set of prims as the flattening of the scene index's PrimsAdded and PrimsRemoved messages. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

HdSceneIndexPrim HdGpGenerativeProceduralResolvingSceneIndex::GetPrim ( const SdfPath & primPath ) const

overridevirtual

SATISFYING HdSceneIndexBase ///////////////////////////////////////////.

Implements HdSceneIndexBase.

static HdGpGenerativeProceduralResolvingSceneIndexRefPtr HdGpGenerativeProceduralResolvingSceneIndex::New ( const HdSceneIndexBaseRefPtr & inputScene )

inlinestatic

Definition at line 67 of file generativeProceduralResolvingSceneIndex.h.

static HdGpGenerativeProceduralResolvingSceneIndexRefPtr HdGpGenerativeProceduralResolvingSceneIndex::New	(	const HdSceneIndexBaseRefPtr &	inputScene,
		const TfToken &	targetPrimTypeName
	)

inlinestatic

Definition at line 73 of file generativeProceduralResolvingSceneIndex.h.

The documentation for this class was generated from the following file:

pxr/imaging/hdGp/generativeProceduralResolvingSceneIndex.h
