#include <Interface.h>

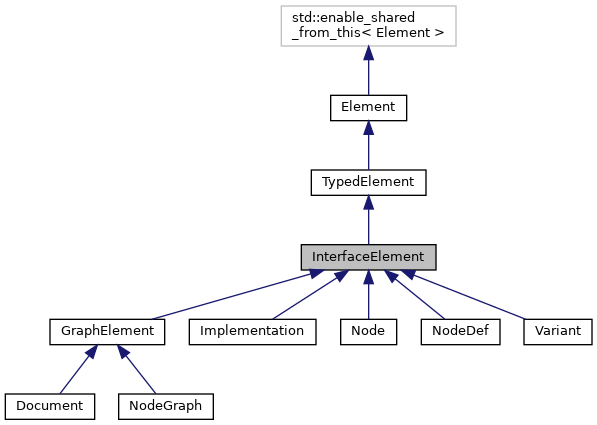

Inheritance diagram for InterfaceElement:

Public Member Functions
virtual	~InterfaceElement ()

NodeDef String
void	setNodeDefString (const string &nodeDef)
	Set the NodeDef string for the interface. More...

bool	hasNodeDefString () const
	Return true if the given interface has a NodeDef string. More...

const string &	getNodeDefString () const
	Return the NodeDef string for the interface. More...

Inputs
InputPtr	addInput (const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

InputPtr	getInput (const string &name) const
	Return the Input, if any, with the given name. More...

vector< InputPtr >	getInputs () const
	Return a vector of all Input elements. More...

size_t	getInputCount () const
	Return the number of Input elements. More...

void	removeInput (const string &name)
	Remove the Input, if any, with the given name. More...

InputPtr	getActiveInput (const string &name) const

vector< InputPtr >	getActiveInputs () const

Outputs
OutputPtr	addOutput (const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

OutputPtr	getOutput (const string &name) const
	Return the Output, if any, with the given name. More...

vector< OutputPtr >	getOutputs () const
	Return a vector of all Output elements. More...

size_t	getOutputCount () const
	Return the number of Output elements. More...

void	removeOutput (const string &name)
	Remove the Output, if any, with the given name. More...

OutputPtr	getActiveOutput (const string &name) const

vector< OutputPtr >	getActiveOutputs () const

void	setConnectedOutput (const string &inputName, OutputPtr output)

OutputPtr	getConnectedOutput (const string &inputName) const

Tokens
TokenPtr	addToken (const string &name=EMPTY_STRING)

TokenPtr	getToken (const string &name) const
	Return the Token, if any, with the given name. More...

vector< TokenPtr >	getTokens () const
	Return a vector of all Token elements. More...

void	removeToken (const string &name)
	Remove the Token, if any, with the given name. More...

TokenPtr	getActiveToken (const string &name) const

vector< TokenPtr >	getActiveTokens () const

Value Elements
ValueElementPtr	getValueElement (const string &name) const
	Return the ValueElement, if any, with the given name. More...

ValueElementPtr	getActiveValueElement (const string &name) const

vector< ValueElementPtr >	getActiveValueElements () const

Values
template<class T >
InputPtr	setInputValue (const string &name, const T &value, const string &type=EMPTY_STRING)

ValuePtr	getInputValue (const string &name, const string &target=EMPTY_STRING) const

TokenPtr	setTokenValue (const string &name, const string &value)

string	getTokenValue (const string &name)

Target
void	setTarget (const string &target)
	Set the target string of this interface. More...

bool	hasTarget () const
	Return true if the given interface has a target string. More...

const string &	getTarget () const
	Return the target string of this interface. More...

Version
void	setVersionString (const string &version)
	Set the version string of this interface. More...

bool	hasVersionString () const
	Return true if this interface has a version string. More...

const string &	getVersionString () const
	Return the version string of this interface. More...

void	setVersionIntegers (int majorVersion, int minorVersion)
	Set the major and minor versions as an integer pair. More...

virtual std::pair< int, int >	getVersionIntegers () const
	Return the major and minor versions as an integer pair. More...

Default Version
void	setDefaultVersion (bool defaultVersion)
	Set the default version flag of this element. More...

bool	getDefaultVersion () const
	Return the default version flag of this element. More...

Utility
virtual ConstInterfaceElementPtr	getDeclaration (const string &target=EMPTY_STRING) const

void	clearContent () override
	Clear all attributes and descendants from this element. More...

bool	hasExactInputMatch (ConstInterfaceElementPtr declaration, string *message=nullptr) const

Public Member Functions inherited from TypedElement
virtual	~TypedElement ()

void	setType (const string &type)
	Set the element's type string. More...

bool	hasType () const
	Return true if the given element has a type string. More...

virtual const string &	getType () const
	Return the element's type string. More...

bool	isColorType () const
	Return true if the element is of color type. More...

bool	isMultiOutputType () const
	Return true if the element is of multi-output type. More...

TypeDefPtr	getTypeDef () const

Public Member Functions inherited from Element
virtual	~Element ()

	Element (const Element &)=delete

Element &	operator= (const Element &)=delete

bool	operator== (const Element &rhs) const

bool	operator!= (const Element &rhs) const

void	setCategory (const string &category)
	Set the element's category string. More...

const string &	getCategory () const

void	setName (const string &name)

const string &	getName () const
	Return the element's name string. More...

string	getNamePath (ConstElementPtr relativeTo=nullptr) const

ElementPtr	getDescendant (const string &namePath) const

void	setFilePrefix (const string &prefix)
	Set the element's file prefix string. More...

bool	hasFilePrefix () const
	Return true if the given element has a file prefix string. More...

const string &	getFilePrefix () const
	Return the element's file prefix string. More...

const string &	getActiveFilePrefix () const

void	setGeomPrefix (const string &prefix)
	Set the element's geom prefix string. More...

bool	hasGeomPrefix () const
	Return true if the given element has a geom prefix string. More...

const string &	getGeomPrefix () const
	Return the element's geom prefix string. More...

const string &	getActiveGeomPrefix () const

void	setColorSpace (const string &colorSpace)
	Set the element's color space string. More...

bool	hasColorSpace () const
	Return true if the given element has a color space string. More...

const string &	getColorSpace () const
	Return the element's color space string. More...

const string &	getActiveColorSpace () const

void	setInheritString (const string &inherit)
	Set the inherit string of this element. More...

bool	hasInheritString () const
	Return true if this element has an inherit string. More...

const string &	getInheritString () const
	Return the inherit string of this element. More...

void	setInheritsFrom (ConstElementPtr super)
	Set the element that this one directly inherits from. More...

ElementPtr	getInheritsFrom () const
	Return the element, if any, that this one directly inherits from. More...

bool	hasInheritedBase (ConstElementPtr base) const

bool	hasInheritanceCycle () const
	Return true if the inheritance chain for this element contains a cycle. More...

void	setNamespace (const string &space)
	Set the namespace string of this element. More...

bool	hasNamespace () const
	Return true if this element has a namespace string. More...

const string &	getNamespace () const
	Return the namespace string of this element. More...

string	getQualifiedName (const string &name) const

void	setDocString (const string &doc)
	Set the documentation string of this element. More...

string	getDocString () const
	Return the documentation string of this element. More...

template<class T >
bool	isA (const string &category=EMPTY_STRING) const

template<class T >
shared_ptr< T >	asA ()
	Dynamic cast to an instance of the given subclass. More...

template<class T >
shared_ptr< const T >	asA () const
	Dynamic cast to a const instance of the given subclass. More...

template<class T >
shared_ptr< T >	addChild (const string &name=EMPTY_STRING)

ElementPtr	addChildOfCategory (const string &category, string name=EMPTY_STRING)

ElementPtr	changeChildCategory (ElementPtr child, const string &category)

ElementPtr	getChild (const string &name) const
	Return the child element, if any, with the given name. More...

template<class T >
shared_ptr< T >	getChildOfType (const string &name) const

const vector< ElementPtr > &	getChildren () const

template<class T >
vector< shared_ptr< T > >	getChildrenOfType (const string &category=EMPTY_STRING) const

void	setChildIndex (const string &name, int index)

int	getChildIndex (const string &name) const

void	removeChild (const string &name)
	Remove the child element, if any, with the given name. More...

template<class T >
void	removeChildOfType (const string &name)

void	setAttribute (const string &attrib, const string &value)
	Set the value string of the given attribute. More...

bool	hasAttribute (const string &attrib) const
	Return true if the given attribute is present. More...

const string &	getAttribute (const string &attrib) const

const StringVec &	getAttributeNames () const
	Return a vector of stored attribute names, in the order they were set. More...

template<class T >
void	setTypedAttribute (const string &attrib, const T &data)

template<class T >
T	getTypedAttribute (const string &attrib) const

void	removeAttribute (const string &attrib)
	Remove the given attribute, if present. More...

ElementPtr	getSelf ()
	Return our self pointer. More...

ConstElementPtr	getSelf () const
	Return our self pointer. More...

ElementPtr	getParent ()
	Return our parent element. More...

ConstElementPtr	getParent () const
	Return our parent element. More...

ElementPtr	getRoot ()
	Return the root element of our tree. More...

ConstElementPtr	getRoot () const
	Return the root element of our tree. More...

DocumentPtr	getDocument ()
	Return the root document of our tree. More...

ConstDocumentPtr	getDocument () const
	Return the root document of our tree. More...

template<class T >
shared_ptr< const T >	getAncestorOfType () const

TreeIterator	traverseTree () const

GraphIterator	traverseGraph () const

virtual Edge	getUpstreamEdge (size_t index=0) const

virtual size_t	getUpstreamEdgeCount () const
	Return the number of queriable upstream edges for this element. More...

ElementPtr	getUpstreamElement (size_t index=0) const

InheritanceIterator	traverseInheritance () const

void	setSourceUri (const string &sourceUri)

bool	hasSourceUri () const
	Return true if this element has a source URI. More...

const string &	getSourceUri () const
	Return the element's source URI. More...

const string &	getActiveSourceUri () const

virtual bool	validate (string *message=nullptr) const

void	copyContentFrom (const ConstElementPtr &source)

string	createValidChildName (string name) const

StringResolverPtr	createStringResolver (const string &geom=EMPTY_STRING) const

string	asString () const

Static Public Attributes
static const string	NODE_DEF_ATTRIBUTE

static const string	TARGET_ATTRIBUTE

static const string	VERSION_ATTRIBUTE

static const string	DEFAULT_VERSION_ATTRIBUTE

Static Public Attributes inherited from TypedElement
static const string	TYPE_ATTRIBUTE

Static Public Attributes inherited from Element
static const string	NAME_ATTRIBUTE

static const string	FILE_PREFIX_ATTRIBUTE

static const string	GEOM_PREFIX_ATTRIBUTE

static const string	COLOR_SPACE_ATTRIBUTE

static const string	INHERIT_ATTRIBUTE

static const string	NAMESPACE_ATTRIBUTE

static const string	DOC_ATTRIBUTE

Protected Types
using	NodeDefPtr = shared_ptr< NodeDef >

using	ConstNodeDefPtr = shared_ptr< const NodeDef >

Protected Types inherited from TypedElement
using	TypeDefPtr = shared_ptr< class TypeDef >

Protected Types inherited from Element
using	DocumentPtr = shared_ptr< Document >

using	ConstDocumentPtr = shared_ptr< const Document >

Protected Member Functions
	InterfaceElement (ElementPtr parent, const string &category, const string &name)

void	registerChildElement (ElementPtr child) override

void	unregisterChildElement (ElementPtr child) override

Protected Member Functions inherited from TypedElement
	TypedElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from Element
	Element (ElementPtr parent, const string &category, const string &name)

template<class T >
shared_ptr< T >	resolveNameReference (const string &name, ConstElementPtr parent=nullptr) const

void	validateRequire (bool expression, bool &res, string *message, const string &errorDesc) const

ElementPtr	getSelfNonConst () const

Additional Inherited Members
Protected Attributes inherited from Element
string	_category

string	_name

string	_sourceUri

ElementMap	_childMap

vector< ElementPtr >	_childOrder

StringMap	_attributeMap

StringVec	_attributeOrder

weak_ptr< Element >	_parent

weak_ptr< Element >	_root

Detailed Description

The base class for interface elements such as Node, NodeDef, and NodeGraph.

An InterfaceElement supports a set of Input and Output elements, with an API for setting their values.

Definition at line 317 of file Interface.h.

Member Typedef Documentation

using InterfaceElement::ConstNodeDefPtr = shared_ptr<const NodeDef>

protected

Definition at line 332 of file Interface.h.

using InterfaceElement::NodeDefPtr = shared_ptr<NodeDef>

protected

Definition at line 331 of file Interface.h.

Constructor & Destructor Documentation

InterfaceElement::InterfaceElement	(	ElementPtr	parent,
		const string &	category,
		const string &	name
	)

inlineprotected

Definition at line 320 of file Interface.h.

virtual InterfaceElement::~InterfaceElement ( )

inlinevirtual

Definition at line 328 of file Interface.h.

Member Function Documentation

InputPtr InterfaceElement::addInput	(	const string &	name = `EMPTY_STRING`,
		const string &	type = `DEFAULT_TYPE_STRING`
	)

inline

Add an Input to this interface.

Parameters

name	The name of the new Input. If no name is specified, then a unique name will automatically be generated.
type	An optional type string.

Returns: A shared pointer to the new Input.

Definition at line 366 of file Interface.h.

OutputPtr InterfaceElement::addOutput	(	const string &	name = `EMPTY_STRING`,
		const string &	type = `DEFAULT_TYPE_STRING`
	)

inline

Add an Output to this interface.

Parameters

name	The name of the new Output. If no name is specified, then a unique name will automatically be generated.
type	An optional type string.

Returns: A shared pointer to the new Output.

Definition at line 416 of file Interface.h.

TokenPtr InterfaceElement::addToken ( const string & name = EMPTY_STRING )

inline

Add a Token to this interface.

Parameters

name	The name of the new Token. If no name is specified, then a unique name will automatically be generated.

Returns: A shared pointer to the new Token.

Definition at line 474 of file Interface.h.

void InterfaceElement::clearContent ( )

overridevirtual

Clear all attributes and descendants from this element.

Reimplemented from Element.

InputPtr InterfaceElement::getActiveInput ( const string & name ) const

Return the first Input with the given name that belongs to this interface, taking interface inheritance into account.

vector<InputPtr> InterfaceElement::getActiveInputs ( ) const

Return a vector of all Input elements that belong to this interface, taking inheritance into account.

OutputPtr InterfaceElement::getActiveOutput ( const string & name ) const

Return the first Output with the given name that belongs to this interface, taking interface inheritance into account.

vector<OutputPtr> InterfaceElement::getActiveOutputs ( ) const

Return a vector of all Output elements that belong to this interface, taking inheritance into account.

TokenPtr InterfaceElement::getActiveToken ( const string & name ) const

Return the first Token with the given name that belongs to this interface, taking interface inheritance into account.

vector<TokenPtr> InterfaceElement::getActiveTokens ( ) const

Return a vector of all Token elements that belong to this interface, taking inheritance into account.

ValueElementPtr InterfaceElement::getActiveValueElement ( const string & name ) const

Return the first value element with the given name that belongs to this interface, taking interface inheritance into account. Examples of value elements are Input, Output, and Token.

vector<ValueElementPtr> InterfaceElement::getActiveValueElements ( ) const

Return a vector of all value elements that belong to this interface, taking inheritance into account. Examples of value elements are Input, Output, and Token.

OutputPtr InterfaceElement::getConnectedOutput ( const string & inputName ) const

Return the output connected to the given input. If the given input is not present, then an empty OutputPtr is returned.

virtual ConstInterfaceElementPtr InterfaceElement::getDeclaration ( const string & target = EMPTY_STRING ) const

virtual

Return the first declaration of this interface, optionally filtered by the given target name.

Parameters

target An optional target name, which will be used to filter the declarations that are considered.

Returns: A shared pointer to declaration, or an empty shared pointer if no declaration was found.

Reimplemented in NodeGraph, Implementation, NodeDef, and Node.

bool InterfaceElement::getDefaultVersion ( ) const

inline

Return the default version flag of this element.

Definition at line 625 of file Interface.h.

InputPtr InterfaceElement::getInput ( const string & name ) const

inline

Return the Input, if any, with the given name.

Definition at line 375 of file Interface.h.

size_t InterfaceElement::getInputCount ( ) const

inline

Return the number of Input elements.

Definition at line 387 of file Interface.h.

vector<InputPtr> InterfaceElement::getInputs ( ) const

inline

Return a vector of all Input elements.

Definition at line 381 of file Interface.h.

ValuePtr InterfaceElement::getInputValue	(	const string &	name,
		const string &	target = `EMPTY_STRING`
	)		const

Return the typed value of an input by its name, taking both the calling element and its declaration into account.

Parameters

name	The name of the input to be evaluated.
target	An optional target name, which will be used to filter the declarations that are considered.

Returns: If the given input is found in this interface or its declaration, then a shared pointer to its value is returned; otherwise, an empty shared pointer is returned.

const string& InterfaceElement::getNodeDefString ( ) const

inline

Return the NodeDef string for the interface.

Definition at line 351 of file Interface.h.

OutputPtr InterfaceElement::getOutput ( const string & name ) const

inline

Return the Output, if any, with the given name.

Definition at line 425 of file Interface.h.

size_t InterfaceElement::getOutputCount ( ) const

inline

Return the number of Output elements.

Definition at line 437 of file Interface.h.

vector<OutputPtr> InterfaceElement::getOutputs ( ) const

inline

Return a vector of all Output elements.

Definition at line 431 of file Interface.h.

const string& InterfaceElement::getTarget ( ) const

inline

Return the target string of this interface.

Definition at line 581 of file Interface.h.

TokenPtr InterfaceElement::getToken ( const string & name ) const

inline

Return the Token, if any, with the given name.

Definition at line 480 of file Interface.h.

vector<TokenPtr> InterfaceElement::getTokens ( ) const

inline

Return a vector of all Token elements.

Definition at line 486 of file Interface.h.

string InterfaceElement::getTokenValue ( const string & name )

inline

Return the string value of a Token by its name, or an empty string if the given Token is not present.

Definition at line 558 of file Interface.h.

ValueElementPtr InterfaceElement::getValueElement ( const string & name ) const

inline

Return the ValueElement, if any, with the given name.

Definition at line 510 of file Interface.h.

virtual std::pair<int, int> InterfaceElement::getVersionIntegers ( ) const

virtual

Return the major and minor versions as an integer pair.

Reimplemented in Document.

const string& InterfaceElement::getVersionString ( ) const

inline

Return the version string of this interface.

Definition at line 603 of file Interface.h.

bool InterfaceElement::hasExactInputMatch	(	ConstInterfaceElementPtr	declaration,
		string *	message = `nullptr`
	)		const

Return true if this instance has an exact input match with the given declaration, where each input of this the instance corresponds to a declaration input of the same name and type.

If an exact input match is not found, and the optional message argument is provided, then an error message will be appended to the given string.

bool InterfaceElement::hasNodeDefString ( ) const

inline

Return true if the given interface has a NodeDef string.

Definition at line 345 of file Interface.h.

bool InterfaceElement::hasTarget ( ) const

inline

Return true if the given interface has a target string.

Definition at line 575 of file Interface.h.

bool InterfaceElement::hasVersionString ( ) const

inline

Return true if this interface has a version string.

Definition at line 597 of file Interface.h.

void InterfaceElement::registerChildElement ( ElementPtr child )

overrideprotectedvirtual

Reimplemented from Element.

void InterfaceElement::removeInput ( const string & name )

inline

Remove the Input, if any, with the given name.

Definition at line 393 of file Interface.h.

void InterfaceElement::removeOutput ( const string & name )

inline

Remove the Output, if any, with the given name.

Definition at line 443 of file Interface.h.

void InterfaceElement::removeToken ( const string & name )

inline

Remove the Token, if any, with the given name.

Definition at line 492 of file Interface.h.

void InterfaceElement::setConnectedOutput	(	const string &	inputName,
		OutputPtr	output
	)

Set the output to which the given input is connected, creating a child input if needed. If the node argument is null, then any existing output connection on the input will be cleared.

void InterfaceElement::setDefaultVersion ( bool defaultVersion )

inline

Set the default version flag of this element.

Definition at line 619 of file Interface.h.

template<class T >

InputPtr InterfaceElement::setInputValue	(	const string &	name,
		const T &	value,
		const string &	type = `EMPTY_STRING`
	)

Set the typed value of an input by its name, creating a child element to hold the input if needed.

Definition at line 670 of file Interface.h.

void InterfaceElement::setNodeDefString ( const string & nodeDef )

inline

Set the NodeDef string for the interface.

Definition at line 339 of file Interface.h.

void InterfaceElement::setTarget ( const string & target )

inline

Set the target string of this interface.

Definition at line 569 of file Interface.h.

TokenPtr InterfaceElement::setTokenValue	(	const string &	name,
		const string &	value
	)

inline

Set the string value of a Token by its name, creating a child element to hold the Token if needed.

Definition at line 547 of file Interface.h.

void InterfaceElement::setVersionIntegers	(	int	majorVersion,
		int	minorVersion
	)

Set the major and minor versions as an integer pair.

void InterfaceElement::setVersionString ( const string & version )

inline

Set the version string of this interface.

Definition at line 591 of file Interface.h.

void InterfaceElement::unregisterChildElement ( ElementPtr child )

overrideprotectedvirtual

Reimplemented from Element.

Member Data Documentation

const string InterfaceElement::DEFAULT_VERSION_ATTRIBUTE

static

Definition at line 659 of file Interface.h.

const string InterfaceElement::NODE_DEF_ATTRIBUTE

static

Definition at line 656 of file Interface.h.

const string InterfaceElement::TARGET_ATTRIBUTE

static

Definition at line 657 of file Interface.h.

const string InterfaceElement::VERSION_ATTRIBUTE

static

Definition at line 658 of file Interface.h.

The documentation for this class was generated from the following file:

MaterialXCore/Interface.h

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
