#include <Node.h>

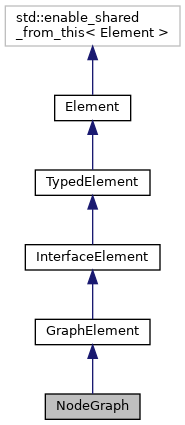

Inheritance diagram for NodeGraph:

Public Member Functions
	NodeGraph (ElementPtr parent, const string &name)

virtual	~NodeGraph ()

Material References
vector< OutputPtr >	getMaterialOutputs () const
	Return all material-type outputs of the nodegraph. More...

NodeDef References
void	setNodeDef (ConstNodeDefPtr nodeDef)
	Set the NodeDef element referenced by this NodeGraph. More...

NodeDefPtr	getNodeDef () const
	Return the NodeDef element referenced by this NodeGraph. More...

InterfaceElementPtr	getImplementation () const

Traversal
vector< PortElementPtr >	getDownstreamPorts () const

Utility
ConstInterfaceElementPtr	getDeclaration (const string &target=EMPTY_STRING) const override

void	addInterfaceName (const string &inputPath, const string &interfaceName)

void	removeInterfaceName (const string &inputPath)

void	modifyInterfaceName (const string &inputPath, const string &interfaceName)

Validation
bool	validate (string *message=nullptr) const override

Public Member Functions inherited from GraphElement
virtual	~GraphElement ()

NodePtr	addNode (const string &category, const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

NodePtr	addNodeInstance (ConstNodeDefPtr nodeDef, const string &name=EMPTY_STRING)
	Add a Node that is an instance of the given NodeDef. More...

NodePtr	getNode (const string &name) const
	Return the Node, if any, with the given name. More...

vector< NodePtr >	getNodes (const string &category=EMPTY_STRING) const

vector< NodePtr >	getNodesOfType (const string &nodeType) const
	Return a vector of nodes in the graph which have a given type. More...

void	removeNode (const string &name)
	Remove the Node, if any, with the given name. More...

NodePtr	addMaterialNode (const string &name=EMPTY_STRING, ConstNodePtr shaderNode=nullptr)

vector< NodePtr >	getMaterialNodes () const
	Return a vector of all material nodes. More...

BackdropPtr	addBackdrop (const string &name=EMPTY_STRING)
	Add a Backdrop to the graph. More...

BackdropPtr	getBackdrop (const string &name) const
	Return the Backdrop, if any, with the given name. More...

vector< BackdropPtr >	getBackdrops () const
	Return a vector of all Backdrop elements in the graph. More...

void	removeBackdrop (const string &name)
	Remove the Backdrop, if any, with the given name. More...

void	flattenSubgraphs (const string &target=EMPTY_STRING, NodePredicate filter=nullptr)

vector< ElementPtr >	topologicalSort () const

NodePtr	addGeomNode (ConstGeomPropDefPtr geomPropDef, const string &namePrefix)

string	asStringDot () const

Public Member Functions inherited from InterfaceElement
virtual	~InterfaceElement ()

void	setNodeDefString (const string &nodeDef)
	Set the NodeDef string for the interface. More...

bool	hasNodeDefString () const
	Return true if the given interface has a NodeDef string. More...

const string &	getNodeDefString () const
	Return the NodeDef string for the interface. More...

InputPtr	addInput (const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

InputPtr	getInput (const string &name) const
	Return the Input, if any, with the given name. More...

vector< InputPtr >	getInputs () const
	Return a vector of all Input elements. More...

size_t	getInputCount () const
	Return the number of Input elements. More...

void	removeInput (const string &name)
	Remove the Input, if any, with the given name. More...

InputPtr	getActiveInput (const string &name) const

vector< InputPtr >	getActiveInputs () const

OutputPtr	addOutput (const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

OutputPtr	getOutput (const string &name) const
	Return the Output, if any, with the given name. More...

vector< OutputPtr >	getOutputs () const
	Return a vector of all Output elements. More...

size_t	getOutputCount () const
	Return the number of Output elements. More...

void	removeOutput (const string &name)
	Remove the Output, if any, with the given name. More...

OutputPtr	getActiveOutput (const string &name) const

vector< OutputPtr >	getActiveOutputs () const

void	setConnectedOutput (const string &inputName, OutputPtr output)

OutputPtr	getConnectedOutput (const string &inputName) const

TokenPtr	addToken (const string &name=EMPTY_STRING)

TokenPtr	getToken (const string &name) const
	Return the Token, if any, with the given name. More...

vector< TokenPtr >	getTokens () const
	Return a vector of all Token elements. More...

void	removeToken (const string &name)
	Remove the Token, if any, with the given name. More...

TokenPtr	getActiveToken (const string &name) const

vector< TokenPtr >	getActiveTokens () const

ValueElementPtr	getValueElement (const string &name) const
	Return the ValueElement, if any, with the given name. More...

ValueElementPtr	getActiveValueElement (const string &name) const

vector< ValueElementPtr >	getActiveValueElements () const

template<class T >
InputPtr	setInputValue (const string &name, const T &value, const string &type=EMPTY_STRING)

ValuePtr	getInputValue (const string &name, const string &target=EMPTY_STRING) const

TokenPtr	setTokenValue (const string &name, const string &value)

string	getTokenValue (const string &name)

void	setTarget (const string &target)
	Set the target string of this interface. More...

bool	hasTarget () const
	Return true if the given interface has a target string. More...

const string &	getTarget () const
	Return the target string of this interface. More...

void	setVersionString (const string &version)
	Set the version string of this interface. More...

bool	hasVersionString () const
	Return true if this interface has a version string. More...

const string &	getVersionString () const
	Return the version string of this interface. More...

void	setVersionIntegers (int majorVersion, int minorVersion)
	Set the major and minor versions as an integer pair. More...

virtual std::pair< int, int >	getVersionIntegers () const
	Return the major and minor versions as an integer pair. More...

void	setDefaultVersion (bool defaultVersion)
	Set the default version flag of this element. More...

bool	getDefaultVersion () const
	Return the default version flag of this element. More...

void	clearContent () override
	Clear all attributes and descendants from this element. More...

bool	hasExactInputMatch (ConstInterfaceElementPtr declaration, string *message=nullptr) const

Public Member Functions inherited from TypedElement
virtual	~TypedElement ()

void	setType (const string &type)
	Set the element's type string. More...

bool	hasType () const
	Return true if the given element has a type string. More...

virtual const string &	getType () const
	Return the element's type string. More...

bool	isColorType () const
	Return true if the element is of color type. More...

bool	isMultiOutputType () const
	Return true if the element is of multi-output type. More...

TypeDefPtr	getTypeDef () const

Public Member Functions inherited from Element
virtual	~Element ()

	Element (const Element &)=delete

Element &	operator= (const Element &)=delete

bool	operator== (const Element &rhs) const

bool	operator!= (const Element &rhs) const

void	setCategory (const string &category)
	Set the element's category string. More...

const string &	getCategory () const

void	setName (const string &name)

const string &	getName () const
	Return the element's name string. More...

string	getNamePath (ConstElementPtr relativeTo=nullptr) const

ElementPtr	getDescendant (const string &namePath) const

void	setFilePrefix (const string &prefix)
	Set the element's file prefix string. More...

bool	hasFilePrefix () const
	Return true if the given element has a file prefix string. More...

const string &	getFilePrefix () const
	Return the element's file prefix string. More...

const string &	getActiveFilePrefix () const

void	setGeomPrefix (const string &prefix)
	Set the element's geom prefix string. More...

bool	hasGeomPrefix () const
	Return true if the given element has a geom prefix string. More...

const string &	getGeomPrefix () const
	Return the element's geom prefix string. More...

const string &	getActiveGeomPrefix () const

void	setColorSpace (const string &colorSpace)
	Set the element's color space string. More...

bool	hasColorSpace () const
	Return true if the given element has a color space string. More...

const string &	getColorSpace () const
	Return the element's color space string. More...

const string &	getActiveColorSpace () const

void	setInheritString (const string &inherit)
	Set the inherit string of this element. More...

bool	hasInheritString () const
	Return true if this element has an inherit string. More...

const string &	getInheritString () const
	Return the inherit string of this element. More...

void	setInheritsFrom (ConstElementPtr super)
	Set the element that this one directly inherits from. More...

ElementPtr	getInheritsFrom () const
	Return the element, if any, that this one directly inherits from. More...

bool	hasInheritedBase (ConstElementPtr base) const

bool	hasInheritanceCycle () const
	Return true if the inheritance chain for this element contains a cycle. More...

void	setNamespace (const string &space)
	Set the namespace string of this element. More...

bool	hasNamespace () const
	Return true if this element has a namespace string. More...

const string &	getNamespace () const
	Return the namespace string of this element. More...

string	getQualifiedName (const string &name) const

void	setDocString (const string &doc)
	Set the documentation string of this element. More...

string	getDocString () const
	Return the documentation string of this element. More...

template<class T >
bool	isA (const string &category=EMPTY_STRING) const

template<class T >
shared_ptr< T >	asA ()
	Dynamic cast to an instance of the given subclass. More...

template<class T >
shared_ptr< const T >	asA () const
	Dynamic cast to a const instance of the given subclass. More...

template<class T >
shared_ptr< T >	addChild (const string &name=EMPTY_STRING)

ElementPtr	addChildOfCategory (const string &category, string name=EMPTY_STRING)

ElementPtr	changeChildCategory (ElementPtr child, const string &category)

ElementPtr	getChild (const string &name) const
	Return the child element, if any, with the given name. More...

template<class T >
shared_ptr< T >	getChildOfType (const string &name) const

const vector< ElementPtr > &	getChildren () const

template<class T >
vector< shared_ptr< T > >	getChildrenOfType (const string &category=EMPTY_STRING) const

void	setChildIndex (const string &name, int index)

int	getChildIndex (const string &name) const

void	removeChild (const string &name)
	Remove the child element, if any, with the given name. More...

template<class T >
void	removeChildOfType (const string &name)

void	setAttribute (const string &attrib, const string &value)
	Set the value string of the given attribute. More...

bool	hasAttribute (const string &attrib) const
	Return true if the given attribute is present. More...

const string &	getAttribute (const string &attrib) const

const StringVec &	getAttributeNames () const
	Return a vector of stored attribute names, in the order they were set. More...

template<class T >
void	setTypedAttribute (const string &attrib, const T &data)

template<class T >
T	getTypedAttribute (const string &attrib) const

void	removeAttribute (const string &attrib)
	Remove the given attribute, if present. More...

ElementPtr	getSelf ()
	Return our self pointer. More...

ConstElementPtr	getSelf () const
	Return our self pointer. More...

ElementPtr	getParent ()
	Return our parent element. More...

ConstElementPtr	getParent () const
	Return our parent element. More...

ElementPtr	getRoot ()
	Return the root element of our tree. More...

ConstElementPtr	getRoot () const
	Return the root element of our tree. More...

DocumentPtr	getDocument ()
	Return the root document of our tree. More...

ConstDocumentPtr	getDocument () const
	Return the root document of our tree. More...

template<class T >
shared_ptr< const T >	getAncestorOfType () const

TreeIterator	traverseTree () const

GraphIterator	traverseGraph () const

virtual Edge	getUpstreamEdge (size_t index=0) const

virtual size_t	getUpstreamEdgeCount () const
	Return the number of queriable upstream edges for this element. More...

ElementPtr	getUpstreamElement (size_t index=0) const

InheritanceIterator	traverseInheritance () const

void	setSourceUri (const string &sourceUri)

bool	hasSourceUri () const
	Return true if this element has a source URI. More...

const string &	getSourceUri () const
	Return the element's source URI. More...

const string &	getActiveSourceUri () const

void	copyContentFrom (const ConstElementPtr &source)

string	createValidChildName (string name) const

StringResolverPtr	createStringResolver (const string &geom=EMPTY_STRING) const

string	asString () const

Static Public Attributes
static const string	CATEGORY

Static Public Attributes inherited from InterfaceElement
static const string	NODE_DEF_ATTRIBUTE

static const string	TARGET_ATTRIBUTE

static const string	VERSION_ATTRIBUTE

static const string	DEFAULT_VERSION_ATTRIBUTE

Static Public Attributes inherited from TypedElement
static const string	TYPE_ATTRIBUTE

Static Public Attributes inherited from Element
static const string	NAME_ATTRIBUTE

static const string	FILE_PREFIX_ATTRIBUTE

static const string	GEOM_PREFIX_ATTRIBUTE

static const string	COLOR_SPACE_ATTRIBUTE

static const string	INHERIT_ATTRIBUTE

static const string	NAMESPACE_ATTRIBUTE

static const string	DOC_ATTRIBUTE

Additional Inherited Members
Protected Types inherited from InterfaceElement
using	NodeDefPtr = shared_ptr< NodeDef >

using	ConstNodeDefPtr = shared_ptr< const NodeDef >

Protected Types inherited from TypedElement
using	TypeDefPtr = shared_ptr< class TypeDef >

Protected Types inherited from Element
using	DocumentPtr = shared_ptr< Document >

using	ConstDocumentPtr = shared_ptr< const Document >

Protected Member Functions inherited from GraphElement
	GraphElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from InterfaceElement
	InterfaceElement (ElementPtr parent, const string &category, const string &name)

void	registerChildElement (ElementPtr child) override

void	unregisterChildElement (ElementPtr child) override

Protected Member Functions inherited from TypedElement
	TypedElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from Element
	Element (ElementPtr parent, const string &category, const string &name)

template<class T >
shared_ptr< T >	resolveNameReference (const string &name, ConstElementPtr parent=nullptr) const

void	validateRequire (bool expression, bool &res, string *message, const string &errorDesc) const

ElementPtr	getSelfNonConst () const

Protected Attributes inherited from Element
string	_category

string	_name

string	_sourceUri

ElementMap	_childMap

vector< ElementPtr >	_childOrder

StringMap	_attributeMap

StringVec	_attributeOrder

weak_ptr< Element >	_parent

weak_ptr< Element >	_root

Detailed Description

A node graph element within a Document.

Definition at line 330 of file Node.h.

Constructor & Destructor Documentation

NodeGraph::NodeGraph	(	ElementPtr	parent,
		const string &	name
	)

inline

Definition at line 333 of file Node.h.

virtual NodeGraph::~NodeGraph ( )

inlinevirtual

Definition at line 337 of file Node.h.

Member Function Documentation

void NodeGraph::addInterfaceName	(	const string &	inputPath,
		const string &	interfaceName
	)

Add an interface name to an existing NodeDef associated with this NodeGraph.

Parameters

inputPath	Path to an input descendant of this graph.
interfaceName	The new interface name.

ConstInterfaceElementPtr NodeGraph::getDeclaration ( const string & target = EMPTY_STRING ) const

overridevirtual

Return the first declaration of this interface, optionally filtered by the given target name.

Reimplemented from InterfaceElement.

vector<PortElementPtr> NodeGraph::getDownstreamPorts ( ) const

Return a vector of all downstream ports that connect to this graph, ordered by the names of the port elements.

InterfaceElementPtr NodeGraph::getImplementation ( ) const

Return the first implementation for this node graph

Returns: An implementation for this node, or an empty shared pointer if none was found.

vector<OutputPtr> NodeGraph::getMaterialOutputs ( ) const

Return all material-type outputs of the nodegraph.

NodeDefPtr NodeGraph::getNodeDef ( ) const

Return the NodeDef element referenced by this NodeGraph.

void NodeGraph::modifyInterfaceName	(	const string &	inputPath,
		const string &	interfaceName
	)

Modify the interface name on an existing NodeDef associated with this NodeGraph.

Parameters

inputPath	Path to an input descendant of this graph.
interfaceName	The new interface name.

void NodeGraph::removeInterfaceName ( const string & inputPath )

Remove an interface name from an existing NodeDef associated with this NodeGraph.

Parameters

inputPath Path to an input descendant of this graph.

void NodeGraph::setNodeDef ( ConstNodeDefPtr nodeDef )

Set the NodeDef element referenced by this NodeGraph.

bool NodeGraph::validate ( string * message = nullptr ) const

overridevirtual

Validate that the given element tree, including all descendants, is consistent with the MaterialX specification.

Reimplemented from Element.

Member Data Documentation

const string NodeGraph::CATEGORY

static

Definition at line 401 of file Node.h.

The documentation for this class was generated from the following file:

MaterialXCore/Node.h

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
