OP_NamedDataMicroNode Class Reference

#include <OP_NamedMicroNodes.h>

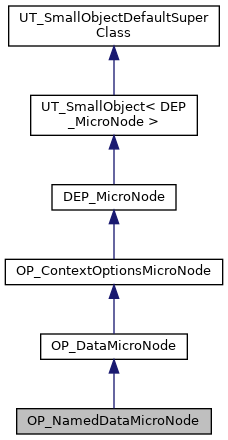

Inheritance diagram for OP_NamedDataMicroNode:

Public Member Functions
	OP_NamedDataMicroNode (OP_Node &node, const UT_StringHolder &name)
const char *	className () const override
const UT_StringHolder &	getMicroNodeName () const
void	rebuildDependents ()
const UT_Array< const OP_NamedDataMicroNode * > &	dependents () const
void	becameDirty (DEP_MicroNode &src, const DEP_PropagateData &data) override
Public Member Functions inherited from OP_DataMicroNode
	OP_DataMicroNode (OP_Node &node)
void	getParmInputs (DEP_MicroNodeList &inputs) const
void	getUsedDataInputs (DEP_MicroNodeList &inputs) const
bool	inheritTimeDependentFromUsedDataInputs ()
bool	inheritTimeInterestedFromUsedDataInputs ()
void	getInputs (DEP_MicroNodeList &inputs) const override
void	clearInputs () override
void	getOutputs (DEP_MicroNodeList &outputs) const override
void	getExtraInputs (DEP_MicroNodeList &inputs) const
	Like getInputs() but excludes wired OP_Node inputs. More...
void	getExtraOutputs (DEP_MicroNodeList &outputs) const
void	update (fpreal t) override
bool	requiresUpdate (fpreal t) const override
bool	isEvaluating () const override
void	evaluateExports () override
bool	isExporting () const override
int64	getMemoryUsage (bool inclusive) const override
	Obtain approximate memory usage. More...
void	dump (std::ostream &os, const char *prefix=0, int indent_level=0) const override
	Dump contents to output stream, strictly for debugging purposes. More...
OP_Node &	ownerNode () const
void	bumpModVersion ()
bool	isModVersionOutdated () const
OP_VERSION	modVersion () const
OP_VERSION	lastModVersion () const
void	setModVersion (OP_VERSION v)
Public Member Functions inherited from OP_ContextOptionsMicroNode
	OP_ContextOptionsMicroNode ()
void	updateOptions (DEP_ContextOptionsReadHandle options, const DEP_ContextOptionsStack *optstack)
bool	requiresUpdateOptions (DEP_ContextOptionsReadHandle options, const DEP_ContextOptionsStack *optstack) const
DEP_ContextOptionsReadHandle	getLastUsedContextOptions () const
	Returns the options and values used in the last cook of this data. More...
const DEP_ContextOptionsReadHandle &	getLastAllContextOptions () const
	Returns all options and values provided to the last cook of this data. More...
DEP_ContextOptionsStack *	getLastUsedContextOptionsStack () const
const UT_StringArray &	getLastMissingContextOptions () const
fpreal	lastUpdateTime () const
bool	isEqualToLastUpdateTime (fpreal t) const
Public Member Functions inherited from DEP_MicroNode
	DEP_MicroNode ()
virtual	~DEP_MicroNode ()
void	propagateDirty (Visitor client_visit, bool only_outputs=false)
void	traverseAncestorInputs (const TraverseVisitor &visitor) const
	Traverse all ancestor inputs of this micronode. More...
bool	markVisitPass (int pass)
SYS_FORCE_INLINE int	lastVisitPass () const
void	dumpAsDOT (std::ostream &os, const char *prefix=0, int indent_level=0) const
	Dump the contents is a manner more suitable for DOT. More...
bool	inheritTimeDependentFromExplicitInputs ()
bool	inheritTimeInterestedFromExplicitInputs ()
bool	inheritContextOptionDepsFromExplicitInputs (const UT_StringArray &ignore_deps)
void	addExplicitInput (DEP_MicroNode &inp, bool check_dup)
	Methods for manipulating explicit edges. More...
SYS_FORCE_INLINE void	addExplicitInput (DEP_MicroNode &inp)
	Add an input that this micronode depends on. More...
void	addExplicitInputs (const DEP_MicroNodeList &sources, bool check_dup=true)
	Bulk add multiple explicit inputs at once. More...
void	getExplicitInputs (DEP_MicroNodeList &inputs) const
	Get list of all non-null explicit inputs. More...
SYS_FORCE_INLINE int	getNumExplicitInputs () const
	Get the number of non-null inputs. More...
void	getExplicitOutputs (DEP_MicroNodeList &outputs) const
	Get list of all non-null explicit outputs. More...
SYS_FORCE_INLINE int	getNumExplicitOutputs () const
	Get the number of non-null outputs. More...
SYS_FORCE_INLINE bool	isDirty () const
	Flag accessors. More...
void	setDirty (bool flag, bool allow_clear=true)
	Flag accessors. More...
SYS_FORCE_INLINE bool	isTimeDependent () const
	Flag accessors. More...
SYS_FORCE_INLINE void	setTimeDependent (bool time_dependent)
	Flag accessors. More...
SYS_FORCE_INLINE bool	isTimeInterested () const
	Flag accessors. More...
SYS_FORCE_INLINE void	setTimeInterested (bool time_interested)
	Flag accessors. More...
SYS_FORCE_INLINE bool	hasContextOptionDeps () const
	Flag accessors. More...
SYS_FORCE_INLINE const DEP_ContextOptionDeps &	getContextOptionDeps () const
	Flag accessors. More...
SYS_FORCE_INLINE void	addContextOptionDeps (const DEP_ContextOptionDeps &opts)
	Flag accessors. More...
SYS_FORCE_INLINE void	addContextOptionDep (const UT_StringHolder &opt)
	Flag accessors. More...
SYS_FORCE_INLINE void	clearContextOptionDeps ()
	Flag accessors. More...
SYS_FORCE_INLINE bool	isOpDataMicroNode () const
	Flag accessors. More...

Public Attributes
UT_StringHolder	myMicroNodeName
bool	myRebuildDependents
UT_Array< const OP_NamedDataMicroNode * >	myDependents

Additional Inherited Members
Public Types inherited from DEP_MicroNode
typedef UT_Function< void(DEP_MicroNode &, DEP_MicroNode &) >	Visitor
typedef UT_Function< bool(const DEP_MicroNode &, const DEP_MicroNode &) >	TraverseVisitor
Static Public Member Functions inherited from DEP_MicroNode
static SYS_FORCE_INLINE bool	canClearDependencies ()
	Global control whether dependencies can be cleared. More...
static SYS_FORCE_INLINE bool	canEvaluateExports ()
	Global control whether we can evaluate exports. More...
static SYS_FORCE_INLINE bool	isSameTime (fpreal a, fpreal b)
Static Public Member Functions inherited from UT_SmallObject< DEP_MicroNode >
static void *	operator new (size_t size)
	Regular new/delete operators. More...
static void	operator delete (void *p, size_t size)
	Regular new/delete operators. More...
static void *	operator new (size_t, void *p)
static void	operator delete (void *, void *)
Protected Member Functions inherited from DEP_MicroNode
SYS_FORCE_INLINE void	setIsOpDataMicroNode (bool b)

Detailed Description

Definition at line 27 of file OP_NamedMicroNodes.h.

Constructor & Destructor Documentation

OP_NamedDataMicroNode::OP_NamedDataMicroNode	(	OP_Node &	node,
		const UT_StringHolder &	name
	)

Member Function Documentation

void OP_NamedDataMicroNode::becameDirty ( DEP_MicroNode &  src, const DEP_PropagateData &  propdata  )

overridevirtual

Callbacks for what to do when the micronode becomes dirty. Derived micronodes can override this. Note that it requires knowledge of who made it dirty as they may behave differently. Currently used by OP_Node::propagateDirtyMicroNode

Reimplemented from OP_DataMicroNode.

const char* OP_NamedDataMicroNode::className ( ) const

overridevirtual

Reimplemented from OP_DataMicroNode.

const UT_Array<const OP_NamedDataMicroNode*>& OP_NamedDataMicroNode::dependents

(

)

const

const UT_StringHolder& OP_NamedDataMicroNode::getMicroNodeName

(

)

const

void OP_NamedDataMicroNode::rebuildDependents

(

)

Member Data Documentation

UT_Array<const OP_NamedDataMicroNode*> OP_NamedDataMicroNode::myDependents

Definition at line 45 of file OP_NamedMicroNodes.h.

UT_StringHolder OP_NamedDataMicroNode::myMicroNodeName

Definition at line 42 of file OP_NamedMicroNodes.h.

bool OP_NamedDataMicroNode::myRebuildDependents

Definition at line 43 of file OP_NamedMicroNodes.h.

---

The documentation for this class was generated from the following file:

• OP/OP_NamedMicroNodes.h
