#include <Interface.h>

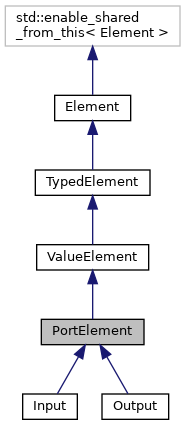

Inheritance diagram for PortElement:

Public Member Functions
virtual	~PortElement ()

Node Name
void	setNodeName (const string &node)

bool	hasNodeName () const
	Return true if this element has a node name string. More...

const string &	getNodeName () const
	Return the node name string of this element. More...

Node Graph
void	setNodeGraphString (const string &node)
	Set the node graph string of this element. More...

bool	hasNodeGraphString () const
	Return true if this element has a node graph string. More...

const string &	getNodeGraphString () const
	Return the node graph string of this element. More...

Output
void	setOutputString (const string &output)
	Set the output string of this element. More...

bool	hasOutputString () const
	Return true if this element has an output string. More...

void	setConnectedOutput (ConstOutputPtr output)

virtual OutputPtr	getConnectedOutput () const
	Return the output, if any, to which this input is connected. More...

const string &	getOutputString () const
	Return the output string of this element. More...

Connections
void	setConnectedNode (ConstNodePtr node)

virtual NodePtr	getConnectedNode () const
	Return the node, if any, to which this element is connected. More...

Validation
bool	validate (string *message=nullptr) const override

Public Member Functions inherited from ValueElement
virtual	~ValueElement ()

void	setValueString (const string &value)
	Set the value string of an element. More...

bool	hasValueString () const
	Return true if the given element has a value string. More...

const string &	getValueString () const
	Get the value string of a element. More...

string	getResolvedValueString (StringResolverPtr resolver=nullptr) const

void	setInterfaceName (const string &name)
	Set the interface name of an element. More...

bool	hasInterfaceName () const
	Return true if the given element has an interface name. More...

const string &	getInterfaceName () const
	Return the interface name of an element. More...

void	setImplementationName (const string &name)
	Set the implementation name of an element. More...

bool	hasImplementationName () const
	Return true if the given element has an implementation name. More...

const string &	getImplementationName () const
	Return the implementation name of an element. More...

template<class T >
void	setValue (const T &value, const string &type=EMPTY_STRING)
	Set the typed value of an element. More...

void	setValue (const char *value, const string &type=EMPTY_STRING)
	Set the typed value of an element from a C-style string. More...

bool	hasValue () const
	Return true if the element possesses a typed value. More...

ValuePtr	getValue () const

ValuePtr	getResolvedValue (StringResolverPtr resolver=nullptr) const

ValuePtr	getDefaultValue () const

void	setUnit (const string &unit)
	Set the unit string of an element. More...

bool	hasUnit () const
	Return true if the given element has a unit string. More...

const string &	getUnit () const
	Return the unit string of an element. More...

const string &	getActiveUnit () const

void	setUnitType (const string &unit)
	Set the unit type of an element. More...

bool	hasUnitType () const
	Return true if the given element has a unit type. More...

const string &	getUnitType () const
	Return the unit type of an element. More...

void	setIsUniform (bool value)
	Set the uniform attribute flag on this element. More...

bool	getIsUniform () const
	The the uniform attribute flag for this element. More...

Public Member Functions inherited from TypedElement
virtual	~TypedElement ()

void	setType (const string &type)
	Set the element's type string. More...

bool	hasType () const
	Return true if the given element has a type string. More...

virtual const string &	getType () const
	Return the element's type string. More...

bool	isColorType () const
	Return true if the element is of color type. More...

bool	isMultiOutputType () const
	Return true if the element is of multi-output type. More...

TypeDefPtr	getTypeDef () const

Public Member Functions inherited from Element
virtual	~Element ()

	Element (const Element &)=delete

Element &	operator= (const Element &)=delete

bool	operator== (const Element &rhs) const

bool	operator!= (const Element &rhs) const

void	setCategory (const string &category)
	Set the element's category string. More...

const string &	getCategory () const

void	setName (const string &name)

const string &	getName () const
	Return the element's name string. More...

string	getNamePath (ConstElementPtr relativeTo=nullptr) const

ElementPtr	getDescendant (const string &namePath) const

void	setFilePrefix (const string &prefix)
	Set the element's file prefix string. More...

bool	hasFilePrefix () const
	Return true if the given element has a file prefix string. More...

const string &	getFilePrefix () const
	Return the element's file prefix string. More...

const string &	getActiveFilePrefix () const

void	setGeomPrefix (const string &prefix)
	Set the element's geom prefix string. More...

bool	hasGeomPrefix () const
	Return true if the given element has a geom prefix string. More...

const string &	getGeomPrefix () const
	Return the element's geom prefix string. More...

const string &	getActiveGeomPrefix () const

void	setColorSpace (const string &colorSpace)
	Set the element's color space string. More...

bool	hasColorSpace () const
	Return true if the given element has a color space string. More...

const string &	getColorSpace () const
	Return the element's color space string. More...

const string &	getActiveColorSpace () const

void	setInheritString (const string &inherit)
	Set the inherit string of this element. More...

bool	hasInheritString () const
	Return true if this element has an inherit string. More...

const string &	getInheritString () const
	Return the inherit string of this element. More...

void	setInheritsFrom (ConstElementPtr super)
	Set the element that this one directly inherits from. More...

ElementPtr	getInheritsFrom () const
	Return the element, if any, that this one directly inherits from. More...

bool	hasInheritedBase (ConstElementPtr base) const

bool	hasInheritanceCycle () const
	Return true if the inheritance chain for this element contains a cycle. More...

void	setNamespace (const string &space)
	Set the namespace string of this element. More...

bool	hasNamespace () const
	Return true if this element has a namespace string. More...

const string &	getNamespace () const
	Return the namespace string of this element. More...

string	getQualifiedName (const string &name) const

void	setDocString (const string &doc)
	Set the documentation string of this element. More...

string	getDocString () const
	Return the documentation string of this element. More...

template<class T >
bool	isA (const string &category=EMPTY_STRING) const

template<class T >
shared_ptr< T >	asA ()
	Dynamic cast to an instance of the given subclass. More...

template<class T >
shared_ptr< const T >	asA () const
	Dynamic cast to a const instance of the given subclass. More...

template<class T >
shared_ptr< T >	addChild (const string &name=EMPTY_STRING)

ElementPtr	addChildOfCategory (const string &category, string name=EMPTY_STRING)

ElementPtr	changeChildCategory (ElementPtr child, const string &category)

ElementPtr	getChild (const string &name) const
	Return the child element, if any, with the given name. More...

template<class T >
shared_ptr< T >	getChildOfType (const string &name) const

const vector< ElementPtr > &	getChildren () const

template<class T >
vector< shared_ptr< T > >	getChildrenOfType (const string &category=EMPTY_STRING) const

void	setChildIndex (const string &name, int index)

int	getChildIndex (const string &name) const

void	removeChild (const string &name)
	Remove the child element, if any, with the given name. More...

template<class T >
void	removeChildOfType (const string &name)

void	setAttribute (const string &attrib, const string &value)
	Set the value string of the given attribute. More...

bool	hasAttribute (const string &attrib) const
	Return true if the given attribute is present. More...

const string &	getAttribute (const string &attrib) const

const StringVec &	getAttributeNames () const
	Return a vector of stored attribute names, in the order they were set. More...

template<class T >
void	setTypedAttribute (const string &attrib, const T &data)

template<class T >
T	getTypedAttribute (const string &attrib) const

void	removeAttribute (const string &attrib)
	Remove the given attribute, if present. More...

ElementPtr	getSelf ()
	Return our self pointer. More...

ConstElementPtr	getSelf () const
	Return our self pointer. More...

ElementPtr	getParent ()
	Return our parent element. More...

ConstElementPtr	getParent () const
	Return our parent element. More...

ElementPtr	getRoot ()
	Return the root element of our tree. More...

ConstElementPtr	getRoot () const
	Return the root element of our tree. More...

DocumentPtr	getDocument ()
	Return the root document of our tree. More...

ConstDocumentPtr	getDocument () const
	Return the root document of our tree. More...

template<class T >
shared_ptr< const T >	getAncestorOfType () const

TreeIterator	traverseTree () const

GraphIterator	traverseGraph () const

virtual Edge	getUpstreamEdge (size_t index=0) const

virtual size_t	getUpstreamEdgeCount () const
	Return the number of queriable upstream edges for this element. More...

ElementPtr	getUpstreamElement (size_t index=0) const

InheritanceIterator	traverseInheritance () const

void	setSourceUri (const string &sourceUri)

bool	hasSourceUri () const
	Return true if this element has a source URI. More...

const string &	getSourceUri () const
	Return the element's source URI. More...

const string &	getActiveSourceUri () const

void	copyContentFrom (const ConstElementPtr &source)

virtual void	clearContent ()
	Clear all attributes and descendants from this element. More...

string	createValidChildName (string name) const

StringResolverPtr	createStringResolver (const string &geom=EMPTY_STRING) const

string	asString () const

Static Public Attributes
static const string	NODE_NAME_ATTRIBUTE

static const string	NODE_GRAPH_ATTRIBUTE

static const string	OUTPUT_ATTRIBUTE

static const string	CHANNELS_ATTRIBUTE

Static Public Attributes inherited from ValueElement
static const string	VALUE_ATTRIBUTE

static const string	INTERFACE_NAME_ATTRIBUTE

static const string	IMPLEMENTATION_NAME_ATTRIBUTE

static const string	IMPLEMENTATION_TYPE_ATTRIBUTE

static const string	ENUM_ATTRIBUTE

static const string	ENUM_VALUES_ATTRIBUTE

static const string	UI_NAME_ATTRIBUTE

static const string	UI_FOLDER_ATTRIBUTE

static const string	UI_MIN_ATTRIBUTE

static const string	UI_MAX_ATTRIBUTE

static const string	UI_SOFT_MIN_ATTRIBUTE

static const string	UI_SOFT_MAX_ATTRIBUTE

static const string	UI_STEP_ATTRIBUTE

static const string	UI_ADVANCED_ATTRIBUTE

static const string	UNIT_ATTRIBUTE

static const string	UNITTYPE_ATTRIBUTE

static const string	UNIFORM_ATTRIBUTE

Static Public Attributes inherited from TypedElement
static const string	TYPE_ATTRIBUTE

Static Public Attributes inherited from Element
static const string	NAME_ATTRIBUTE

static const string	FILE_PREFIX_ATTRIBUTE

static const string	GEOM_PREFIX_ATTRIBUTE

static const string	COLOR_SPACE_ATTRIBUTE

static const string	INHERIT_ATTRIBUTE

static const string	NAMESPACE_ATTRIBUTE

static const string	DOC_ATTRIBUTE

Protected Types
using	NodePtr = shared_ptr< Node >

using	ConstNodePtr = shared_ptr< const Node >

Protected Types inherited from TypedElement
using	TypeDefPtr = shared_ptr< class TypeDef >

Protected Types inherited from Element
using	DocumentPtr = shared_ptr< Document >

using	ConstDocumentPtr = shared_ptr< const Document >

Protected Member Functions
	PortElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from ValueElement
	ValueElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from TypedElement
	TypedElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from Element
	Element (ElementPtr parent, const string &category, const string &name)

template<class T >
shared_ptr< T >	resolveNameReference (const string &name, ConstElementPtr parent=nullptr) const

void	validateRequire (bool expression, bool &res, string *message, const string &errorDesc) const

virtual void	registerChildElement (ElementPtr child)

virtual void	unregisterChildElement (ElementPtr child)

ElementPtr	getSelfNonConst () const

Channels
void	setChannels (const string &channels)

bool	hasChannels () const
	Return true if this element has a channels string. More...

const string &	getChannels () const
	Return the channels string of this element. More...

static bool	validChannelsCharacters (const string &channels, const string &sourceType)

static bool	validChannelsString (const string &channels, const string &sourceType, const string &destinationType)

Additional Inherited Members
Protected Attributes inherited from Element
string	_category

string	_name

string	_sourceUri

ElementMap	_childMap

vector< ElementPtr >	_childOrder

StringMap	_attributeMap

StringVec	_attributeOrder

weak_ptr< Element >	_parent

weak_ptr< Element >	_root

Detailed Description

The base class for port elements such as Input and Output.

Port elements support spatially-varying upstream connections to nodes.

Definition at line 51 of file Interface.h.

Member Typedef Documentation

using PortElement::ConstNodePtr = shared_ptr<const Node>

protected

Definition at line 64 of file Interface.h.

using PortElement::NodePtr = shared_ptr<Node>

protected

Definition at line 63 of file Interface.h.

Constructor & Destructor Documentation

PortElement::PortElement	(	ElementPtr	parent,
		const string &	category,
		const string &	name
	)

inlineprotected

Definition at line 54 of file Interface.h.

virtual PortElement::~PortElement ( )

inlinevirtual

Definition at line 60 of file Interface.h.

Member Function Documentation

const string& PortElement::getChannels ( ) const

inline

Return the channels string of this element.

Definition at line 158 of file Interface.h.

virtual NodePtr PortElement::getConnectedNode ( ) const

virtual

Return the node, if any, to which this element is connected.

Reimplemented in Input.

virtual OutputPtr PortElement::getConnectedOutput ( ) const

virtual

Return the output, if any, to which this input is connected.

const string& PortElement::getNodeGraphString ( ) const

inline

Return the node graph string of this element.

Definition at line 106 of file Interface.h.

const string& PortElement::getNodeName ( ) const

inline

Return the node name string of this element.

Definition at line 84 of file Interface.h.

const string& PortElement::getOutputString ( ) const

inline

Return the output string of this element.

Definition at line 135 of file Interface.h.

bool PortElement::hasChannels ( ) const

inline

Return true if this element has a channels string.

Definition at line 152 of file Interface.h.

bool PortElement::hasNodeGraphString ( ) const

inline

Return true if this element has a node graph string.

Definition at line 100 of file Interface.h.

bool PortElement::hasNodeName ( ) const

inline

Return true if this element has a node name string.

Definition at line 78 of file Interface.h.

bool PortElement::hasOutputString ( ) const

inline

Return true if this element has an output string.

Definition at line 122 of file Interface.h.

void PortElement::setChannels ( const string & channels )

inline

Set the channels string of this element, defining a channel swizzle that will be applied to the upstream result if this port is connected.

Definition at line 146 of file Interface.h.

void PortElement::setConnectedNode ( ConstNodePtr node )

Set the node to which this element is connected. The given node must belong to the same node graph. If the node argument is null, then any existing node connection will be cleared.

void PortElement::setConnectedOutput ( ConstOutputPtr output )

Set the output to which this input is connected. If the output argument is null, then any existing output connection will be cleared.

void PortElement::setNodeGraphString ( const string & node )

inline

Set the node graph string of this element.

Definition at line 94 of file Interface.h.

void PortElement::setNodeName ( const string & node )

inline

Set the node name string of this element, creating a connection to the Node with the given name within the same NodeGraph.

Definition at line 72 of file Interface.h.

void PortElement::setOutputString ( const string & output )

inline

Set the output string of this element.

Definition at line 116 of file Interface.h.

bool PortElement::validate ( string * message = nullptr ) const

overridevirtual

Validate that the given element tree, including all descendants, is consistent with the MaterialX specification.

Reimplemented from ValueElement.

Reimplemented in Output, and Input.

static bool PortElement::validChannelsCharacters	(	const string &	channels,
		const string &	sourceType
	)

static

Return true if the given channels characters are valid for the given source type string.

static bool PortElement::validChannelsString	(	const string &	channels,
		const string &	sourceType,
		const string &	destinationType
	)

static

Return true if the given channels string is valid for the given source and destination type strings.

Member Data Documentation

const string PortElement::CHANNELS_ATTRIBUTE

static

Definition at line 197 of file Interface.h.

const string PortElement::NODE_GRAPH_ATTRIBUTE

static

Definition at line 195 of file Interface.h.

const string PortElement::NODE_NAME_ATTRIBUTE

static

Definition at line 194 of file Interface.h.

const string PortElement::OUTPUT_ATTRIBUTE

static

Definition at line 196 of file Interface.h.

The documentation for this class was generated from the following file:

MaterialXCore/Interface.h

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Channels

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
