#include <SIM_Collider.h>

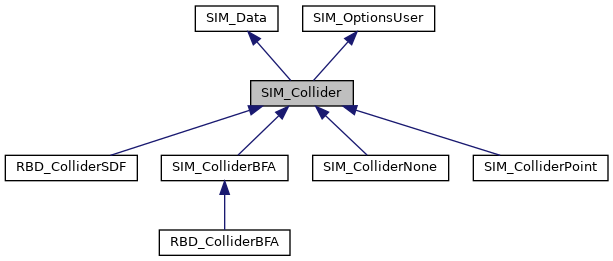

Inheritance diagram for SIM_Collider:

Public Types
enum	SIM_ImpactApplyType { SIM_IMPACTAPPLY_NONE, SIM_IMPACTAPPLY_ONEWAY, SIM_IMPACTAPPLY_MUTUAL, SIM_IMPACTAPPLY_FEEDBACK }
	Defines the possible affector types when doing collision detection. More...

Public Member Functions
	GETSET_DATA_FUNCS_B (SIM_NAME_REVERSEOBJECTROLES, ReverseObjectRoles)

bool	collideObjects (SIM_Engine &engine, SIM_Object &object, SIM_Object &affector, const SIM_Time &starttime, const SIM_Time &endtime, SIM_ImpactApplyType impactapplytype, int impactflags) const

bool	collideObjects (SIM_Engine &engine, SIM_Object &object, SIM_Object &affector, const SIM_Time &starttime, const SIM_Time &endtime, SIM_ImpactApplyType impactapplytype, int impactflags, UT_ValArray< SIM_ColliderCacheData * > &objcachedata, UT_ValArray< SIM_ColliderCacheData * > &affectorcachedata) const

Public Member Functions inherited from SIM_Data
const UT_StringHolder &	getDataType () const

void	initialize (const SIM_SubdataBehavior &subdatabehavior)

void	makeEqual (const SIM_Data *source, const SIM_SubdataBehavior &subdatabehavior)

void	setParameters (const SIM_Options &parms)

void	interpolate (const SIM_Data source1, const SIM_Data source2, fpreal interp)

int64	getMemorySize () const

bool	getIsAlternateRepresentation () const

bool	saveToFile (const char *filename, UT_CompressionType compressionType) const

bool	saveToStream (std::ostream &os, UT_CompressionType compressionType) const

void	appendFullDataPath (const SIM_Data *subdata, bool useobjectid, UT_String &datapath) const

bool	loadFromFile (const char *filename)

bool	loadFromStream (UT_IStream &is, bool skiptype=false)

bool	getIsOfType (const UT_StringRef &datatype) const

const void *	getConstPointerToType (const UT_StringRef &datatype) const

void *	getPointerToType (const UT_StringRef &datatype)

int	getNumSubData () const
	Get the number of sub-data items attached to this data. More...

const UT_StringHolder &	getSubDataName (int index) const
	Get the name of the sub-data at a particular index location. More...

int	getSubDataIndex (const SIM_Data *subdata) const

bool	buildSubDataPath (const SIM_Data *subdata, UT_String &pathto) const

const SIM_Query &	getQueryObject () const

SIM_Options *	getUserOptions ()

const SIM_Options *	getConstUserOptions () const

long	getGuideParmVersion () const

void	addGuideDep (DEP_MicroNode &src) const

virtual bool	getGuideGeometryList (const SIM_RootData &root, const char *datapath, const SIM_Time &t, UT_Array< GU_ConstDetailHandle > &detailArray, UT_Array< UT_DMatrix4 > &xformArray) const

GU_ConstDetailHandle	getGuideGeometry (const SIM_RootData &root, const char *datapath, UT_DMatrix4 &xform, const SIM_Time &t) const

void	buildGuideOptions (SIM_Options &options, const SIM_Time &time) const

SIM_Data *	getSubData (int index)

const SIM_Data *	getConstSubData (int index) const

SIM_Data *	getNamedSubData (const char *dataname)

const SIM_Data *	getConstNamedSubData (const char *dataname) const

void	filterSubData (SIM_DataArray &ncdp, UT_StringArray names, const SIM_DataFilter &ncfilter, const char startfrom, const SIM_DataFilter &recursefilter)

void	filterConstSubData (SIM_ConstDataArray &dp, UT_StringArray names, const SIM_DataFilter &filter, const char startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	getNthSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter)

const SIM_Data *	getNthConstSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter) const

void	forEachSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter)

void	forEachConstSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	createNamedSubData (const char dataname, const char datatype, int creationflags, UT_String *newdatanameptr=NULL)

SIM_Data *	getOrCreateAlternateRepresentation (const char dataname, const char datatype) const

void	interpolateSubData (const SIM_Data &source1, const SIM_Data &source2, fpreal interp, const SIM_DataFilter &interpdata, const SIM_DataFilter &recurse)

void	setNamedSubData (const char dataname, const SIM_Data data, int setflags)

void	createUniqueSubDataName (const SIM_Data *subdata, UT_String &dataname) const

void	removeNamedSubData (const char *dataname)
	Remove some existing sub-data by name. More...

void	removeSubData (int index)
	Remove some existing sub-data by index. More...

void	moveNamedSubData (const char oldname, const char newname)

const UT_Guid &	getUniqueId () const

long	getReferenceCount () const

int	getCreatorId () const
	Get the ID of the node that created this data. More...

OP_Node *	getCreatorNode () const
	Use the creator ID to look up the OP_Node that created this data. More...

OP_Node *	getOwnerNetwork () const
	Look up the owner node of our engine to get the DOP Network pointer. More...

const SIM_Engine &	getEngine () const
	Get the engine that created us (from our data factory). More...

int	getCreatorIndex () const
	Get the output index of the creator node that generated this data. More...

const SIM_Time &	getCreationTime () const
	Get the creation time for this data. More...

bool	getIsSelected () const
	Get the selected flag for this data. More...

void	setIsSelected (bool selected) const

bool	getSelectionRepresentsObject () const

void	copyCreationInfoFrom (const SIM_Data *source)

OP_Node &	getNodePathsRelativeTo () const

OP_Node *	getOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

OBJ_Node *	getOBJNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

SOP_Node *	getSOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a SOP_Node. More...

DOP_Node *	getDOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a DOP_Node. More...

COP2_Node *	getCOP2Node (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a COP2_Node. More...

CHOP_Node *	getCHOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a CHOP_Node. More...

void	addOPInterest (OP_Node *node) const
	Adds an interest in the specified node to our engine's owner node. More...

void	addError (const SIM_RootData root, int errorcode, const char errorparm, UT_ErrorSeverity severity) const
	Adds an error to our SIM_Engine. More...

void	makeMemberDataUnique ()

virtual void	makeMemberDataUniqueSubclass ()

Public Member Functions inherited from SIM_OptionsUser
	SIM_OptionsUser (SIM_Data *owner)

virtual	~SIM_OptionsUser ()

void	optionChanged (const char *name)

const SIM_Options &	getOptions () const

Protected Member Functions
	SIM_Collider (const SIM_DataFactory *factory)
	The SIM_Collider constructor. More...

	~SIM_Collider () override
	The SIM_Collider destructor. More...

SIM_Impacts *	getObjectImpactData (SIM_Object &object, SIM_ImpactApplyType impactapplytype) const

SIM_Impacts *	getAffectorImpactData (SIM_Object &affector, SIM_ImpactApplyType impactapplytype) const

bool	getAffectorInterpolatedToEndTime () const

virtual bool	collideObjectsSubclass (SIM_Engine &engine, SIM_Object &object, SIM_Object &affector, const SIM_Time &starttime, const SIM_Time &endtime, SIM_ImpactApplyType impactapplytype, int impactflags) const

virtual bool	collideObjectsCachedSubclass (SIM_Engine &engine, SIM_Object &object, SIM_Object &affector, const SIM_Time &starttime, const SIM_Time &endtime, SIM_ImpactApplyType impactapplytype, int impactflags, UT_ValArray< SIM_ColliderCacheData * > &objcachedata, UT_ValArray< SIM_ColliderCacheData * > &affectorcachedata) const

virtual bool	getAffectorInterpolatedToEndTimeSubclass () const

Protected Member Functions inherited from SIM_Data
	SIM_Data (const SIM_DataFactory *factory)

virtual	~SIM_Data ()

void	handleModification (int code=-1)

void	setNeedsToRecalculateMemorySize () const

void	deleteQueryObjectIfNotBuilding () const
	Deletes the query object for this data, if there is one. More...

void	deleteGuideObjectIfNotBuilding () const
	Delete the guide geometry for this data, if it exists. More...

void	initAlternateRepresentation () const

void	setNeedsInitialization (bool needsinit) const
	Flags an alternate representation subdata as requiring initialization. More...

bool	getNeedsInitialization () const
	Tests whether an alternate representation requires initialization. More...

bool	saveOptionPacket (std::ostream &os, const char name, const SIM_Options opts) const

bool	loadOptionPacket (UT_IStream &is, const char name, SIM_Options opts) const

bool	getIsDoingSimplifiedSaveLoad () const

void	initializeFromParmDefaults ()

void	setSelectionRepresentsObject (bool representsobject)

virtual void	setNeedsInitializationSubclass (bool needsinit) const

virtual void	initializeSubclass ()

virtual void	makeEqualSubclass (const SIM_Data *source)

virtual void	saveSubclass (std::ostream &os) const

virtual void	saveIOSubclass (std::ostream &os, SIM_DataThreadedIO *io) const

virtual bool	loadSubclass (UT_IStream &is)

virtual bool	loadIOSubclass (UT_IStream &is, SIM_DataThreadedIO *io)

virtual SIM_Query *	createQueryObjectSubclass () const

virtual long	getGuideParmVersionSubclass () const

virtual SIM_Guide *	createGuideObjectSubclass () const

virtual void	buildGuideGeometrySubclass (const SIM_RootData &root, const SIM_Options &options, const GU_DetailHandle &gdh, UT_DMatrix4 *xform, const SIM_Time &t) const

virtual void	setParametersSubclass (const SIM_Options &parms)

virtual void	setNamedSubDataSubclass (const char dataname, const SIM_Data data)

virtual void	removeNamedSubDataSubclass (const char *dataname)

virtual void	interpolateSubclass (const SIM_Data source1, const SIM_Data source2, fpreal interp)

virtual int64	getMemorySizeSubclass () const

virtual void	handleModificationSubclass (int code)

virtual bool	getIsAlternateRepresentationSubclass () const

virtual void	initAlternateRepresentationSubclass (const SIM_Data &)

virtual void *	getCastToType (const UT_StringRef &datatype) const

virtual const UT_StringHolder &	getDataTypeSubclass () const

const SIM_Data *	getAlternateRepresentationOf () const

Protected Member Functions inherited from SIM_OptionsUser
SIM_Options &	getOptions ()

virtual void	optionChangedSubclass (const char *name)

Additional Inherited Members
Static Public Member Functions inherited from SIM_Data
static bool	getDataTypeFromFile (const char *filename, UT_String &datatype)

static bool	getDataTypeFromStream (UT_IStream &is, UT_String &datatype)

static const void *	castConstPointerToType (const SIM_Data *data, const UT_StringRef &datatype)

static void *	castPointerToType (SIM_Data *data, const UT_StringRef &datatype)

Static Protected Member Functions inherited from SIM_Data
static const PRM_Template *	getEmptyTemplateList ()

static const SIM_DopDescription *	getEmptyDopDescription ()
	A DOP description that says not to create an automatic DOP. More...

static void	getDataTypeSuperclasses (UT_StringArray &)

Detailed Description

This is an abstract base class for all colliders. A collider is any class that takes a pair of objects and generated information about how those two objects intersect. See the SIM_Object::getCollider() function for a description of how a solver should determine the right SIM_Collider class to use for a given pair of objects.

Definition at line 34 of file SIM_Collider.h.

Member Enumeration Documentation

enum SIM_Collider::SIM_ImpactApplyType

Defines the possible affector types when doing collision detection.

Enumerator
SIM_IMPACTAPPLY_NONE
SIM_IMPACTAPPLY_ONEWAY	Don't do any collision detection.
SIM_IMPACTAPPLY_MUTUAL	Object A gets Impacts from object B.
SIM_IMPACTAPPLY_FEEDBACK	Object A and B both get Impacts. Object A gets Impacts, B gets Feedback.

Definition at line 56 of file SIM_Collider.h.

Constructor & Destructor Documentation

SIM_Collider::SIM_Collider ( const SIM_DataFactory * factory )

explicitprotected

The SIM_Collider constructor.

SIM_Collider::~SIM_Collider ( )

overrideprotected

The SIM_Collider destructor.

Member Function Documentation

bool SIM_Collider::collideObjects	(	SIM_Engine &	engine,
		SIM_Object &	object,
		SIM_Object &	affector,
		const SIM_Time &	starttime,
		const SIM_Time &	endtime,
		SIM_ImpactApplyType	impactapplytype,
		int	impactflags
	)		const

Perform the collision detection for a pair of objects. This function calls the collideObjectsSubclass() function. This also attempts to do collision response.

Preconditions: collideObjects expects that getEngine.getObjectAtTime(object, starttime, true) results in the object that holds the correct geometry and transform for starttime. Similarly, passing in endtime must give an object that holds the correct geometry and transformation for endtime. The same principle applies to the affector. Please note that starttime and endtime may be substep times.

The solver that calls collideObjects may have to create substep objects at t_start and t_end to ensure that these preconditions are met. This is is not always needed for the affector, the affector may belong to a solver that isn't substepping. In that case collideObjects will use the linear interpolations for the affector's geometry and transform.

bool SIM_Collider::collideObjects	(	SIM_Engine &	engine,
		SIM_Object &	object,
		SIM_Object &	affector,
		const SIM_Time &	starttime,
		const SIM_Time &	endtime,
		SIM_ImpactApplyType	impactapplytype,
		int	impactflags,
		UT_ValArray< SIM_ColliderCacheData * > &	objcachedata,
		UT_ValArray< SIM_ColliderCacheData * > &	affectorcachedata
	)		const

This variant of the collider lets you specify a list of cache data. The collider subclasses will search for a cache data they like and use it. If none exists, they will build one and add it to the list. The caller is expected to delete any allocated cachedata.

virtual bool SIM_Collider::collideObjectsCachedSubclass	(	SIM_Engine &	engine,
		SIM_Object &	object,
		SIM_Object &	affector,
		const SIM_Time &	starttime,
		const SIM_Time &	endtime,
		SIM_ImpactApplyType	impactapplytype,
		int	impactflags,
		UT_ValArray< SIM_ColliderCacheData * > &	objcachedata,
		UT_ValArray< SIM_ColliderCacheData * > &	affectorcachedata
	)		const

protectedvirtual

This version will default to invoking the non-cached version of the collider. If this is overridden, you do not need to override collideObjectSubclass.

Reimplemented in SIM_ColliderPoint.

virtual bool SIM_Collider::collideObjectsSubclass	(	SIM_Engine &	engine,
		SIM_Object &	object,
		SIM_Object &	affector,
		const SIM_Time &	starttime,
		const SIM_Time &	endtime,
		SIM_ImpactApplyType	impactapplytype,
		int	impactflags
	)		const

protectedvirtual

Override this method to implement your custom collision detection. This function can access any data on the main object or affector object. It can also add any extra data structures it needs to the object for efficiency (rather than recalculating the extra data each time this function is called).

Reimplemented in RBD_ColliderSDF, and SIM_ColliderNone.

SIM_Impacts* SIM_Collider::getAffectorImpactData	(	SIM_Object &	affector,
		SIM_ImpactApplyType	impactapplytype
	)		const

protected

Finds or creates the impact data on the affector that is appropriate for the given affector type. It also takes into account the value of the ReverseObjectRoles flag.

bool SIM_Collider::getAffectorInterpolatedToEndTime ( ) const

protected

Returns true if the collideObjects function should always be called with the affector object interpolated to the endtime. This function just calls getAffectorInterpolatedToEndTimeSubclass().

virtual bool SIM_Collider::getAffectorInterpolatedToEndTimeSubclass ( ) const

protectedvirtual

Returns true if the collideObjects function should always be called with the affector object interpolated to the endtime. The default implementation returns true.

Reimplemented in SIM_ColliderNone.

SIM_Impacts* SIM_Collider::getObjectImpactData	(	SIM_Object &	object,
		SIM_ImpactApplyType	impactapplytype
	)		const

protected

Finds or creates the impact data on the affector that is appropriate for the given affector type. It also takes into account the value of the ReverseObjectRoles flag.

SIM_Collider::GETSET_DATA_FUNCS_B	(	SIM_NAME_REVERSEOBJECTROLES	,
		ReverseObjectRoles
	)

Specifies whether the object and affector need to be reversed to perform collision detection. This flag is useful for colliders that make assumptions about the makeup of the object and affector are in the call to collideObjectsSubclass(). For example, the point collider (SIM_ColliderPoint) always treats the object as a particle system, using ray casting to follow the trajectory of each particle. But suppose an RBD Solver has a particle system as an affector object. The RBD Solver would find that the best collider to use is a point collider. Rather than requiring that the RBD Solver then somehow discover that the particle object must always be sent as the "object" parameter, the collider can have the reverse object roles flag turned on. Then when the RBD Solver calls the collider with the RBD object first and the particle object second, the collider itself will reverse the objects before passing them on to collideObjectSubclass().

The documentation for this class was generated from the following file:

SIM/SIM_Collider.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
