#include <SIM_ConAnchor.h>

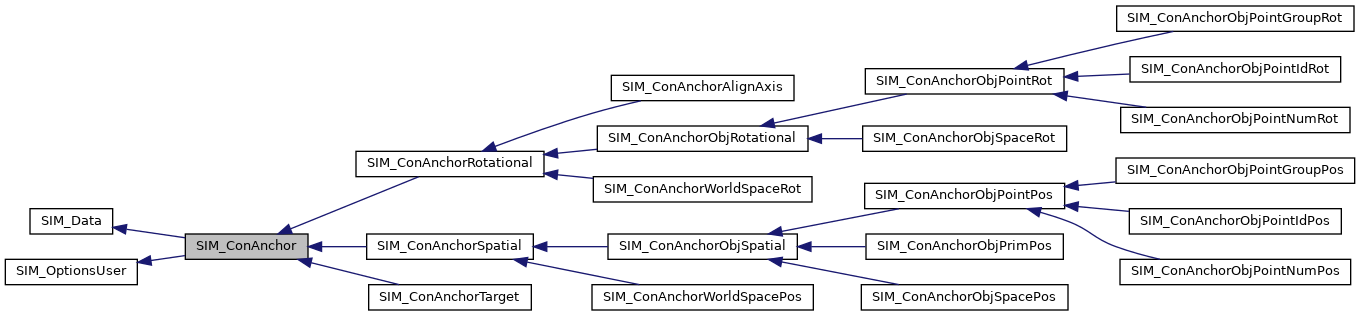

Inheritance diagram for SIM_ConAnchor:

Public Member Functions
const SIM_Object *	getReferencedObject (const SIM_Time &time) const

bool	getNeedsInit () const

void	initAnchor (const SIM_Object *object)

bool	getObjectSpecification (UT_String &str) const

void	initConstraint (const SIM_Relationship *rel)

void	buildAnchorGuideGeometry (const SIM_Options &options, const GU_DetailHandle &gdh, const SIM_Relationship &rel, const SIM_Time &t) const

Public Member Functions inherited from SIM_Data
const UT_StringHolder &	getDataType () const

void	initialize (const SIM_SubdataBehavior &subdatabehavior)

void	makeEqual (const SIM_Data *source, const SIM_SubdataBehavior &subdatabehavior)

void	setParameters (const SIM_Options &parms)

void	interpolate (const SIM_Data source1, const SIM_Data source2, fpreal interp)

int64	getMemorySize () const

bool	getIsAlternateRepresentation () const

bool	saveToFile (const char *filename, UT_CompressionType compressionType) const

bool	saveToStream (std::ostream &os, UT_CompressionType compressionType) const

void	appendFullDataPath (const SIM_Data *subdata, bool useobjectid, UT_String &datapath) const

bool	loadFromFile (const char *filename)

bool	loadFromStream (UT_IStream &is, bool skiptype=false)

bool	getIsOfType (const UT_StringRef &datatype) const

const void *	getConstPointerToType (const UT_StringRef &datatype) const

void *	getPointerToType (const UT_StringRef &datatype)

int	getNumSubData () const
	Get the number of sub-data items attached to this data. More...

const UT_StringHolder &	getSubDataName (int index) const
	Get the name of the sub-data at a particular index location. More...

int	getSubDataIndex (const SIM_Data *subdata) const

bool	buildSubDataPath (const SIM_Data *subdata, UT_String &pathto) const

const SIM_Query &	getQueryObject () const

SIM_Options *	getUserOptions ()

const SIM_Options *	getConstUserOptions () const

long	getGuideParmVersion () const

void	addGuideDep (DEP_MicroNode &src) const

virtual bool	getGuideGeometryList (const SIM_RootData &root, const char *datapath, const SIM_Time &t, UT_Array< GU_ConstDetailHandle > &detailArray, UT_Array< UT_DMatrix4 > &xformArray) const

GU_ConstDetailHandle	getGuideGeometry (const SIM_RootData &root, const char *datapath, UT_DMatrix4 &xform, const SIM_Time &t) const

void	buildGuideOptions (SIM_Options &options, const SIM_Time &time) const

SIM_Data *	getSubData (int index)

const SIM_Data *	getConstSubData (int index) const

SIM_Data *	getNamedSubData (const char *dataname)

const SIM_Data *	getConstNamedSubData (const char *dataname) const

void	filterSubData (SIM_DataArray &ncdp, UT_StringArray names, const SIM_DataFilter &ncfilter, const char startfrom, const SIM_DataFilter &recursefilter)

void	filterConstSubData (SIM_ConstDataArray &dp, UT_StringArray names, const SIM_DataFilter &filter, const char startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	getNthSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter)

const SIM_Data *	getNthConstSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter) const

void	forEachSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter)

void	forEachConstSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	createNamedSubData (const char dataname, const char datatype, int creationflags, UT_String *newdatanameptr=NULL)

SIM_Data *	getOrCreateAlternateRepresentation (const char dataname, const char datatype) const

void	interpolateSubData (const SIM_Data &source1, const SIM_Data &source2, fpreal interp, const SIM_DataFilter &interpdata, const SIM_DataFilter &recurse)

void	setNamedSubData (const char dataname, const SIM_Data data, int setflags)

void	createUniqueSubDataName (const SIM_Data *subdata, UT_String &dataname) const

void	removeNamedSubData (const char *dataname)
	Remove some existing sub-data by name. More...

void	removeSubData (int index)
	Remove some existing sub-data by index. More...

void	moveNamedSubData (const char oldname, const char newname)

const UT_Guid &	getUniqueId () const

long	getReferenceCount () const

int	getCreatorId () const
	Get the ID of the node that created this data. More...

OP_Node *	getCreatorNode () const
	Use the creator ID to look up the OP_Node that created this data. More...

OP_Node *	getOwnerNetwork () const
	Look up the owner node of our engine to get the DOP Network pointer. More...

const SIM_Engine &	getEngine () const
	Get the engine that created us (from our data factory). More...

int	getCreatorIndex () const
	Get the output index of the creator node that generated this data. More...

const SIM_Time &	getCreationTime () const
	Get the creation time for this data. More...

bool	getIsSelected () const
	Get the selected flag for this data. More...

void	setIsSelected (bool selected) const

bool	getSelectionRepresentsObject () const

void	copyCreationInfoFrom (const SIM_Data *source)

OP_Node &	getNodePathsRelativeTo () const

OP_Node *	getOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

OBJ_Node *	getOBJNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

SOP_Node *	getSOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a SOP_Node. More...

DOP_Node *	getDOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a DOP_Node. More...

COP2_Node *	getCOP2Node (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a COP2_Node. More...

CHOP_Node *	getCHOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a CHOP_Node. More...

void	addOPInterest (OP_Node *node) const
	Adds an interest in the specified node to our engine's owner node. More...

void	addError (const SIM_RootData root, int errorcode, const char errorparm, UT_ErrorSeverity severity) const
	Adds an error to our SIM_Engine. More...

void	makeMemberDataUnique ()

virtual void	makeMemberDataUniqueSubclass ()

Public Member Functions inherited from SIM_OptionsUser
	SIM_OptionsUser (SIM_Data *owner)

virtual	~SIM_OptionsUser ()

void	optionChanged (const char *name)

const SIM_Options &	getOptions () const

Protected Member Functions
	SIM_ConAnchor (const SIM_DataFactory *factory)

	~SIM_ConAnchor () override

void	setReferencedObject (const SIM_Object *object)

virtual bool	getNeedsInitSubclass () const

virtual void	initAnchorSubclass (const SIM_Object *object)

virtual bool	getObjectSpecificationSubclass (UT_String &str) const
	Implements the real functionality of getObjectSpecification. More...

virtual void	initConstraintSubclass (const SIM_Relationship *rel)

virtual void	buildAnchorGuideGeometrySubclass (const SIM_Options &options, const GU_DetailHandle &gdh, const SIM_Relationship &rel, const SIM_Time &t) const
	Default implementation does nothing. More...

Protected Member Functions inherited from SIM_Data
	SIM_Data (const SIM_DataFactory *factory)

virtual	~SIM_Data ()

void	handleModification (int code=-1)

void	setNeedsToRecalculateMemorySize () const

void	deleteQueryObjectIfNotBuilding () const
	Deletes the query object for this data, if there is one. More...

void	deleteGuideObjectIfNotBuilding () const
	Delete the guide geometry for this data, if it exists. More...

void	initAlternateRepresentation () const

void	setNeedsInitialization (bool needsinit) const
	Flags an alternate representation subdata as requiring initialization. More...

bool	getNeedsInitialization () const
	Tests whether an alternate representation requires initialization. More...

bool	saveOptionPacket (std::ostream &os, const char name, const SIM_Options opts) const

bool	loadOptionPacket (UT_IStream &is, const char name, SIM_Options opts) const

bool	getIsDoingSimplifiedSaveLoad () const

void	initializeFromParmDefaults ()

void	setSelectionRepresentsObject (bool representsobject)

virtual void	setNeedsInitializationSubclass (bool needsinit) const

virtual void	initializeSubclass ()

virtual void	makeEqualSubclass (const SIM_Data *source)

virtual void	saveSubclass (std::ostream &os) const

virtual void	saveIOSubclass (std::ostream &os, SIM_DataThreadedIO *io) const

virtual bool	loadSubclass (UT_IStream &is)

virtual bool	loadIOSubclass (UT_IStream &is, SIM_DataThreadedIO *io)

virtual SIM_Query *	createQueryObjectSubclass () const

virtual long	getGuideParmVersionSubclass () const

virtual SIM_Guide *	createGuideObjectSubclass () const

virtual void	buildGuideGeometrySubclass (const SIM_RootData &root, const SIM_Options &options, const GU_DetailHandle &gdh, UT_DMatrix4 *xform, const SIM_Time &t) const

virtual void	setParametersSubclass (const SIM_Options &parms)

virtual void	setNamedSubDataSubclass (const char dataname, const SIM_Data data)

virtual void	removeNamedSubDataSubclass (const char *dataname)

virtual void	interpolateSubclass (const SIM_Data source1, const SIM_Data source2, fpreal interp)

virtual int64	getMemorySizeSubclass () const

virtual void	handleModificationSubclass (int code)

virtual bool	getIsAlternateRepresentationSubclass () const

virtual void	initAlternateRepresentationSubclass (const SIM_Data &)

virtual void *	getCastToType (const UT_StringRef &datatype) const

virtual const UT_StringHolder &	getDataTypeSubclass () const

const SIM_Data *	getAlternateRepresentationOf () const

Protected Member Functions inherited from SIM_OptionsUser
SIM_Options &	getOptions ()

virtual void	optionChangedSubclass (const char *name)

Additional Inherited Members
Static Public Member Functions inherited from SIM_Data
static bool	getDataTypeFromFile (const char *filename, UT_String &datatype)

static bool	getDataTypeFromStream (UT_IStream &is, UT_String &datatype)

static const void *	castConstPointerToType (const SIM_Data *data, const UT_StringRef &datatype)

static void *	castPointerToType (SIM_Data *data, const UT_StringRef &datatype)

Static Protected Member Functions inherited from SIM_Data
static const PRM_Template *	getEmptyTemplateList ()

static const SIM_DopDescription *	getEmptyDopDescription ()
	A DOP description that says not to create an automatic DOP. More...

static void	getDataTypeSuperclasses (UT_StringArray &)

Detailed Description

Definition of the relationship between a constraint and an anchor (typically part of a SIM_Object).

It knows 1) which object the anchor is associated with (may be none) 2) which part of that object (e.g., point, primitive, etc.) 3) the position, orientation and linear/angular velocities of the anchor

Definition at line 26 of file SIM_ConAnchor.h.

Constructor & Destructor Documentation

SIM_ConAnchor::SIM_ConAnchor ( const SIM_DataFactory * factory )

explicitprotected

SIM_ConAnchor::~SIM_ConAnchor ( )

overrideprotected

Member Function Documentation

void SIM_ConAnchor::buildAnchorGuideGeometry	(	const SIM_Options &	options,
		const GU_DetailHandle &	gdh,
		const SIM_Relationship &	rel,
		const SIM_Time &	t
	)		const

Slight variation on buildGuideGeometry. It's just like buildGuideGeometry, but it will be called by the constraint using the anchor, and will add some extra options about the status of that constraint.

virtual void SIM_ConAnchor::buildAnchorGuideGeometrySubclass	(	const SIM_Options &	options,
		const GU_DetailHandle &	gdh,
		const SIM_Relationship &	rel,
		const SIM_Time &	t
	)		const

protectedvirtual

Default implementation does nothing.

Reimplemented in SIM_ConAnchorRotational, SIM_ConAnchorSpatial, SIM_ConAnchorObjPointGroupPos, and SIM_ConAnchorObjPointGroupRot.

bool SIM_ConAnchor::getNeedsInit ( ) const

Returns true if the anchor has to be initialized before it is used. Initialization involves calling initAnchor() on the anchor, passing in the object we are attached to, so the anchor can customize itself to a particular object. This function calls getNeedsInitSubclass().

virtual bool SIM_ConAnchor::getNeedsInitSubclass ( ) const

protectedvirtual

Returns true if the anchor needs to have initAnchor() called. The default implementation returns false.

Reimplemented in SIM_ConAnchorObjPointGroupPos, SIM_ConAnchorObjPointGroupRot, SIM_ConAnchorObjSpatial, SIM_ConAnchorObjRotational, and SIM_ConAnchorAlignAxis.

bool SIM_ConAnchor::getObjectSpecification ( UT_String & str ) const

This function will return true if this anchor class requires an object specification otherwise it returns false. The returned string value can be used in an object filter expression.

virtual bool SIM_ConAnchor::getObjectSpecificationSubclass ( UT_String & str ) const

protectedvirtual

Implements the real functionality of getObjectSpecification.

Reimplemented in SIM_ConAnchorObjSpatial, and SIM_ConAnchorObjRotational.

const SIM_Object* SIM_ConAnchor::getReferencedObject ( const SIM_Time & time ) const

Get the object pointer stored by setReferencedObject(). This is the object that defines this anchor, if there is one. The object is interpolated to the specified simulation time so that the returned anchor values are properly interpolated.

void SIM_ConAnchor::initAnchor ( const SIM_Object * object )

This function performs any initialization that may be required to make a constraint specific to a particular object. For example, in spatial constraints, this function may convert a world space position parameter to an object space position. This function calls initAnchorSubclass().

virtual void SIM_ConAnchor::initAnchorSubclass ( const SIM_Object * object )

protectedvirtual

Initializes the anchor for use by a solver. The default implementation does nothing.

Reimplemented in SIM_ConAnchorObjPointGroupPos, SIM_ConAnchorObjPointGroupRot, SIM_ConAnchorObjSpaceRot, SIM_ConAnchorObjSpatial, and SIM_ConAnchorObjRotational.

void SIM_ConAnchor::initConstraint ( const SIM_Relationship * rel )

This function is responsible for calling the initAnchor function which initialize this anchor based on the owner relationship.

virtual void SIM_ConAnchor::initConstraintSubclass ( const SIM_Relationship * rel )

protectedvirtual

Implements the real functionality of initConstraint. The default implementation calls initAnchor on the object from the relationship that we are interested in.

Reimplemented in SIM_ConAnchorAlignAxis.

void SIM_ConAnchor::setReferencedObject ( const SIM_Object * object )

protected

Sets the object that this anchor is defined by. Calling this function is the responsibility of the subclasses that are defined by objects. This function is generally called from initAnchorSubclass().

The documentation for this class was generated from the following file:

SIM/SIM_ConAnchor.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
