#include <SourceCodeNode.h>

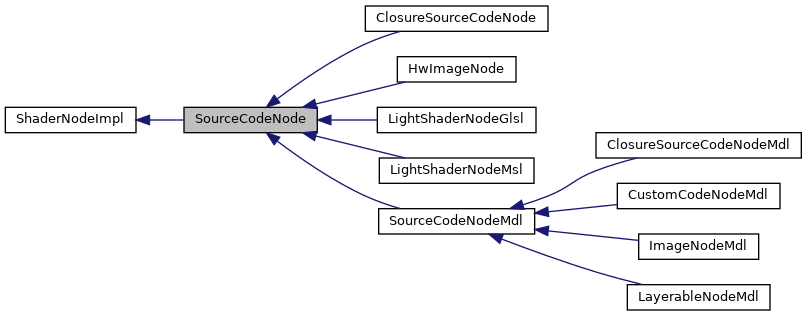

Inheritance diagram for SourceCodeNode:

Public Member Functions
void	initialize (const InterfaceElement &element, GenContext &context) override

void	emitFunctionDefinition (const ShaderNode &node, GenContext &context, ShaderStage &stage) const override
	Emit function definition for the given node instance. More...

void	emitFunctionCall (const ShaderNode &node, GenContext &context, ShaderStage &stage) const override
	Emit the function call or inline source code for given node instance in the given context. More...

Public Member Functions inherited from ShaderNodeImpl
virtual	~ShaderNodeImpl ()

virtual const string &	getTarget () const

const string &	getName () const
	Return the name of this implementation. More...

size_t	getHash () const

virtual void	addInputs (ShaderNode &node, GenContext &context) const
	Add additional inputs on a node. More...

virtual void	setValues (const Node &node, ShaderNode &shaderNode, GenContext &context) const
	Set values for additional inputs on a node. More...

virtual void	addClassification (ShaderNode &node) const
	Add additional classifications on a node. More...

virtual void	createVariables (const ShaderNode &node, GenContext &context, Shader &shader) const

virtual void	emitOutputVariables (const ShaderNode &node, GenContext &context, ShaderStage &stage) const
	Emit declaration and initialization of output variables to use in a function call. More...

virtual ShaderGraph *	getGraph () const

virtual bool	isEditable (const ShaderInput &) const

virtual bool	isEditable (const ShaderGraphInputSocket &) const

Static Public Member Functions
static ShaderNodeImplPtr	create ()

Protected Attributes
bool	_inlined

string	_functionName

string	_functionSource

FilePath	_sourceFilename

Protected Attributes inherited from ShaderNodeImpl
string	_name

size_t	_hash

Additional Inherited Members
Protected Member Functions inherited from ShaderNodeImpl
	ShaderNodeImpl ()
	Protected constructor. More...

Detailed Description

Implemention for a node using data-driven static source code. This is the default implementation used for all nodes that do not have a custom ShaderNodeImpl class.

Definition at line 19 of file SourceCodeNode.h.

Member Function Documentation

static ShaderNodeImplPtr SourceCodeNode::create ( )

static

void SourceCodeNode::emitFunctionCall	(	const ShaderNode &	node,
		GenContext &	context,
		ShaderStage &	stage
	)		const

overridevirtual

Emit the function call or inline source code for given node instance in the given context.

Reimplemented from ShaderNodeImpl.

void SourceCodeNode::emitFunctionDefinition	(	const ShaderNode &	node,
		GenContext &	context,
		ShaderStage &	stage
	)		const

overridevirtual

Emit function definition for the given node instance.

Reimplemented from ShaderNodeImpl.

void SourceCodeNode::initialize	(	const InterfaceElement &	element,
		GenContext &	context
	)

overridevirtual

Initialize with the given implementation element. Initialization must set the name and hash for the implementation, as well as any other data needed to emit code for the node.

Reimplemented from ShaderNodeImpl.

Member Data Documentation

string SourceCodeNode::_functionName

protected

Definition at line 30 of file SourceCodeNode.h.

string SourceCodeNode::_functionSource

protected

Definition at line 31 of file SourceCodeNode.h.

bool SourceCodeNode::_inlined

protected

Definition at line 29 of file SourceCodeNode.h.

FilePath SourceCodeNode::_sourceFilename

protected

Definition at line 32 of file SourceCodeNode.h.

The documentation for this class was generated from the following file:

MaterialXGenShader/Nodes/SourceCodeNode.h
