#include <drawModeSceneIndex.h>

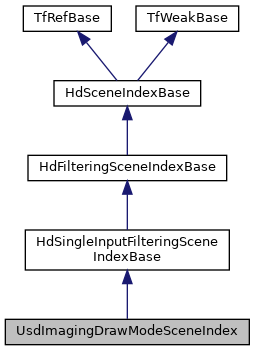

Inheritance diagram for UsdImagingDrawModeSceneIndex:

Public Member Functions
USDIMAGING_API	~UsdImagingDrawModeSceneIndex () override

USDIMAGING_API HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const override

USDIMAGING_API SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const override

Public Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API std::vector < HdSceneIndexBaseRefPtr >	GetInputScenes () const final

Public Member Functions inherited from HdSceneIndexBase
HD_API	HdSceneIndexBase ()

HD_API	~HdSceneIndexBase () override

HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const

HD_API void	SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)

HD_API std::string	GetDisplayName () const

HD_API void	SetDisplayName (const std::string &n)

HD_API void	AddTag (const TfToken &tag)

HD_API void	RemoveTag (const TfToken &tag)

HD_API bool	HasTag (const TfToken &tag) const

HD_API TfTokenVector	GetTags () const

Public Member Functions inherited from TfRefBase
	TfRefBase ()

	TfRefBase (TfRefBase const &)

TfRefBase &	operator= (TfRefBase const &)

size_t	GetCurrentCount () const
	Return the current reference count of this object. More...

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object. More...

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase ()

	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static USDIMAGING_API UsdImagingDrawModeSceneIndexRefPtr	New (const HdSceneIndexBaseRefPtr &inputSceneIndex, const HdContainerDataSourceHandle &inputArgs)

Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Protected Member Functions
	UsdImagingDrawModeSceneIndex (const HdSceneIndexBaseRefPtr &inputSceneIndex, const HdContainerDataSourceHandle &inputArgs)

void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries) override

void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries) override

void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries) override

Protected Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API	HdSingleInputFilteringSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex)

virtual HD_API void	_PrimsRenamed (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &entries)

const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)

HD_API void	_SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)

HD_API bool	_IsObserved () const

virtual HD_API void	_SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)

Protected Member Functions inherited from TfRefBase
virtual TF_API	~TfRefBase ()

Protected Member Functions inherited from TfWeakBase
	~TfWeakBase ()

TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Additional Inherited Members
Public Types inherited from TfRefBase
typedef void(*	UniqueChangedFuncPtr )(TfRefBase const *, bool)

Detailed Description

A scene index replacing geometry based on the draw mode.

Inspects a prim's values for drawMode and applyDrawMode (see UsdImagingGeomModelSchema). If the drawMode is valid and not the default and applyDrawMode is true, the prim and all its descendents are replaced by stand-in geometry specified by the draw mode.

Note that the material that ensures the correct texture is used on each face is using glslfx nodes and thus only works properly in Storm.

Using a UsdPreviewSurface instead (so that it works accross different renderers) probably requires breaking up the geometry into several pieces.

Definition at line 51 of file drawModeSceneIndex.h.

Constructor & Destructor Documentation

USDIMAGING_API UsdImagingDrawModeSceneIndex::~UsdImagingDrawModeSceneIndex ( )

override

UsdImagingDrawModeSceneIndex::UsdImagingDrawModeSceneIndex	(	const HdSceneIndexBaseRefPtr &	inputSceneIndex,
		const HdContainerDataSourceHandle &	inputArgs
	)

protected

Member Function Documentation

void UsdImagingDrawModeSceneIndex::_PrimsAdded	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::AddedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void UsdImagingDrawModeSceneIndex::_PrimsDirtied	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::DirtiedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void UsdImagingDrawModeSceneIndex::_PrimsRemoved	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::RemovedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

USDIMAGING_API SdfPathVector UsdImagingDrawModeSceneIndex::GetChildPrimPaths ( const SdfPath & primPath ) const

overridevirtual

Returns the paths of all scene index prims located immediately below primPath. This function can be used to traverse the scene by recursing from SdfPath::AbsoluteRootPath(); such a traversal is expected to give the same set of prims as the flattening of the scene index's PrimsAdded and PrimsRemoved messages. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

USDIMAGING_API HdSceneIndexPrim UsdImagingDrawModeSceneIndex::GetPrim ( const SdfPath & primPath ) const

overridevirtual

Returns a pair of (prim type, datasource) for the object at primPath. If no such object exists, the type will be the empty token and the datasource will be null. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

static USDIMAGING_API UsdImagingDrawModeSceneIndexRefPtr UsdImagingDrawModeSceneIndex::New	(	const HdSceneIndexBaseRefPtr &	inputSceneIndex,
		const HdContainerDataSourceHandle &	inputArgs
	)

static

inputArgs unused for now. In the future, we might use it to say that we want to break up the geometry and use UsdPreviewSurface to work across different renderers.

The documentation for this class was generated from the following file:

pxr/usdImaging/usdImaging/drawModeSceneIndex.h
