#include <VOP_HDACodeCompiler.h>

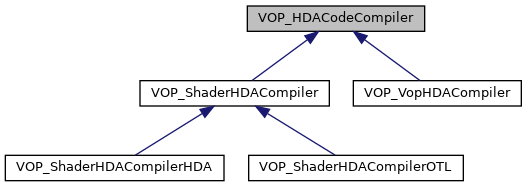

Inheritance diagram for VOP_HDACodeCompiler:

Public Member Functions
	VOP_HDACodeCompiler ()

virtual	~VOP_HDACodeCompiler ()

virtual bool	compileVexCodeToSections (OP_Node srcnode, FS_IndexFile hda, const char *context_mask=0)

virtual bool	compileNewOperatorType (OP_Node srcnode, const char name, const char label, const char path, const char metasrc, const VOP_ContextTypeList types=NULL)

const UT_StringMap < UT_StringHolder > &	getFunctionsSectionsMap () const


void	setShaderName (const char *shader_name)
	Main shader name used in compilation. More...

const UT_StringHolder &	getShaderName () const
	Main shader name used in compilation. More...


UT_ErrorSeverity	getStatus (UT_String &message, UT_String *details=0)


void	setForceCompilationOnOpNameConflict (bool flag)

bool	getForceCompilationOnOpNameConflict ()

Static Public Member Functions
static bool	canCompileNode (OP_Node *srcnode)

static void	removeCodeSections (OP_Node node, FS_IndexFile file)

static bool	updateCodeSections (OP_Node node, FS_IndexFile file, UT_String *message)

Protected Member Functions
void	saveVflCodeToSection (FS_IndexFile hda, OP_Node shader_node, VOP_CodeGenerator code_generator, VOP_ContextType context_type, const char section_name, OP_Node *output_node)
	Saves the code to section. More...

bool	isOK () const
	Checks if there was an error during compilation up till now. More...


void	setStatus (UT_ErrorSeverity sev, const char msg, const char details=0)

void	clearStatus ()

Detailed Description

A class that compiles a node into a script-based HDA. This is a base class that presents two interface functions, compileVexCodeToSections() and compileNewOperatorType() and the derived class should implement at least one of them.

Definition at line 42 of file VOP_HDACodeCompiler.h.

Constructor & Destructor Documentation

VOP_HDACodeCompiler::VOP_HDACodeCompiler ( )

virtual VOP_HDACodeCompiler::~VOP_HDACodeCompiler ( )

virtual

Member Function Documentation

static bool VOP_HDACodeCompiler::canCompileNode ( OP_Node * srcnode )

static

Tests if the node can be compiled into vex code sections.

Returns: True if node can be compiled; otherwise, false.

void VOP_HDACodeCompiler::clearStatus ( )

protected

Allow subclasses to set the error and warning messages.

virtual bool VOP_HDACodeCompiler::compileNewOperatorType	(	OP_Node *	srcnode,
		const char *	name,
		const char *	label,
		const char *	path,
		const char *	metasrc,
		const VOP_ContextTypeList *	types = `NULL`
	)

virtual

Compiles a given node to a new script-based HDA (ie, the content nodes are not saved; only the vex code that they generate is saved). This is used for HDAs that don't have contents network, and only use the compiled code for cooking.

Parameters

srcnode	The node from which to create the new HDA.
name	The name of the new operator.
label	The label of the new operator.
path	The file path of the OTL to which the new HDA is saved.
metasrc	The meta source for the OTL containing new HDA.
types	The shader context types to save. If NULL, all implemented context types are saved.

Returns: True if creation of new HDA succeeded. On failure, false is returned and the member error message is set.

Reimplemented in VOP_ShaderHDACompilerOTL.

virtual bool VOP_HDACodeCompiler::compileVexCodeToSections	(	OP_Node *	srcnode,
		FS_IndexFile *	hda,
		const char *	context_mask = `0`
	)

virtual

Compiles a given node to the sections of a given HDA (already existing). This is used for HDAs that have contents network, but also want to store cached vfl/vex code.

Parameters

srcnode	The node from which to obtain vex code.
hda	The HDA definition to which save the vfl and vex code.

Reimplemented in VOP_ShaderHDACompilerHDA, and VOP_VopHDACompiler.

bool VOP_HDACodeCompiler::getForceCompilationOnOpNameConflict ( )

inline

Configures the flag to force creation of the new operator even if there is already one by that name.

Definition at line 65 of file VOP_HDACodeCompiler.h.

const UT_StringMap<UT_StringHolder>& VOP_HDACodeCompiler::getFunctionsSectionsMap ( ) const

inline

Obtains info about imported shaders that needed to be also compiled and saved in HDA sections. Eg, imported shaders that are implemented as nested Material Builders (or HDAs based on them). The keys are the shader function names and mapped values are the section names where they are stored.

Definition at line 119 of file VOP_HDACodeCompiler.h.

const UT_StringHolder& VOP_HDACodeCompiler::getShaderName ( ) const

inline

Main shader name used in compilation.

Definition at line 51 of file VOP_HDACodeCompiler.h.

UT_ErrorSeverity VOP_HDACodeCompiler::getStatus	(	UT_String &	message,
		UT_String *	details = `0`
	)

Returns an error or a warning message from the last compilation.

bool VOP_HDACodeCompiler::isOK ( ) const

inlineprotected

Checks if there was an error during compilation up till now.

Definition at line 140 of file VOP_HDACodeCompiler.h.

static void VOP_HDACodeCompiler::removeCodeSections	(	OP_Node *	node,
		FS_IndexFile *	file
	)

static

Utility function for cleaning up HDA of any compiled sections. node The node defined by the HDA saved in file. It is used to determine the section name convention for the given type of HDA (shader vs. vop).

void VOP_HDACodeCompiler::saveVflCodeToSection	(	FS_IndexFile *	hda,
		OP_Node *	shader_node,
		VOP_CodeGenerator *	code_generator,
		VOP_ContextType	context_type,
		const char *	section_name,
		OP_Node *	output_node
	)

protected

Saves the code to section.

void VOP_HDACodeCompiler::setForceCompilationOnOpNameConflict ( bool flag )

inline

Configures the flag to force creation of the new operator even if there is already one by that name.

Definition at line 63 of file VOP_HDACodeCompiler.h.

void VOP_HDACodeCompiler::setShaderName ( const char * shader_name )

inline

Main shader name used in compilation.

Definition at line 49 of file VOP_HDACodeCompiler.h.

void VOP_HDACodeCompiler::setStatus	(	UT_ErrorSeverity	sev,
		const char *	msg,
		const char *	details = `0`
	)

protected

Allow subclasses to set the error and warning messages.

static bool VOP_HDACodeCompiler::updateCodeSections	(	OP_Node *	node,
		FS_IndexFile *	file,
		UT_String *	message
	)

static

Utility function for compiling node to code sections, but also to update function name section if needed. Returns true on success; false otherwise (along with error message)

The documentation for this class was generated from the following file:

VOP/VOP_HDACodeCompiler.h
