types.h File Reference
#include "pxr/pxr.h"
#include "pxr/imaging/hio/api.h"
#include <stdlib.h>
#include <cinttypes>

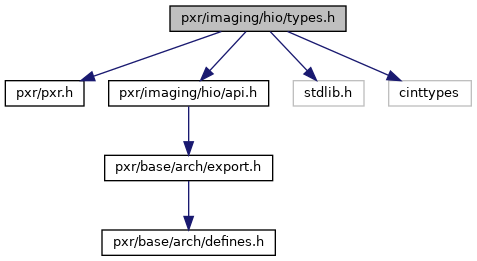

+ Include dependency graph for types.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations

enum  HioFormat {
  HioFormatInvalid =-1, HioFormatUNorm8 =0, HioFormatUNorm8Vec2, HioFormatUNorm8Vec3,
  HioFormatUNorm8Vec4, HioFormatSNorm8, HioFormatSNorm8Vec2, HioFormatSNorm8Vec3,
  HioFormatSNorm8Vec4, HioFormatFloat16, HioFormatFloat16Vec2, HioFormatFloat16Vec3,
  HioFormatFloat16Vec4, HioFormatFloat32, HioFormatFloat32Vec2, HioFormatFloat32Vec3,
  HioFormatFloat32Vec4, HioFormatDouble64, HioFormatDouble64Vec2, HioFormatDouble64Vec3,
  HioFormatDouble64Vec4, HioFormatUInt16, HioFormatUInt16Vec2, HioFormatUInt16Vec3,
  HioFormatUInt16Vec4, HioFormatInt16, HioFormatInt16Vec2, HioFormatInt16Vec3,
  HioFormatInt16Vec4, HioFormatUInt32, HioFormatUInt32Vec2, HioFormatUInt32Vec3,
  HioFormatUInt32Vec4, HioFormatInt32, HioFormatInt32Vec2, HioFormatInt32Vec3,
  HioFormatInt32Vec4, HioFormatUNorm8srgb, HioFormatUNorm8Vec2srgb, HioFormatUNorm8Vec3srgb,
  HioFormatUNorm8Vec4srgb, HioFormatBC6FloatVec3, HioFormatBC6UFloatVec3, HioFormatBC7UNorm8Vec4,
  HioFormatBC7UNorm8Vec4srgb, HioFormatBC1UNorm8Vec4, HioFormatBC3UNorm8Vec4, HioFormatCount
}

enum  HioAddressDimension { HioAddressDimensionU, HioAddressDimensionV, HioAddressDimensionW }

enum  HioAddressMode {
  HioAddressModeClampToEdge = 0, HioAddressModeMirrorClampToEdge, HioAddressModeRepeat, HioAddressModeMirrorRepeat,
  HioAddressModeClampToBorderColor
}

enum  HioType {
  HioTypeUnsignedByte, HioTypeUnsignedByteSRGB, HioTypeSignedByte, HioTypeUnsignedShort,
  HioTypeSignedShort, HioTypeUnsignedInt, HioTypeInt, HioTypeHalfFloat,
  HioTypeFloat, HioTypeDouble, HioTypeCount
}


Functions

HIO_API HioFormat HioGetFormat (uint32_t nchannels, HioType type, bool isSRGB)
 Returns the HioFormat of containing nChannels of HioType type. More...

HIO_API HioType HioGetHioType (HioFormat)
 Return the HioType corresponding to the given HioFormat. More...

HIO_API int HioGetComponentCount (HioFormat format)
 Return the count of components (channels) in the given HioFormat. More...

HIO_API size_t HioGetDataSizeOfType (HioFormat hioFormat)
 Return the size in bytes for a component (channel) in the given HioFormat. More...

HIO_API size_t HioGetDataSizeOfType (HioType type)
 Return the size in bytes for a component (channel) in the given HioType. More...

HIO_API size_t HioGetDataSizeOfFormat (HioFormat format, size_t *blockWidth=nullptr, size_t *blockHeight=nullptr)
 Returns the size of bytes per pixel for the given HioFormat. More...

HIO_API bool HioIsCompressed (HioFormat format)
 Return if the given format is compressed. More...

HIO_API size_t HioGetDataSize (const HioFormat hioFormat, const GfVec3i &dimensions)


Enumeration Type Documentation

enum HioAddressDimension

Available texture sampling dimensions.

Enumerator
HioAddressDimensionU
HioAddressDimensionV
HioAddressDimensionW

Definition at line 137 of file types.h.

enum HioAddressMode

Various modes used during sampling of a texture.

Enumerator
HioAddressModeClampToEdge
HioAddressModeMirrorClampToEdge
HioAddressModeRepeat
HioAddressModeMirrorRepeat
HioAddressModeClampToBorderColor

Definition at line 148 of file types.h.

enum HioFormat

HioFormat describes the memory format of image buffers used in Hio.

For reference, see: https://www.khronos.org/registry/vulkan/specs/1.1/html/vkspec.html#VkFormat

Enumerator
HioFormatInvalid
HioFormatUNorm8
HioFormatUNorm8Vec2
HioFormatUNorm8Vec3
HioFormatUNorm8Vec4
HioFormatSNorm8
HioFormatSNorm8Vec2
HioFormatSNorm8Vec3
HioFormatSNorm8Vec4
HioFormatFloat16
HioFormatFloat16Vec2
HioFormatFloat16Vec3
HioFormatFloat16Vec4
HioFormatFloat32
HioFormatFloat32Vec2
HioFormatFloat32Vec3
HioFormatFloat32Vec4
HioFormatDouble64
HioFormatDouble64Vec2
HioFormatDouble64Vec3
HioFormatDouble64Vec4
HioFormatUInt16
HioFormatUInt16Vec2
HioFormatUInt16Vec3
HioFormatUInt16Vec4
HioFormatInt16
HioFormatInt16Vec2
HioFormatInt16Vec3
HioFormatInt16Vec4
HioFormatUInt32
HioFormatUInt32Vec2
HioFormatUInt32Vec3
HioFormatUInt32Vec4
HioFormatInt32
HioFormatInt32Vec2
HioFormatInt32Vec3
HioFormatInt32Vec4
HioFormatUNorm8srgb
HioFormatUNorm8Vec2srgb
HioFormatUNorm8Vec3srgb
HioFormatUNorm8Vec4srgb
HioFormatBC6FloatVec3
HioFormatBC6UFloatVec3
HioFormatBC7UNorm8Vec4
HioFormatBC7UNorm8Vec4srgb
HioFormatBC1UNorm8Vec4
HioFormatBC3UNorm8Vec4
HioFormatCount

Definition at line 42 of file types.h.

enum HioType
Enumerator
HioTypeUnsignedByte
HioTypeUnsignedByteSRGB
HioTypeSignedByte
HioTypeUnsignedShort
HioTypeSignedShort
HioTypeUnsignedInt
HioTypeInt
HioTypeHalfFloat
HioTypeFloat
HioTypeDouble
HioTypeCount

Definition at line 161 of file types.h.

Function Documentation

HIO_API int HioGetComponentCount ( HioFormat  format)

Return the count of components (channels) in the given HioFormat.

HIO_API size_t HioGetDataSize ( const HioFormat  hioFormat,
const GfVec3i &  dimensions
)

Calculate the byte size of texture. If compressed, takes block size into account.

HIO_API size_t HioGetDataSizeOfFormat ( HioFormat  format,
size_t *  blockWidth = nullptr,
size_t *  blockHeight = nullptr
)

Returns the size of bytes per pixel for the given HioFormat.

HIO_API size_t HioGetDataSizeOfType ( HioFormat  hioFormat)

Return the size in bytes for a component (channel) in the given HioFormat.

HIO_API size_t HioGetDataSizeOfType ( HioType  type)

Return the size in bytes for a component (channel) in the given HioType.

HIO_API HioFormat HioGetFormat ( uint32_t  nchannels,
HioType  type,
bool  isSRGB
)

Returns the HioFormat of containing nChannels of HioType type.

HIO_API HioType HioGetHioType ( HioFormat  )

Return the HioType corresponding to the given HioFormat.

HIO_API bool HioIsCompressed ( HioFormat  format)

Return if the given format is compressed.
