Util.h File Reference
#include <openvdb/Types.h>
#include <openvdb/tree/Tree.h>
#include <openvdb/tools/ValueTransformer.h>
#include <openvdb/tools/Prune.h>
#include <limits>

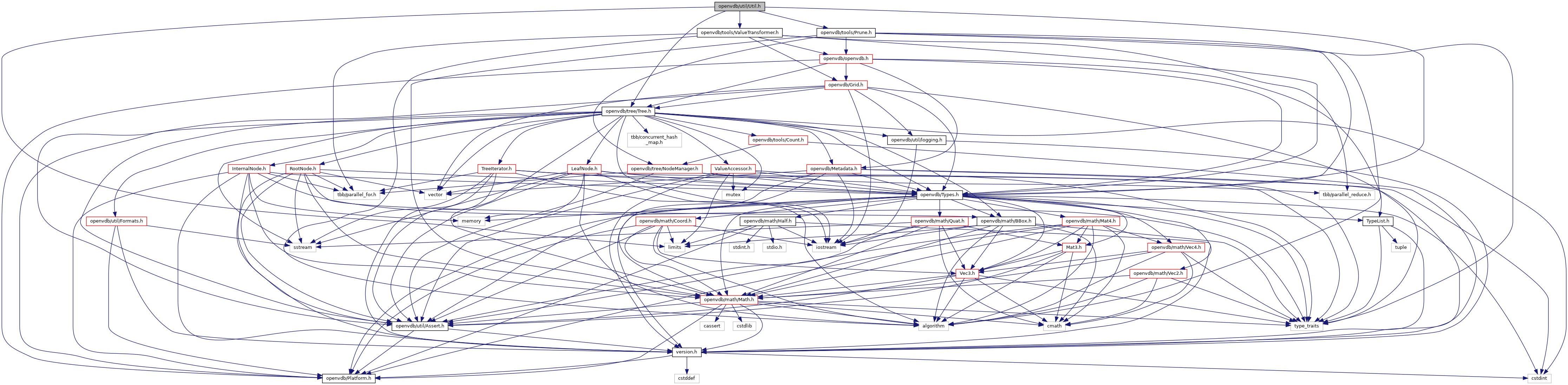

+ Include dependency graph for Util.h:

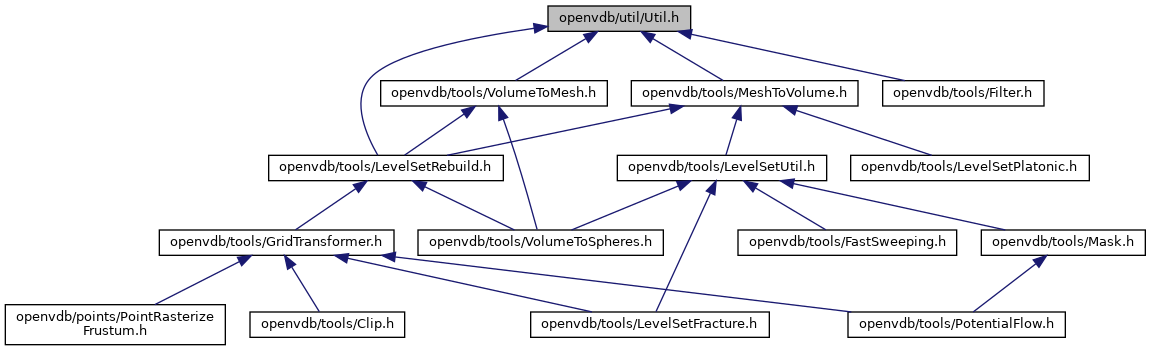

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  openvdb::OPENVDB_VERSION_NAME::util::LeafTopologyIntOp< TreeType1, TreeType2 >
 Functor for use with tools::foreach() to compute the boolean intersection between the value masks of corresponding leaf nodes in two trees. More...

class  openvdb::OPENVDB_VERSION_NAME::util::LeafTopologyDiffOp< TreeType1, TreeType2 >
 Functor for use with tools::foreach() to compute the boolean difference between the value masks of corresponding leaf nodes in two trees. More...


Namespaces

 openvdb

 openvdb::OPENVDB_VERSION_NAME

 openvdb::OPENVDB_VERSION_NAME::util


Functions

Coord openvdb::OPENVDB_VERSION_NAME::util::nearestCoord (const Vec3d &voxelCoord)
 Return voxelCoord rounded to the closest integer coordinates. More...

template<class TreeType1 , class TreeType2 >
TreeType1::template
ValueConverter< bool >
::Type::Ptr
openvdb::OPENVDB_VERSION_NAME::util::leafTopologyIntersection (const TreeType1 &lhs, const TreeType2 &rhs, bool threaded=true)
 Perform a boolean intersection between two leaf nodes' topology masks. More...

template<class TreeType1 , class TreeType2 >
TreeType1::template
ValueConverter< bool >
::Type::Ptr
openvdb::OPENVDB_VERSION_NAME::util::leafTopologyDifference (const TreeType1 &lhs, const TreeType2 &rhs, bool threaded=true)
 Perform a boolean difference between two leaf nodes' topology masks. More...


Variables

constexpr Index32 openvdb::OPENVDB_VERSION_NAME::util::INVALID_IDX = std::numeric_limits<Index32>::max()

constexpr Coord openvdb::OPENVDB_VERSION_NAME::util::COORD_OFFSETS [26]
 coordinate offset table for neighboring voxels More...
