#include "pxr/pxr.h"
#include "pxr/imaging/hd/api.h"
#include "pxr/imaging/hd/version.h"
#include "pxr/base/vt/array.h"
#include "pxr/base/vt/value.h"
#include "pxr/base/gf/math.h"
#include "pxr/base/gf/quatf.h"
#include "pxr/base/tf/diagnostic.h"
#include "pxr/base/tf/smallVector.h"

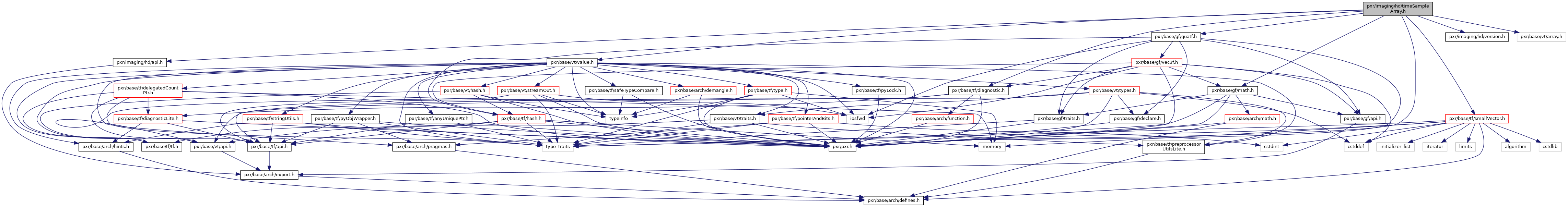

Include dependency graph for timeSampleArray.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	HdTimeSampleArray< TYPE, CAPACITY >

struct	HdIndexedTimeSampleArray< TYPE, CAPACITY >

Functions
template<typename T >
PXR_NAMESPACE_OPEN_SCOPE T	HdResampleNeighbors (float alpha, const T &v0, const T &v1)
	Resample two neighboring samples. More...

HD_API GfQuatf	HdResampleNeighbors (float alpha, const GfQuatf &v0, const GfQuatf &v1)
	Specialization for HdQuatf: spherical linear interpolation. More...

template<typename T >
VtArray< T >	HdResampleNeighbors (float alpha, const VtArray< T > &v0, const VtArray< T > &v1)
	Specialization for VtArray: component-wise resampling. More...

HD_API VtValue	HdResampleNeighbors (float alpha, const VtValue &v0, const VtValue &v1)
	Specialization for VtValue: interpolate the held values. More...

template<typename T >
T	HdResampleRawTimeSamples (float u, size_t numSamples, const float us, const T vs)

template<typename T >
std::pair< T, VtIntArray >	HdResampleRawTimeSamples (float u, size_t numSamples, const float us, const T vs, const VtIntArray *is)

Function Documentation

template<typename T >

PXR_NAMESPACE_OPEN_SCOPE T HdResampleNeighbors	(	float	alpha,
		const T &	v0,
		const T &	v1
	)

inline

Resample two neighboring samples.

Definition at line 41 of file timeSampleArray.h.

HD_API GfQuatf HdResampleNeighbors	(	float	alpha,
		const GfQuatf &	v0,
		const GfQuatf &	v1
	)

inline

Specialization for HdQuatf: spherical linear interpolation.

Definition at line 48 of file timeSampleArray.h.

template<typename T >

VtArray<T> HdResampleNeighbors	(	float	alpha,
		const VtArray< T > &	v0,
		const VtArray< T > &	v1
	)

inline

Specialization for VtArray: component-wise resampling.

Definition at line 57 of file timeSampleArray.h.

HD_API VtValue HdResampleNeighbors	(	float	alpha,
		const VtValue &	v0,
		const VtValue &	v1
	)

Specialization for VtValue: interpolate the held values.

template<typename T >

T HdResampleRawTimeSamples	(	float	u,
		size_t	numSamples,
		const float *	us,
		const T *	vs
	)

Resample a function described by an ordered array of samples, using a linear reconstruction filter evaluated at the given parametric position u. The function is considered constant outside the supplied sample range.

Definition at line 77 of file timeSampleArray.h.

template<typename T >

std::pair<T, VtIntArray> HdResampleRawTimeSamples	(	float	u,
		size_t	numSamples,
		const float *	us,
		const T *	vs,
		const VtIntArray *	is
	)

Resample a function described by an ordered array of samples and sample indices, using a linear reconstruction filter evaluated at the given parametric position u. The function is considered constant outside the supplied sample range.

Definition at line 122 of file timeSampleArray.h.
