Old network
As of Houdini 20.5, use Copernicus nodes instead of Compositing nodes. Though both networks still exist, the Compositing network is now designated as COP Network - Old. The Compositing network and its nodes will be deprecated and then removed in a future Houdini release.
You can use the extra information in deep raster images, such as Depth, Normals, and various mattes, in more advanced compositing operations. See rendering deep raster images .
Merge deep raster information in separate files ¶
The renderer can store the extra information in a single deep-raster
file format (.pic), or in multiple “shallow” files. You may need
to merge color planes together with the deep raster information, for
certain operations (like
Z Composite, which
requires Zdepth to be present in the input).
For deep rasters that have been saved over several files, you will need to merge the deep raster planes and the color planes into a single sequence. See how to import an image as a plane of another image .
Adjust render passes ¶
-
In your surface shaders, you can export float (or vector3) variables such as diffuse, specular and ambient. You must write the appropriate values to them; they are not automatically filled in.
-
With scalar (matte) information, you can use the mattes as masks for color correction operations, or other filters like blur, to adjust portions of the image.
-
With vector3 (color) information, you can subtract the pass color from the image color (C), manipulate it, and then add it back into the composite. You can also use vector3 mattes as masks, just as scalars, but the mask will be applied as a 3 channel mask (Mask.R, Mask.G, Mask.B) and affect the different color channels differently.
-
You can do similar operations on shadow passes, allowing you to darken, blur or add noise to shadows.
Z-depth compositing ¶
Z depth compositing is useful for compositing volumes or particles. For example, compositing falling snow around foreground elements.
-
To do Z depth compositing, each COP needs either a depth (
Pz) or point (P) plane. -
Use the
Z Composite operator to composite
the images, instead of a traditional “ over ”.
In addition to transparency, Z Composite looks at the Z depth
of each point to see if it should be in front of or behind the
other image.
Note
The depth information is also updated with the new Z positions, so you can do multiple Z composites in series correctly.
Tip
If you have many Z composites to perform and some have transparency, put all the Z composites dealing with transparent images at the end of the Z composite chain, if possible. This will minimize problems with Z compositing and transparency (since only 1 Z value can be stored, and transparency requires one for each transparent surface, plus the final opaque surface).
Relighting ¶
Relighting involves simulating the effect of adding extra lights to the rendered image. Houdini uses the depth and angle information encoded in the deep raster to calculate the interaction of the new lights with the surfaces in the image.
-
To do 3D lighting, you must have Point and Normal planes in your image.
-
Use the
Lighting operator to position a
single directional or non-directional light in the scene, or
do volume lighting with the parameters on the Lighting node’s
Atmospheric tab.
Tip
You can generate a normal map from a point map with the
Lighting operator, but the results are not as
smooth as when you render out a real Normal plane.
Note
To add multiple lights, input the image to multiple Lighting nodes and turn off the Add to original color parameter in each. Then use an Add or Screen operation to combine the output of the nodes.

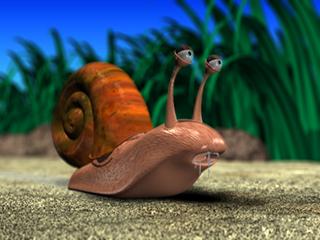

Depth of field ¶
You can use the depth information encoded in the deep raster to adjust the apparent depth of field in the image, but de-focusing parts of the image outside the focus range.
-
To adjust the depth of field, the image must have a Z-depth or Point plane.
-
Create a
Depth of Field node and a
Defocus (recommended) or
Blur node.The Depth of Field operator works by generating a mask plane (
M) from the depth information in the image, which you then use as a mask for theDefocus node. -
Connect the image into the Depth of Field node and the
Defocus node. Connect the image into the
Defocus node as well. Finally, connect the Depth of
Field node into the mask input of the
Defocus node. -
Append a
Defocus COP; set the Per Pixel Defocus parameter. Adjust the size to get the desired amount of blur.
Tip
See
how to preview different planes in the node
tile’s thumbnail.
Fog ¶
Use the
Fog operator to add various atmospheric
effects to your network, such as normal fog, layered fog, and heat
waves. The image must have a Z-depth plane or Point plane.
-
For normal fog, you can specify the color of the fog and its density.
-

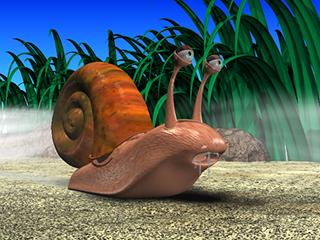

For layered fog, you can specify the above plus the height that it starts/ends at, plus a drop-off region to make the transition smooth.
-
You can add 3D noise to the fog to make it more varied (though this takes quite a bit longer, as it does ray marching through the noise).
-
You can add an image to the Fog node’s second input, which varies the fog color based on the second image’s color.
Apply an environment map ¶
Use the
Environment operator to apply an environment
map to an image. The image must have a Point plane and a Normal
plane.
The Environment operator supports Spherical, Cube-Strip and Cube-Cross maps. You can rotate map around the image, and blend it with the original image colors
World space pixel culling ¶
Use the
Geo Key operator to partition, or cut
out, areas of the image based upon their 3D position or normal
direction.
For images with a Point plane, use clipping planes and distance from a point to isolate or remove elements.
Use a static direction vector to isolate all normals pointing in that direction. Use a point to isolate all normals pointing towards that point.
To get a smooth transition, you can use a drop-off area or angle.
Point
All points removed close to a given point.

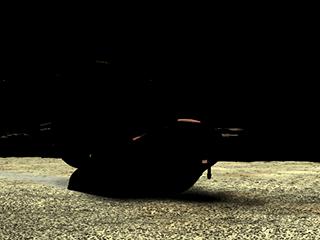

Angle
All points kept facing a certain direction (up).
Plane
All points removed in front of a plane.
