SIM_FullPathData.h File Reference

#include "SIM_API.h"
#include <GU/GU_DetailHandle.h>
#include <UT/UT_StringHolder.h>

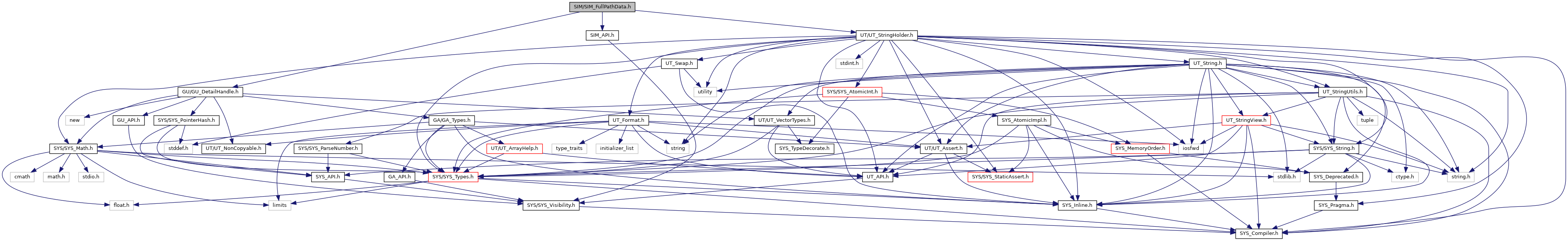

Include dependency graph for SIM_FullPathData.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SIM_FullPathData

Functions
SIM_API bool	SIMfindDataFromPath (const char *path, SIM_FullPathData &fulldata, const SIM_Engine &engine, const SIM_Time &sim_time, bool interpolate_data)
SIM_API bool	SIMfindAllDataFromPath (const char *path, UT_Array< SIM_FullPathData > &fulldata, const SIM_Engine &engine, const SIM_Time &sim_time, bool interpolate_data)
SIM_API GU_ConstDetailHandle	SIMgetBestGeometry (UT_DMatrix4 &xform, const SIM_RootData *rootdata, const SIM_Data *data, const char *dataname, const SIM_Time &simtime, const bool doceflush=true)
SIM_API const SIM_Position *	SIMgetBestPosition (const SIM_RootData *rootdata, const SIM_Data *data, const char *dataname)

Function Documentation

SIM_API bool SIMfindAllDataFromPath	(	const char *	path,
		UT_Array< SIM_FullPathData > &	fulldata,
		const SIM_Engine &	engine,
		const SIM_Time &	sim_time,
		bool	interpolate_data
	)

Version of DOPfindAllDataFromPath() that uses the provided SIM_Engine instead of searching for a DOP node at the beginning of the path.

SIM_API bool SIMfindDataFromPath	(	const char *	path,
		SIM_FullPathData &	fulldata,
		const SIM_Engine &	engine,
		const SIM_Time &	sim_time,
		bool	interpolate_data
	)

Version of DOPfindDataFromPath() that uses the provided SIM_Engine instead of searching for a DOP node at the beginning of the path.

SIM_API GU_ConstDetailHandle SIMgetBestGeometry	(	UT_DMatrix4 &	xform,
		const SIM_RootData *	rootdata,
		const SIM_Data *	data,
		const char *	dataname,
		const SIM_Time &	simtime,
		const bool	doceflush = true
	)

Return the geometry and transform for the provided data path. This handles data types other than SIM_Geometry - e.g. SIM_Object (returning the object's geometry), SIM_SDF and other field types, and unknown types are converted to their guide geometry if possible.

SIM_API const SIM_Position* SIMgetBestPosition	(	const SIM_RootData *	rootdata,
		const SIM_Data *	data,
		const char *	dataname
	)
