#include <SIM_Geometry.h>

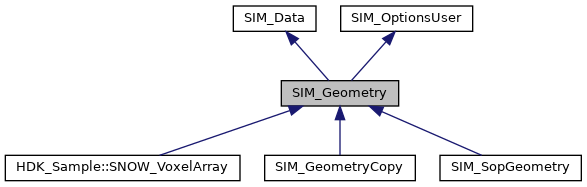

Inheritance diagram for SIM_Geometry:

Public Member Functions
	GETSET_DATA_FUNCS_S (SIM_NAME_POSITIONPATH, PositionPath)

GU_ConstDetailHandle	getGeometry () const

void	getTransform (UT_DMatrix4 &xform) const

GA_CEAttribute *	getReadableCEAttribute (GA_AttributeOwner owner, const UT_StringRef &aname, GA_StorageClass storage, int &tuplesize, bool isarray, bool docopy) const

virtual GA_CEAttribute *	getReadableCEAttributePrec (GA_AttributeOwner owner, const UT_StringRef &aname, GA_StorageClass storage, GA_Precision prec, int &tuplesize, bool isarray, bool docopy) const

GU_ConstDetailHandle	getGeometryWithoutCEFlush () const

GA_Size	getNumPoints () const

GA_Size	getNumPrimitives () const

virtual void	flushCEWriteCaches () const
	Clear any pending writes from the GPU. More...

virtual void	flushCECaches () const
	Clear all GPU caches. More...

void	markCECacheStatus (bool status) const

void	setOwnGeometry (GU_Detail *gdp)

void	setOwnGeometry (const GU_DetailHandle &gdh)

virtual void	setOwnGeometrySubclass (const GU_DetailHandle &gdh)

GU_ConstDetailHandle	getOwnGeometry () const
	Returns a const pointer to our internal geometry data, if it is set. More...

GU_DetailHandle	getOwnGeometry ()
	Returns a pointer to our internal geometry data, if it is set. More...

void	makeOwnGeometryUnique ()

void	setOwnTransform (UT_DMatrix4 *xform)

const UT_DMatrix4 *	getOwnTransform () const
	Returns a const pointer to our internal transform data, if it is set. More...

UT_DMatrix4 *	getOwnTransform ()
	Returns a pointer to our internal transform data, if it is set. More...

Public Member Functions inherited from SIM_Data
const UT_StringHolder &	getDataType () const

void	initialize (const SIM_SubdataBehavior &subdatabehavior)

void	makeEqual (const SIM_Data *source, const SIM_SubdataBehavior &subdatabehavior)

void	setParameters (const SIM_Options &parms)

void	interpolate (const SIM_Data source1, const SIM_Data source2, fpreal interp)

int64	getMemorySize () const

bool	getIsAlternateRepresentation () const

bool	saveToFile (const char *filename, UT_CompressionType compressionType) const

bool	saveToStream (std::ostream &os, UT_CompressionType compressionType) const

void	appendFullDataPath (const SIM_Data *subdata, bool useobjectid, UT_String &datapath) const

bool	loadFromFile (const char *filename)

bool	loadFromStream (UT_IStream &is, bool skiptype=false)

bool	getIsOfType (const UT_StringRef &datatype) const

const void *	getConstPointerToType (const UT_StringRef &datatype) const

void *	getPointerToType (const UT_StringRef &datatype)

int	getNumSubData () const
	Get the number of sub-data items attached to this data. More...

const UT_StringHolder &	getSubDataName (int index) const
	Get the name of the sub-data at a particular index location. More...

int	getSubDataIndex (const SIM_Data *subdata) const

bool	buildSubDataPath (const SIM_Data *subdata, UT_String &pathto) const

const SIM_Query &	getQueryObject () const

SIM_Options *	getUserOptions ()

const SIM_Options *	getConstUserOptions () const

long	getGuideParmVersion () const

void	addGuideDep (DEP_MicroNode &src) const

virtual bool	getGuideGeometryList (const SIM_RootData &root, const char *datapath, const SIM_Time &t, UT_Array< GU_ConstDetailHandle > &detailArray, UT_Array< UT_DMatrix4 > &xformArray) const

GU_ConstDetailHandle	getGuideGeometry (const SIM_RootData &root, const char *datapath, UT_DMatrix4 &xform, const SIM_Time &t) const

void	buildGuideOptions (SIM_Options &options, const SIM_Time &time) const

SIM_Data *	getSubData (int index)

const SIM_Data *	getConstSubData (int index) const

SIM_Data *	getNamedSubData (const char *dataname)

const SIM_Data *	getConstNamedSubData (const char *dataname) const

void	filterSubData (SIM_DataArray &ncdp, UT_StringArray names, const SIM_DataFilter &ncfilter, const char startfrom, const SIM_DataFilter &recursefilter)

void	filterConstSubData (SIM_ConstDataArray &dp, UT_StringArray names, const SIM_DataFilter &filter, const char startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	getNthSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter)

const SIM_Data *	getNthConstSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter) const

void	forEachSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter)

void	forEachConstSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	createNamedSubData (const char dataname, const char datatype, int creationflags, UT_String *newdatanameptr=NULL)

SIM_Data *	getOrCreateAlternateRepresentation (const char dataname, const char datatype) const

void	interpolateSubData (const SIM_Data &source1, const SIM_Data &source2, fpreal interp, const SIM_DataFilter &interpdata, const SIM_DataFilter &recurse)

void	setNamedSubData (const char dataname, const SIM_Data data, int setflags)

void	createUniqueSubDataName (const SIM_Data *subdata, UT_String &dataname) const

void	removeNamedSubData (const char *dataname)
	Remove some existing sub-data by name. More...

void	removeSubData (int index)
	Remove some existing sub-data by index. More...

void	moveNamedSubData (const char oldname, const char newname)

const UT_Guid &	getUniqueId () const

long	getReferenceCount () const

int	getCreatorId () const
	Get the ID of the node that created this data. More...

OP_Node *	getCreatorNode () const
	Use the creator ID to look up the OP_Node that created this data. More...

OP_Node *	getOwnerNetwork () const
	Look up the owner node of our engine to get the DOP Network pointer. More...

const SIM_Engine &	getEngine () const
	Get the engine that created us (from our data factory). More...

int	getCreatorIndex () const
	Get the output index of the creator node that generated this data. More...

const SIM_Time &	getCreationTime () const
	Get the creation time for this data. More...

bool	getIsSelected () const
	Get the selected flag for this data. More...

void	setIsSelected (bool selected) const

bool	getSelectionRepresentsObject () const

void	copyCreationInfoFrom (const SIM_Data *source)

OP_Node &	getNodePathsRelativeTo () const

OP_Node *	getOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

OBJ_Node *	getOBJNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

SOP_Node *	getSOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a SOP_Node. More...

DOP_Node *	getDOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a DOP_Node. More...

COP2_Node *	getCOP2Node (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a COP2_Node. More...

CHOP_Node *	getCHOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a CHOP_Node. More...

void	addOPInterest (OP_Node *node) const
	Adds an interest in the specified node to our engine's owner node. More...

void	addError (const SIM_RootData root, int errorcode, const char errorparm, UT_ErrorSeverity severity) const
	Adds an error to our SIM_Engine. More...

void	makeMemberDataUnique ()

virtual void	makeMemberDataUniqueSubclass ()

Public Member Functions inherited from SIM_OptionsUser
	SIM_OptionsUser (SIM_Data *owner)

virtual	~SIM_OptionsUser ()

void	optionChanged (const char *name)

const SIM_Options &	getOptions () const

Protected Member Functions
	SIM_Geometry (const SIM_DataFactory *factory)

	~SIM_Geometry () override

void	initializeSubclass () override
	Set initial values on all the geometry attributes. More...

void	makeEqualSubclass (const SIM_Data *source) override
	Makes this geometry equal to some other SIM_Geometry. More...

void	saveSubclass (std::ostream &os) const override
	Saves our attributes, and our internal data if it has been set. More...

void	saveIOSubclass (std::ostream &os, SIM_DataThreadedIO *io) const override

bool	loadSubclass (UT_IStream &is) override
	Loads our attributes and internal data if it was set when we saved. More...

bool	loadIOSubclass (UT_IStream &is, SIM_DataThreadedIO *io) override

SIM_Query *	createQueryObjectSubclass () const override

void	interpolateSubclass (const SIM_Data source1, const SIM_Data source2, fpreal interp) override

int64	getMemorySizeSubclass () const override

virtual GU_ConstDetailHandle	getGeometrySubclass () const

virtual void	getTransformSubclass (UT_DMatrix4 &xform) const

Protected Member Functions inherited from SIM_Data
	SIM_Data (const SIM_DataFactory *factory)

virtual	~SIM_Data ()

void	handleModification (int code=-1)

void	setNeedsToRecalculateMemorySize () const

void	deleteQueryObjectIfNotBuilding () const
	Deletes the query object for this data, if there is one. More...

void	deleteGuideObjectIfNotBuilding () const
	Delete the guide geometry for this data, if it exists. More...

void	initAlternateRepresentation () const

void	setNeedsInitialization (bool needsinit) const
	Flags an alternate representation subdata as requiring initialization. More...

bool	getNeedsInitialization () const
	Tests whether an alternate representation requires initialization. More...

bool	saveOptionPacket (std::ostream &os, const char name, const SIM_Options opts) const

bool	loadOptionPacket (UT_IStream &is, const char name, SIM_Options opts) const

bool	getIsDoingSimplifiedSaveLoad () const

void	initializeFromParmDefaults ()

void	setSelectionRepresentsObject (bool representsobject)

virtual void	setNeedsInitializationSubclass (bool needsinit) const

virtual long	getGuideParmVersionSubclass () const

virtual SIM_Guide *	createGuideObjectSubclass () const

virtual void	buildGuideGeometrySubclass (const SIM_RootData &root, const SIM_Options &options, const GU_DetailHandle &gdh, UT_DMatrix4 *xform, const SIM_Time &t) const

virtual void	setParametersSubclass (const SIM_Options &parms)

virtual void	setNamedSubDataSubclass (const char dataname, const SIM_Data data)

virtual void	removeNamedSubDataSubclass (const char *dataname)

virtual void	handleModificationSubclass (int code)

virtual bool	getIsAlternateRepresentationSubclass () const

virtual void	initAlternateRepresentationSubclass (const SIM_Data &)

virtual void *	getCastToType (const UT_StringRef &datatype) const

virtual const UT_StringHolder &	getDataTypeSubclass () const

const SIM_Data *	getAlternateRepresentationOf () const

Protected Member Functions inherited from SIM_OptionsUser
SIM_Options &	getOptions ()

virtual void	optionChangedSubclass (const char *name)

Protected Attributes
bool	myHasCECache

Additional Inherited Members
Static Public Member Functions inherited from SIM_Data
static bool	getDataTypeFromFile (const char *filename, UT_String &datatype)

static bool	getDataTypeFromStream (UT_IStream &is, UT_String &datatype)

static const void *	castConstPointerToType (const SIM_Data *data, const UT_StringRef &datatype)

static void *	castPointerToType (SIM_Data *data, const UT_StringRef &datatype)

Static Protected Member Functions inherited from SIM_Data
static const PRM_Template *	getEmptyTemplateList ()

static const SIM_DopDescription *	getEmptyDopDescription ()
	A DOP description that says not to create an automatic DOP. More...

static void	getDataTypeSuperclasses (UT_StringArray &)

Detailed Description

This is the definitions for the SIM_Geometry interface. It also provides a default implementation that returns an empty geometry and an identity transform. It also has the facility to hold its own geometry and transform as internal data. If set, these are saved and loaded automatically. But there is no way for anyone except subclasses to set these internal data. Thus they are really just a convenience when writing SIM_Geometry subclasses.

Examples:: SIM/SIM_SolverHair.C, SIM/SNOW_Solver.C, and SIM/SNOW_Solver.h.

Definition at line 30 of file SIM_Geometry.h.

Constructor & Destructor Documentation

SIM_Geometry::SIM_Geometry ( const SIM_DataFactory * factory )

explicitprotected

SIM_Geometry::~SIM_Geometry ( )

overrideprotected

Member Function Documentation

SIM_Query* SIM_Geometry::createQueryObjectSubclass ( ) const

overrideprotectedvirtual

Creates a query object specifically for geometry data to access the transforms associated with geometry data.

Reimplemented from SIM_Data.

virtual void SIM_Geometry::flushCECaches ( ) const

virtual

Clear all GPU caches.

virtual void SIM_Geometry::flushCEWriteCaches ( ) const

virtual

Clear any pending writes from the GPU.

Reimplemented in SIM_GeometryCopy.

GU_ConstDetailHandle SIM_Geometry::getGeometry ( ) const

Method for accessing the geometry. If we have some internal geometry data, we return that. Otherwise this function calls getGeometrySubclass().

Examples:: SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

virtual GU_ConstDetailHandle SIM_Geometry::getGeometrySubclass ( ) const

protectedvirtual

This function is called by getGeometry() to return the actual geometry data. The default implementation returns an empty geometry.

Reimplemented in HDK_Sample::SNOW_VoxelArray.

GU_ConstDetailHandle SIM_Geometry::getGeometryWithoutCEFlush ( ) const

Acquires our geometry without triggering any write backs of pending CE operations, this is useful if you care only about meta data.

int64 SIM_Geometry::getMemorySizeSubclass ( ) const

overrideprotectedvirtual

Override this function to return an accurate representation of the amount of memory used by this piece of data. The size of subdata should not be included in this calculation.

Reimplemented from SIM_Data.

Reimplemented in HDK_Sample::SNOW_VoxelArray.

GA_Size SIM_Geometry::getNumPoints ( ) const

Convenience methods to query the geometry without inducing a flush.

GA_Size SIM_Geometry::getNumPrimitives ( ) const

GU_ConstDetailHandle SIM_Geometry::getOwnGeometry ( ) const

Returns a const pointer to our internal geometry data, if it is set.

GU_DetailHandle SIM_Geometry::getOwnGeometry ( )

Returns a pointer to our internal geometry data, if it is set.

const UT_DMatrix4* SIM_Geometry::getOwnTransform ( ) const

Returns a const pointer to our internal transform data, if it is set.

UT_DMatrix4* SIM_Geometry::getOwnTransform ( )

Returns a pointer to our internal transform data, if it is set.

GA_CEAttribute* SIM_Geometry::getReadableCEAttribute	(	GA_AttributeOwner	owner,
		const UT_StringRef &	aname,
		GA_StorageClass	storage,
		int &	tuplesize,
		bool	isarray,
		bool	docopy
	)		const

inline

Attempt to build a GPU-backed attribute from our geometry. Returns 0 on failure. You do not own the resulting GA_CEAttribute.

Definition at line 51 of file SIM_Geometry.h.

virtual GA_CEAttribute* SIM_Geometry::getReadableCEAttributePrec	(	GA_AttributeOwner	owner,
		const UT_StringRef &	aname,
		GA_StorageClass	storage,
		GA_Precision	prec,
		int &	tuplesize,
		bool	isarray,
		bool	docopy
	)		const

virtual

SIM_Geometry::GETSET_DATA_FUNCS_S	(	SIM_NAME_POSITIONPATH	,
		PositionPath
	)

Accesses the relative path to the position data associated with this geometry.

void SIM_Geometry::getTransform ( UT_DMatrix4 & xform ) const

Get the geometry transform. If we have some internal transform data, we return that. Otherwise this function calls getTransformSubclass().

Examples:: SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

virtual void SIM_Geometry::getTransformSubclass ( UT_DMatrix4 & xform ) const

protectedvirtual

This function is called by getTransform() to return the actual transform data. The default implementation returns an identity matrix.

void SIM_Geometry::initializeSubclass ( )

overrideprotectedvirtual

Set initial values on all the geometry attributes.

Reimplemented from SIM_Data.

Reimplemented in HDK_Sample::SNOW_VoxelArray, and SIM_GeometryCopy.

void SIM_Geometry::interpolateSubclass	(	const SIM_Data *	source1,
		const SIM_Data *	source2,
		fpreal	interp
	)

overrideprotectedvirtual

Create an interpolation between two other SIM_Geometry subclasses. This is one place where the internal data gets used automatically. Since the source data may be of any subclass, the only way to safely and correctly interpolate between two SIM_Geometry subclasses is to copy one of the source geometry and transform to our internal data, and then do a blend towards the second source data.

Reimplemented from SIM_Data.

Reimplemented in SIM_SopGeometry.

bool SIM_Geometry::loadIOSubclass	(	UT_IStream &	is,
		SIM_DataThreadedIO *	io
	)

overrideprotectedvirtual

Loading variant that allows you to request loading data at the end of the .sim file that was saved with saveIOSubclass If not overloaded, passes through to loadSubclass. If io is NULL, shoudl not attempt threaded loading.

Reimplemented from SIM_Data.

Reimplemented in HDK_Sample::SNOW_VoxelArray.

bool SIM_Geometry::loadSubclass ( UT_IStream & is )

overrideprotectedvirtual

Loads our attributes and internal data if it was set when we saved.

Reimplemented from SIM_Data.

void SIM_Geometry::makeEqualSubclass ( const SIM_Data * source )

overrideprotectedvirtual

Makes this geometry equal to some other SIM_Geometry.

Reimplemented from SIM_Data.

Reimplemented in HDK_Sample::SNOW_VoxelArray, and SIM_GeometryCopy.

void SIM_Geometry::makeOwnGeometryUnique ( )

Makes our own geometry unique, breaking any internal sharing it may have.

void SIM_Geometry::markCECacheStatus ( bool status ) const

inline

Should only be used externally to flag if the geometry has CE buffers in it. So if you acquire read or write buffers you need to flag it so they are copied/flushed properly.

Definition at line 72 of file SIM_Geometry.h.

void SIM_Geometry::saveIOSubclass	(	std::ostream &	os,
		SIM_DataThreadedIO *	io
	)		const

overrideprotectedvirtual

Save variant that allows you to delay part of your saving to a background thread. If not overloaded, passes through to saveSubclass. If io is NULL, shoudl not attempt threaded loading.

Reimplemented from SIM_Data.

Reimplemented in HDK_Sample::SNOW_VoxelArray.

void SIM_Geometry::saveSubclass ( std::ostream & os ) const

overrideprotectedvirtual

Saves our attributes, and our internal data if it has been set.

Reimplemented from SIM_Data.

void SIM_Geometry::setOwnGeometry ( GU_Detail * gdp )

Set our internal geometry data. If some internal data already exists, it is deleted. The pointer passed in becomes controlled by the SIM_Geometry so must not be deleted by external code. A null pointer can be passed in to clear our internal geometry data.

void SIM_Geometry::setOwnGeometry ( const GU_DetailHandle & gdh )

Set our internal geometry data from an existing GU_DetailHandle. If some internal data already exists, it is deleted.

virtual void SIM_Geometry::setOwnGeometrySubclass ( const GU_DetailHandle & gdh )

virtual

void SIM_Geometry::setOwnTransform ( UT_DMatrix4 * xform )

Set our internal transform data. If some internal data already exists, it is deleted. The pointer passed in becomes controlled by the SIM_Geometry so must not be deleted by external code. A null pointer can be passed in to clear our internal transform data.

Member Data Documentation

bool SIM_Geometry::myHasCECache

mutableprotected

Definition at line 146 of file SIM_Geometry.h.

The documentation for this class was generated from the following file:

SIM/SIM_Geometry.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
