HdSceneDelegate Class Reference

#include <sceneDelegate.h>

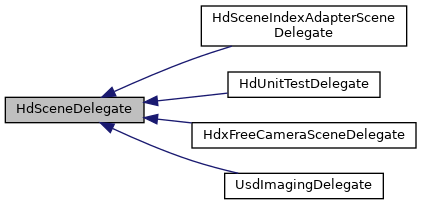

Inheritance diagram for HdSceneDelegate:

Public Member Functions
HD_API	HdSceneDelegate (HdRenderIndex *parentIndex, SdfPath const &delegateID)
	Constructor used for nested delegate objects which share a RenderIndex. More...
virtual HD_API	~HdSceneDelegate ()
HdRenderIndex &	GetRenderIndex ()
	Returns the RenderIndex owned by this delegate. More...
SdfPath const &	GetDelegateID () const
virtual HD_API void	Sync (HdSyncRequestVector *request)
	Synchronizes the delegate state for the given request vector. More...
virtual HD_API void	PostSyncCleanup ()
Options
virtual HD_API bool	IsEnabled (TfToken const &option) const
	Returns true if the named option is enabled by the delegate. More...
Rprim Aspects
virtual HD_API HdMeshTopology	GetMeshTopology (SdfPath const &id)
	Gets the topological mesh data for a given prim. More...
virtual HD_API HdBasisCurvesTopology	GetBasisCurvesTopology (SdfPath const &id)
	Gets the topological curve data for a given prim. More...
virtual HD_API PxOsdSubdivTags	GetSubdivTags (SdfPath const &id)
	Gets the subdivision surface tags (sharpness, holes, etc). More...
virtual HD_API GfRange3d	GetExtent (SdfPath const &id)
virtual HD_API GfMatrix4d	GetTransform (SdfPath const &id)
	Returns the object space transform, including all parent transforms. More...
virtual HD_API bool	GetVisible (SdfPath const &id)
	Returns the authored visible state of the prim. More...
virtual HD_API bool	GetDoubleSided (SdfPath const &id)
	Returns the doubleSided state for the given prim. More...
virtual HD_API HdCullStyle	GetCullStyle (SdfPath const &id)
	Returns the cullstyle for the given prim. More...
virtual HD_API VtValue	GetShadingStyle (SdfPath const &id)
	Returns the shading style for the given prim. More...
virtual HD_API HdDisplayStyle	GetDisplayStyle (SdfPath const &id)
virtual HD_API VtValue	Get (SdfPath const &id, TfToken const &key)
	Returns a named value. More...
virtual HD_API VtValue	GetIndexedPrimvar (SdfPath const &id, TfToken const &key, VtIntArray *outIndices)
virtual HD_API HdReprSelector	GetReprSelector (SdfPath const &id)
	Returns the authored repr (if any) for the given prim. More...
virtual HD_API TfToken	GetRenderTag (SdfPath const &id)
virtual HD_API VtArray< TfToken >	GetCategories (SdfPath const &id)
	Returns the prim categories. More...
virtual HD_API std::vector < VtArray< TfToken > >	GetInstanceCategories (SdfPath const &instancerId)
	Returns the categories for all instances in the instancer. More...
virtual HD_API HdIdVectorSharedPtr	GetCoordSysBindings (SdfPath const &id)
	Returns the coordinate system bindings, or a nullptr if none are bound. More...
virtual HD_API HdModelDrawMode	GetModelDrawMode (SdfPath const &id)
	Returns the model draw mode object for the given prim. More...
Motion samples
virtual HD_API size_t	SampleTransform (SdfPath const &id, size_t maxSampleCount, float *sampleTimes, GfMatrix4d *sampleValues)
template<unsigned int CAPACITY>
void	SampleTransform (SdfPath const &id, HdTimeSampleArray< GfMatrix4d, CAPACITY > *sa)
virtual HD_API size_t	SampleInstancerTransform (SdfPath const &instancerId, size_t maxSampleCount, float *sampleTimes, GfMatrix4d *sampleValues)
template<unsigned int CAPACITY>
void	SampleInstancerTransform (SdfPath const &instancerId, HdTimeSampleArray< GfMatrix4d, CAPACITY > *sa)
virtual HD_API size_t	SamplePrimvar (SdfPath const &id, TfToken const &key, size_t maxSampleCount, float *sampleTimes, VtValue *sampleValues)
template<unsigned int CAPACITY>
void	SamplePrimvar (SdfPath const &id, TfToken const &key, HdTimeSampleArray< VtValue, CAPACITY > *sa)
virtual HD_API size_t	SampleIndexedPrimvar (SdfPath const &id, TfToken const &key, size_t maxSampleCount, float *sampleTimes, VtValue *sampleValues, VtIntArray *sampleIndices)
template<unsigned int CAPACITY>
void	SampleIndexedPrimvar (SdfPath const &id, TfToken const &key, HdIndexedTimeSampleArray< VtValue, CAPACITY > *sa)
Instancer prototypes
virtual HD_API VtIntArray	GetInstanceIndices (SdfPath const &instancerId, SdfPath const &prototypeId)
virtual HD_API GfMatrix4d	GetInstancerTransform (SdfPath const &instancerId)
	Returns the instancer transform. More...
virtual HD_API SdfPath	GetInstancerId (SdfPath const &primId)
	Returns the parent instancer of the given rprim or instancer. More...
virtual HD_API SdfPathVector	GetInstancerPrototypes (SdfPath const &instancerId)
Path Translation
virtual HD_API SdfPath	GetScenePrimPath (SdfPath const &rprimId, int instanceIndex, HdInstancerContext *instancerContext=nullptr)
virtual HD_API SdfPathVector	GetScenePrimPaths (SdfPath const &rprimId, std::vector< int > instanceIndices, std::vector< HdInstancerContext > *instancerContexts=nullptr)
virtual HD_API SdfPath	GetDataSharingId (SdfPath const &primId)
Material Aspects
virtual HD_API SdfPath	GetMaterialId (SdfPath const &rprimId)
	Returns the material ID bound to the rprim rprimId. More...
virtual HD_API VtValue	GetMaterialResource (SdfPath const &materialId)
	Returns the material ID bound to the rprim rprimId. More...
Renderbuffer Aspects
virtual HD_API HdRenderBufferDescriptor	GetRenderBufferDescriptor (SdfPath const &id)
	Returns the allocation descriptor for a given render buffer prim. More...
Light Aspects
virtual HD_API VtValue	GetLightParamValue (SdfPath const &id, TfToken const &paramName)
Camera Aspects
virtual HD_API VtValue	GetCameraParamValue (SdfPath const &cameraId, TfToken const &paramName)
Volume Aspects
virtual HD_API HdVolumeFieldDescriptorVector	GetVolumeFieldDescriptors (SdfPath const &volumeId)
ExtComputation Aspects
virtual HD_API TfTokenVector	GetExtComputationSceneInputNames (SdfPath const &computationId)
virtual HD_API HdExtComputationInputDescriptorVector	GetExtComputationInputDescriptors (SdfPath const &computationId)
virtual HD_API HdExtComputationOutputDescriptorVector	GetExtComputationOutputDescriptors (SdfPath const &computationId)
virtual HD_API HdExtComputationPrimvarDescriptorVector	GetExtComputationPrimvarDescriptors (SdfPath const &id, HdInterpolation interpolationMode)
virtual HD_API VtValue	GetExtComputationInput (SdfPath const &computationId, TfToken const &input)
virtual HD_API size_t	SampleExtComputationInput (SdfPath const &computationId, TfToken const &input, size_t maxSampleCount, float *sampleTimes, VtValue *sampleValues)
template<unsigned int CAPACITY>
void	SampleExtComputationInput (SdfPath const &computationId, TfToken const &input, HdTimeSampleArray< VtValue, CAPACITY > *sa)
virtual HD_API std::string	GetExtComputationKernel (SdfPath const &computationId)
virtual HD_API void	InvokeExtComputation (SdfPath const &computationId, HdExtComputationContext *context)
Primitive Variables
virtual HD_API HdPrimvarDescriptorVector	GetPrimvarDescriptors (SdfPath const &id, HdInterpolation interpolation)
	Returns descriptors for all primvars of the given interpolation type. More...

Task Aspects
virtual HD_API TfTokenVector	GetTaskRenderTags (SdfPath const &taskId)

Detailed Description

Adapter class providing data exchange with the client scene graph.

Definition at line 408 of file sceneDelegate.h.

Constructor & Destructor Documentation

HD_API HdSceneDelegate::HdSceneDelegate	(	HdRenderIndex *	parentIndex,
		SdfPath const &	delegateID
	)

Constructor used for nested delegate objects which share a RenderIndex.

virtual HD_API HdSceneDelegate::~HdSceneDelegate ( )

virtual

Member Function Documentation

virtual HD_API VtValue HdSceneDelegate::Get ( SdfPath const &  id, TfToken const &  key  )

virtual

Returns a named value.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdBasisCurvesTopology HdSceneDelegate::GetBasisCurvesTopology ( SdfPath const &  id )

virtual

Gets the topological curve data for a given prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API VtValue HdSceneDelegate::GetCameraParamValue ( SdfPath const &  cameraId, TfToken const &  paramName  )

virtual

Returns a single value for a given camera and parameter. See HdCameraTokens for the list of paramters.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, HdSceneIndexAdapterSceneDelegate, and HdxFreeCameraSceneDelegate.

virtual HD_API VtArray<TfToken> HdSceneDelegate::GetCategories ( SdfPath const &  id )

virtual

Returns the prim categories.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdIdVectorSharedPtr HdSceneDelegate::GetCoordSysBindings ( SdfPath const &  id )

virtual

Returns the coordinate system bindings, or a nullptr if none are bound.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdCullStyle HdSceneDelegate::GetCullStyle ( SdfPath const &  id )

virtual

Returns the cullstyle for the given prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API SdfPath HdSceneDelegate::GetDataSharingId ( SdfPath const &  primId )

virtual

Returns an identifier that can be used to share data between HdPrims during a Sync operation. Any number of HdPrims of the same type may return the same identifier. In this situation, the render delegate can choose to share information between HdPrims rather than fetching data for each HdPrim. For the UsdImagingSceneDelegate, this identifier will be the path of the GetPrototype prim for the UsdPrim correspnding to this HdPrim. Returns an empty SdfPath if this feature is no supported or the UsdPrim has no prototype. Render delegates are free to ignore this method completely if they aren't interested in the additional level of data sharing enabled by this information.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

SdfPath const& HdSceneDelegate::GetDelegateID ( ) const

inline

Returns the ID of this delegate, which is used as a prefix for all objects it creates in the RenderIndex.

The default value is SdfPath::AbsoluteRootPath().

Definition at line 425 of file sceneDelegate.h.

virtual HD_API HdDisplayStyle HdSceneDelegate::GetDisplayStyle ( SdfPath const &  id )

virtual

Returns the refinement level for the given prim in the range [0,8].

The refinement level indicates how many iterations to apply when subdividing subdivision surfaces or other refinable primitives.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API bool HdSceneDelegate::GetDoubleSided ( SdfPath const &  id )

virtual

Returns the doubleSided state for the given prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API VtValue HdSceneDelegate::GetExtComputationInput ( SdfPath const &  computationId, TfToken const &  input  )

virtual

Returns a single value for a given computation id and input token. The token may be a computation input or a computation config parameter.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdExtComputationInputDescriptorVector HdSceneDelegate::GetExtComputationInputDescriptors ( SdfPath const &  computationId )

virtual

For the given computation id, returns a list of computation input descriptors.

See HdExtComputationInputDecriptor

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API std::string HdSceneDelegate::GetExtComputationKernel ( SdfPath const &  computationId )

virtual

Returns the kernel source assigned to the computation at the path id. If the string is empty the computation has no GPU kernel and the CPU callback should be used.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdExtComputationOutputDescriptorVector HdSceneDelegate::GetExtComputationOutputDescriptors ( SdfPath const &  computationId )

virtual

For the given computation id, returns a list of computation output descriptors.

See HdExtComputationOutputDescriptor

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdExtComputationPrimvarDescriptorVector HdSceneDelegate::GetExtComputationPrimvarDescriptors ( SdfPath const &  id, HdInterpolation  interpolationMode  )

virtual

Returns a list of primvar names that should be bound to a generated output from an ExtComputation for the given prim id and interpolation mode. Binding information is obtained through GetExtComputationPrimvarDesc() Returns a structure describing source information for a primvar that is bound to an ExtComputation. See HdExtComputationPrimvarDesc for the expected information to be returned.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API TfTokenVector HdSceneDelegate::GetExtComputationSceneInputNames ( SdfPath const &  computationId )

virtual

For the given computation id, returns a list of inputs which will be requested from the scene delegate using the Get() method.

See GetExtComputationInputDescriptors and GetExtComputationOutpuDescriptors for descriptions of other computation inputs and outputs.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API GfRange3d HdSceneDelegate::GetExtent ( SdfPath const &  id )

virtual

Gets the axis aligned bounds of a prim. The returned bounds are in the local space of the prim (transform is yet to be applied) and should contain the bounds of any child prims.

The returned bounds does not include any displacement that might occur as the result of running shaders on the prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API VtValue HdSceneDelegate::GetIndexedPrimvar ( SdfPath const &  id, TfToken const &  key, VtIntArray *  outIndices  )

virtual

Returns a named primvar value. If *outIndices is not nullptr and the primvar has indices, it will return the unflattened primvar and set *outIndices to the primvar's associated indices, clearing the array if the primvar is not indexed.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API std::vector<VtArray<TfToken> > HdSceneDelegate::GetInstanceCategories ( SdfPath const &  instancerId )

virtual

Returns the categories for all instances in the instancer.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API VtIntArray HdSceneDelegate::GetInstanceIndices ( SdfPath const &  instancerId, SdfPath const &  prototypeId  )

virtual

Gets the extracted indices array of the prototype id used in the instancer.

example instances: 0, 1, 2, 3, 4, 5 protoypes: A, B, A, A, B, C

GetInstanceIndices(A) : [0, 2, 3] GetInstanceIndices(B) : [1, 4] GetInstanceIndices(C) : [5] GetInstanceIndices(D) : []

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API SdfPath HdSceneDelegate::GetInstancerId ( SdfPath const &  primId )

virtual

Returns the parent instancer of the given rprim or instancer.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API SdfPathVector HdSceneDelegate::GetInstancerPrototypes ( SdfPath const &  instancerId )

virtual

Returns a list of prototypes of this instancer. The intent is to let renderers cache instance indices by giving them a complete set of prims to call GetInstanceIndices(instancer, prototype) on. XXX: This is currently unused, but may be used in the future.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API GfMatrix4d HdSceneDelegate::GetInstancerTransform ( SdfPath const &  instancerId )

virtual

Returns the instancer transform.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API VtValue HdSceneDelegate::GetLightParamValue ( SdfPath const &  id, TfToken const &  paramName  )

virtual

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API SdfPath HdSceneDelegate::GetMaterialId ( SdfPath const &  rprimId )

virtual

Returns the material ID bound to the rprim rprimId.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API VtValue HdSceneDelegate::GetMaterialResource ( SdfPath const &  materialId )

virtual

Returns the material ID bound to the rprim rprimId.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdMeshTopology HdSceneDelegate::GetMeshTopology ( SdfPath const &  id )

virtual

Gets the topological mesh data for a given prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdModelDrawMode HdSceneDelegate::GetModelDrawMode ( SdfPath const &  id )

virtual

Returns the model draw mode object for the given prim.

Reimplemented in UsdImagingDelegate.

virtual HD_API HdPrimvarDescriptorVector HdSceneDelegate::GetPrimvarDescriptors ( SdfPath const &  id, HdInterpolation  interpolation  )

virtual

Returns descriptors for all primvars of the given interpolation type.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdRenderBufferDescriptor HdSceneDelegate::GetRenderBufferDescriptor ( SdfPath const &  id )

virtual

Returns the allocation descriptor for a given render buffer prim.

Reimplemented in HdUnitTestDelegate, and HdSceneIndexAdapterSceneDelegate.

HdRenderIndex& HdSceneDelegate::GetRenderIndex ( )

inline

Returns the RenderIndex owned by this delegate.

Definition at line 419 of file sceneDelegate.h.

virtual HD_API TfToken HdSceneDelegate::GetRenderTag ( SdfPath const &  id )

virtual

Returns the render tag that will be used to bucket prims during render pass bucketing.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdReprSelector HdSceneDelegate::GetReprSelector ( SdfPath const &  id )

virtual

Returns the authored repr (if any) for the given prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API SdfPath HdSceneDelegate::GetScenePrimPath ( SdfPath const &  rprimId, int  instanceIndex, HdInstancerContext *  instancerContext = nullptr  )

virtual

Returns the scene address of the prim corresponding to the given rprim/instance index. This is designed to give paths in scene namespace, rather than hydra namespace, so it always strips the delegate ID.

Deprecated:

use GetScenePrimPaths

Reimplemented in UsdImagingDelegate.

virtual HD_API SdfPathVector HdSceneDelegate::GetScenePrimPaths ( SdfPath const &  rprimId, std::vector< int >  instanceIndices, std::vector< HdInstancerContext > *  instancerContexts = nullptr  )

virtual

A vectorized version of GetScenePrimPath that allows the prim adapter to amortize expensive calculations across a number of path evaluations in a single call. Note that only a single rprimId is supported. This allows this call to be forwarded directly to a single prim adapter rather than requiring a lot of data shuffling.

Reimplemented in UsdImagingDelegate.

virtual HD_API VtValue HdSceneDelegate::GetShadingStyle ( SdfPath const &  id )

virtual

Returns the shading style for the given prim.

Reimplemented in HdSceneIndexAdapterSceneDelegate.

virtual HD_API PxOsdSubdivTags HdSceneDelegate::GetSubdivTags ( SdfPath const &  id )

virtual

Gets the subdivision surface tags (sharpness, holes, etc).

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API TfTokenVector HdSceneDelegate::GetTaskRenderTags ( SdfPath const &  taskId )

virtual

Reimplemented in HdUnitTestDelegate.

virtual HD_API GfMatrix4d HdSceneDelegate::GetTransform ( SdfPath const &  id )

virtual

Returns the object space transform, including all parent transforms.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, HdSceneIndexAdapterSceneDelegate, and HdxFreeCameraSceneDelegate.

virtual HD_API bool HdSceneDelegate::GetVisible ( SdfPath const &  id )

virtual

Returns the authored visible state of the prim.

Reimplemented in HdUnitTestDelegate, UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API HdVolumeFieldDescriptorVector HdSceneDelegate::GetVolumeFieldDescriptors ( SdfPath const &  volumeId )

virtual

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API void HdSceneDelegate::InvokeExtComputation ( SdfPath const &  computationId, HdExtComputationContext *  context  )

virtual

Requests the scene delegate run the ExtComputation with the given id. The context contains the input values that delegate requested through GetExtComputationInputNames().

The scene delegate is expected to set each output identified by GetExtComputationOutputNames() on the context.

Hydra may invoke the computation on a different thread from what HdEngine::Execute() was called on. It may also invoke many computations in parallel.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

virtual HD_API bool HdSceneDelegate::IsEnabled ( TfToken const &  option ) const

virtual

Returns true if the named option is enabled by the delegate.

virtual HD_API void HdSceneDelegate::PostSyncCleanup ( )

virtual

Opportunity for the delegate to clean itself up after performing parallel work during sync phase

Reimplemented in HdSceneIndexAdapterSceneDelegate.

virtual HD_API size_t HdSceneDelegate::SampleExtComputationInput ( SdfPath const &  computationId, TfToken const &  input, size_t  maxSampleCount, float *  sampleTimes, VtValue *  sampleValues  )

virtual

Return up to maxSampleCount samples for a given computation id and input token. The token may be a computation input or a computation config parameter. Returns the union of the authored samples and the boundaries of the current camera shutter interval. If this number is greater than maxSampleCount, you might want to call this function again to get all the authored data.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

template<unsigned int CAPACITY>

void HdSceneDelegate::SampleExtComputationInput ( SdfPath const &  computationId, TfToken const &  input, HdTimeSampleArray< VtValue, CAPACITY > *  sa  )

inline

Convenience form of SampleExtComputationInput() that takes an HdTimeSampleArray. Returns the union of the authored samples and the boundaries of the current camera shutter interval.

Definition at line 869 of file sceneDelegate.h.

virtual HD_API size_t HdSceneDelegate::SampleIndexedPrimvar ( SdfPath const &  id, TfToken const &  key, size_t  maxSampleCount, float *  sampleTimes, VtValue *  sampleValues, VtIntArray *  sampleIndices  )

virtual

SamplePrimvar() for getting an unflattened primvar and its indices. If *sampleIndices is not nullptr and the primvar has indices, it will return unflattened primvar samples in *sampleValues and the primvar's sampled indices in *sampleIndices, clearing the *sampleIndices array if the primvar is not indexed.

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

template<unsigned int CAPACITY>

void HdSceneDelegate::SampleIndexedPrimvar	(	SdfPath const &	id,
		TfToken const &	key,
		HdIndexedTimeSampleArray< VtValue, CAPACITY > *	sa
	)

Convenience form of SampleIndexedPrimvar() that takes HdTimeSampleArrays. This function returns the union of the authored samples and the boundaries of the current camera shutter interval.

Definition at line 962 of file sceneDelegate.h.

virtual HD_API size_t HdSceneDelegate::SampleInstancerTransform ( SdfPath const &  instancerId, size_t  maxSampleCount, float *  sampleTimes, GfMatrix4d *  sampleValues  )

virtual

Store up to maxSampleCount transform samples in *sampleValues. Returns the union of the authored samples and the boundaries of the current camera shutter interval. If this number is greater than maxSampleCount, you might want to call this function again to get all the authored data. Sample times are relative to the scene delegate's current time.

See Also

GetInstancerTransform()

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

template<unsigned int CAPACITY>

void HdSceneDelegate::SampleInstancerTransform ( SdfPath const &  instancerId, HdTimeSampleArray< GfMatrix4d, CAPACITY > *  sa  )

inline

Convenience form of SampleInstancerTransform() that takes an HdTimeSampleArray. This function returns the union of the authored samples and the boundaries of the current camera shutter interval.

Definition at line 600 of file sceneDelegate.h.

virtual HD_API size_t HdSceneDelegate::SamplePrimvar ( SdfPath const &  id, TfToken const &  key, size_t  maxSampleCount, float *  sampleTimes, VtValue *  sampleValues  )

virtual

Store up to maxSampleCount primvar samples in *samplesValues. Returns the union of the authored samples and the boundaries of the current camera shutter interval. If this number is greater than maxSampleCount, you might want to call this function again to get all the authored data.

Sample values that are array-valued will have a size described by the HdPrimvarDescriptor as applied to the toplogy.

For example, this means that a mesh that is fracturing over time will return samples with the same number of points; the number of points will change as the scene delegate is resynchronized to represent the scene at a time with different topology.

Sample times are relative to the scene delegate's current time.

See Also

Get()

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

template<unsigned int CAPACITY>

void HdSceneDelegate::SamplePrimvar	(	SdfPath const &	id,
		TfToken const &	key,
		HdTimeSampleArray< VtValue, CAPACITY > *	sa
	)

Convenience form of SamplePrimvar() that takes an HdTimeSampleArray. This function returns the union of the authored samples and the boundaries of the current camera shutter interval.

Definition at line 934 of file sceneDelegate.h.

virtual HD_API size_t HdSceneDelegate::SampleTransform ( SdfPath const &  id, size_t  maxSampleCount, float *  sampleTimes, GfMatrix4d *  sampleValues  )

virtual

Store up to maxSampleCount transform samples in *sampleValues. Returns the union of the authored samples and the boundaries of the current camera shutter interval. If this number is greater than maxSampleCount, you might want to call this function again to get all the authored data. Sample times are relative to the scene delegate's current time.

See Also

GetTransform()

Reimplemented in UsdImagingDelegate, and HdSceneIndexAdapterSceneDelegate.

template<unsigned int CAPACITY>

void HdSceneDelegate::SampleTransform ( SdfPath const &  id, HdTimeSampleArray< GfMatrix4d, CAPACITY > *  sa  )

inline

Convenience form of SampleTransform() that takes an HdTimeSampleArray. This function returns the union of the authored transform samples and the boundaries of the current camera shutter interval.

Definition at line 561 of file sceneDelegate.h.

virtual HD_API void HdSceneDelegate::Sync ( HdSyncRequestVector *  request )

virtual

Synchronizes the delegate state for the given request vector.

Reimplemented in HdSceneIndexAdapterSceneDelegate, and UsdImagingDelegate.

---

The documentation for this class was generated from the following file:

• pxr/imaging/hd/sceneDelegate.h
