quaternion.h File Reference

#include "pxr/pxr.h"
#include "pxr/base/gf/api.h"
#include "pxr/base/gf/vec3d.h"
#include "pxr/base/tf/hash.h"
#include <iosfwd>

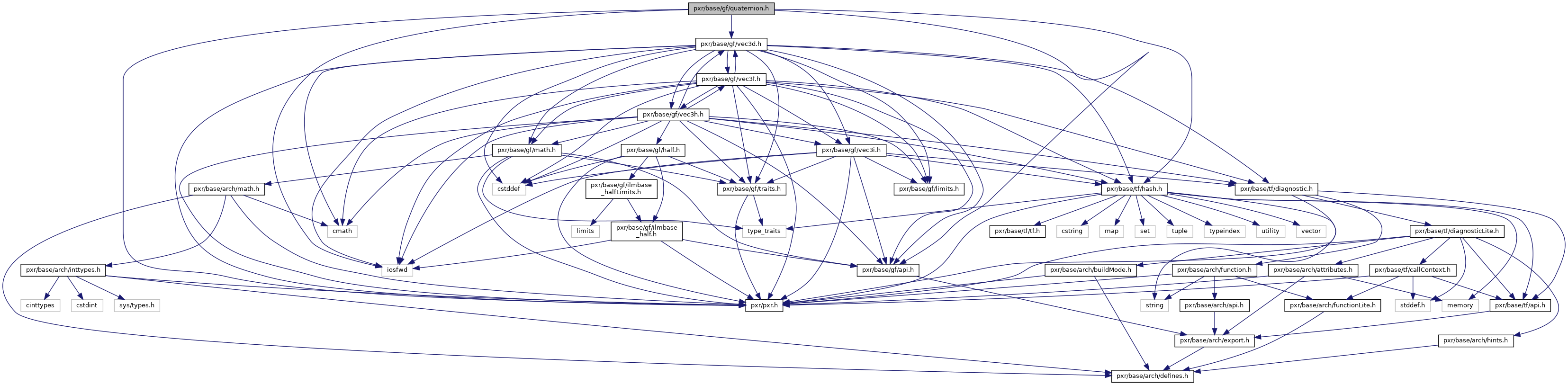

Include dependency graph for quaternion.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GfQuaternion

Functions
GF_API GfQuaternion	GfSlerp (double alpha, const GfQuaternion &q0, const GfQuaternion &q1)
GF_API GfQuaternion	GfSlerp (const GfQuaternion &q0, const GfQuaternion &q1, double alpha)
GF_API std::ostream &	operator<< (std::ostream &out, const GfQuaternion &q)
double	GfDot (const GfQuaternion &q1, const GfQuaternion &q2)
	Returns the dot (inner) product of two quaternions. More...

Function Documentation

double GfDot ( const GfQuaternion &  q1, const GfQuaternion &  q2  )

inline

Returns the dot (inner) product of two quaternions.

Definition at line 247 of file quaternion.h.

GF_API GfQuaternion GfSlerp	(	double	alpha,
		const GfQuaternion &	q0,
		const GfQuaternion &	q1
	)

Spherically interpolate between q0 and q1.

If the interpolant alpha is zero, then the result is q0, while alpha of one yields q1.

GF_API GfQuaternion GfSlerp	(	const GfQuaternion &	q0,
		const GfQuaternion &	q1,
		double	alpha
	)

GF_API std::ostream& operator<<	(	std::ostream &	out,
		const GfQuaternion &	q
	)

Output a GfQuaternion using the format (r + (x, y, z)).
