#include "SIM_API.h"
#include "SIM_Data.h"
#include "SIM_DataFilter.h"
#include "SIM_Time.h"
#include "SIM_Names.h"
#include "SIM_CacheCompression.h"
#include <GEO/GEO_Primitive.h>
#include <UT/UT_SysSpecific.h>
#include <UT/UT_Array.h>

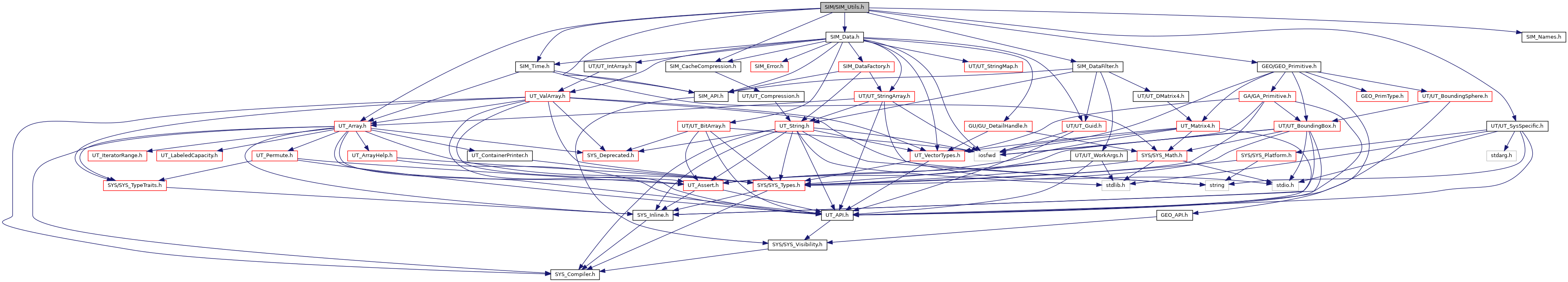

Include dependency graph for SIM_Utils.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	sim_EdgeDataEntry
	Information about a single edge. More...

Macros
#define	SIM_DATA_CAST(Data, DataClass)

#define	SIM_DATA_CASTCONST(Data, DataClass)

#define	SIM_DATA_GET(Parent, DataName, DataClass) SIM_DATA_CAST((Parent).getNamedSubData(DataName), DataClass)

#define	SIM_DATA_GETCONST(Parent, DataName, DataClass) SIM_DATA_CASTCONST((Parent).getConstNamedSubData(DataName), DataClass)

#define	SIM_DATA_GETNTH(Parent, DataClass, N, StartFrom, RecurseFilter)

#define	SIM_DATA_GETNTHCONST(Parent, DataClass, N, StartFrom, RecurseFilter)

#define	SIM_DATA_CREATE(Parent, DataName, DataClass, Flags)

#define	SIM_DATA_GETORCREATE_ALT(Parent, DataName, DataClass)

Typedefs
typedef UT_Array < sim_EdgeDataEntry >	SIM_EdgeData

Functions
template<class DataClass >
void	SIMconvertConstArray (const SIM_ConstDataArray &src, UT_ValArray< const DataClass * > &dest, const char *DataClassName, bool includenulls=false)

template<class DataClass >
void	SIMconvertArray (const SIM_DataArray &src, UT_ValArray< DataClass * > &dest, const char *DataClassName, bool includenulls=false)

SIM_API void	SIMgetPositionTransform (UT_DMatrix4 &result, const SIM_Object &)

SIM_API void	SIMgetGeometryTransform (UT_DMatrix4 &result, const SIM_Object &)

SIM_API void	SIMgetObjectProperties (const SIM_Object &obj, const UT_Vector3 &pos, const GA_Index ptnum, fpreal &friction, fpreal &bounce, fpreal &dynamicfriction, fpreal &bounceforward)
	Returns object properties at the given point (if non-negative) or position. More...

void	SIMgetObjectProperties (const SIM_Object &obj, const UT_Vector3 &pos, const GA_Index ptnum, fpreal &friction, fpreal &bounce, fpreal &dynamicfriction)

SIM_API bool	SIMisTri (const GEO_Primitive &prim)

SIM_API void	SIMcalcEdgeData (SIM_EdgeData &edgeData, const GU_Detail &gdp)

SYS_VISIBILITY_EXPORT void	initializeSIM (void *data)

SIM_API void	initializeSIM ()

SIM_API void	SIMbuildAnchorGuideObjectLink (GU_Detail *gdp, GA_Offset ptoff, const SIM_Object &object, const SIM_Options &options, const SIM_Relationship &rel)
	Constructs guide geometry to illustrate connection between an anchored. More...

SIM_API void	SIMbuildAnchorGuideObjectLink (GU_Detail *gdp, GA_Offset ptoff, const UT_Vector3 &obj_pos, fpreal scale, const GA_RWHandleV3 &color_attrib, const UT_Vector3 &color, const UT_Vector3 &affcolor)

SIM_API bool	SIMtryCachePointList (UT_IntArray &points, const char *pattern)

Macro Definition Documentation

#define SIM_DATA_CAST	(	Data,
		DataClass
	)

Value:

((DataClass *)(SIM_Data::castPointerToType( \

static_cast<SIM_Data *>(Data), #DataClass)))

SIM_Data::castPointerToType

static void * castPointerToType(SIM_Data *data, const UT_StringRef &datatype)

This macros simplifies calling and casting the return value from the SIM_Data::getPointerToType() function. The returned value is a DataClass pointer.

Examples:: SIM/SIM_GasAdd.C.

Definition at line 28 of file SIM_Utils.h.

#define SIM_DATA_CASTCONST	(	Data,
		DataClass
	)

Value:

((const DataClass *)(SIM_Data::castConstPointerToType( \

static_cast<const SIM_Data *>(Data), #DataClass)))

SIM_Data::castConstPointerToType

static const void * castConstPointerToType(const SIM_Data *data, const UT_StringRef &datatype)

This macros simplifies calling and casting the return value from the SIM_Data::getPointerToType() function. The returned value is a const DataClass pointer.

Examples:: SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

Definition at line 34 of file SIM_Utils.h.

#define SIM_DATA_CREATE	(	Parent,
		DataName,
		DataClass,
		Flags
	)

Value:

((DataClass *)(static_cast<SIM_Data &>(Parent)). \

createNamedSubData(DataName, #DataClass, Flags))

Flags

Definition: oidn.hpp:29

This macro simplifies calling and casting the return value of a call to the SIM_Data::createNamedSubData function.

Examples:: DOP/DOP_GroupAndApply.C, SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

Definition at line 63 of file SIM_Utils.h.

#define SIM_DATA_GET	(	Parent,
		DataName,
		DataClass
	)	SIM_DATA_CAST((Parent).getNamedSubData(DataName), DataClass)

This macro simplifies the calling and casting the return value from SIM_Data::getNamedSubData(). The returned value is a DataClass pointer.

Examples:: SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

Definition at line 40 of file SIM_Utils.h.

#define SIM_DATA_GETCONST	(	Parent,
		DataName,
		DataClass
	)	SIM_DATA_CASTCONST((Parent).getConstNamedSubData(DataName), DataClass)

This macro simplifies the calling and casting the return value from SIM_Data::getConstNamedSubData(). The returned value is a const DataClass pointer.

Definition at line 45 of file SIM_Utils.h.

#define SIM_DATA_GETNTH	(	Parent,
		DataClass,
		N,
		StartFrom,
		RecurseFilter
	)

Value:

SIM_DATA_CAST((Parent).getNthSubData( \
                           NULL, SIM_DataFilterByType(#DataClass), N, \
                           StartFrom, RecurseFilter), DataClass)

This macro simplifies the calling and casting the return value from SIM_Data::getNthSubData(), using SIM_DataFilterByType. The returned value is a DataClass pointer.

Definition at line 50 of file SIM_Utils.h.

#define SIM_DATA_GETNTHCONST	(	Parent,
		DataClass,
		N,
		StartFrom,
		RecurseFilter
	)

Value:

SIM_DATA_CASTCONST((Parent).getNthConstSubData( \
                                NULL, SIM_DataFilterByType(#DataClass), N, \
                                StartFrom, RecurseFilter), DataClass)

This macro simplifies the calling and casting the return value from SIM_Data::getNthConstSubData(), using SIM_DataFilterByType. The returned value is a const DataClass pointer.

Definition at line 57 of file SIM_Utils.h.

#define SIM_DATA_GETORCREATE_ALT	(	Parent,
		DataName,
		DataClass
	)

Value:

SIM_DATA_CAST((Parent).getOrCreateAlternateRepresentation( \

DataName, #DataClass), DataClass)

SIM_DATA_CAST

#define SIM_DATA_CAST(Data, DataClass)

Definition: SIM_Utils.h:28

This macro simplifies the calling and casting the return value from SIM_Data::getorCreateAlternateRepresentation(). The returned value is a DataClass pointer.

Definition at line 69 of file SIM_Utils.h.

Typedef Documentation

typedef UT_Array<sim_EdgeDataEntry> SIM_EdgeData

Definition at line 180 of file SIM_Utils.h.

Function Documentation

SYS_VISIBILITY_EXPORT void initializeSIM ( void * )

Declaration of the function that must be implemented by custom SIM library extensions.

This is the hook that Houdini grabs from the dll to link in this. As such, it merely has to implement the data factory for this node.

Examples:: SIM/GAS_NetVDBSliceExchange.C, SIM/SIM_ElectricalProperties.C, SIM/SIM_ForceOrbit.C, SIM/SIM_GasAdd.C, SIM/SIM_RadialEmit.C, SIM/SIM_SolverHair.C, and SIM/SNOW_Solver.C.

Definition at line 52 of file GAS_NetVDBSliceExchange.C.

SIM_API void initializeSIM ( )

Call this initialization function to register all data types, solvers, and colliders in this library.

SIM_API void SIMbuildAnchorGuideObjectLink	(	GU_Detail *	gdp,
		GA_Offset	ptoff,
		const SIM_Object &	object,
		const SIM_Options &	options,
		const SIM_Relationship &	rel
	)

Constructs guide geometry to illustrate connection between an anchored.

SIM_API void SIMbuildAnchorGuideObjectLink	(	GU_Detail *	gdp,
		GA_Offset	ptoff,
		const UT_Vector3 &	obj_pos,
		fpreal	scale,
		const GA_RWHandleV3 &	color_attrib,
		const UT_Vector3 &	color,
		const UT_Vector3 &	affcolor
	)

SIM_API void SIMcalcEdgeData	(	SIM_EdgeData &	edgeData,
		const GU_Detail &	gdp
	)

Calculate information about triangle edges in the given gdp. This is intended as a lightweight alternative to GQ_Detail, with only very basic edge information.

template<class DataClass >

void SIMconvertArray	(	const SIM_DataArray &	src,
		UT_ValArray< DataClass * > &	dest,
		const char *	DataClassName,
		bool	includenulls = `false`
	)

This function converts SIM_Data pointers in an array to pointers of any SIM_Data subclass. If one of the SIM_Data pointers cannot be cast to the requested new type, it is not added to the new array.

Definition at line 102 of file SIM_Utils.h.

template<class DataClass >

void SIMconvertConstArray	(	const SIM_ConstDataArray &	src,
		UT_ValArray< const DataClass * > &	dest,
		const char *	DataClassName,
		bool	includenulls = `false`
	)

This function converts const SIM_Data pointers in an array to pointers of any const SIM_Data subclass. If one of the SIM_Data pointers cannot be cast to the requested new type, it is not added to the new array.

Definition at line 78 of file SIM_Utils.h.

SIM_API void SIMgetGeometryTransform	(	UT_DMatrix4 &	result,
		const SIM_Object &
	)

A utility method for computing the transform from the local-space of an object's geometry to world-space co-ordinates.

Examples:: SIM/SIM_SolverHair.C.

SIM_API void SIMgetObjectProperties	(	const SIM_Object &	obj,
		const UT_Vector3 &	pos,
		const GA_Index	ptnum,
		fpreal &	friction,
		fpreal &	bounce,
		fpreal &	dynamicfriction,
		fpreal &	bounceforward
	)

Returns object properties at the given point (if non-negative) or position.

void SIMgetObjectProperties	(	const SIM_Object &	obj,
		const UT_Vector3 &	pos,
		const GA_Index	ptnum,
		fpreal &	friction,
		fpreal &	bounce,
		fpreal &	dynamicfriction
	)

inline

Definition at line 138 of file SIM_Utils.h.

SIM_API void SIMgetPositionTransform	(	UT_DMatrix4 &	result,
		const SIM_Object &
	)

A utility method for computing the transform from the local-space of an object to world-space co-ordinates.

SIM_API bool SIMisTri ( const GEO_Primitive & prim )

Returns true if the given primitive is a polygon with three vertices.

SIM_API bool SIMtryCachePointList	(	UT_IntArray &	points,
		const char *	pattern
	)

Used in SIM_ConAnchorObjPointGroupPos and SIM_ConAnchorObjPointGroupRot to generate a point list WITH duplicates from a pattern string.
