#include <GEO_Primitive.h>

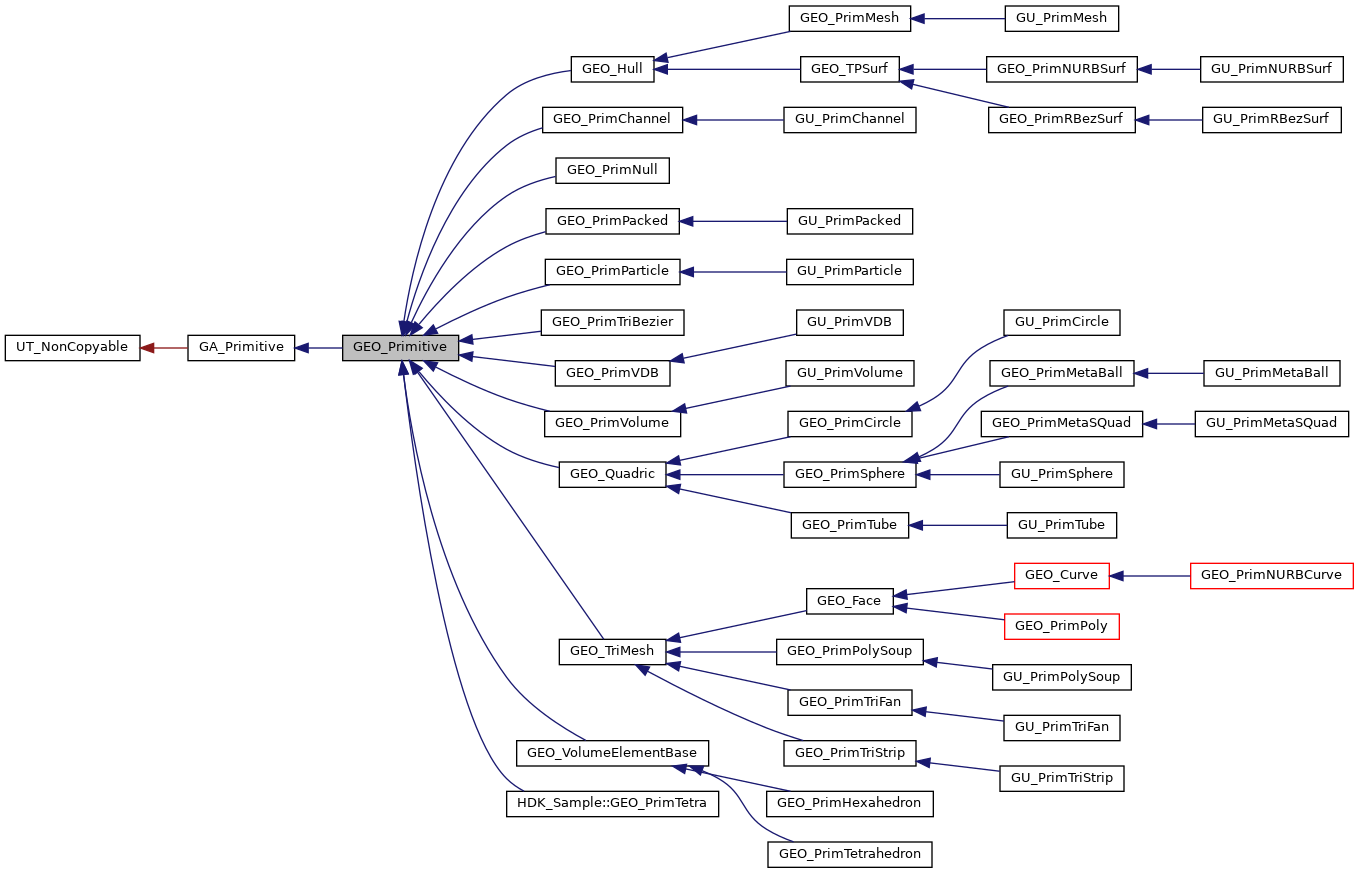

Inheritance diagram for GEO_Primitive:

Classes
class	NormalCompArrayT

class	NormalCompAttrT

class	NormalCompBufferedT

class	NormalCompT

Public Types
using	NormalComp = NormalCompT< float >

using	NormalCompArray = NormalCompArrayT< float >

using	NormalCompAttr = NormalCompAttrT< float >

using	NormalCompBuffered = NormalCompBufferedT< float >

using	NormalCompD = NormalCompT< double >

using	NormalCompArrayD = NormalCompArrayT< double >

using	NormalCompAttrD = NormalCompAttrT< double >

using	NormalCompBufferedD = NormalCompBufferedT< double >

Public Types inherited from GA_Primitive
enum	GA_DereferenceStatus { GA_DEREFERENCE_FAIL, GA_DEREFERENCE_OK, GA_DEREFERENCE_DEGENERATE, GA_DEREFERENCE_DESTROY }

Public Member Functions
GA_PrimCompat::TypeMask	getPrimitiveId () const override

void	copyAttributesAndGroups (const GEO_Primitive &src, bool copy_groups=true)

void	copyAttributesAndGroups (const GEO_Primitive &src, GA_AttributeRefMap &gah, bool copy_groups=true)

void	copyAttributesAndGroups (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler, bool copy_groups=true)
	NOTE: The copying of groups only works if src is in the same detail. More...

void	copyAttributeData (const GEO_Primitive &src)

void	copyAttributeData (const GEO_Primitive &src, GA_AttributeRefMap &gah)

void	copyAttributeData (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler)

void	copyAttributeValues (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler)

void	copyGroupMembership (const GEO_Primitive &src)

virtual void	copyPrimitive (const GEO_Primitive *src)=0

virtual GEO_Primitive *	copy (int preserve_shared_pts=0) const

virtual void	transform (const UT_Matrix4 &)

virtual void	realToUnitPair (float ureal, float vreal, float &uunit, float &vunit) const

virtual void	unitToRealPair (float uunit, float vunit, float &ureal, float &vreal) const

virtual void	unitLengthToUnitPair (float ulength, float vlength, float &uparm, float &vparm) const

virtual void	unitLengthToUnitPair (float ulength, float vlength, float &uparm, float &vparm, float tolerance) const

virtual void	unitToUnitLengthPair (float uparm, float vparm, float &ulength, float &vlength) const

bool	evaluateBaryCenter (GA_Offset result_vtx, GA_AttributeRefMap &map) const

bool	evaluatePoint (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v=0, uint du=0, uint dv=0) const

int	evaluatePoint (UT_Vector4 &pos, float u, float v=0, unsigned du=0, unsigned dv=0) const

virtual int	evaluateNormalVector (UT_Vector3 &nml, float u, float v=0, float w=0) const

bool	evaluateInteriorPoint (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v, fpreal w=0) const

int	evaluateInteriorPoint (UT_Vector4 &pos, fpreal u, fpreal v, fpreal w=0) const

virtual void	computeInteriorPointWeights (UT_Array< GA_Offset > &vtxlist, UT_Array< float > &weightlist, fpreal u, fpreal v, fpreal w) const

SYS_FORCE_INLINE GEO_Detail *	getParent () const

virtual bool	getBBox (UT_BoundingBox *bbox) const =0

virtual bool	getVisibleBBox (UT_BoundingBox *bbox) const

bool	enlargeVisibleBoundingBox (UT_BoundingBox &b, const GA_Attribute *P) const override

virtual UT_Vector3	computeNormal () const =0
	Return a normal vector for the primitive. More...

virtual UT_Vector3D	computeNormalD () const =0

void	reverse () override=0
	Reverse the order of vertices. More...

virtual UT_Vector3	baryCenter () const

virtual UT_Vector3D	baryCenterD () const

template<typename T >
UT_Vector3T< T >	baryCenterT () const

virtual void	addToBSphere (UT_BoundingSphere *bsphere) const

virtual void	isolate ()
	Method to isolate a pasted surface. More...

virtual int	detachPoints (GA_PointGroup &grp)=0

bool	hasEdge (const GA_Edge &edge) const override
	Method to determine if a primitive has an edge (undirected). More...

virtual bool	vertexApply (bool(apply)(GA_Offset vtx, void ), void *data=0) const

GEO_Vertex	getVertexElement (GA_Size i) const

virtual GEO_MetaPrim *	castToMetaPrim ()

virtual const GEO_MetaPrim *	castToMetaPrim () const

virtual int	parametricBBox (float u, float v, float u0, float u1, float v0, float v1)

virtual float	uvDist (float u1, float v1, float u2, float v2) const

int	bboxIntersectRay (const UT_Vector3 &rayorig, const UT_Vector3 &raydir, int maxtries=10, float tmax=1E17F, float distance=0, UT_Vector3 nml=0) const

virtual bool	isQuadric () const

virtual void	normal (NormalComp &output) const =0

virtual void	normal (NormalCompD &output) const =0

virtual GEO_Primitive *	convert (GEO_ConvertParms &parms, GA_PointGroup *usedpts=0)=0

virtual GEO_Primitive *	convertNew (GEO_ConvertParms &parms)=0

virtual void	clip (UT_Vector3 normal, float distance=0, GA_PrimitiveGroup *clipgrp=NULL)

virtual int	intersectRay (const UT_Vector3 &o, const UT_Vector3 &d, float tmax=1E17F, float tol=1E-12F, float distance=0, UT_Vector3 pos=0, UT_Vector3 nml=0, int accurate=0, float u=0, float *v=0, int ignoretrim=1) const


bool	enlargeBoundingBox (UT_BoundingRect &b, const GA_Attribute *p) const override

bool	enlargeBoundingBox (UT_BoundingBox &b, const GA_Attribute *p) const override


virtual bool	hasGuideEdge (int edgeid, UT_Vector3 &a, UT_Vector3 &b) const

virtual bool	hasXsectPoint (int pointid, UT_Vector3 &p) const


fpreal	calcVolume (const UT_Vector3 &) const override

fpreal	calcArea () const override

fpreal	calcPerimeter () const override

Public Member Functions inherited from GA_Primitive
virtual	~GA_Primitive ()

virtual const GA_PrimitiveDefinition &	getTypeDef () const =0

const char *	getTypeName () const

SYS_FORCE_INLINE GA_Detail &	getDetail () const

SYS_FORCE_INLINE GA_Offset	getMapOffset () const
	Gets the offset of this primitive in the detail containing it. More...

SYS_FORCE_INLINE GA_Index	getMapIndex () const
	Gets the index of this primitive in the detail containing it. More...

SYS_FORCE_INLINE const GA_IndexMap &	getIndexMap () const
	Gets the index map for primitives in the detail containing this primitive. More...

GA_Index	getNum () const

void	swapOffsetValue (const GA_Defragment &defrag)
	For defragmentation, we need to update the offset. More...

bool	isPrimary () const

SYS_FORCE_INLINE const GA_PrimitiveTypeId &	getTypeId () const

GA_PrimitiveFamilyMask	getFamilyMask () const

bool	isFamily (unsigned family_mask) const

bool	hasLocalTransform () const
	Whether the primitive has a transform associated with it. More...

virtual void	getLocalTransform (UT_Matrix3D &matrix) const

virtual void	getLocalTransform4 (UT_Matrix4D &matrix) const

virtual void	setLocalTransform (const UT_Matrix3D &matrix)
	Set the local transform. The default implementation does nothing. More...

virtual int64	getMemoryUsage () const

virtual void	countMemory (UT_MemoryCounter &counter) const

SYS_FORCE_INLINE GA_Size	getVertexCount () const
	Return the number of vertices used by this primitive. More...

SYS_FORCE_INLINE GA_Offset	getVertexOffset (GA_Size primvertexnum) const

SYS_FORCE_INLINE GA_Index	getVertexIndex (GA_Size primvertexnum) const

SYS_FORCE_INLINE GA_Offset	getPointOffset (GA_Size i) const

SYS_FORCE_INLINE void	setPointOffset (GA_Size i, GA_Offset ptoff)

SYS_FORCE_INLINE GA_Index	getPointIndex (GA_Size i) const

SYS_FORCE_INLINE UT_Vector3	getPos3 (GA_Size i) const

SYS_FORCE_INLINE UT_Vector3D	getPos3D (GA_Size i) const

template<typename T >
UT_Vector3T< T >	getPos3T (GA_Size i) const

SYS_FORCE_INLINE void	setPos3 (GA_Size i, const UT_Vector3 &pos) const

SYS_FORCE_INLINE void	setPos3 (GA_Size i, const UT_Vector3D &pos) const

SYS_FORCE_INLINE UT_Vector4	getPos4 (GA_Size i) const

SYS_FORCE_INLINE UT_Vector4D	getPos4D (GA_Size i) const

SYS_FORCE_INLINE void	setPos4 (GA_Size i, const UT_Vector4 &pos) const

SYS_FORCE_INLINE void	setPos4 (GA_Size i, const UT_Vector4D &pos) const

GA_Range	getVertexRange (bool harden=false) const
	Get a range of all the vertices accessed by the primitive. More...

GA_Range	getPointRange (bool harden=false) const

bool	isPointUsed (GA_Offset ptoff) const

void	addPointRefToGroup (GA_PointGroup &grp) const

void	edgeApply (GA_EdgeApplyFunc apply, void *data=nullptr) const

void	edgeApplyIndex (GA_EdgeApplyIndexFunc apply, void *data=nullptr) const

virtual void	iterateEdges (GA_IterateEdgesFunc apply_func) const

virtual void	iterateEdgesByVertex (GA_IterateEdgesByVertexFunc apply_func) const

bool	findEdgePoints (GA_Offset ptoff0, GA_Offset ptoff1, GA_Size &vtx0, GA_Size &vtx1) const

virtual GA_DereferenceStatus	dereferencePoint (GA_Offset point, bool dry_run=false)=0

virtual GA_DereferenceStatus	dereferencePoints (const GA_RangeMemberQuery &pt_q, bool dry_run=false)=0

virtual bool	enlargeBoundingSphere (UT_BoundingSphere &b, const GA_Attribute *P) const

virtual void	enlargePointBounds (UT_BoundingBox &box) const

virtual bool	isDegenerate () const =0
	Is the primitive degenerate. More...

void	copyUnwiredForMerge (const GA_Primitive *src, const GA_MergeMap &map)

virtual void	copySubclassData (const GA_Primitive *source)

virtual const GA_PrimitiveJSON *	getJSON () const =0

virtual bool	saveSharedLoadData (UT_JSONWriter &w, GA_SaveMap &save, GA_GeometryIndex *geo_index) const

virtual bool	registerSharedLoadData (int load_data_type, GA_SharedDataHandlePtr item)

virtual bool	loadH9 (UT_IStream &is, const UT_Array< GA_AttribLoadDataH9 > &prim_attribs, const UT_Array< GA_AttribLoadDataH9 > &vtx_attribs)

virtual bool	saveH9 (std::ostream &os, bool binary, const UT_Array< GA_AttribSaveDataH9 > &prim_attribs, const UT_Array< GA_AttribSaveDataH9 > &vtx_attribs) const

const GA_IntrinsicManager &	getIntrinsicManager () const

virtual void	clearForDeletion ()

virtual void	getAdjacentBoundaryVertices (GA_Offset vtx, GA_Offset &prev_vtx, GA_Offset &next_vtx) const

virtual bool	supportsHedge () const

virtual GA_Offset	releaseVertex (GA_Offset vtx)

virtual int	isVisible () const

virtual unsigned	getNumSecondaryDetails () const
	A primitive may support any number of secondary details. More...

virtual const GA_Detail *	getSecondaryDetail (GA_Index i) const

virtual GA_Detail *	getSecondaryDetail (GA_Index i)

GA_Index	getNumSecondary (GA_Index detail) const

const GA_Primitive *	getSecondaryByIndex (GA_Index detail, GA_Index i) const

GA_Primitive *	getSecondaryByIndex (GA_Index detail, GA_Index i)

const GA_Primitive *	getSecondaryByOffset (GA_Index detail, GA_Offset o) const

GA_Primitive *	getSecondaryByOffset (GA_Index detail, GA_Offset o)

SYS_FORCE_INLINE bool	isVertexListTrivial () const

bool	isPointListTrivial () const

template<typename FUNCTOR >
SYS_FORCE_INLINE void	forEachVertex (FUNCTOR &&functor) const

template<typename FUNCTOR >
SYS_FORCE_INLINE void	forEachPoint (FUNCTOR &&functor) const

bool	vertexApply (bool(apply)(GA_Offset vtx, void ), void *data=nullptr) const

virtual void	stashed (bool beingstashed, GA_Offset offset=GA_INVALID_OFFSET)

virtual void	flushCEWriteCaches ()
	Copy any modified caches from the GPU back to CPU cache. More...

virtual void	flushCECaches ()

virtual void	stealCEBuffers (const GA_Primitive *src)
	Steal the underlying CE buffer from the source. More...

virtual void	swapVertexOffsets (const GA_Defragment &defrag)

GA_LocalIntrinsic	findIntrinsic (const UT_StringRef &nm) const

GA_LocalIntrinsic	findIntrinsic (GA_GlobalIntrinsic h) const

GA_GlobalIntrinsic	findGlobalIntrinsic (GA_LocalIntrinsic h) const

const char *	getIntrinsicName (GA_LocalIntrinsic h) const

GA_Size	getIntrinsicTupleSize (GA_LocalIntrinsic h) const

bool	getIntrinsicCollapseSingletons (GA_LocalIntrinsic h) const

GA_StorageClass	getIntrinsicStorage (GA_LocalIntrinsic h) const

bool	getIntrinsicReadOnly (GA_LocalIntrinsic h) const

const UT_Options *	getIntrinsicOptions (GA_LocalIntrinsic h) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_String &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_StringArray &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_OptionsHolder &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_Array< UT_OptionsHolder > &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, int64 *v, GA_Size size) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, fpreal64 *v, GA_Size sz) const

bool	getIntrinsic (GA_LocalIntrinsic h, float &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, int &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector2 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector3 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector4 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix2 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix3 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix4 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, double &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, int64 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector2D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector3D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector4D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix2D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix3D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix4D &v) const

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const char *value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_StringArray &value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const char **val, GA_Size s)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_OptionsHolder &value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_Array< UT_OptionsHolder > &value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_OptionsHolder *value, GA_Size s)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const int64 val)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const fpreal64 val)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const int64 *val, GA_Size sz)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const fpreal64 *v, GA_Size sz)

Static Public Member Functions
static GA_PrimCompat::TypeMask	getPrimitiveMaskH9 (const char *maskstr)

Static Public Member Functions inherited from GA_Primitive
static SYS_FORCE_INLINE GA_PrimCompat::TypeMask	primCompatMaskFromTypeId (int type_id)

Static Public Attributes
static const UT_Array < GA_AttribSaveDataH9 > &	theEmptySaveAttribs
	Convience objects to pass as arguments to saveH9()/loadH9(). More...

Protected Member Functions
SYS_FORCE_INLINE	GEO_Primitive (GA_Detail *d, GA_Offset offset=GA_INVALID_OFFSET)

	~GEO_Primitive () override

virtual bool	evaluatePointRefMap (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v=0, uint du=0, uint dv=0) const =0

virtual int	evaluatePointV4 (UT_Vector4 &pos, float u, float v=0, unsigned du=0, unsigned dv=0) const

virtual bool	evaluateBaryCenterRefMap (GA_Offset result_vtx, GA_AttributeRefMap &map) const

virtual bool	evaluateInteriorPointRefMap (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v, fpreal w=0) const

virtual int	evaluateInteriorPointV4 (UT_Vector4 &pos, fpreal u, fpreal v, fpreal w=0) const

Protected Member Functions inherited from GA_Primitive
SYS_FORCE_INLINE	GA_Primitive (GA_Detail &detail, GA_Offset offset=GA_INVALID_OFFSET)

void	setNumVertices (GA_Size nvertices)

GA_Offset	allocateVertex (GA_Offset point=GA_INVALID_OFFSET)
	allocateVertex() will call wireVertex() if the point given is not -1 More...

void	destroyVertex (GA_Offset vertex)

void	wireVertex (GA_Offset vertex, GA_Offset point)

void	registerVertex (GA_Offset vertex)

SYS_FORCE_INLINE int64	getBaseMemoryUsage () const
	Report approximate memory usage for myVertexList for subclasses. More...

void	countBaseMemory (UT_MemoryCounter &counter) const

void	copyVertexListForMerge (const GA_OffsetListRef &src_vertices, const GA_MergeMap &map)

Static Protected Member Functions
static GA_IntrinsicManager::Registrar	registerIntrinsics (GA_PrimitiveDefinition &defn)

Friends
class	GEO_Detail

std::ostream &	operator<< (std::ostream &os, const GEO_Primitive &d)

Additional Inherited Members
Protected Attributes inherited from GA_Primitive
GA_OffsetList	myVertexList

Detailed Description

Examples:: field3d/f3d_io.C, GEO/GEO_VoxelTranslator.C, GUI/GUI_PolygonNormalShade.C, GUI/GUI_PolygonNormalShade.h, GUI/GUI_PolySoupBox.C, GUI/GUI_PolySoupBox.h, GUI/GUI_PrimFramework.C, GUI/GUI_PrimFramework.h, packedprim/packedprim.C, packedsphere/GT_GEOPackedSphere.C, packedsphere/GT_GEOPackedSphere.h, RAY/RAY_DemoSprite.C, SOP/SOP_PrimVOP.C, SOP/SOP_Surface.C, standalone/geo2voxel.C, tetprim/GEO_PrimTetra.C, tetprim/GEO_PrimTetra.h, tetprim/GR_PrimTetra.C, tetprim/GR_PrimTetra.h, tetprim/GT_PrimTetra.C, and tetprim/GT_PrimTetra.h.

Definition at line 41 of file GEO_Primitive.h.

Member Typedef Documentation

using GEO_Primitive::NormalComp = NormalCompT<float>

Examples:: tetprim/GEO_PrimTetra.h.

Definition at line 443 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompArray = NormalCompArrayT<float>

Definition at line 444 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompArrayD = NormalCompArrayT<double>

Definition at line 449 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompAttr = NormalCompAttrT<float>

Definition at line 445 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompAttrD = NormalCompAttrT<double>

Definition at line 450 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompBuffered = NormalCompBufferedT<float>

Definition at line 446 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompBufferedD = NormalCompBufferedT<double>

Definition at line 451 of file GEO_Primitive.h.

using GEO_Primitive::NormalCompD = NormalCompT<double>

Examples:: tetprim/GEO_PrimTetra.h.

Definition at line 448 of file GEO_Primitive.h.

Constructor & Destructor Documentation

SYS_FORCE_INLINE GEO_Primitive::GEO_Primitive	(	GA_Detail *	d,
		GA_Offset	offset = `GA_INVALID_OFFSET`
	)

inlineprotected

NOTE: The constructor should only be called from subclass constructors.

Definition at line 47 of file GEO_Primitive.h.

GEO_Primitive::~GEO_Primitive ( )

inlineoverrideprotected

NOTE: The destructor should only be called from subclass destructors; only GEO_Detail::destroyStashed() should be calling delete on GEO_Primitive pointers, and GEO_Detail is a friend.

Definition at line 55 of file GEO_Primitive.h.

Member Function Documentation

virtual void GEO_Primitive::addToBSphere ( UT_BoundingSphere * bsphere ) const

virtual

Enlarge the bounding sphere with the primitive's bounds. By default, this will enlarge the bounding sphere by the primitive's bounding box (i.e. getBBox()). It may be possible to have a tighter bound (i.e. the vertex hull for many primitives is a much better metric).

Reimplemented in GEO_PrimVolume, GEO_Hull, GEO_PrimParticle, GEO_VolumeElementBase, GEO_PrimTube, GEO_PrimSphere, GEO_PrimTriBezier, GEO_PrimCircle, and GEO_TriMesh.

virtual UT_Vector3 GEO_Primitive::baryCenter ( ) const

virtual

Return the center of the primitive. This defaults to the center of the bounding box. A better approximation might be the average value of the vertex positions (which could be different).

Reimplemented in GEO_PrimVolume, GEO_PrimVDB, GEO_PrimPolySoup, GEO_Hull, GEO_PrimParticle, HDK_Sample::GEO_PrimTetra, GEO_VolumeElementBase, GEO_PrimPacked, GEO_Quadric, GEO_PrimCircle, GEO_PrimTriBezier, GEO_TriMesh, and GEO_PrimChannel.

Examples:: SOP/SOP_PrimVOP.C.

virtual UT_Vector3D GEO_Primitive::baryCenterD ( ) const

virtual

Reimplemented in GEO_PrimPolySoup, GEO_Hull, GEO_VolumeElementBase, and GEO_TriMesh.

template<typename T >

UT_Vector3T<T> GEO_Primitive::baryCenterT ( ) const

inline

Definition at line 261 of file GEO_Primitive.h.

int GEO_Primitive::bboxIntersectRay	(	const UT_Vector3 &	rayorig,
		const UT_Vector3 &	raydir,
		int	maxtries = `10`,
		float	tmax = `1E17F`,
		float *	distance = `0`,
		UT_Vector3 *	nml = `0`
	)		const

fpreal GEO_Primitive::calcArea ( ) const

inlineoverridevirtual

If the method isn't known, or doesn't make sense, we return 0.

Reimplemented from GA_Primitive.

Reimplemented in GEO_PrimVolume, GEO_PrimVDB, GEO_PrimPolySoup, GEO_PrimTube, HDK_Sample::GEO_PrimTetra, GU_PrimPacked, GEO_PrimPacked, GEO_PrimTetrahedron, GEO_PrimSphere, GEO_PrimTriBezier, GEO_PrimTriStrip, and GEO_PrimTriFan.

Definition at line 336 of file GEO_Primitive.h.

fpreal GEO_Primitive::calcPerimeter ( ) const

inlineoverridevirtual

If the method isn't known, or doesn't make sense, we return 0.

Reimplemented from GA_Primitive.

Reimplemented in GEO_PrimNURBCurve, GEO_PrimRBezCurve, GEO_PrimPolySoup, GEO_PrimTube, HDK_Sample::GEO_PrimTetra, GU_PrimPacked, GEO_PrimPacked, GEO_PrimTetrahedron, GEO_PrimSphere, GEO_PrimTriBezier, GEO_PrimTriStrip, and GEO_PrimTriFan.

Definition at line 337 of file GEO_Primitive.h.

fpreal GEO_Primitive::calcVolume ( const UT_Vector3 & ) const

inlineoverridevirtual

If the method isn't known, or doesn't make sense, we return 0.

Reimplemented from GA_Primitive.

Reimplemented in GEO_PrimVolume, GEO_PrimVDB, GEO_PrimPolySoup, GEO_PrimTube, HDK_Sample::GEO_PrimTetra, GU_PrimPacked, GEO_PrimPacked, GEO_PrimTetrahedron, GEO_PrimSphere, GEO_PrimTriBezier, GEO_PrimTriStrip, and GEO_PrimTriFan.

Definition at line 334 of file GEO_Primitive.h.

virtual GEO_MetaPrim* GEO_Primitive::castToMetaPrim ( )

virtual

Reimplemented in GEO_PrimMetaBall, and GEO_PrimMetaSQuad.

virtual const GEO_MetaPrim* GEO_Primitive::castToMetaPrim ( ) const

virtual

Reimplemented in GEO_PrimMetaBall, and GEO_PrimMetaSQuad.

virtual void GEO_Primitive::clip	(	UT_Vector3	normal,
		float	distance = `0`,
		GA_PrimitiveGroup *	clipgrp = `NULL`
	)

virtual

Reimplemented in GEO_PrimPoly, GU_PrimPoly, and GU_PrimParticle.

virtual void GEO_Primitive::computeInteriorPointWeights	(	UT_Array< GA_Offset > &	vtxlist,
		UT_Array< float > &	weightlist,
		fpreal	u,
		fpreal	v,
		fpreal	w
	)		const

virtual

Finds the weightings of the vertices that will compute an interior point given the u,v,w coordinates. The offsets are into the gdp's vertex list, not indices into this primitive's vertex list. Weights are normalized. Note this cannot be used to recover the Position as it often has special case logic (as in spheres, or rational splines), in those cases use evaluateInteriorPoint(UT_Vector4 &pos, ...) It has the advantage over the other evaluateInteriorPoints in that it allows you to avoid creating any temporary vertices. Behaviour for non-sublcassed types is to return the 0th vertex.

Reimplemented in GEO_PrimPolySoup, GEO_Curve, GEO_Face, GEO_PrimTetrahedron, GEO_PrimHexahedron, GEO_PrimTriBezier, GEO_Hull, GEO_TPSurf, and GEO_PrimPoly.

virtual UT_Vector3 GEO_Primitive::computeNormal ( ) const

pure virtual

Return a normal vector for the primitive.

Implemented in GEO_PrimVolume, GEO_Hull, GEO_PrimPolySoup, GEO_PrimParticle, GEO_VolumeElementBase, GEO_PrimHexahedron, GEO_PrimTetrahedron, HDK_Sample::GEO_PrimTetra, GEO_Quadric, GEO_PrimVDB, GEO_Face, GEO_PrimTriBezier, GEO_PrimCircle, GEO_PrimNull, GEO_PrimPacked, GEO_PrimChannel, GEO_PrimTriFan, and GEO_PrimTriStrip.

virtual UT_Vector3D GEO_Primitive::computeNormalD ( ) const

pure virtual

Implemented in GEO_PrimVolume, GEO_Hull, GEO_PrimPolySoup, GEO_PrimParticle, GEO_VolumeElementBase, GEO_PrimTetrahedron, GEO_PrimHexahedron, GEO_Quadric, HDK_Sample::GEO_PrimTetra, GEO_PrimVDB, GEO_Face, GEO_PrimTriBezier, GEO_PrimCircle, GEO_PrimNull, GEO_PrimPacked, GEO_PrimChannel, GEO_PrimTriFan, and GEO_PrimTriStrip.

virtual GEO_Primitive* GEO_Primitive::convert	(	GEO_ConvertParms &	parms,
		GA_PointGroup *	usedpts = `0`
	)

pure virtual

virtual GEO_Primitive* GEO_Primitive::convertNew ( GEO_ConvertParms & parms )

pure virtual

virtual GEO_Primitive* GEO_Primitive::copy ( int preserve_shared_pts = 0 ) const

virtual

Reimplemented in GEO_PrimVolume, GEO_PrimPolySoup, GEO_PrimVDB, GEO_Hull, GEO_PrimParticle, HDK_Sample::GEO_PrimTetra, GEO_PrimTube, GEO_PrimPacked, GEO_PrimTriBezier, GEO_Quadric, GEO_TPSurf, GEO_Face, GEO_PrimChannel, GEO_Curve, GEO_PrimMetaBall, and GEO_PrimMetaSQuad.

Examples:: tetprim/GEO_PrimTetra.C.

void GEO_Primitive::copyAttributeData ( const GEO_Primitive & src )

Copy the attribute data over from the source primitive. Often you will want to call copyAttributesAndGroups() instead.

void GEO_Primitive::copyAttributeData	(	const GEO_Primitive &	src,
		GA_AttributeRefMap &	gah
	)

void GEO_Primitive::copyAttributeData	(	const GEO_Primitive &	src,
		GA_PrimitiveWrangler &	wrangler
	)

void GEO_Primitive::copyAttributesAndGroups	(	const GEO_Primitive &	src,
		bool	copy_groups = `true`
	)

inline

Copy attribute data from the source primitive. Also, copy over all the group membership information from the source primitive.

Definition at line 62 of file GEO_Primitive.h.

void GEO_Primitive::copyAttributesAndGroups	(	const GEO_Primitive &	src,
		GA_AttributeRefMap &	gah,
		bool	copy_groups = `true`
	)

inline

Definition at line 69 of file GEO_Primitive.h.

void GEO_Primitive::copyAttributesAndGroups	(	const GEO_Primitive &	src,
		GA_PrimitiveWrangler &	wrangler,
		bool	copy_groups = `true`
	)

inline

NOTE: The copying of groups only works if src is in the same detail.

Definition at line 78 of file GEO_Primitive.h.

void GEO_Primitive::copyAttributeValues	(	const GEO_Primitive &	src,
		GA_PrimitiveWrangler &	wrangler
	)

void GEO_Primitive::copyGroupMembership ( const GEO_Primitive & src )

Copy the group membership from the source primitive to the current primitive. Both primitives must be in the same detail.

virtual void GEO_Primitive::copyPrimitive ( const GEO_Primitive * src )

pure virtual

Implemented in GEO_PrimVolume, GEO_PrimPolySoup, GEO_Hull, GEO_PrimParticle, GEO_PrimTube, GEO_PrimTriBezier, GEO_Quadric, GEO_TPSurf, GEO_Face, GEO_PrimChannel, HDK_Sample::GEO_PrimTetra, GEO_Curve, GEO_PrimVDB, GEO_PrimNull, GEO_PrimPacked, GEO_PrimMetaBall, and GEO_PrimMetaSQuad.

Examples:: tetprim/GEO_PrimTetra.C.

virtual int GEO_Primitive::detachPoints ( GA_PointGroup & grp )

pure virtual

Implemented in GEO_PrimVolume, GEO_Hull, GEO_PrimVDB, GEO_PrimParticle, GEO_Quadric, GEO_PrimTriBezier, GEO_PrimHexahedron, GEO_PrimTetrahedron, GEO_TriMesh, HDK_Sample::GEO_PrimTetra, GEO_PrimChannel, GEO_PrimPacked, and GEO_PrimNull.

bool GEO_Primitive::enlargeBoundingBox	(	UT_BoundingRect &	b,
		const GA_Attribute *	p
	)		const

overridevirtual

If the attribute is "P" the base-class will call getBBox()

Reimplemented from GA_Primitive.

Reimplemented in GEO_PrimVolume, GEO_PrimVDB, GEO_PrimParticle, and GEO_Quadric.

bool GEO_Primitive::enlargeBoundingBox	(	UT_BoundingBox &	b,
		const GA_Attribute *	p
	)		const

overridevirtual

If the attribute is "P" the base-class will call getBBox()

Reimplemented from GA_Primitive.

Reimplemented in GEO_PrimVolume, GEO_PrimVDB, GEO_PrimParticle, and GEO_Quadric.

bool GEO_Primitive::enlargeVisibleBoundingBox	(	UT_BoundingBox &	b,
		const GA_Attribute *	P
	)		const

overridevirtual

Enlarge a bounding box by the visible bounding box of the primitive.

A return value of false indicates an error in the operation, most likely an invalid P. By default, it merely calls enlargeBoundingBox()

Reimplemented from GA_Primitive.

bool GEO_Primitive::evaluateBaryCenter	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map
	)		const

inline

Definition at line 147 of file GEO_Primitive.h.

virtual bool GEO_Primitive::evaluateBaryCenterRefMap	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map
	)		const

protectedvirtual

By default, this will call evaluateInteriorPointRefMap with u=.5 and v=.5. This is likely not the perfect solution. At the current time, this is only used in POPs to birth points at primitive centers.

Reimplemented in GEO_PrimVolume, GEO_Hull, GEO_PrimParticle, GEO_PrimTriBezier, GEO_TriMesh, GEO_Quadric, and GEO_VolumeElementBase.

bool GEO_Primitive::evaluateInteriorPoint	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map,
		fpreal	u,
		fpreal	v,
		fpreal	w = `0`
	)		const

inline

Definition at line 177 of file GEO_Primitive.h.

int GEO_Primitive::evaluateInteriorPoint	(	UT_Vector4 &	pos,
		fpreal	u,
		fpreal	v,
		fpreal	w = `0`
	)		const

inline

Definition at line 182 of file GEO_Primitive.h.

virtual bool GEO_Primitive::evaluateInteriorPointRefMap	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map,
		fpreal	u,
		fpreal	v,
		fpreal	w = `0`
	)		const

protectedvirtual

Reimplemented in GEO_PrimVolume, GEO_PrimPolySoup, GEO_PrimHexahedron, GEO_PrimTetrahedron, and GEO_PrimPoly.

virtual int GEO_Primitive::evaluateInteriorPointV4	(	UT_Vector4 &	pos,
		fpreal	u,
		fpreal	v,
		fpreal	w = `0`
	)		const

protectedvirtual

Reimplemented in GEO_PrimVolume, GEO_PrimPolySoup, GEO_PrimHexahedron, GEO_PrimTetrahedron, GEO_PrimPoly, and GEO_PrimPacked.

virtual int GEO_Primitive::evaluateNormalVector	(	UT_Vector3 &	nml,
		float	u,
		float	v = `0`,
		float	w = `0`
	)		const

virtual

Reimplemented in GEO_PrimPolySoup, GEO_PrimVolume, GEO_Hull, GEO_Face, GEO_PrimTube, and GEO_PrimSphere.

bool GEO_Primitive::evaluatePoint	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map,
		fpreal	u,
		fpreal	v = `0`,
		uint	du = `0`,
		uint	dv = `0`
	)		const

inline

Examples:: tetprim/GEO_PrimTetra.h.

Definition at line 154 of file GEO_Primitive.h.

int GEO_Primitive::evaluatePoint	(	UT_Vector4 &	pos,
		float	u,
		float	v = `0`,
		unsigned	du = `0`,
		unsigned	dv = `0`
	)		const

inline

Definition at line 164 of file GEO_Primitive.h.

virtual bool GEO_Primitive::evaluatePointRefMap	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map,
		fpreal	u,
		fpreal	v = `0`,
		uint	du = `0`,
		uint	dv = `0`
	)		const

protectedpure virtual

Implemented in GEO_PrimVolume, GEO_TPSurf, GEO_Curve, GEO_Face, GEO_PrimTriBezier, GEO_TriMesh, GEO_PrimVDB, GEO_PrimTube, GEO_VolumeElementBase, GEO_PrimChannel, HDK_Sample::GEO_PrimTetra, GEO_PrimCircle, GEO_PrimPacked, and GEO_PrimNull.

virtual int GEO_Primitive::evaluatePointV4	(	UT_Vector4 &	pos,
		float	u,
		float	v = `0`,
		unsigned	du = `0`,
		unsigned	dv = `0`
	)		const

protectedvirtual

Evaluate the position for the given parametric coordinates (with the given derivatives). Return 0 if successful, or -1 if failure. The default implementation returns {0,0,0,0};

Reimplemented in GEO_PrimVolume, GEO_TPSurf, GEO_Curve, GEO_Face, GEO_PrimParticle, GEO_PrimTriBezier, GEO_TriMesh, GEO_PrimVDB, GEO_PrimTube, GEO_VolumeElementBase, GEO_PrimMesh, GEO_PrimChannel, GEO_PrimSphere, HDK_Sample::GEO_PrimTetra, GEO_PrimCircle, and GEO_PrimPacked.

virtual bool GEO_Primitive::getBBox ( UT_BoundingBox * bbox ) const

pure virtual

Compute the bounding box of the primitive. Return 0 if unable to compute bounds (1 on successful computation). This function should always initialize bbox, even if returning false, in which case, the bbox->isValid() may be false, representing an empty bounding box. This function should also not use any initial value of bbox, so it does not need to be initialized beforehand.

Implemented in GEO_PrimVolume, GEO_Hull, GEO_PrimParticle, GEO_VolumeElementBase, GEO_PrimTube, HDK_Sample::GEO_PrimTetra, GEO_PrimMetaBall, GEO_PrimMetaSQuad, GEO_PrimVDB, GEO_PrimSphere, GEO_PrimTriBezier, GEO_PrimCircle, GEO_TriMesh, GEO_PrimNull, GEO_Quadric, GEO_PrimPacked, and GEO_PrimChannel.

SYS_FORCE_INLINE GEO_Detail* GEO_Primitive::getParent ( ) const

inline

Examples:: tetprim/GEO_PrimTetra.C.

Definition at line 202 of file GEO_Primitive.h.

GA_PrimCompat::TypeMask GEO_Primitive::getPrimitiveId ( ) const

overridevirtual

Deprecated:: This method is only for transitional backward compatibility for the HDK and will be removed in a future release. TODO: Should be pure virtual here, overwritten at GEO_Primitive.

Reimplemented from GA_Primitive.

Examples:: field3d/f3d_io.C, and standalone/geo2voxel.C.

static GA_PrimCompat::TypeMask GEO_Primitive::getPrimitiveMaskH9 ( const char * maskstr )

static

GEO_Vertex GEO_Primitive::getVertexElement ( GA_Size i ) const

virtual bool GEO_Primitive::getVisibleBBox ( UT_BoundingBox * bbox ) const

virtual

Compute the bounding box of the VISIBLE parts of the primitive. Default implementation delegates to getBBox(). Override this in subclasses for special handling.

This function should always initialize bbox, even if returning false, in which case, the bbox->isValid() may be false, representing an empty bounding box. This function should also not use any initial value of bbox, so it does not need to be initialized beforehand.

Reimplemented in GEO_PrimPacked.

bool GEO_Primitive::hasEdge ( const GA_Edge & edge ) const

overridevirtual

Method to determine if a primitive has an edge (undirected).

Reimplemented from GA_Primitive.

Reimplemented in GEO_PrimPolySoup, and GEO_VolumeElementBase.

virtual bool GEO_Primitive::hasGuideEdge	(	int	edgeid,
		UT_Vector3 &	a,
		UT_Vector3 &	b
	)		const

virtual

These functions are only implemented to get guide points/edges for spheres, tubes, and circles. The ID meaning is type-specific.

Reimplemented in GEO_PrimTube, GEO_PrimCircle, and GEO_PrimSphere.

virtual bool GEO_Primitive::hasXsectPoint	(	int	pointid,
		UT_Vector3 &	p
	)		const

virtual

These functions are only implemented to get guide points/edges for spheres, tubes, and circles. The ID meaning is type-specific.

Reimplemented in GEO_PrimTube, GEO_PrimSphere, and GEO_PrimCircle.

virtual int GEO_Primitive::intersectRay	(	const UT_Vector3 &	o,
		const UT_Vector3 &	d,
		float	tmax = `1E17F`,
		float	tol = `1E-12F`,
		float *	distance = `0`,
		UT_Vector3 *	pos = `0`,
		UT_Vector3 *	nml = `0`,
		int	accurate = `0`,
		float *	u = `0`,
		float *	v = `0`,
		int	ignoretrim = `1`
	)		const

virtual

Reimplemented in GEO_PrimPoly, HDK_Sample::GEO_PrimTetra, GU_PrimChannel, GU_PrimSphere, GU_PrimTube, GU_PrimPoly, GU_PrimMesh, GU_PrimMetaBall, GU_PrimMetaSQuad, GEO_PrimNull, GU_PrimCircle, GU_PrimRBezSurf, GU_PrimNURBSurf, GU_PrimRBezCurve, and GU_PrimNURBCurve.

virtual void GEO_Primitive::isolate ( )

inlinevirtual

Method to isolate a pasted surface.

Reimplemented in GEO_TPSurf.

Definition at line 277 of file GEO_Primitive.h.

virtual bool GEO_Primitive::isQuadric ( ) const

inlinevirtual

Reimplemented in GEO_Quadric.

Definition at line 341 of file GEO_Primitive.h.

virtual void GEO_Primitive::normal ( NormalComp & output ) const

pure virtual

virtual void GEO_Primitive::normal ( NormalCompD & output ) const

pure virtual

virtual int GEO_Primitive::parametricBBox	(	float	u,
		float	v,
		float *	u0,
		float *	u1,
		float *	v0,
		float *	v1
	)

virtual

Reimplemented in GEO_Hull, GEO_TPSurf, and GEO_Curve.

virtual void GEO_Primitive::realToUnitPair	(	float	ureal,
		float	vreal,
		float &	uunit,
		float &	vunit
	)		const

virtual

Reimplemented in GEO_Hull, and GEO_Face.

static GA_IntrinsicManager::Registrar GEO_Primitive::registerIntrinsics ( GA_PrimitiveDefinition & defn )

inlinestaticprotected

All subclasses should call this method to register the primitive intrinsics.

See Also: GA_IntrinsicManager

Examples:: tetprim/GEO_PrimTetra.C.

Definition at line 492 of file GEO_Primitive.h.

void GEO_Primitive::reverse ( )

overridepure virtual

Reverse the order of vertices.

Implements GA_Primitive.

Implemented in GEO_PrimVolume, GEO_Curve, GEO_Face, GEO_PrimNURBCurve, GEO_PrimRBezCurve, GEO_Hull, GEO_PrimPolySoup, GEO_PrimParticle, GEO_Quadric, GEO_PrimHexahedron, GEO_PrimTetrahedron, HDK_Sample::GEO_PrimTetra, GEO_PrimVDB, GEO_PrimChannel, GEO_PrimTriBezier, GEO_PrimNull, GEO_PrimPacked, GEO_PrimTriFan, and GEO_PrimTriStrip.

virtual void GEO_Primitive::transform ( const UT_Matrix4 & )

virtual

Reimplemented in GEO_PrimVolume, GEO_PrimVDB, GU_PrimPacked, GEO_PrimPacked, and GEO_Quadric.

virtual void GEO_Primitive::unitLengthToUnitPair	(	float	ulength,
		float	vlength,
		float &	uparm,
		float &	vparm
	)		const

virtual

Reimplemented in GEO_PrimVolume, GEO_Quadric, GEO_TriMesh, and GEO_Face.

virtual void GEO_Primitive::unitLengthToUnitPair	(	float	ulength,
		float	vlength,
		float &	uparm,
		float &	vparm,
		float	tolerance
	)		const

virtual

Reimplemented in GEO_PrimVolume, GEO_Quadric, GEO_TriMesh, and GEO_Face.

virtual void GEO_Primitive::unitToRealPair	(	float	uunit,
		float	vunit,
		float &	ureal,
		float &	vreal
	)		const

virtual

Reimplemented in GEO_Hull, and GEO_Face.

virtual void GEO_Primitive::unitToUnitLengthPair	(	float	uparm,
		float	vparm,
		float &	ulength,
		float &	vlength
	)		const

virtual

Reimplemented in GEO_PrimVolume, GEO_Quadric, GEO_TriMesh, and GEO_Face.

virtual float GEO_Primitive::uvDist	(	float	u1,
		float	v1,
		float	u2,
		float	v2
	)		const

virtual

Reimplemented in GEO_Hull, and GEO_Face.

virtual bool GEO_Primitive::vertexApply	(	bool()(GA_Offset vtx, void )	apply,
		void *	data = `0`
	)		const

virtual

Apply the function to each vertex of the primitive. Break when the function returns true. Return the value of the last function applied (false if never called).

Reimplemented in GEO_Hull, GEO_PrimParticle, GEO_TriMesh, GEO_PrimTriBezier, and GEO_VolumeElementBase.

Friends And Related Function Documentation

friend class GEO_Detail

friend

Definition at line 519 of file GEO_Primitive.h.

std::ostream& operator<<	(	std::ostream &	os,
		const GEO_Primitive &	d
	)

friend

Definition at line 522 of file GEO_Primitive.h.

Member Data Documentation

const UT_Array<GA_AttribSaveDataH9>& GEO_Primitive::theEmptySaveAttribs

static

Convience objects to pass as arguments to saveH9()/loadH9().

Definition at line 485 of file GEO_Primitive.h.

The documentation for this class was generated from the following file:

GEO/GEO_Primitive.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
