OP_Operator Class Reference

#include <OP_Operator.h>

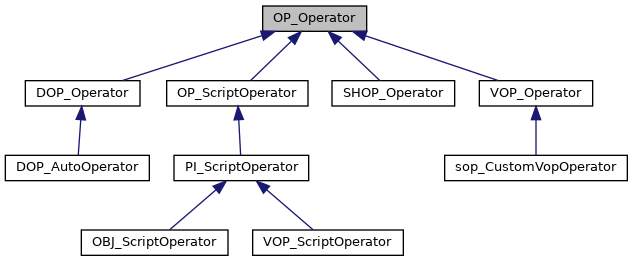

+ Inheritance diagram for OP_Operator:

Public Types

enum  OP_OperatorCompare { OP_COMPARE_GEN_ENGLISH = 0, OP_COMPARE_GEN_NAME = 1, OP_COMPARE_ENGLISH = 2, OP_COMPARE_NAME = 3 }


Public Member Functions

 OP_Operator (const char *name, const char *english, OP_Constructor construct, PRM_Template *templates, unsigned min_sources, unsigned max_sources=9999, CH_LocalVariable *variables=0, unsigned flags=0, const char **inputlabels=0, int maxoutputs=1, const char *tab_submenu_path=0)
 Note: The 'inputlabels' array is expected to be null-terminated. More...

 OP_Operator (const char *name, const char *english, OP_Constructor construct, OP_TemplatePair *template_pair, unsigned min_sources, unsigned max_sources=9999, OP_VariablePair *variable_pair=0, unsigned flags=0, const char **inputlabels=0, int maxoutputs=1, const char *tab_submenu_path=0)

 OP_Operator (const char *name, const char *english, OP_Constructor construct, PRM_Template *templates, const char *child_table_name, unsigned min_sources, unsigned max_sources=9999, CH_LocalVariable *variables=0, unsigned flags=0, const char **inputlabels=0, int maxoutputs=1, const char *tab_submenu_path=0)

 OP_Operator (const char *name, const char *english, OP_Constructor construct, OP_TemplatePair *template_pair, const char *child_table_name, unsigned min_sources, unsigned max_sources=9999, OP_VariablePair *variable_pair=0, unsigned flags=0, const char **inputlabels=0, int maxoutputs=1, const char *tab_submenu_path=0)

virtual ~OP_Operator ()

OP_Node * constructNode (OP_Network *net, const char *name)

int getNumActiveNodes () const

OP_Node * getActiveNode (int i) const

void nodeDestroyed (OP_Node *node)

virtual OP_SpecificData * getOpSpecificData ()

virtual const OP_SpecificData * getOpSpecificData () const

const UT_StringHolder & getOriginalName () const

void getOriginalTableAndName (UT_WorkBuffer &name) const

void getOriginalTableAndName (UT_String &name) const

const UT_StringHolder & getName () const

void getTableAndName (UT_WorkBuffer &name) const

void getTableAndName (UT_String &name) const

const UT_StringHolder & getEnglish () const

virtual UT_Color getDefaultColor () const

virtual const UT_StringHolder & getDefaultShape () const

virtual bool getHDKHelp (UT_String &) const

virtual bool getOpHelpURL (UT_String &url)

virtual bool getOpTabSubMenuPath (UT_String &tab_submenu_path)

void setOpTabSubMenuPath (const char *tab_submenu_path)

bool getOTLHelp (UT_String &str)

bool hasPotentialEditableSubNodes ()

void getEditableSubNodes (UT_String &pattern)

const UT_StringHolder & getMessageSubNodes () const

void getDiveTarget (UT_String &divetarget)

void getDescriptiveParmName (UT_String &descrparm)

void getDefaultState (UT_String &statename)

void getFunctionName (UT_String &function_name)

void getSecondaryFunctionsNames (UT_StringMap< UT_StringHolder > &functions)

void getComment (UT_String &comment)

virtual bool getVersion (UT_String &version)

void getHelpFileDirAndName (UT_String &script_dir, UT_String &name)

void getDefinitionSource (UT_String &defsource) const

OP_Node * getDefiningNetwork () const

const UT_StringHolder & getIndexPath () const

const UT_StringHolder & getIndexFile () const

bool getScriptIsSubnet () const

bool getScriptIsVex () const

bool getScriptIsRsl () const

VEX_ContextType getVexContextType () const

RSL_ContextType getRslContextType () const

time_t getModTime () const

bool getIsDummyDefinition () const

bool getScriptIsPython () const

void setScriptIsPython (bool is_python)

const UT_StringHolder & getExtraInfo () const

const OP_ExtraInfoBuffer & getExtraInfoBuffer () const

void setOTLDefinition (const OP_OTLDefinition &definition)

const OP_OTLDefinition & getOTLDefinition () const

void setOTLLibrary (OP_OTLLibrary *library)

OP_OTLLibrary * getOTLLibrary ()

virtual bool getSectionData (const UT_StringRef &name, UT_StringHolder &value) const

virtual bool hasSectionData (const UT_StringRef &name) const

bool hasContentsSection ()

FS_IndexFile * getOTLIndexFile (bool check_timestamp=true)

FS_IndexFileHandle getOTLIndexFilePtr (bool check_timestamp=true)

UT_StringHolder getContentsSection ()

virtual void clearOTLIndexFile ()

FS_IndexFile * createDefaultOTLIndexFile () const

FS_IndexFile * createOTLIndexFile (bool reservedsectionsonly, UT_StringArray *externalfiles)

void getDefinitionSectionName (UT_String &sectname) const

void listContainedOperators (UT_StringSet &contents_list)
 List all operators found in the contents section. More...

const char * getIconName () const

void setIconName (const char *name)

void setDefaultIconName ()

unsigned minInputs () const

unsigned maxInputs () const

virtual unsigned maxOutputs ()

OP_SpareParms * loadSpareParms (UT_IStream &is)

virtual bool hasLoadedParmTemplates () const

virtual int updateParmTemplates ()

virtual void forceUpdateParmTemplates ()

PRM_Template * getParmTemplates ()

PRM_ScriptImports * getParmTemplateImports ()

PRM_Template * getLayoutParmTemplates ()

PRM_ScriptImports * getLayoutParmTemplateImports ()

virtual const PRM_Template * getBaseParmTemplates ()

PRM_Template * getBaseOverrideLayoutParmTemplates ()

virtual PRM_Template * getObsoleteTemplates ()

void setObsoleteTemplates (PRM_Template *tmpl)

bool getOverrideLayoutParmTemplateFile (UT_String &ds_path) const

CH_LocalVariable * getVariable (int i) const

CH_LocalVariable * getVariable (const char *name) const

CH_LocalVariable * getVariables () const

int getVariableCount () const

void resetVariables (OP_VariablePair *variable_pair)

bool isNetwork () const

bool isGenerator () const

bool isScriptedOp () const

bool isCustomDSO () const

bool unorderedInputs () const

bool isManagementOp () const

bool isOutputOp () const

bool hasEditableInputData () const

bool getIsPrimarySubnetType () const

bool isCreatingNode () const

bool isChangingParmTemplates () const

bool hasNodeLoadingContentsSection () const

void beginLoadingContentsSectionForNode ()

void endLoadingContentsSectionForNode ()

bool shouldPreserve () const

virtual int compareOperator (const OP_Operator *other, int method) const

void changeParmTemplate (PRM_Template *tp)

unsigned getPermissionMask () const

virtual void getRefreshPICommands (OP_Node *, std::ostream &)

virtual bool wantsParametersAnimatable () const

virtual bool wantsInputEditor () const

virtual bool wantsParmOrderEditor () const

virtual bool wantsOutputNameEditor () const

virtual bool wantsParentInputs () const

const OP_InputDataEditorConfigEx & getInputDataEditorConfigEx () const

void setInputDataEditorConfigEx (const OP_InputDataEditorConfigEx &config)

void setInputDataEditorConfig (const OP_InputDataEditorConfig &config)

virtual const char * getOperatorShortHelpString ()

virtual void getOperatorSpecificInfoText (int verbose, UT_WorkBuffer &text)

void fillInfoTree (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms)

virtual void fillInfoTreeOperatorSpecific (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms)

const char * getTableName () const

OP_OperatorTable * getTable () const

const UT_StringHolder & getChildTableName () const

OP_OperatorTable * getChildOperatorTable () const

OP_OTLLicenseType getLicense ()

void setDefinition (const char *def)

void setEnglish (const char *english)

void informOfTabMenuFlagChange ()

virtual void setName (const char *name)

void setMinInputs (int inputs)

void setMaxInputs (int inputs)

void setIsGenerator (bool isgen)

void updatePresetInfo ()

PRM_PresetInfo * getPresetInfo ()

bool runEventScript (const char *event, OP_Node *node_arg=nullptr, bool full_path=false, UT_Options *extra_args=nullptr, bool *node_deleted_by_script=nullptr)

PY_EvaluationContext * getPythonModuleDicts ()

bool hasLoadedPythonModuleSection () const

void loadPythonModuleSection (bool force=false)

PY_EvaluationContext * getViewerStateModuleDicts ()

bool hasLoadedViewerStateModuleSection () const

void loadViewerStateModuleSection (bool force=false)

PY_EvaluationContext * getViewerHandleModuleDicts ()

bool hasLoadedViewerHandleModuleSection () const

void loadViewerHandleModuleSection (bool force=false)

void clearEventScriptPathCache ()

void getCachedEventScriptPaths (UT_StringArray &events, UT_StringArray &paths, bool only_nonempty) const

bool isThreadSafe () const

void setIsThreadSafe (bool is_safe)

bool isCompiled ()

bool isBlackBoxed ()
 Returns true if this operator is black boxed, and false otherwise. More...

void constructIndexFileSectionPath (UT_String &path, const char *opdef_or_oplib, const char *section_name) const

void constructIndexFileSectionPath (UT_String &path, const char *opdef_or_oplib, const UT_StringArray &section_names) const

void setNumOrderedInputs (int inputs)

int numOrderedInputs () const

void setLegacyInputsMap (const char *map)

void getLegacyInputsMap (UT_String &map) const

const UT_StringArray * getLegacyInputsIndexMap () const

const UT_StringHolder & getInputName (int idx) const
 Accessing operator inputs name, label, and reference flag. More...

const UT_StringArray & getInputNames () const
 Accessing operator inputs name, label, and reference flag. More...

const UT_StringHolder & getInputLabel (int idx) const
 Accessing operator inputs name, label, and reference flag. More...

const UT_StringArray & getInputLabels () const
 Accessing operator inputs name, label, and reference flag. More...

bool getInputIsReference (int idx) const
 Accessing operator inputs name, label, and reference flag. More...

const UT_Array< bool > & getInputAreReferences () const
 Accessing operator inputs name, label, and reference flag. More...

virtual bool allowsInputNameEditing () const
 Accessing operator inputs name, label, and reference flag. More...

const UT_StringHolder & getOutputLabel (int idx) const

const UT_StringArray & getOutputLabels () const

void getOpBasedFileName (UT_String &filename)

void getOpBasedFileName (UT_WorkBuffer &filename)


Static Public Member Functions

static void clearOperatorHelpCache ()

static int loadFromOpType (const char *fname, const char *savedir)

static int uninstallOpType (const char *path, const char *tablename, const char *opname, const char *indexpath, const char *indexfile)

static void removeHelpCardOverrides (UT_FileUtil *fu, const char *path, const char *tablename, const char *opname, int flags)

static void removeRenameOverrides (UT_FileUtil *fu, const char *path, const char *tablename, const char *opname, int flags)

static void removeIconOverrides (UT_FileUtil *fu, const char *path, const char *tablename, const char *opname, int flags)

static void removeCmdOverrides (UT_FileUtil *fu, const char *path, const char *tablename, const char *opname, int flags)

static void getDefaultIconName (const char *tablename, const char *opname, UT_String &iconname)

static const char * getCurrentPythonModuleKey ()

static const OP_Operator * mapSecurityKeyToOperator (const char *key)

static void registerPythonModuleKeyClient (void *client)

static bool verifyPythonModuleKeyClient (const OP_Operator *op, void *client)

static PRM_Template * getEmptyTemplateList ()

static int operatorNameCompare (const OP_Operator *a, const OP_Operator *b)


Protected Member Functions

void notifyUpdateTemplatesSinksOfUpdate ()

void notifyUpdateTemplatesSinksOfDelete ()

void notifyActiveNodesOfTemplatesUpdate ()

void setDescriptiveParmName (const UT_StringHolder &parm)

void dirtyParmTemplatesLoaded ()

virtual bool loadParmTemplatesSubclass ()

bool loadAndCreateLayoutParmTemplates (PRM_ScriptPage *page, DS_Stream &ds_is, PRM_Template *&base_tplates, PRM_Template *&layout_tplates, PRM_ScriptImports *&imports, PRM_Template *&tplates, int base_controls_switcher_index, int base_controls_insert_index, int base_controls_switcher_page_num, PRM_Default *&base_controls_switcher_defaults, bool hide_default_parms)
 Load parameter templates from the specified file stream. More...


Static Protected Member Functions

static PRM_Template * addTemplates (OP_TemplatePair *)

static CH_LocalVariable * addVariables (OP_VariablePair *, int &)


Protected Attributes

PRM_Template * myParmTemplates

PRM_ScriptImports * myImports

PRM_Template * myLayoutParmTemplates

PRM_ScriptImports * myLayoutParmImports

PRM_Template * myBaseOverrideLayout

PRM_Template * myBase

bool myParmTemplatesLoaded

PRM_Template * myObsoleteTemplates

UT_StringArray myInputNames

UT_StringArray myInputLabels

UT_StringArray myOutputLabels

UT_DeepString myTabSubmenuPath

UT_Array< bool > myInputReferences

CH_LocalVariable * myVariables

int myNvariables

UT_StringHolder myChildTableName

OP_OTLDefinition myOTLDefinition

OP_InputDataEditorConfigEx myInputDataEditorConfig

VEX_ContextType myVexContextType

RSL_ContextType myRslContextType

unsigned myFlags

bool myHasContentsSection

UT_StringHolder myOverriddenOperatorName

UT_SharedPtr< PRM_ScriptPage > myOverrideLayoutParmScriptPage


Friends

class OP_OperatorTable

class SHOP_ScriptOperator

class OP_UpdateTemplatesSink


Detailed Description

Examples:
CHOP/CHOP_Blend.C, CHOP/CHOP_Blend.h, CHOP/CHOP_Spring.C, CHOP/CHOP_Spring.h, CHOP/CHOP_Stair.C, CHOP/CHOP_Stair.h, COP2/COP2_FullImageFilter.C, COP2/COP2_FullImageFilter.h, COP2/COP2_MultiInputWipe.C, COP2/COP2_MultiInputWipe.h, COP2/COP2_PixelAdd.C, COP2/COP2_PixelAdd.h, COP2/COP2_SampleFilter.C, COP2/COP2_SampleFilter.h, COP2/COP2_SampleGenerator.C, COP2/COP2_SampleGenerator.h, DOP/DOP_GroupAndApply.C, DOP/DOP_GroupAndApply.h, euclid/SOP_Euclid.C, euclid/SOP_Euclid.h, expr/functions.C, field3d/ROP_Field3D.C, field3d/ROP_Field3D.h, HOM/SOP_HOMWave.C, HOM/SOP_HOMWave.h, OBJ/OBJ_Lamp.C, OBJ/OBJ_Shake.C, OBJ/OBJ_Shake.h, OBJ/OBJ_WorldAlign.C, OBJ/OBJ_WorldAlign.h, ROP/ROP_Dumper.C, ROP/ROP_Dumper.h, SHOP/SHOP_Multi.C, SHOP/SHOP_Multi.h, SHOP/SHOP_POVMaterial.C, SHOP/SHOP_POVMaterial.h, SOP/MSS_BrushHairLenSelector.C, SOP/SOP_ArrayAttrib.C, SOP/SOP_ArrayAttrib.h, SOP/SOP_BlindData.C, SOP/SOP_BlindData.h, SOP/SOP_BouncyAgent.C, SOP/SOP_BouncyAgent.h, SOP/SOP_BrushHairLen.C, SOP/SOP_BrushHairLen.h, SOP/SOP_CopRaster.C, SOP/SOP_CopRaster.h, SOP/SOP_CPPWave.C, SOP/SOP_CPPWave.h, SOP/SOP_CustomBrush.C, SOP/SOP_CustomBrush.h, SOP/SOP_DetailAttrib.C, SOP/SOP_DetailAttrib.h, SOP/SOP_DualStar.C, SOP/SOP_DualStar.h, SOP/SOP_Flatten.C, SOP/SOP_Flatten.h, SOP/SOP_GroupRename.C, SOP/SOP_GroupRename.h, SOP/SOP_HDKObject.C, SOP/SOP_HDKObject.h, SOP/SOP_IKSample.C, SOP/SOP_IKSample.h, SOP/SOP_NURBS.C, SOP/SOP_NURBS.h, SOP/SOP_PointWave.C, SOP/SOP_PointWave.h, SOP/SOP_PrimVOP.C, SOP/SOP_PrimVOP.h, SOP/SOP_SParticle.C, SOP/SOP_SParticle.h, SOP/SOP_Surface.C, SOP/SOP_Surface.h, SOP/SOP_TimeCompare.C, SOP/SOP_TimeCompare.h, tetprim/SOP_Tetra.C, tetprim/SOP_Tetra.h, VOP/VOP_CustomContext.C, VOP/VOP_CustomContext.h, VOP/VOP_Switch.C, and VOP/VOP_Switch.h.

Definition at line 142 of file OP_Operator.h.

Member Enumeration Documentation

enum OP_Operator::OP_OperatorCompare
Enumerator
OP_COMPARE_GEN_ENGLISH
OP_COMPARE_GEN_NAME
OP_COMPARE_ENGLISH
OP_COMPARE_NAME

Definition at line 542 of file OP_Operator.h.

Constructor & Destructor Documentation

OP_Operator::OP_Operator ( const char *  name,
const char *  english,
OP_Constructor  construct,
PRM_Template *  templates,
unsigned  min_sources,
unsigned  max_sources = 9999,
CH_LocalVariable *  variables = 0,
unsigned  flags = 0,
const char **  inputlabels = 0,
int  maxoutputs = 1,
const char *  tab_submenu_path = 0
)

Note: The 'inputlabels' array is expected to be null-terminated.

OP_Operator::OP_Operator ( const char *  name,
const char *  english,
OP_Constructor  construct,
OP_TemplatePair *  template_pair,
unsigned  min_sources,
unsigned  max_sources = 9999,
OP_VariablePair *  variable_pair = 0,
unsigned  flags = 0,
const char **  inputlabels = 0,
int  maxoutputs = 1,
const char *  tab_submenu_path = 0
)
OP_Operator::OP_Operator ( const char *  name,
const char *  english,
OP_Constructor  construct,
PRM_Template *  templates,
const char *  child_table_name,
unsigned  min_sources,
unsigned  max_sources = 9999,
CH_LocalVariable *  variables = 0,
unsigned  flags = 0,
const char **  inputlabels = 0,
int  maxoutputs = 1,
const char *  tab_submenu_path = 0
)
OP_Operator::OP_Operator ( const char *  name,
const char *  english,
OP_Constructor  construct,
OP_TemplatePair *  template_pair,
const char *  child_table_name,
unsigned  min_sources,
unsigned  max_sources = 9999,
OP_VariablePair *  variable_pair = 0,
unsigned  flags = 0,
const char **  inputlabels = 0,
int  maxoutputs = 1,
const char *  tab_submenu_path = 0
)
virtual OP_Operator::~OP_Operator ( )
virtual

Member Function Documentation

static PRM_Template* OP_Operator::addTemplates ( OP_TemplatePair *  )
staticprotected
static CH_LocalVariable* OP_Operator::addVariables ( OP_VariablePair *  ,
int &
)
staticprotected
virtual bool OP_Operator::allowsInputNameEditing ( ) const
virtual

Accessing operator inputs name, label, and reference flag.

void OP_Operator::beginLoadingContentsSectionForNode ( )
inline

Definition at line 525 of file OP_Operator.h.

void OP_Operator::changeParmTemplate ( PRM_Template *  tp)
void OP_Operator::clearEventScriptPathCache ( )
static void OP_Operator::clearOperatorHelpCache ( )
inlinestatic

Definition at line 272 of file OP_Operator.h.

virtual void OP_Operator::clearOTLIndexFile ( )
virtual

Reimplemented in OP_ScriptOperator.

virtual int OP_Operator::compareOperator ( const OP_Operator *  other,
int  method
) const
virtual

Reimplemented in SHOP_Operator.

void OP_Operator::constructIndexFileSectionPath ( UT_String &  path,
const char *  opdef_or_oplib,
const char *  section_name
) const

Returns a path that refers to an index file section within an OTL library or an HDA definition (depending on opdef_or_oplib prefix, which should be either OTL_LIBRARY_PREFIX or OTL_DEFINITION_PREFIX). The method version that takes a string array instead of a string is intended for nested sections where the sections towards the end of the array are innermost sections within sections earlier in the array (that are themselves index files). For example, the path may be "opdef:/Object/hda?section" or "opdef:/artistA::Object/hda::2.0?section, or "opdef:/Sop/hda?outer_section.idx?inner_section, etc

void OP_Operator::constructIndexFileSectionPath ( UT_String &  path,
const char *  opdef_or_oplib,
const UT_StringArray &  section_names
) const

Returns a path that refers to an index file section within an OTL library or an HDA definition (depending on opdef_or_oplib prefix, which should be either OTL_LIBRARY_PREFIX or OTL_DEFINITION_PREFIX). The method version that takes a string array instead of a string is intended for nested sections where the sections towards the end of the array are innermost sections within sections earlier in the array (that are themselves index files). For example, the path may be "opdef:/Object/hda?section" or "opdef:/artistA::Object/hda::2.0?section, or "opdef:/Sop/hda?outer_section.idx?inner_section, etc

OP_Node* OP_Operator::constructNode ( OP_Network *  net,
const char *  name
)
FS_IndexFile* OP_Operator::createDefaultOTLIndexFile ( ) const
FS_IndexFile* OP_Operator::createOTLIndexFile ( bool  reservedsectionsonly,
UT_StringArray *  externalfiles
)
void OP_Operator::dirtyParmTemplatesLoaded ( )
protected
void OP_Operator::endLoadingContentsSectionForNode ( )
inline

Definition at line 529 of file OP_Operator.h.

void OP_Operator::fillInfoTree ( UT_InfoTree &  tree,
const OP_NodeInfoTreeParms &  parms
)

Fill in 'tree' with details that are common to all operator types. Then call fillInfoTreeOperatorSpecific() to get specific details about this specific operator

virtual void OP_Operator::fillInfoTreeOperatorSpecific ( UT_InfoTree &  tree,
const OP_NodeInfoTreeParms &  parms
)
virtual

Triggered by 'fillInfoTree()', this virtual function adds all operator- specific info to 'tree'. All child classes must create their own branches under 'tree' to place their info

Reimplemented in OP_ScriptOperator.

virtual void OP_Operator::forceUpdateParmTemplates ( )
virtual

Reimplemented in OP_ScriptOperator.

OP_Node* OP_Operator::getActiveNode ( int  i) const
PRM_Template* OP_Operator::getBaseOverrideLayoutParmTemplates ( )
inline

Returns the parm templates that are base to the final parameter layout if the layout is overridden by a custom dialog script. Returns nullptr if the parameter layout is not overridden.

Definition at line 455 of file OP_Operator.h.

virtual const PRM_Template* OP_Operator::getBaseParmTemplates ( )
inlinevirtual

Exists only for script/HDA operators. Returns the parm templates that are base to the HDA parameters.

Reimplemented in VOP_ScriptOperator.

Definition at line 450 of file OP_Operator.h.

void OP_Operator::getCachedEventScriptPaths ( UT_StringArray &  events,
UT_StringArray &  paths,
bool  only_nonempty
) const
OP_OperatorTable* OP_Operator::getChildOperatorTable ( ) const
const UT_StringHolder& OP_Operator::getChildTableName ( ) const
void OP_Operator::getComment ( UT_String &  comment)
UT_StringHolder OP_Operator::getContentsSection ( )
static const char* OP_Operator::getCurrentPythonModuleKey ( )
static
virtual UT_Color OP_Operator::getDefaultColor ( ) const
virtual
static void OP_Operator::getDefaultIconName ( const char *  tablename,
const char *  opname,
UT_String &  iconname
)
static
virtual const UT_StringHolder& OP_Operator::getDefaultShape ( ) const
virtual
void OP_Operator::getDefaultState ( UT_String &  statename)
OP_Node* OP_Operator::getDefiningNetwork ( ) const
void OP_Operator::getDefinitionSectionName ( UT_String &  sectname) const

Returns an official name of the library section that contains the HDA definition eg "Object/hda".

void OP_Operator::getDefinitionSource ( UT_String &  defsource) const
void OP_Operator::getDescriptiveParmName ( UT_String &  descrparm)
void OP_Operator::getDiveTarget ( UT_String &  divetarget)
void OP_Operator::getEditableSubNodes ( UT_String &  pattern)
static PRM_Template* OP_Operator::getEmptyTemplateList ( )
static
const UT_StringHolder& OP_Operator::getEnglish ( ) const
inline

Definition at line 232 of file OP_Operator.h.

const UT_StringHolder& OP_Operator::getExtraInfo ( ) const
inline

Definition at line 305 of file OP_Operator.h.

const OP_ExtraInfoBuffer& OP_Operator::getExtraInfoBuffer ( ) const
inline

Definition at line 307 of file OP_Operator.h.

void OP_Operator::getFunctionName ( UT_String &  function_name)
virtual bool OP_Operator::getHDKHelp ( UT_String &  ) const
inlinevirtual

Definition at line 237 of file OP_Operator.h.

void OP_Operator::getHelpFileDirAndName ( UT_String &  script_dir,
UT_String &  name
)
const char* OP_Operator::getIconName ( ) const
const UT_StringHolder& OP_Operator::getIndexFile ( ) const
inline

Definition at line 281 of file OP_Operator.h.

const UT_StringHolder& OP_Operator::getIndexPath ( ) const
inline

Definition at line 279 of file OP_Operator.h.

const UT_Array<bool>& OP_Operator::getInputAreReferences ( ) const
inline

Accessing operator inputs name, label, and reference flag.

Definition at line 565 of file OP_Operator.h.

const OP_InputDataEditorConfigEx& OP_Operator::getInputDataEditorConfigEx ( ) const
inline

Definition at line 598 of file OP_Operator.h.

bool OP_Operator::getInputIsReference ( int  idx) const

Accessing operator inputs name, label, and reference flag.

const UT_StringHolder& OP_Operator::getInputLabel ( int  idx) const

Accessing operator inputs name, label, and reference flag.

const UT_StringArray& OP_Operator::getInputLabels ( ) const
inline

Accessing operator inputs name, label, and reference flag.

Definition at line 562 of file OP_Operator.h.

const UT_StringHolder& OP_Operator::getInputName ( int  idx) const

Accessing operator inputs name, label, and reference flag.

const UT_StringArray& OP_Operator::getInputNames ( ) const
inline

Accessing operator inputs name, label, and reference flag.

Definition at line 559 of file OP_Operator.h.

bool OP_Operator::getIsDummyDefinition ( ) const
inline

Definition at line 295 of file OP_Operator.h.

bool OP_Operator::getIsPrimarySubnetType ( ) const
inline

Test to see if this is the primary "subnet" operator for the table. This is the operator type which is used as a default container for nodes. There should only be one of these defined.

Definition at line 509 of file OP_Operator.h.

PRM_ScriptImports* OP_Operator::getLayoutParmTemplateImports ( )
PRM_Template* OP_Operator::getLayoutParmTemplates ( )

Returns the operator's parameter templates in their final parameter layout. This can return nullptr if the operator is not a script/HDA / operator and if the operator's parameter layout is not overridden by a custom dialog script.

const UT_StringArray* OP_Operator::getLegacyInputsIndexMap ( ) const

Sets an array that maps an old input index to a new input name. It is used for handling legacy H11 hip files, where nodes were saved with indices only. If an operator definition is changed (ie, inputs get inserted or reordered), it is necessary to provide this mapping, to be able to load legacy hip files. If op definition does not change, there is no need to define this mapping, since the default assignment of input index will still work. Also it is not needed for handling newer hip files that save the input name information and can handle input order change in new op definition. The map is given as a sequence of input names eg "name1 name2".

void OP_Operator::getLegacyInputsMap ( UT_String &  map) const

Sets an array that maps an old input index to a new input name. It is used for handling legacy H11 hip files, where nodes were saved with indices only. If an operator definition is changed (ie, inputs get inserted or reordered), it is necessary to provide this mapping, to be able to load legacy hip files. If op definition does not change, there is no need to define this mapping, since the default assignment of input index will still work. Also it is not needed for handling newer hip files that save the input name information and can handle input order change in new op definition. The map is given as a sequence of input names eg "name1 name2".

OP_OTLLicenseType OP_Operator::getLicense ( )
const UT_StringHolder& OP_Operator::getMessageSubNodes ( ) const
time_t OP_Operator::getModTime ( ) const
inline

Definition at line 293 of file OP_Operator.h.

const UT_StringHolder& OP_Operator::getName ( ) const
inline
Examples:
expr/functions.C, and VOP/VOP_CustomContext.C.

Definition at line 220 of file OP_Operator.h.

int OP_Operator::getNumActiveNodes ( ) const
virtual PRM_Template* OP_Operator::getObsoleteTemplates ( )
inlinevirtual

Definition at line 458 of file OP_Operator.h.

void OP_Operator::getOpBasedFileName ( UT_String &  filename)

Returns a file name corresponding to the operator name. In most cases, the file name is the same as the operator name, but since it has to be acceptable by all file systems, some invalid characters may be converted to dashes (eg, the namespace semicolons which cause problems on Windows).

void OP_Operator::getOpBasedFileName ( UT_WorkBuffer &  filename)

Returns a file name corresponding to the operator name. In most cases, the file name is the same as the operator name, but since it has to be acceptable by all file systems, some invalid characters may be converted to dashes (eg, the namespace semicolons which cause problems on Windows).

virtual const char* OP_Operator::getOperatorShortHelpString ( )
virtual

Reimplemented in OP_ScriptOperator.

virtual void OP_Operator::getOperatorSpecificInfoText ( int  verbose,
UT_WorkBuffer &  text
)
virtual

Reimplemented in OP_ScriptOperator, and DOP_Operator.

virtual bool OP_Operator::getOpHelpURL ( UT_String &  url)
virtual
virtual OP_SpecificData* OP_Operator::getOpSpecificData ( )
inlinevirtual

Reimplemented in SHOP_Operator, DOP_Operator, VOP_ScriptOperator, and VOP_Operator.

Definition at line 206 of file OP_Operator.h.

virtual const OP_SpecificData* OP_Operator::getOpSpecificData ( ) const
inlinevirtual

Reimplemented in SHOP_Operator, DOP_Operator, VOP_ScriptOperator, and VOP_Operator.

Definition at line 208 of file OP_Operator.h.

virtual bool OP_Operator::getOpTabSubMenuPath ( UT_String &  tab_submenu_path)
virtual
const UT_StringHolder& OP_Operator::getOriginalName ( ) const
void OP_Operator::getOriginalTableAndName ( UT_WorkBuffer &  name) const

Get the op table name and the unoverridden op name concatenated together to get a unique name. Returns full name with table, including namespace and version tags if there are any, eg "artistA::table/op::2.0"

void OP_Operator::getOriginalTableAndName ( UT_String &  name) const
const OP_OTLDefinition& OP_Operator::getOTLDefinition ( ) const
inline

Definition at line 312 of file OP_Operator.h.

bool OP_Operator::getOTLHelp ( UT_String &  str)
FS_IndexFile* OP_Operator::getOTLIndexFile ( bool  check_timestamp = true)
inline

Definition at line 328 of file OP_Operator.h.

FS_IndexFileHandle OP_Operator::getOTLIndexFilePtr ( bool  check_timestamp = true)
OP_OTLLibrary* OP_Operator::getOTLLibrary ( )
inline

Definition at line 318 of file OP_Operator.h.

const UT_StringHolder& OP_Operator::getOutputLabel ( int  idx) const

Accessing operator outputs label.

const UT_StringArray& OP_Operator::getOutputLabels ( ) const
inline

Accessing operator outputs label.

Definition at line 571 of file OP_Operator.h.

bool OP_Operator::getOverrideLayoutParmTemplateFile ( UT_String &  ds_path) const

Pass back the file path of the .ds file that was loaded to override the operator's parameter templates. Return true if such a file was found and loaded. Return false if no .ds override file was found.

PRM_ScriptImports* OP_Operator::getParmTemplateImports ( )
PRM_Template* OP_Operator::getParmTemplates ( )

Returns the operator's parameter templates with base parameters appearing first (if they exist for script/HDA operators) followed by non-base parameters.

If getLayoutParmTemplates() returns nullptr, then getParmTemplates() can be used for the parameter layout.

unsigned OP_Operator::getPermissionMask ( ) const
PRM_PresetInfo* OP_Operator::getPresetInfo ( )
PY_EvaluationContext* OP_Operator::getPythonModuleDicts ( )
inline

Definition at line 724 of file OP_Operator.h.

virtual void OP_Operator::getRefreshPICommands ( OP_Node *  ,
std::ostream &
)
inlinevirtual

Reimplemented in PI_ScriptOperator.

Definition at line 579 of file OP_Operator.h.

RSL_ContextType OP_Operator::getRslContextType ( ) const
inline

Definition at line 291 of file OP_Operator.h.

bool OP_Operator::getScriptIsPython ( ) const
inline

Definition at line 299 of file OP_Operator.h.

bool OP_Operator::getScriptIsRsl ( ) const
inline

Definition at line 287 of file OP_Operator.h.

bool OP_Operator::getScriptIsSubnet ( ) const
inline

Definition at line 283 of file OP_Operator.h.

bool OP_Operator::getScriptIsVex ( ) const
inline

Definition at line 285 of file OP_Operator.h.

void OP_Operator::getSecondaryFunctionsNames ( UT_StringMap< UT_StringHolder > &  functions)
virtual bool OP_Operator::getSectionData ( const UT_StringRef &  name,
UT_StringHolder &  value
) const
virtual
OP_OperatorTable* OP_Operator::getTable ( ) const
void OP_Operator::getTableAndName ( UT_WorkBuffer &  name) const
inline

Get the op table name and the op name concatenated together to get a unique name. Returns full name with table, including namespace and version tags if there are any, eg "artistA::table/op::2.0"

Definition at line 227 of file OP_Operator.h.

void OP_Operator::getTableAndName ( UT_String &  name) const
inline

Definition at line 229 of file OP_Operator.h.

const char* OP_Operator::getTableName ( ) const
CH_LocalVariable* OP_Operator::getVariable ( int  i) const
CH_LocalVariable* OP_Operator::getVariable ( const char *  name) const
int OP_Operator::getVariableCount ( ) const
inline

Definition at line 473 of file OP_Operator.h.

CH_LocalVariable* OP_Operator::getVariables ( ) const
inline

Definition at line 472 of file OP_Operator.h.

virtual bool OP_Operator::getVersion ( UT_String &  version)
virtual

For HDAs, getVersion will return the version number defined by its HDA definition, or the empty string if it does not exist. For non-HDA's (ie. native or HDK node types), it will return the Houdini version X.Y.Z.W string that we were compiled with. Subclasses may override this to provide different numbering. One of the uses of this function to determine if loading a node's parameters needs to be upgraded.

Reimplemented in DOP_AutoOperator.

VEX_ContextType OP_Operator::getVexContextType ( ) const
inline

Definition at line 289 of file OP_Operator.h.

PY_EvaluationContext* OP_Operator::getViewerHandleModuleDicts ( )
inline

Definition at line 736 of file OP_Operator.h.

PY_EvaluationContext* OP_Operator::getViewerStateModuleDicts ( )
inline

Definition at line 730 of file OP_Operator.h.

bool OP_Operator::hasContentsSection ( )
bool OP_Operator::hasEditableInputData ( ) const
inline

Definition at line 502 of file OP_Operator.h.

virtual bool OP_Operator::hasLoadedParmTemplates ( ) const
virtual

Reimplemented in OP_ScriptOperator.

bool OP_Operator::hasLoadedPythonModuleSection ( ) const
inline

Definition at line 726 of file OP_Operator.h.

bool OP_Operator::hasLoadedViewerHandleModuleSection ( ) const
inline

Definition at line 738 of file OP_Operator.h.

bool OP_Operator::hasLoadedViewerStateModuleSection ( ) const
inline

Definition at line 732 of file OP_Operator.h.

bool OP_Operator::hasNodeLoadingContentsSection ( ) const
inline

Definition at line 521 of file OP_Operator.h.

bool OP_Operator::hasPotentialEditableSubNodes ( )

Returns true if the editable subnodes pattern isn't empty It may or may not match any actual nodes.

virtual bool OP_Operator::hasSectionData ( const UT_StringRef &  name) const
virtual
void OP_Operator::informOfTabMenuFlagChange ( )
bool OP_Operator::isBlackBoxed ( )

Returns true if this operator is black boxed, and false otherwise.

bool OP_Operator::isChangingParmTemplates ( ) const
inline

Definition at line 517 of file OP_Operator.h.

bool OP_Operator::isCompiled ( )

Returns true if this operator comes from a compiled OTL, false otherwise.

bool OP_Operator::isCreatingNode ( ) const
inline

Definition at line 513 of file OP_Operator.h.

bool OP_Operator::isCustomDSO ( ) const
bool OP_Operator::isGenerator ( ) const
inline

Definition at line 481 of file OP_Operator.h.

bool OP_Operator::isManagementOp ( ) const
inline

Definition at line 494 of file OP_Operator.h.

bool OP_Operator::isNetwork ( ) const
inline

Definition at line 477 of file OP_Operator.h.

bool OP_Operator::isOutputOp ( ) const
inline

Definition at line 498 of file OP_Operator.h.

bool OP_Operator::isScriptedOp ( ) const
inline

Definition at line 485 of file OP_Operator.h.

bool OP_Operator::isThreadSafe ( ) const
inline

Is this operator type thread-safe for cooking? OP_Node::cook() calls this to determine if serialization is needed. DEFAULT: false

Definition at line 754 of file OP_Operator.h.

void OP_Operator::listContainedOperators ( UT_StringSet &  contents_list)

List all operators found in the contents section.

bool OP_Operator::loadAndCreateLayoutParmTemplates ( PRM_ScriptPage *  page,
DS_Stream &  ds_is,
PRM_Template *&  base_tplates,
PRM_Template *&  layout_tplates,
PRM_ScriptImports *&  imports,
PRM_Template *&  tplates,
int  base_controls_switcher_index,
int  base_controls_insert_index,
int  base_controls_switcher_page_num,
PRM_Default *&  base_controls_switcher_defaults,
bool  hide_default_parms
)
protected

Load parameter templates from the specified file stream.

static int OP_Operator::loadFromOpType ( const char *  fname,
const char *  savedir
)
static
virtual bool OP_Operator::loadParmTemplatesSubclass ( )
protectedvirtual

Reimplemented in OP_ScriptOperator.

void OP_Operator::loadPythonModuleSection ( bool  force = false)
OP_SpareParms* OP_Operator::loadSpareParms ( UT_IStream &  is)
void OP_Operator::loadViewerHandleModuleSection ( bool  force = false)
void OP_Operator::loadViewerStateModuleSection ( bool  force = false)
static const OP_Operator* OP_Operator::mapSecurityKeyToOperator ( const char *  key)
static
unsigned OP_Operator::maxInputs ( ) const
inline

Definition at line 386 of file OP_Operator.h.

virtual unsigned OP_Operator::maxOutputs ( )
inlinevirtual

Reimplemented in DOP_Operator, VOP_ScriptOperator, SHOP_Operator, and VOP_Operator.

Definition at line 417 of file OP_Operator.h.

unsigned OP_Operator::minInputs ( ) const
inline

Definition at line 384 of file OP_Operator.h.

void OP_Operator::nodeDestroyed ( OP_Node *  node)
void OP_Operator::notifyActiveNodesOfTemplatesUpdate ( )
protected
void OP_Operator::notifyUpdateTemplatesSinksOfDelete ( )
protected
void OP_Operator::notifyUpdateTemplatesSinksOfUpdate ( )
protected
int OP_Operator::numOrderedInputs ( ) const
inline

The number of ordered inputs on a node that remain separate even on nodes that have a variable number of inputs. These separate inputs always start at the beginning (variable input connectors are always last).

Definition at line 396 of file OP_Operator.h.

static int OP_Operator::operatorNameCompare ( const OP_Operator *  a,
const OP_Operator *  b
)
inlinestatic

Definition at line 777 of file OP_Operator.h.

static void OP_Operator::registerPythonModuleKeyClient ( void *  client)
static
static void OP_Operator::removeCmdOverrides ( UT_FileUtil *  fu,
const char *  path,
const char *  tablename,
const char *  opname,
int  flags
)
static
static void OP_Operator::removeHelpCardOverrides ( UT_FileUtil *  fu,
const char *  path,
const char *  tablename,
const char *  opname,
int  flags
)
static
static void OP_Operator::removeIconOverrides ( UT_FileUtil *  fu,
const char *  path,
const char *  tablename,
const char *  opname,
int  flags
)
static
static void OP_Operator::removeRenameOverrides ( UT_FileUtil *  fu,
const char *  path,
const char *  tablename,
const char *  opname,
int  flags
)
static
void OP_Operator::resetVariables ( OP_VariablePair *  variable_pair)
bool OP_Operator::runEventScript ( const char *  event,
OP_Node *  node_arg = nullptr,
bool  full_path = false,
UT_Options *  extra_args = nullptr,
bool *  node_deleted_by_script = nullptr
)
void OP_Operator::setDefaultIconName ( )
void OP_Operator::setDefinition ( const char *  def)
void OP_Operator::setDescriptiveParmName ( const UT_StringHolder &  parm)
inlineprotected

Definition at line 800 of file OP_Operator.h.

void OP_Operator::setEnglish ( const char *  english)
void OP_Operator::setIconName ( const char *  name)
Examples:
SHOP/SHOP_Multi.C, and SHOP/SHOP_POVMaterial.C.
void OP_Operator::setInputDataEditorConfig ( const OP_InputDataEditorConfig &  config)
void OP_Operator::setInputDataEditorConfigEx ( const OP_InputDataEditorConfigEx &  config)
inline

Definition at line 600 of file OP_Operator.h.

void OP_Operator::setIsGenerator ( bool  isgen)
void OP_Operator::setIsThreadSafe ( bool  is_safe)
inline

This function is used to specify whether a particular operator type can be cooked in a multi-threaded manner.

Definition at line 759 of file OP_Operator.h.

void OP_Operator::setLegacyInputsMap ( const char *  map)

Sets an array that maps an old input index to a new input name. It is used for handling legacy H11 hip files, where nodes were saved with indices only. If an operator definition is changed (ie, inputs get inserted or reordered), it is necessary to provide this mapping, to be able to load legacy hip files. If op definition does not change, there is no need to define this mapping, since the default assignment of input index will still work. Also it is not needed for handling newer hip files that save the input name information and can handle input order change in new op definition. The map is given as a sequence of input names eg "name1 name2".

void OP_Operator::setMaxInputs ( int  inputs)
void OP_Operator::setMinInputs ( int  inputs)
virtual void OP_Operator::setName ( const char *  name)
virtual
void OP_Operator::setNumOrderedInputs ( int  inputs)
inline

The number of ordered inputs on a node that remain separate even on nodes that have a variable number of inputs. These separate inputs always start at the beginning (variable input connectors are always last).

Definition at line 394 of file OP_Operator.h.

void OP_Operator::setObsoleteTemplates ( PRM_Template *  tmpl)
inline

Definition at line 460 of file OP_Operator.h.

void OP_Operator::setOpTabSubMenuPath ( const char *  tab_submenu_path)
void OP_Operator::setOTLDefinition ( const OP_OTLDefinition &  definition)
void OP_Operator::setOTLLibrary ( OP_OTLLibrary *  library)
inline

Definition at line 316 of file OP_Operator.h.

void OP_Operator::setScriptIsPython ( bool  is_python)
inline

Definition at line 301 of file OP_Operator.h.

bool OP_Operator::shouldPreserve ( ) const
inline

Returns true if the operator should be preserved by op director, when elimiating unused HDAs during a library refresh.

Definition at line 537 of file OP_Operator.h.

static int OP_Operator::uninstallOpType ( const char *  path,
const char *  tablename,
const char *  opname,
const char *  indexpath,
const char *  indexfile
)
static
bool OP_Operator::unorderedInputs ( ) const
inline

Definition at line 490 of file OP_Operator.h.

virtual int OP_Operator::updateParmTemplates ( )
virtual

Reimplemented in VOP_ScriptOperator, and OP_ScriptOperator.

void OP_Operator::updatePresetInfo ( )
static bool OP_Operator::verifyPythonModuleKeyClient ( const OP_Operator *  op,
void *  client
)
static
virtual bool OP_Operator::wantsInputEditor ( ) const
virtual

Reimplemented in VOP_ScriptOperator, DOP_Operator, SHOP_Operator, and VOP_Operator.

virtual bool OP_Operator::wantsOutputNameEditor ( ) const
virtual

Reimplemented in VOP_Operator.

virtual bool OP_Operator::wantsParametersAnimatable ( ) const
virtual

Reimplemented in VOP_ScriptOperator.

virtual bool OP_Operator::wantsParentInputs ( ) const
virtual

Reimplemented in VOP_ScriptOperator, and VOP_Operator.

virtual bool OP_Operator::wantsParmOrderEditor ( ) const
virtual

Reimplemented in VOP_Operator.

Friends And Related Function Documentation

friend class OP_OperatorTable
friend

Definition at line 949 of file OP_Operator.h.

friend class OP_UpdateTemplatesSink
friend

Definition at line 951 of file OP_Operator.h.

friend class SHOP_ScriptOperator
friend

Definition at line 950 of file OP_Operator.h.

Member Data Documentation

PRM_Template* OP_Operator::myBase
protected

Definition at line 826 of file OP_Operator.h.

PRM_Template* OP_Operator::myBaseOverrideLayout
protected

Definition at line 825 of file OP_Operator.h.

UT_StringHolder OP_Operator::myChildTableName
protected

Definition at line 836 of file OP_Operator.h.

unsigned OP_Operator::myFlags
protected

Definition at line 842 of file OP_Operator.h.

bool OP_Operator::myHasContentsSection
protected

Definition at line 843 of file OP_Operator.h.

PRM_ScriptImports* OP_Operator::myImports
protected

Definition at line 822 of file OP_Operator.h.

OP_InputDataEditorConfigEx OP_Operator::myInputDataEditorConfig
protected

Definition at line 839 of file OP_Operator.h.

UT_StringArray OP_Operator::myInputLabels
protected

Definition at line 830 of file OP_Operator.h.

UT_StringArray OP_Operator::myInputNames
protected

Definition at line 829 of file OP_Operator.h.

UT_Array<bool> OP_Operator::myInputReferences
protected

Definition at line 833 of file OP_Operator.h.

PRM_ScriptImports* OP_Operator::myLayoutParmImports
protected

Definition at line 824 of file OP_Operator.h.

PRM_Template* OP_Operator::myLayoutParmTemplates
protected

Definition at line 823 of file OP_Operator.h.

int OP_Operator::myNvariables
protected

Definition at line 835 of file OP_Operator.h.

PRM_Template* OP_Operator::myObsoleteTemplates
protected

Definition at line 828 of file OP_Operator.h.

OP_OTLDefinition OP_Operator::myOTLDefinition
protected

Definition at line 838 of file OP_Operator.h.

UT_StringArray OP_Operator::myOutputLabels
protected

Definition at line 831 of file OP_Operator.h.

UT_StringHolder OP_Operator::myOverriddenOperatorName
protected

Definition at line 844 of file OP_Operator.h.

UT_SharedPtr<PRM_ScriptPage> OP_Operator::myOverrideLayoutParmScriptPage
protected

Definition at line 852 of file OP_Operator.h.

PRM_Template* OP_Operator::myParmTemplates
protected

Definition at line 821 of file OP_Operator.h.

bool OP_Operator::myParmTemplatesLoaded
protected

Definition at line 827 of file OP_Operator.h.

RSL_ContextType OP_Operator::myRslContextType
protected

Definition at line 841 of file OP_Operator.h.

UT_DeepString OP_Operator::myTabSubmenuPath
protected

Definition at line 832 of file OP_Operator.h.

CH_LocalVariable* OP_Operator::myVariables
protected

Definition at line 834 of file OP_Operator.h.

VEX_ContextType OP_Operator::myVexContextType
protected

Definition at line 840 of file OP_Operator.h.

The documentation for this class was generated from the following file:
