PDG Path Map

The PDG Path Map manages the mapping of paths between file systems.

On this page

Overview

TOPs work with compute farms that may have various file systems. For example, you can use a Windows machine and a Linux-based farm. This creates a problem on how to map file paths from one file system to another.

For example \\allfiles\shot1\file1.bgeo.sc < → /mnt/hq/shot1/file1/bgeo.sc. To address this, the PDG Path Map in TOPs lets you establish cross-system file path mapping rules.

Tip

You can chain mapping rules with the PDG Path Map. For example if /mnt/hq maps to Z: in zone WIN, and Z: maps to //allfiles in the same zone WIN, then /mnt/hq will map to //allfiles.

How mapping works

There is one path mapping table per file and is shared between every scheduler inside it. File attributes and file results store their original path, and their mapped path is generated on demand using the PDG Path Map.

The mapping table is stored in a PDG_PATHMAP global variable, which is saved in the HIP file. When you execute PDG jobs, this PDG_PATHMAP is set in your environment and is used to determine the local version of a given file path. This happens automatically when you use the PDG work item API.

Notes

  • Only the first matched rule applies for a given zone. For example if there are 2 rules for zone WIN which map a given source path to different destination paths, then only the first rule applies.

  • The PDG Path Map does not have checks to verify whether or not a file path exists.

Zones

PDG automatically determines the local Zone that matches your workstation’s platform: LINUX, WIN, or MAC.

  • You can override this with parameters on the Scheduler nodes, which apply to all jobs scheduled by the Schedulers.

  • You can globally override this with the environment variable $PDG_PATHMAP_ZONE.

  • Custom zones are useful for more complex farm set-ups. For example, a hybrid cloud involving AWS and LINUX.

  • The special * Zone applies to all platforms.

Match Type

The match type for a path map entry determines how the entry should be matched with an input string that’s being mapped. If the match type is set to Prefix, the mapping rule only applies if the mapping rule’s Source Path appears at the beginning of the input string. Conversely, if the match type is set to Suffix, the mapping rule is only applied if the path appears at the end of the input string. Finally, the Contains match type indicates that rule should always apply to input paths even if it’s found in the middle of the path.

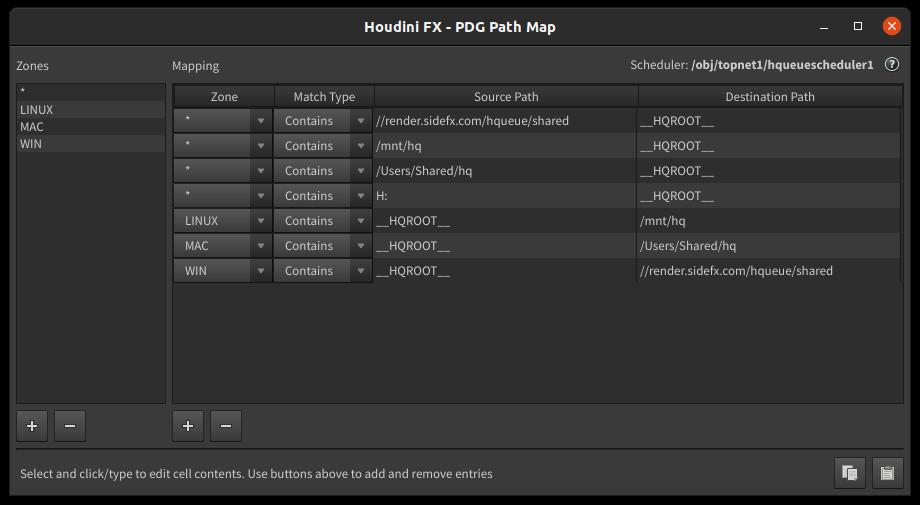

PDG Path Map window

To...Do this

Open the PDG Path Map window

  • For the HQueue Scheduler, click Load Path Map in its parameter settings.

  • For all other schedulers, select PDG Path Map from the Tasks menu.

Zone Controls

  • adds a new zone to your PDG path map.

  • removes the selected zone.

Table Controls

  • adds a new mapping to the table.

  • removes the selected mapping from the table.

The Path Map Table

Zone

The name of the path mapping zone that this mapping maps to.

Match Type

Determines whether the path mapping rule should be match against the prefix, suffix, or anywhere within an input path.

Source Path

The path that is replaced.

Destination Path

The path that the Source Path is replaced with, when running in the given Zone.

  • loads the table from the contents of the clipboard.

  • copies the table contents to the clipboard as JSON.

Sorting

The PDG Path Map table first sorts by Created by to group all the schedulers together. Then, it sorts by Zone.

API

You can access the Path Map Python API through pdg.PathMap.

Porting from 18.0

Scheduler nodes from a previous version of Houdini are automatically set to the None mode of path mapping, which disables the path mapping logic and instead relies on paths being delocalized with the tokens __PDG_DIR__, __PDG_TEMP__.

If you do not require path mappings, you can set this to Global.

If you require path mappings, you should add them with the PDG Path Map and then set it to Global.
