scatter Tubes
14625 18 4- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline

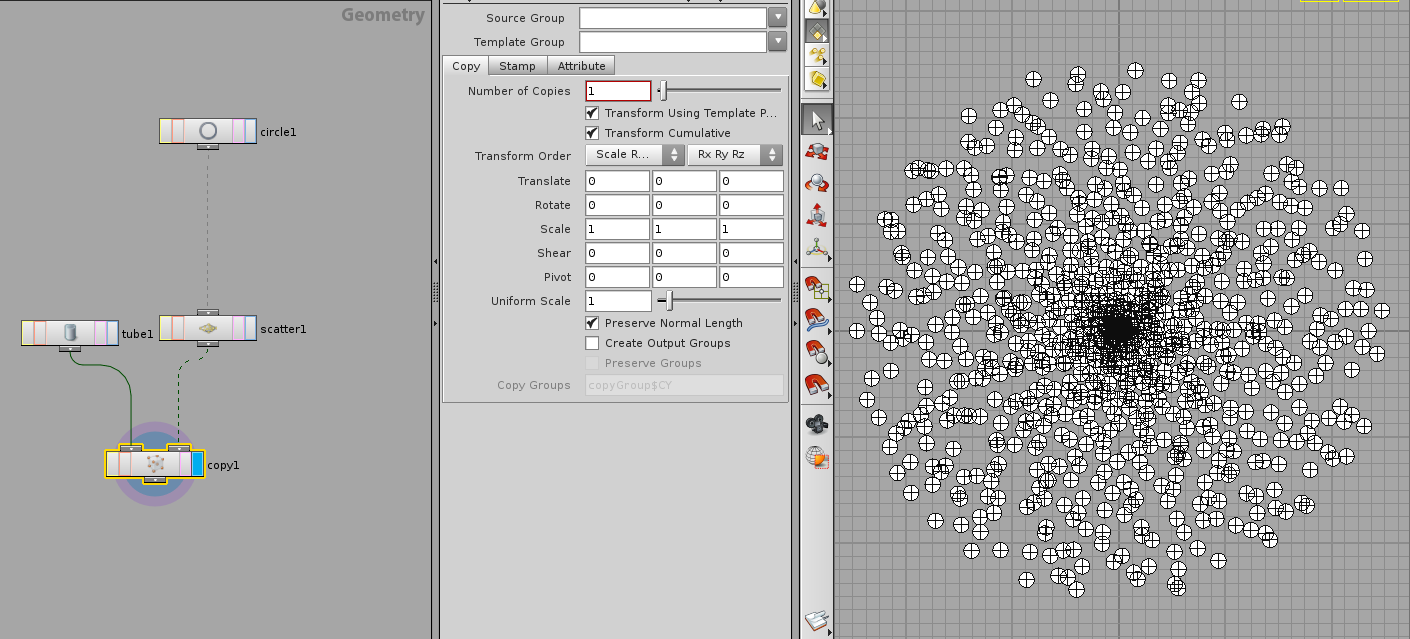

- midorime
- Member
- 31 posts
- Joined:
- Offline
Hi aquarel,
I could suggest you to take a look here: http://www.sidefx.com/index.php?option=com_content&task=view&id=1096&Itemid=279 [sidefx.com]
and download the pdf, that's awesome…
or if you want a quick way to achieve something “similar”, that doesn't take care about anything mentioned in the pdf, you could take a look at my quick scene.
If you change the tube's radius, you can see that the fuse SOP fixs for you the intersection, and if you need more or less precision, you could change the iteration number in the foreach SOP.
Hope that's what you are looking for.
Cheers,
Emanuele
I could suggest you to take a look here: http://www.sidefx.com/index.php?option=com_content&task=view&id=1096&Itemid=279 [sidefx.com]
and download the pdf, that's awesome…
or if you want a quick way to achieve something “similar”, that doesn't take care about anything mentioned in the pdf, you could take a look at my quick scene.
If you change the tube's radius, you can see that the fuse SOP fixs for you the intersection, and if you need more or less precision, you could change the iteration number in the foreach SOP.
Hope that's what you are looking for.
Cheers,
Emanuele
- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline
- pclaes
- Member
- 257 posts
- Joined: Nov. 2007
- Offline
do a search for “circle packing” (here, on odforce and in google).
You will find a lot of different algorithms that allow you to do this kind of thing.
You will find a lot of different algorithms that allow you to do this kind of thing.
Cg Supervisor | Effects Supervisor | Expert Technical Artist at Infinity Ward
https://www.linkedin.com/in/peter-claes-10a4854/ [www.linkedin.com]
https://www.linkedin.com/in/peter-claes-10a4854/ [www.linkedin.com]
- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline
- jrgauthier
- Member
- 243 posts
- Joined: Oct. 2007
- Offline
Don't have time to do an exemple scene, but here's a quick and dirty recipe:
-Scatter some points
-Triangulate 2d them (You can also use existing geometry)
-Measure sop the result for every triangle in AREA mode
-Poly extrude the triangle to 0/check only front part of extrude.
-The result should look like scattered points…fuse them to get rid of them overlapping.
-Promote your AREA attribute to points
-Rename area point atribute to “pscale”
-Copy sop any geometry on your scattered point
-Adjust the size of your original copied object so it fits in harmomy
-open a beer and celebrate
I hope I did not miss a step…Cheers!
-Scatter some points
-Triangulate 2d them (You can also use existing geometry)
-Measure sop the result for every triangle in AREA mode
-Poly extrude the triangle to 0/check only front part of extrude.
-The result should look like scattered points…fuse them to get rid of them overlapping.
-Promote your AREA attribute to points
-Rename area point atribute to “pscale”
-Copy sop any geometry on your scattered point
-Adjust the size of your original copied object so it fits in harmomy
-open a beer and celebrate
I hope I did not miss a step…Cheers!
JR Gauthier
Character Animation & Design
www.turboatomic.com
http://www.vimeo.com/user2847970 [vimeo.com]
Character Animation & Design
www.turboatomic.com
http://www.vimeo.com/user2847970 [vimeo.com]
- edward
- Member
- 7899 posts
- Joined: July 2005
- Offline
no no, the packing algorythm is something different. I found out it yet. I need tubes with diferrent radius scattered in area , without intersections with each other the best with some space around each tube.Your problem is still a circle packing problem. In your case, you just want to randomly delete some of the circles after they've been packed.
- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline
hi ,
I tried the procedure what jrgauthier wrote , but it doesn't work, probably some mistake from my side. I'm just learning Houdini , so I dont understatnd all functions , some SOP's so I can't solve some problems.
To edward: I tried to do trough circle packing but it doenst do , what I want. The main problem I see in inaccurate circles/tubes.
better than 1000words is one pic. so I upload here simmilar pic what I want.
It's form arkadiusz rekita seed simulation system.
BUT I dont need his seed ecosystem. I jus want to scatter some Tubes with different radius without interseciton - the best with some “repulsive” force when they are too close to others. (shuld I try it trough particle system?)
I looking for some sources and other solutions . I found http://www.devmag.org.za/articles/55-POISSON-DISK-SAMPLING/#top3 [devmag.org.za]
and the paralel forum for this http://forums.odforce.net/index.php?/topic/10345-even-point-distribution-on-geometry/page__hl__scatter%20__fromsearch__1 [forums.odforce.net]
BUT the problem is , that I don't know how to transform it for my needs.
How to copy Tubes on scattered points and change they radiuses by Stamp function and interactively changing their radius also affect the distances between tubes. It sounds complicated…
I tried the procedure what jrgauthier wrote , but it doesn't work, probably some mistake from my side. I'm just learning Houdini , so I dont understatnd all functions , some SOP's so I can't solve some problems.
To edward: I tried to do trough circle packing but it doenst do , what I want. The main problem I see in inaccurate circles/tubes.
better than 1000words is one pic. so I upload here simmilar pic what I want.
It's form arkadiusz rekita seed simulation system.
BUT I dont need his seed ecosystem. I jus want to scatter some Tubes with different radius without interseciton - the best with some “repulsive” force when they are too close to others. (shuld I try it trough particle system?)
I looking for some sources and other solutions . I found http://www.devmag.org.za/articles/55-POISSON-DISK-SAMPLING/#top3 [devmag.org.za]
and the paralel forum for this http://forums.odforce.net/index.php?/topic/10345-even-point-distribution-on-geometry/page__hl__scatter%20__fromsearch__1 [forums.odforce.net]
BUT the problem is , that I don't know how to transform it for my needs.
How to copy Tubes on scattered points and change they radiuses by Stamp function and interactively changing their radius also affect the distances between tubes. It sounds complicated…
- tamte
- Member
- 8833 posts
- Joined: July 2007
- Online
here is simple example of one of the method how you can do this
it's using VOP SOPs to detect nearest connected point and calculating pscale from that
it can be also done with pointclouds for not connected points
and as you mentioned with particles. More exactly with Interact pop based on particle radius. Then you'll just wait for couple of frames for sim to settle down.
it's using VOP SOPs to detect nearest connected point and calculating pscale from that
it can be also done with pointclouds for not connected points
and as you mentioned with particles. More exactly with Interact pop based on particle radius. Then you'll just wait for couple of frames for sim to settle down.
Tomas Slancik
FX Supervisor
Method Studios, NY
FX Supervisor
Method Studios, NY
- tamte
- Member
- 8833 posts
- Joined: July 2007
- Online
- midorime
- Member
- 31 posts
- Joined:
- Offline
- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline
- tamte
- Member
- 8833 posts
- Joined: July 2007
- Online
the radiuses are calculated from proximity to the neighbour points so if you change distribution of the points, in this case in triangulate2d sop or after, the radiuses will be updated
if you need it to be the other way around (change radiuses -> distribution will compute) you may consider particle method with interact POP i was writing about
if you need it to be the other way around (change radiuses -> distribution will compute) you may consider particle method with interact POP i was writing about
Tomas Slancik
FX Supervisor
Method Studios, NY
FX Supervisor
Method Studios, NY
- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline
- tamte
- Member
- 8833 posts
- Joined: July 2007
- Online
i was posting the solution with interact pop some time ago, but i don't know if it was here or at odforce, you can try to find it. I'll have a look for it too, but i can make another example later.
EDIT: ok, found it http://www.sidefx.com/index.php?option=com_forum&Itemid=172&page=viewtopic&p=83704#83704 [sidefx.com]
but i have already updated the file for your needs, here it is
EDIT: ok, found it http://www.sidefx.com/index.php?option=com_forum&Itemid=172&page=viewtopic&p=83704#83704 [sidefx.com]
but i have already updated the file for your needs, here it is
Tomas Slancik
FX Supervisor
Method Studios, NY
FX Supervisor
Method Studios, NY
- aquarel
- Member
- 13 posts
- Joined: Oct. 2009
- Offline
- jrgauthier
- Member
- 243 posts
- Joined: Oct. 2007
- Offline
WOW this is so awesome guys!
Tamte's solutions are way better than mine, forget about mine!
I almost understand your vop sop solution, it's when i hit the substract node inside the for loop node I can't really understand whats going on… Could you give some precisions?
thanks!
Tamte's solutions are way better than mine, forget about mine!
I almost understand your vop sop solution, it's when i hit the substract node inside the for loop node I can't really understand whats going on… Could you give some precisions?
thanks!
JR Gauthier
Character Animation & Design
www.turboatomic.com
http://www.vimeo.com/user2847970 [vimeo.com]
Character Animation & Design
www.turboatomic.com
http://www.vimeo.com/user2847970 [vimeo.com]
- tamte
- Member
- 8833 posts
- Joined: July 2007
- Online
jrgauthier
…
I almost understand your vop sop solution, it's when i hit the substract node inside the for loop node I can't really understand whats going on… Could you give some precisions?
…
by subtracting two positions you'll get vector from one position to another then length of that vector will give you distance between those points
i could use Distance VOP instead of Subtract and Length VOPs with the same result, but i forgot about if when creating it
what the VOP SOP is doing in short is:
loop through all neignbour points , get closest neighbour by comparing distances to all neighbours in for loop
return smalest distance / 2 as pscale
it will not give you the largest nonintersecting radiuses for tubes but the result is quite ok
you can loop through several iterations of similar VOP SOP where it will be improved by using previously computed pscales to get more accurate result
Tomas Slancik
FX Supervisor
Method Studios, NY
FX Supervisor
Method Studios, NY
- jrgauthier
- Member
- 243 posts
- Joined: Oct. 2007
- Offline
Awesome, thanks alot!
JR Gauthier
Character Animation & Design
www.turboatomic.com
http://www.vimeo.com/user2847970 [vimeo.com]
Character Animation & Design
www.turboatomic.com
http://www.vimeo.com/user2847970 [vimeo.com]
-
