may i ask how to make points created by “scatter” evenly distributed across a irregular surface?

and also, how to make all the scatter points located within the surface?

Thanks!

- Ji

Attachments:
cookie2.hipnc (57.2 KB)
Screen Shot 2012-06-16 at 3.42.13 PM.png (97.9 KB)

 Report
User Avatar
protozoan
Member
1708 posts
Joined: March 2009
Offline

Check this blog posting by Schnelli:

http://schnellhammer.net/blog/2010/06/uniform-scattering-in-houdini/ [schnellhammer.net]
Martin Winkler
money man at Alarmstart Germany
 Report
User Avatar
oat
Member
479 posts
Joined: Dec. 2009
Offline

thanks, protozoan!

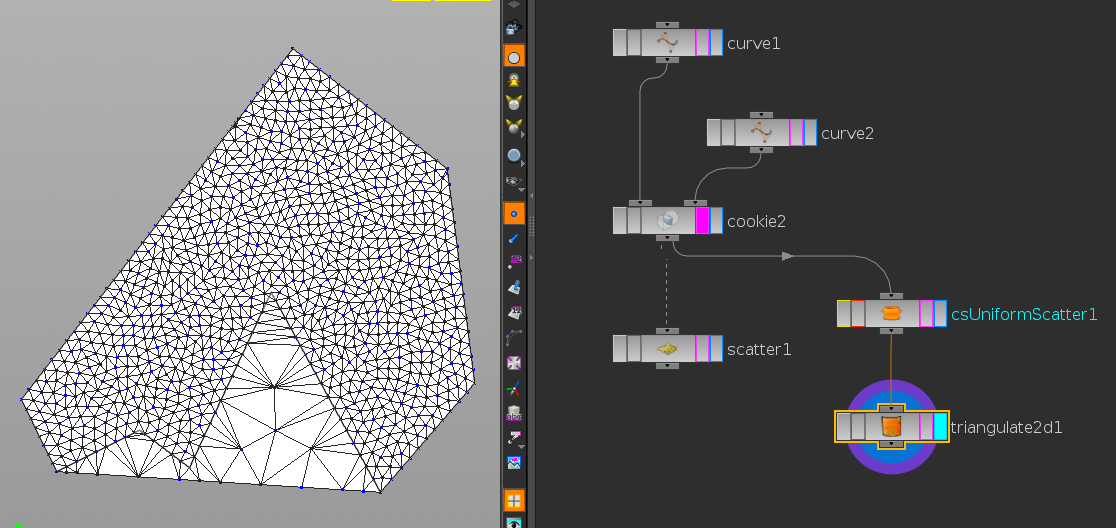

May i ask how to get the triangulation based on the evenly distributed points created as shown in the link you posted?

- Ji

Attachments:
points.hipnc (62.6 KB)
Screen Shot 2012-06-16 at 4.38.36 PM.png (115.6 KB)
csUniformScatter.otl (17.3 KB)

 Report
User Avatar
old_school
Staff
2540 posts
Joined: July 2005
Offline

Here's another brute force way that brickers the geometry with the Divide SOP, over-scatters the points and then uses two Fuse SOPs to first snap and then cull the overlaps.

Attachments:
uniform_scatter_of_points_with_fuse.hipnc (67.7 KB)

There's at least one school like the old school!
 Report
User Avatar
oat
Member
479 posts
Joined: Dec. 2009
Offline

thanks a lot, Jeff!

If it's not too troublesome, can you advise on how to make the 2D triangulation happens only within the boundary as defined by the points?

- Ji
 Report
User Avatar
zarti
Member
330 posts
Joined: July 2007
Offline

oat
.. how to make the 2D triangulation happens only within the boundary as defined by the points?

drop a ClothRefine SOP between the Cookie and Scatter .

// it ‘ sleeps ’ inside the Cloth submenu //
except the things that cannot be seen , nothing is like it seems .
 Report
User Avatar
oat
Member
479 posts
Joined: Dec. 2009
Offline

thanks, Zarti! your suggestion can create similar results.

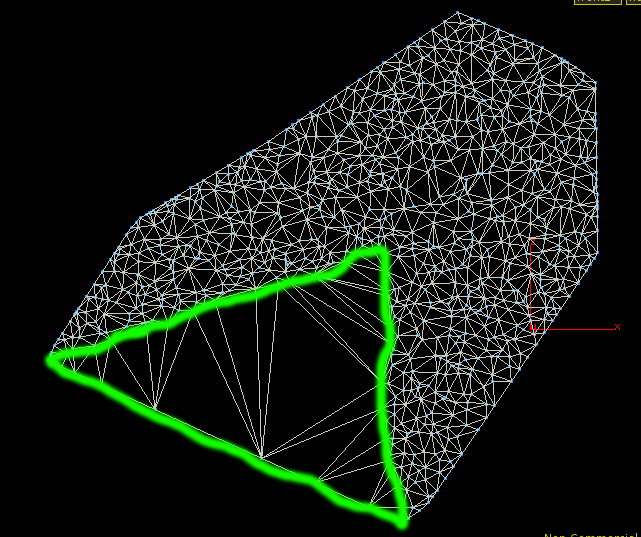

What I want to know is how to get the triangulation based on the points we get from Jeff's approach, i.e. how to get rid of the surfaces highlighted below in yellow boundary as generated by the Triangulation 2D SOP…

Advice is appreciate!

- Ji

Attachments:
Screen Shot 2012-06-16 at 10.45.05_c PM.png (75.7 KB)

 Report
User Avatar
zarti
Member
330 posts
Joined: July 2007
Offline

pardon the delay . problems with internet from here

–
in the above post i just replied to the question ,

which i didnt connected it with the hip-s being shared to that point .

anyway ..

, i made few additions to the file you posted on post #3 ,

where you already solved the point 's distribution .

added few comments too about different small issues ( hopefully ) .


hope that helps ..

Attachments:
pointz_183.hipnc (77.7 KB)

except the things that cannot be seen , nothing is like it seems .
 Report
User Avatar
oat
Member
479 posts
Joined: Dec. 2009
Offline

thank you very much for your advice, Zarti!

will take some time to digest ur approach.

- Ji
 Report
User Avatar
schnelli
Member
14 posts
Joined: Aug. 2009
Offline

Hi,

attached you can find a scene how I made the samples shown on my blog.

I hope this helps.

Cheers

Attachments:
Triangulate2D.hipnc (73.8 KB)

 Report
User Avatar
oat
Member
479 posts
Joined: Dec. 2009
Offline

Dear schnelli, thank you very much! - Ji
 Report
User Avatar
karanpruthi253
Member
1 posts
Joined: Nov. 2018
Offline

plz give me link for download csuniform scatter.
 Report
User Avatar
schnelli
Member
14 posts
Joined: Aug. 2009
Offline

karanpruthi253
plz give me link for download csuniform scatter.

Hi, this is no longer necessary. Houdini's scatter node already contains this feature.
 Report
