Forums Technical Discussion aligning skin curves after boolean

aligning skin curves after boolean

   Views 1833   Replies 5   Subscribers 1
User Avatar
neRahulgirish
Member
5 posts
Joined: Dec. 2018
Offline

Hey guys,

I am an architect/designer and currently trying to learn Houdini to see its potential in Architecture.

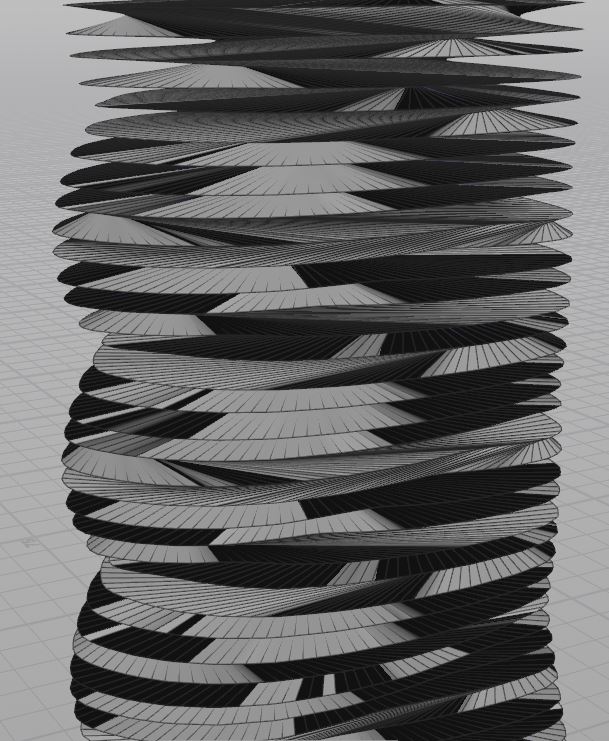

I am having an issue which seems to be simple but I cannot figure out. I have a smooth geometry which I boolean with a series of boxes. I then isolate the top and bottom surfaces to rebuild the curves and skin together to create a clean surface. However the Skin looks like a mess. I assumed it would have something to do with point order but that's not fixing the issue?

Am I missing something?
Edited by neRahulgirish - May 21, 2020 19:01:49

Attachments:

 Report
User Avatar
jsmack
Member
8127 posts
Joined: Sept. 2011
Offline

The sections should all be wound in the same order and with the same number of vertices and lined up to skin smoothly.
 Report
User Avatar
neRahulgirish
Member
5 posts
Joined: Dec. 2018
Offline

How would one go about sorting the point/vertex order for each primitive so it matches. I have the same num of points for each section.. I am currently trying to use match topology SOP however that seems to not be aligning the point order with the reference section. I have attached a the file with the problem isolated.

Image Not Found

Attachments:
section_skin_attempt.hipnc (185.2 KB)

 Report
User Avatar
neRahulgirish
Member
5 posts
Joined: Dec. 2018
Offline

Even crazier!
I managed to sort the point order to match however skin OP doesn't actually even use the point order, instead it uses the default vertex order. How can I get the vertex order to follow the point order?

Attachments:

 Report
User Avatar
tamte
Member
9130 posts
Joined: July 2007
Offline

here is one way

Attachments:
section_skin_fix.hipnc (212.5 KB)

Tomas Slancik
CG Supervisor
Framestore, NY
 Report
User Avatar
neRahulgirish
Member
5 posts
Joined: Dec. 2018
Offline

That is brilliant!
I understand the logic behind that solution, thanks a lot Tomas!
