GA_AIFMath.h File Reference

#include "GA_API.h"
#include "GA_Types.h"
#include <UT/UT_VectorTypes.h>
#include <SYS/SYS_Types.h>

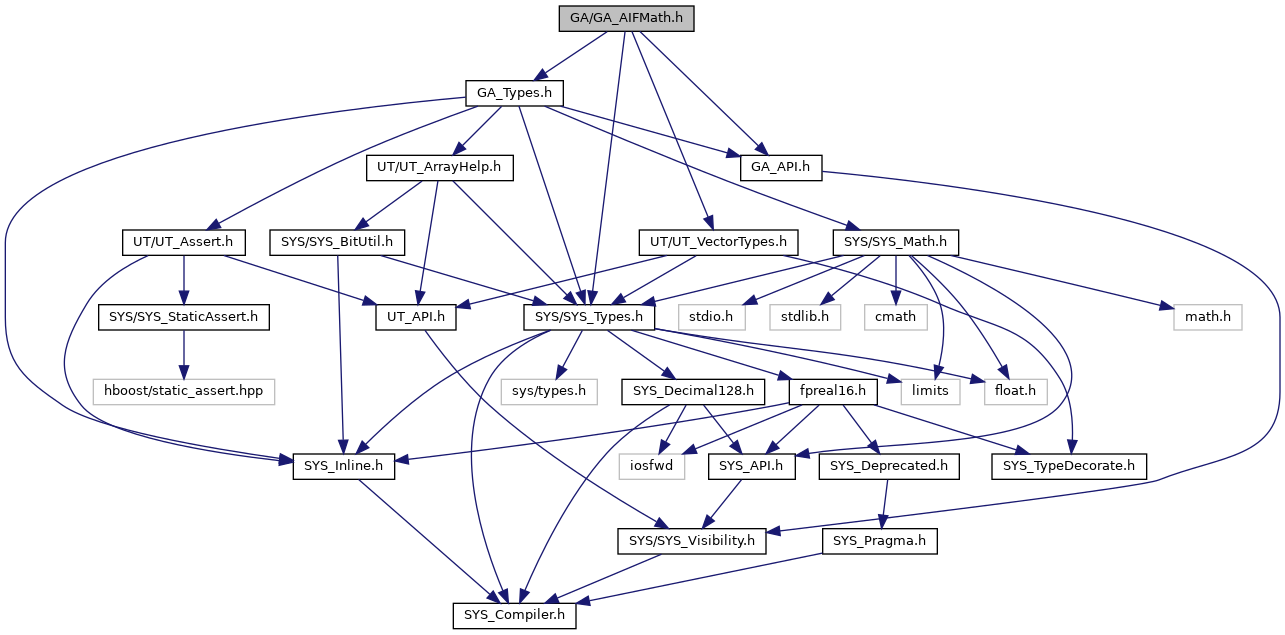

Include dependency graph for GA_AIFMath.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GA_AIFMath
	Attribute Interface class to perform numeric operations on attributes. More...

Macros
#define	GA_MATH_SPEC_BINARY_PURE(NAME)
#define	GA_MATH_SPEC_BINARY(NAME)
	Convenience define for sub-class implementations. More...
#define	GA_MATH_SPEC_TRANSFORM_PURE(DTYPE, FTYPE, NAME)
#define	GA_MATH_SPEC_TRANSFORM(DTYPE, FTYPE, NAME)

Macro Definition Documentation

#define GA_MATH_SPEC_BINARY

(

NAME

)

Value:

bool            NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                fpreal b, int component=-1) const override; \
        bool            NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                const fpreal32 *b, int tuple_size, \
                                int component=-1) const override; \
        bool            NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                const fpreal64 *b, int tuple_size, \
                                int component=-1) const override; \
        bool            NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                const GA_Attribute &b, GA_Offset bi, \
                                int component=-1) const override;

Convenience define for sub-class implementations.

Definition at line 121 of file GA_AIFMath.h.

#define GA_MATH_SPEC_BINARY_PURE

(

NAME

)

Value:

virtual bool    NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                fpreal b, int component=-1) const = 0; \
        virtual bool    NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                const fpreal32 *b, int tuple_size, \
                                int component=-1) const = 0; \
        virtual bool    NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                const fpreal64 *b, int tuple_size, \
                                int component=-1) const = 0; \
        virtual bool    NAME(GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &a, GA_Offset ai, \
                                const GA_Attribute &b, GA_Offset bi, \
                                int component=-1) const = 0;

Specialization macro for binary operations. This macro provides 9 specializations for various combinations of parameters. In the base class, these methods simply call the generic implementations of the operations, returning false if the attribute doesn't support required elements.

Definition at line 103 of file GA_AIFMath.h.

#define GA_MATH_SPEC_TRANSFORM	(		DTYPE,
			FTYPE,
			NAME
	)

Value:

bool            NAME(const DTYPE &xform, \
                            GA_Attribute &d, GA_Offset di, \
                            const GA_Attribute &s, \
                            GA_Offset si) const override; \
        bool            NAME(const FTYPE &xform, \
                            GA_Attribute &d, GA_Offset di, \
                            const GA_Attribute &s, GA_Offset si) const override;

Definition at line 155 of file GA_AIFMath.h.

#define GA_MATH_SPEC_TRANSFORM_PURE	(		DTYPE,
			FTYPE,
			NAME
	)

Value:

virtual bool    NAME(const DTYPE &xform, \
                                GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &s, GA_Offset si) const=0; \
        virtual bool    NAME(const FTYPE &xform, \
                                GA_Attribute &d, GA_Offset di, \
                                const GA_Attribute &s, GA_Offset si) const=0;

Definition at line 147 of file GA_AIFMath.h.
