This glossary defines terms and concepts related to the Copernicus (COPs) network.

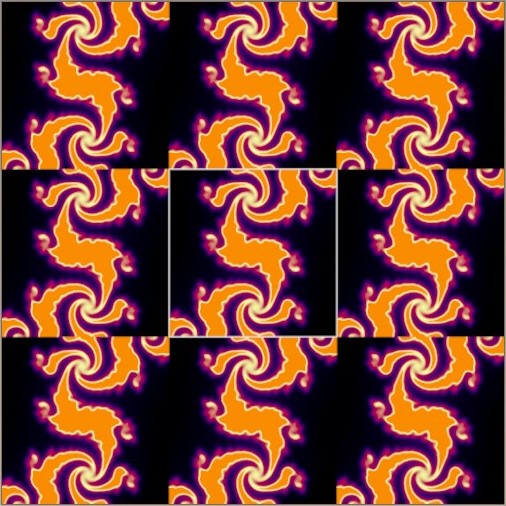

The Border parameter controls the sampling behavior outside of the incoming layer’s boundaries (represented by the outline in the following images). For a COP Network node and COP Network SOP, this sets the context option default_border, which is an integer context option that encodes the border type of layers.

The channel extension rules apply in the following scenarios:

• When you try to extract a channel that’s not in the input layer, Houdini extends the layer with additional values to support the extracted channel. By extending the layers, Houdini automatically converts them into the required layer.

• When you wire different layers together, Houdini extends the input layer with additional values to make the layers match.

The following are the channel extension rules that Houdini applies. A dash (-) means that the conversion is not supported.

The type of data that travels through a wire, which the input and output types are based on. See the following type descriptions for more information. ID, Mono, UV, RGB, and RGBA are layer types.

The Filter parameter controls how you sample your image. Based on part of the image, this parameter determines the single color that multiple areas of your image combine into if they're treated as a single pixel.

For example, a black and white checkerboard pattern can appear uniformly gray when you view the pattern from far away. The light from multiple areas of the pattern combine to look gray because from a far distance the space between squares is too small to sufficiently and separately resolve each square. You can use the Filter parameter to determine which color the areas of the pattern combine into.

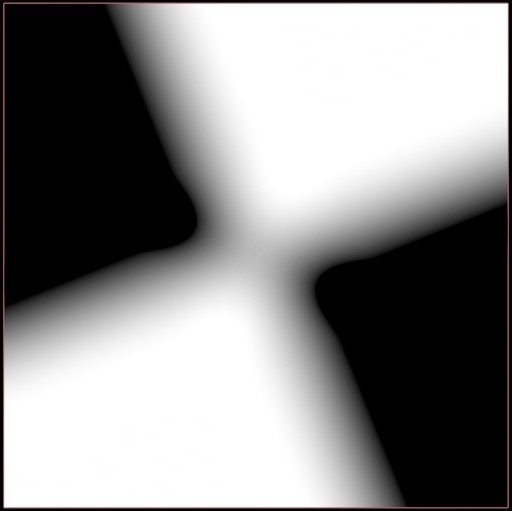

The following table includes examples for each Filter value.

The Copernicus network uses and refers to image space. For more information, see Spaces.

The Mask parameter mixes the original incoming value with the node operation’s value to provide global masking.

COP nodes that support masking also have a mask input for spatially varying the mask.

Copernicus uses signed and offset normals. For more information, see Normals.

A signature refers to the set of input types that a COP node accepts and the output types it generates. A COP node can have multiple signatures. COPs with multiple signatures have a Signature parameter to control them.

For example, the Checkerboard COP might generate an alternating pattern in a Mono or RGB layer, and these two modes of operation correspond to two different signatures. Another example of a node with multiple signatures is the Remap COP. The Remap COP changes an input layer’s values by passing it through a simple function. It supports working on layers of different types. The node can remap a single floating point value (its Mono signature) or work on the components of a 4-channel image (its RGBA signature).

For COP nodes that can determine the output type based on the inputs, the Signature parameter has a Select Automatically option that internally picks the signature that best matches the incoming data types. You can change the Signature value to override the node’s mode of operation.

For example, you can set the Remap COPs' Signature parameter to RGBA so it outputs a 4-channel image even if a single channel input is wired in. In this case, the channel extension rules apply and treat the input Mono layer as the expected input type of the signature (RGBA).

A signed distance field (SDF) stores the minimum distance between a point in space and the surface of a shape. The values are negative inside the shape and positive outside of the shape.

The Copernicus network includes a slap composite that lets you view approximate and live results of a final composite. For more information, see Slap comp.

The Type Info parameter is used on a layer to determine how the node interprets data. For example, an RGB layer can store colors or 3D positions. See the following value descriptions for more information.
