MPM Configure Landslide

On this page

There are several MPM Configure examples available through the tab menu. These are similar to shelf tools that put down networks of nodes for learning purposes. The MPM Configure Landslide example illustrates the use of the “chunky” Soil material type. It puts down a simple network of nodes to simulate a cliff chunk made of soil and grass detaching and sliding down a slope.

Important nodes

landslide_soil

This is the MPM Source that uses the Soil material preset. The main differences are two parameter changes from the default. The Density has been increased to 1500, the Compression Hardening has been increased to 8, and the Stiffness has been increased to 5. This is to make the soil hold together. There is also some initial Velocity added to the soil to help it detach from the cliff.

modify_material_attributes

If you dive inside this subnet there are a few Attribute Wrangle nodes that are used to add details to the soil.

noise_E1

Adds some spatial variation to the stiffness of the soil by setting bounds for how soft and how stiff the soil can be.

set_grass_attribs

Sets up the grass so it behaves differently than the soil beneath.

set_colors1

Sets colors to better visualize the grass and soil areas.

tweak_vel

Modifies the initial velocity set on the MPM Source so that the bottom of the soil is pulled down in the direction of the slope with more intensity than the top, allowing for it to collapse on itself.

pin_points1

Pins some points to the surface of the slope collider, which you can visualize when the MPM Solver is selected. This helps with the transition between the sources and the collider, giving it a more organic look.

slope_smooth and slope_sticky

The slope is split into two MPM Colliders with varying friction. slope_smooth represents the sheer face of the slope and has very low Friction. This will allow the soil going down the hill to pick up some speed. slope_sticky is a collider with much higher friction, which will cause the soil to stick to it and start to tumble and roll as opposed to just sliding down.

mpmcontainer

The MPM Container defines the resolution of the simulation using the Particle Separation parameter and sets limits on whether particles should be deleted or bounce on contact with the boundary.

mpmsolver

This setup uses a default MPM Solver, which does the work of solving the scene.

Learning from this example

To...Do this

Visualize the areas of varied stiffness in the soil

  1. Dive inside the modify_material_attributes subnet and select the noise_E1 node.

  2. Remove the two backslashes in this line of code to bind the noise to the color attribute:

    //@Cd = noise;

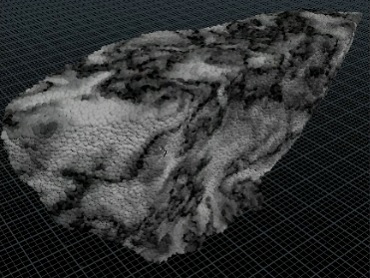

    The soil is softer in the black areas and stiffer in the lighter areas. This variation makes the soil look more organic.

Tip

You can turn on the Bypass flag on for this node to see how the varied stiffness in the soil affects the way the soil behaves.

Simplify the example

  • Bypass the split slope with varying friction nodes (high_friction_volume, sdf_sticky, and slope_sticky) and just use a single collider to see the difference.

  • Bypass all of the modify_material_attributes to see the difference it makes, then add them back one-by-one to see how each achieves a different effect.

Tip

 You can also try changing the input geometry as a way to learn from this example.
